Commercial
Non-Insulated
Terminals

Filter
09-0263-1-04
09-0263-1-04
09-0263-1-04
0.140" - - Swage Mount 0.125" 3/32 0.043 Brass Electro-Tin YES

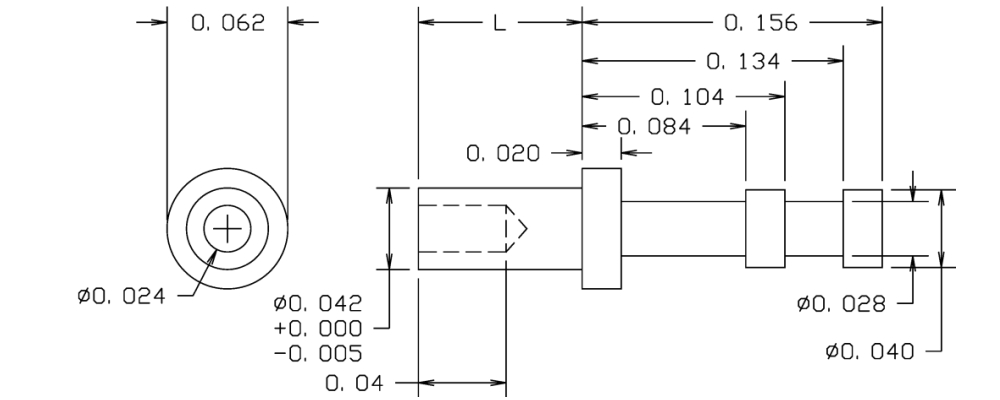

09-0310-2-03
09-0310-2-03
09-0310-2-03
0.240" - - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
09-0377-1-088
09-0377-1-088
09-0377-1-088
0.531" - - Swage Mount 0.063" 1/32 0.076 Brass Bright Tin-Lead NO
09-7017-4-03
09-7017-4-03
09-7017-4-03
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Gold YES
09-7132-2-044
09-7132-2-044
09-7132-2-044
0.853" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Bright Tin YES
09-7160-2-03
09-7160-2-03
09-7160-2-03
0.373" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Gold YES
09-7193-2-05
09-7193-2-05
09-7193-2-05
0.494" - - RIVET MOUNT 0.125" 1/16 0.116 Brass Electro Solder NO
09-8041-3-035
09-8041-3-035
09-8041-3-035
0.283" 0.032 TURRET/PC PIN Swage Mount 0.115" 3/32 0.067 Brass Gold YES
09-8072-2-05
09-8072-2-05
09-8072-2-05
0.460" 0.020 (+0.000/-0.001) - Swage Mount 0.085" 1/16 0.031 Brass Electro Solder NO
09-8133-2-035
09-8133-2-035
09-8133-2-035
0.301" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Gold YES
09-8165-2-088
09-8165-2-088
09-8165-2-088
1.375" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Bright Tin-Lead NO
09-8251-2A-035
09-8251-2A-035
09-8251-2A-035
0.197" - - Swage Mount 0.093" 1/16 0.076 Brass Gold YES
09-8422-4-05
09-8422-4-05
09-8422-4-05
0.307" - - Swage Mount 0.156" 1/8 0.067 Brass Electro Solder NO
09-8642-2-044
09-8642-2-044
09-8642-2-044
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8761-3-088
09-8761-3-088
09-8761-3-088
0.860" 0.060 - Swage Mount 0.125" 3/32 0.0635 Brass Bright Tin-Lead NO

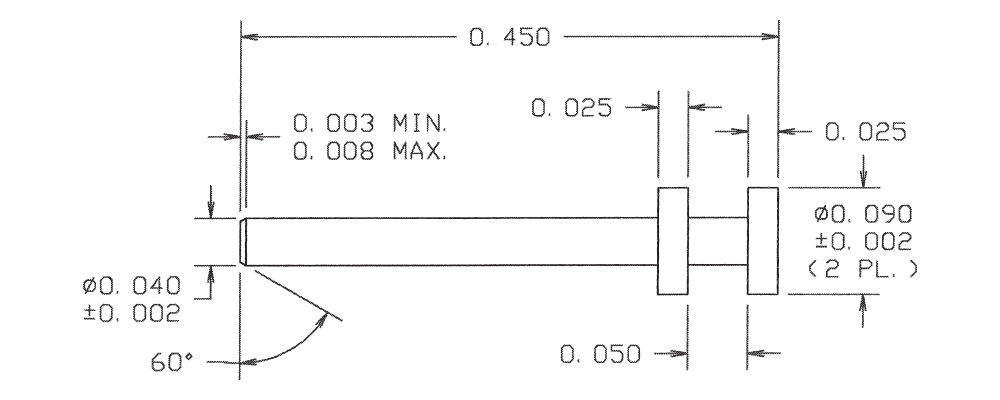

09-8842-1-01
09-8842-1-01
09-8842-1-01
0.450" 0.040 - - - - - Brass Silver YES

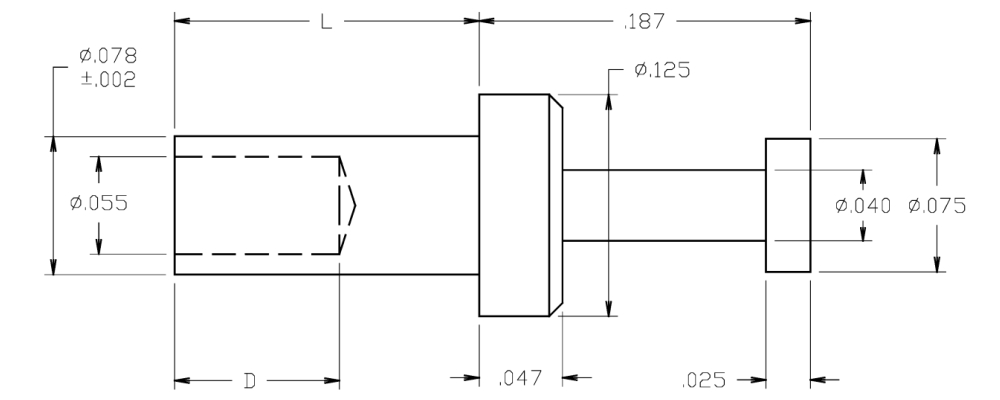

10-102-1-04
10-102-1-04
10-102-1-04
0.265" - - Swage Mount 0.078" 1/32 0.082 Brass Electro-Tin YES
10-108-2-095
10-108-2-095
10-108-2-095
0.177" - - Swage Mount 0.084" 1/16 0.067 Brass Hot Solder Dip NO
10-117-4-04
10-117-4-04
10-117-4-04
0.241" - - Swage Mount 0.147" 1/8 0.067 Brass Electro-Tin YES
10-138-1-05
10-138-1-05
10-138-1-05
0.295" - - Swage Mount 0.045" 1/32 0.067 Brass Electro Solder NO
