Commercial
Non-Insulated
Terminals

Filter
10-102-1-044
10-102-1-044
10-102-1-044
0.265" - - Swage Mount 0.078" 1/32 0.082 Brass Bright Tin YES

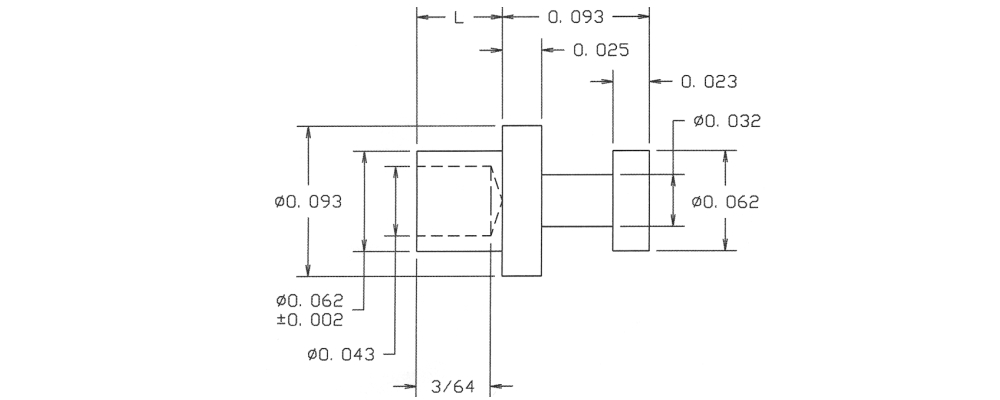

10-108-3-01
10-108-3-01
10-108-3-01
0.208" - - Swage Mount 0.115" 3/32 0.067 Brass Silver YES
10-117-4-044
10-117-4-044
10-117-4-044
0.241" - - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin YES
10-138-1-088
10-138-1-088
10-138-1-088
0.295" - - Swage Mount 0.045" 1/32 0.067 Brass Bright Tin-Lead NO
10-207-3-044
10-207-3-044
10-207-3-044
0.369" - - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES
10-215-4-035
10-215-4-035
10-215-4-035
0.301" - - Swage Mount 0.147" 1/8 0.063 Brass Gold YES

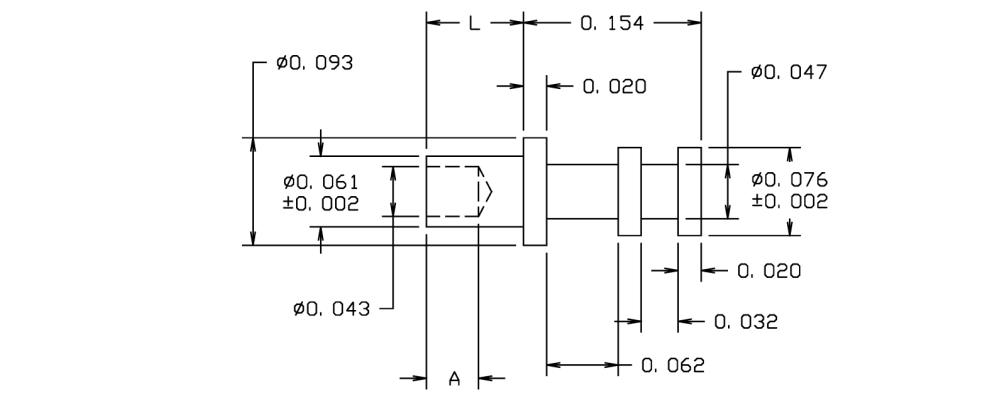

10-225-3-044
10-225-3-044
10-225-3-044
0.269" - - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES
10-240-1-01
10-240-1-01
10-240-1-01
0.439" - - Swage Mount 0.075" 1/32 0.116 Brass Silver YES

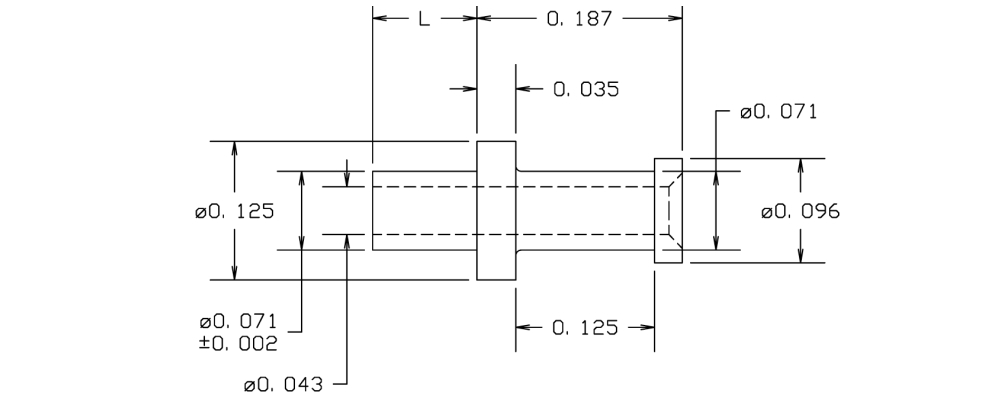

10-301-1-03
10-301-1-03
10-301-1-03
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Gold YES
10-309-5-03
10-309-5-03
10-309-5-03
0.512" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES
10-318-1-05
10-318-1-05
10-318-1-05
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-336-1-035
10-336-1-035
10-336-1-035
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Gold YES

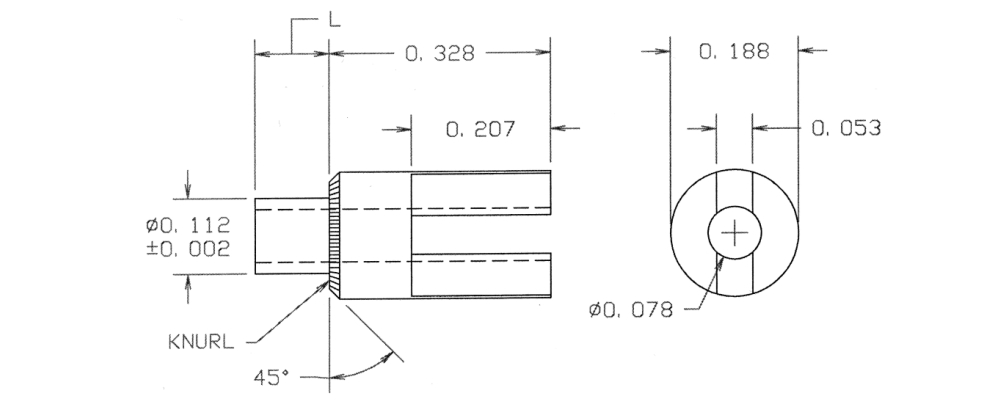

10-411-1-088
10-411-1-088
10-411-1-088
0.406" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead NO

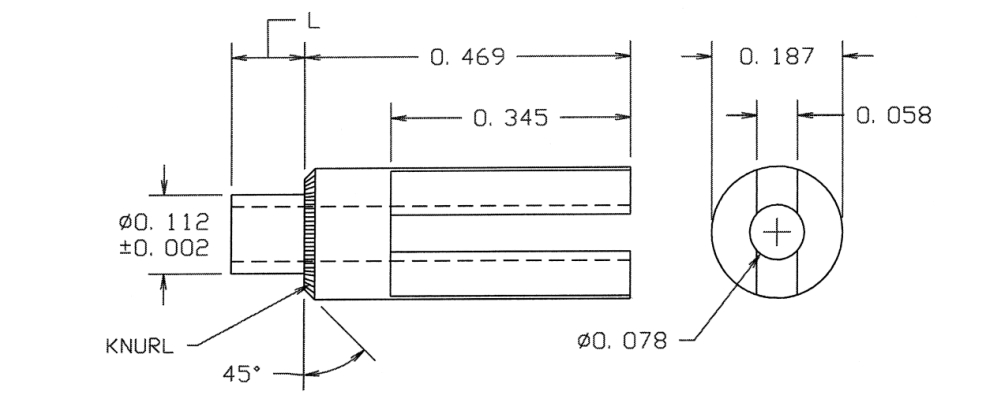

10-421-4-01
10-421-4-01
10-421-4-01
0.634" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES
10-441-1-01
10-441-1-01
10-441-1-01
0.419" - - Swage Mount 0.075" 1/32 0.1405 Brass Silver YES
10-456-2-044
10-456-2-044
10-456-2-044
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin YES
10-467-5-01
10-467-5-01
10-467-5-01
0.883" - - Swage Mount 0.195" 5/32 0.1875 Brass Silver YES

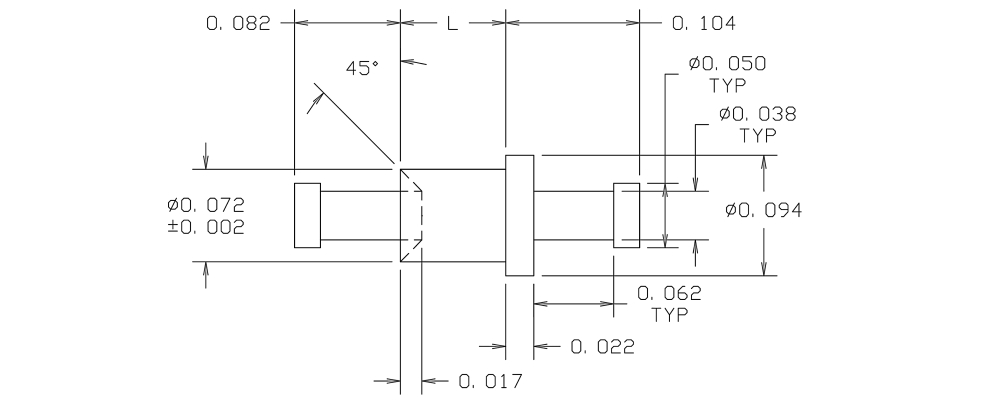

10-501-11-05
10-501-11-05
10-501-11-05
0.223" - Turret/Turret Swage Mount 0.037" 1/64 0.076 Brass Electro Solder NO
10-506-6-05
10-506-6-05
10-506-6-05
0.500" - Turret/Turret Swage Mount 0.219" 3/16 0.120 Brass Electro Solder NO

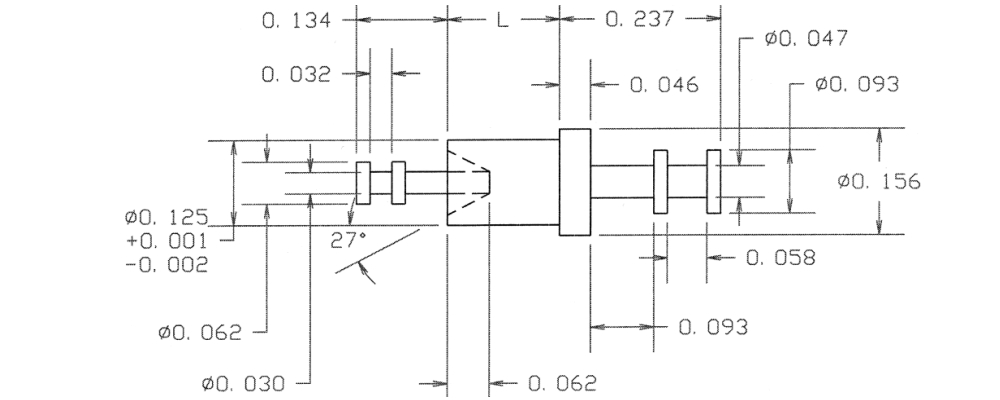

10-512-6-05
10-512-6-05
10-512-6-05
0.599" - Double Turret/Double Turret Swage Mount 0.228" 3/16 0.129 Brass Electro Solder NO
