Commercial
Non-Insulated
Terminals

Filter
10-266-4-095
10-266-4-095
10-266-4-095
0.303" - - Swage Mount 0.147" 1/8 0.206 Brass Hot Solder Dip NO
10-309-4-088
10-309-4-088
10-309-4-088
0.482" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO
10-318-1-04
10-318-1-04
10-318-1-04
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-336-1-01
10-336-1-01
10-336-1-01
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Silver YES
10-411-1-044
10-411-1-044
10-411-1-044
0.406" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-421-3-05
10-421-3-05
10-421-3-05
0.604" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
10-434-4-05
10-434-4-05
10-434-4-05
0.433" - - Swage Mount 0.165" 1/8 0.189 Brass Electro Solder NO
10-456-2-035
10-456-2-035
10-456-2-035
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

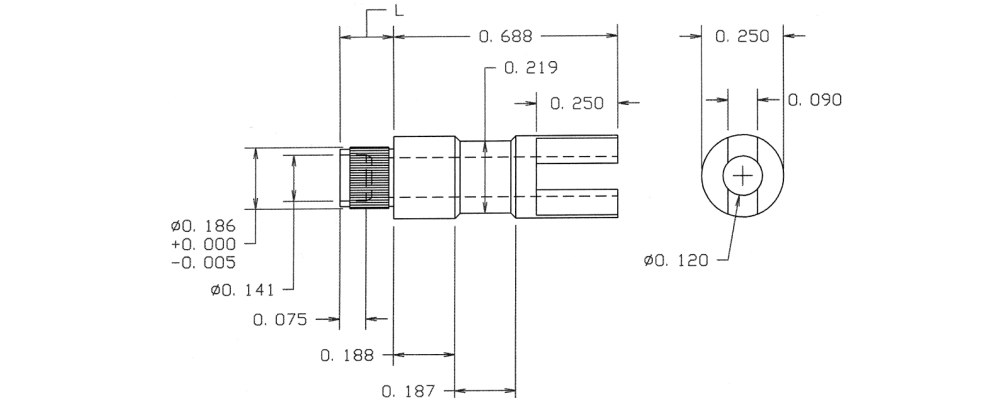

10-467-4-05
10-467-4-05
10-467-4-05
0.853" - - Swage Mount 0.165" 1/8 0.1875 Brass Electro Solder NO
10-501-11-04
10-501-11-04
10-501-11-04
0.223" - Turret/Turret Swage Mount 0.037" 1/64 0.076 Brass Electro-Tin YES
10-506-6-04
10-506-6-04
10-506-6-04
0.500" - Turret/Turret Swage Mount 0.219" 3/16 0.120 Brass Electro-Tin YES
10-512-6-04
10-512-6-04
10-512-6-04
0.599" - Double Turret/Double Turret Swage Mount 0.228" 3/16 0.129 Brass Electro-Tin YES
10-521-6-04
10-521-6-04
10-521-6-04
0.683" 0.094 Pin/Pin Swage Mount 0.230" 3/16 0.185 Brass Electro-Tin YES
10-541-4-04
10-541-4-04
10-541-4-04
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-556-2-04
10-556-2-04
10-556-2-04
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES
10-603-3-05
10-603-3-05
10-603-3-05
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO
10-704-10-035
10-704-10-035
10-704-10-035
0.469" - - 4-40 - - 4-40 THREAD Brass Gold YES
10-801-1-088
10-801-1-088
10-801-1-088
0.379" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
10-8021-3-04
10-8021-3-04
10-8021-3-04
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
10-806-1-088
10-806-1-088
10-806-1-088
0.505" - - Swage Mount 0.078" 1/32 0.094 Brass Bright Tin-Lead NO
