Commercial
Non-Insulated
Terminals

Filter
10-411-1-04
10-411-1-04
10-411-1-04
0.406" - - Swage Mount 0.078" 1/32 0.116 Brass Electro-Tin YES
10-421-3-044
10-421-3-044
10-421-3-044
0.604" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin YES
10-434-4-044
10-434-4-044
10-434-4-044
0.433" - - Swage Mount 0.165" 1/8 0.189 Brass Bright Tin YES

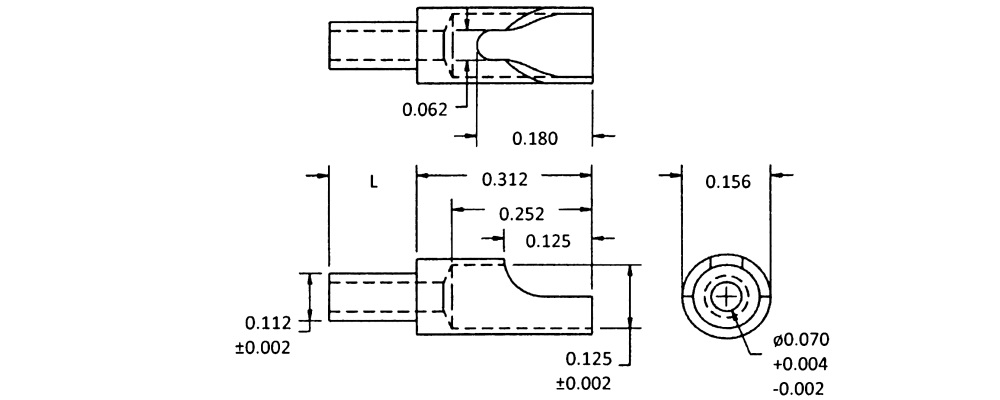

10-456-2-03
10-456-2-03
10-456-2-03
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

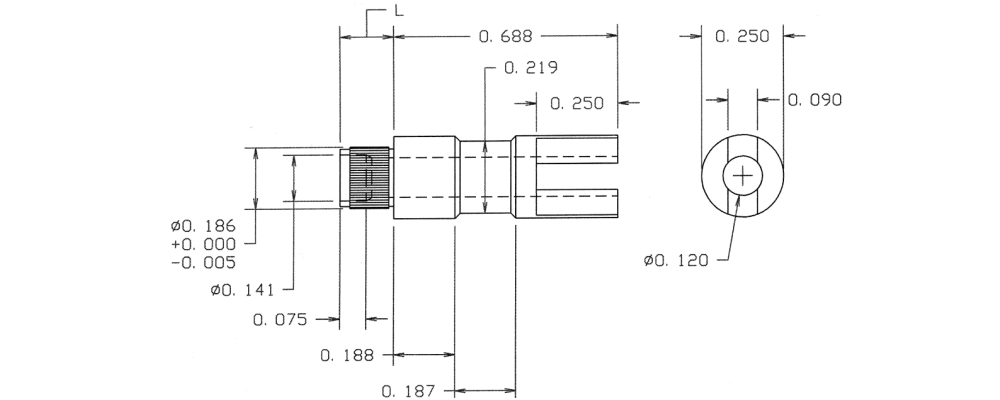

10-467-4-044
10-467-4-044
10-467-4-044
0.853" - - Swage Mount 0.165" 1/8 0.1875 Brass Bright Tin YES
10-501-11-035
10-501-11-035
10-501-11-035
0.223" - Turret/Turret Swage Mount 0.037" 1/64 0.076 Brass Gold YES
10-506-6-035
10-506-6-035
10-506-6-035
0.500" - Turret/Turret Swage Mount 0.219" 3/16 0.120 Brass Gold YES
10-512-6-035
10-512-6-035
10-512-6-035
0.599" - Double Turret/Double Turret Swage Mount 0.228" 3/16 0.129 Brass Gold YES
10-521-6-035
10-521-6-035
10-521-6-035
0.683" 0.094 Pin/Pin Swage Mount 0.230" 3/16 0.185 Brass Gold YES
10-541-4-035
10-541-4-035
10-541-4-035
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-556-2-035
10-556-2-035
10-556-2-035
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.116 Brass Gold YES

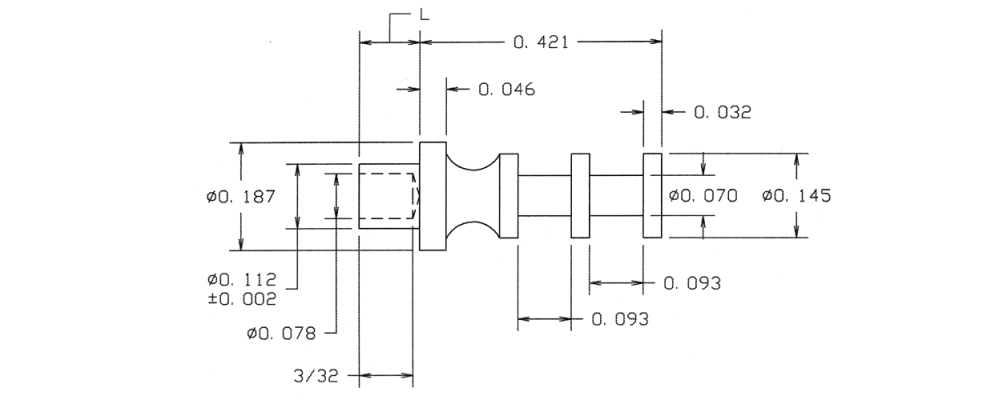

10-603-3-044
10-603-3-044
10-603-3-044
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin YES
10-704-10-03
10-704-10-03
10-704-10-03
0.469" - - 4-40 - - 4-40 THREAD Brass Gold YES

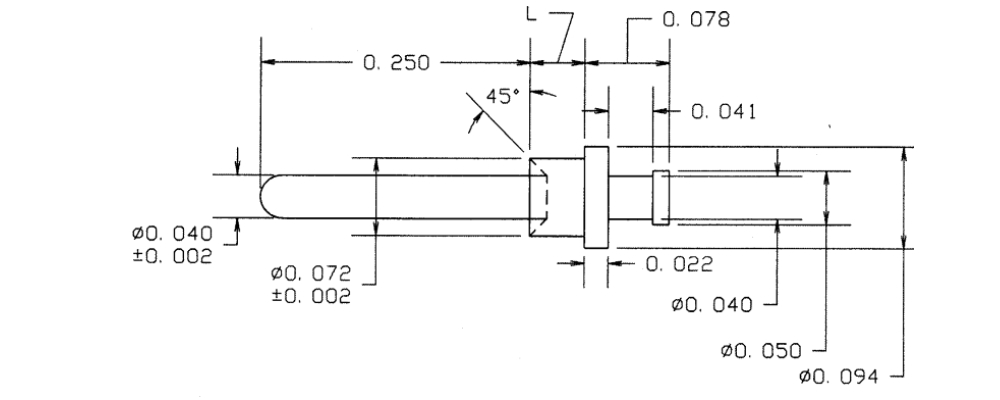

10-801-1-05
10-801-1-05
10-801-1-05
0.379" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO
10-8021-3-035
10-8021-3-035
10-8021-3-035
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES

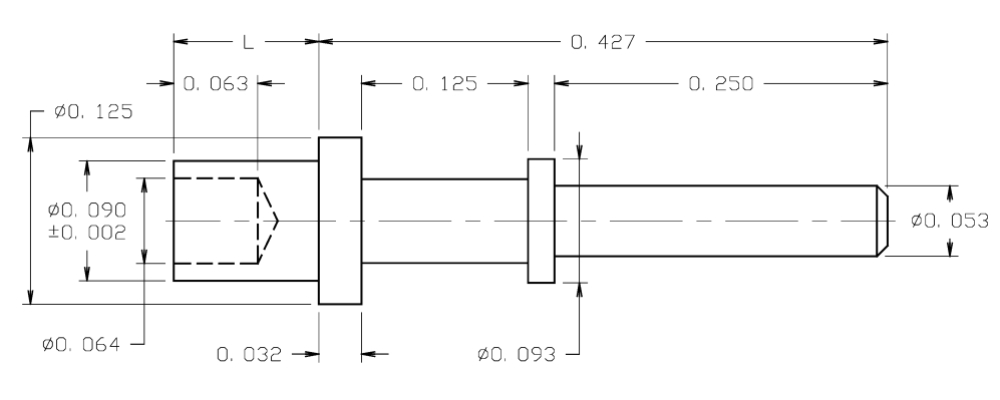

10-806-1-05
10-806-1-05
10-806-1-05
0.505" - - Swage Mount 0.078" 1/32 0.094 Brass Electro Solder NO
10-811-6-05
10-811-6-05
10-811-6-05
0.546" - - Swage Mount 0.234" 3/16 0.1495 Brass Electro Solder NO
10-821-1-05
10-821-1-05
10-821-1-05
0.408" 0.040 Pin/Pin Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-831-8-01
10-831-8-01
10-831-8-01
0.469" 0.050 - Swage Mount 0.281" 1/4 0.064 Brass Silver YES

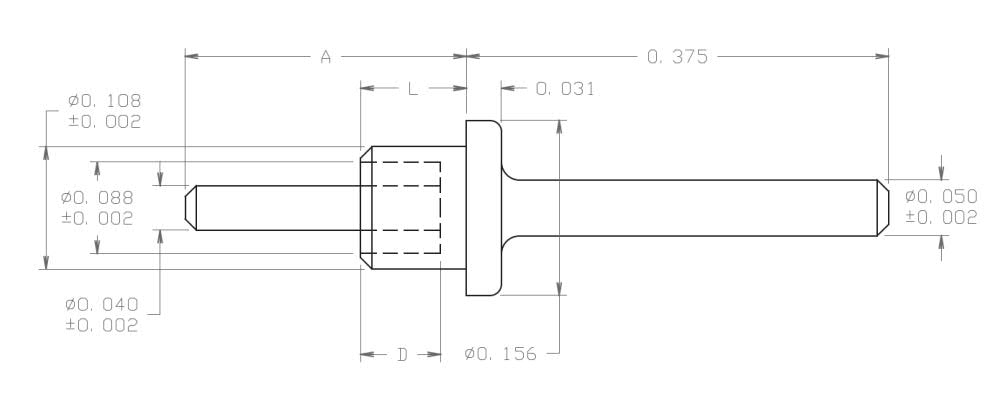

10-839-4-044
10-839-4-044
10-839-4-044
0.875" 0.050 Pin/Pin Swage Mount 0.156" 1/8 0.111 Brass Bright Tin YES
