Commercial
Non-Insulated
Terminals

Filter
10-207-3-04
10-207-3-04
10-207-3-04
0.369" - - Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES
10-215-4-03
10-215-4-03
10-215-4-03
0.301" - - Swage Mount 0.147" 1/8 0.063 Brass Gold YES
10-225-3-04
10-225-3-04
10-225-3-04
0.269" - - Swage Mount 0.115" 3/32 0.067 Brass Electro-Tin YES
10-238-4-095
10-238-4-095
10-238-4-095
0.593" - - Swage Mount 0.172" 1/8 0.116 Brass Hot Solder Dip NO
10-301-1-01
10-301-1-01
10-301-1-01
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Silver YES
10-309-5-01
10-309-5-01
10-309-5-01
0.512" - - Swage Mount 0.195" 5/32 0.116 Brass Silver YES

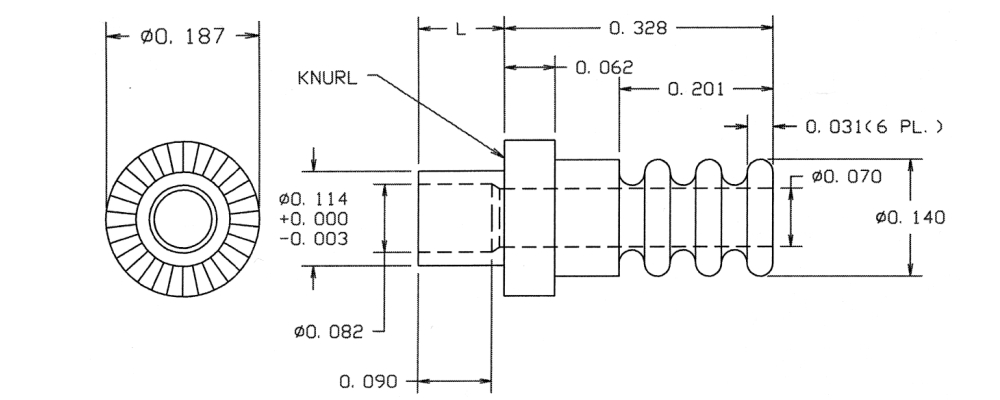

10-318-1-044
10-318-1-044
10-318-1-044
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin YES
10-336-1-03
10-336-1-03
10-336-1-03
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Gold YES
10-411-1-05
10-411-1-05
10-411-1-05
0.406" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
10-421-3-088
10-421-3-088
10-421-3-088
0.604" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-434-4-088
10-434-4-088
10-434-4-088
0.433" - - Swage Mount 0.165" 1/8 0.189 Brass Bright Tin-Lead NO

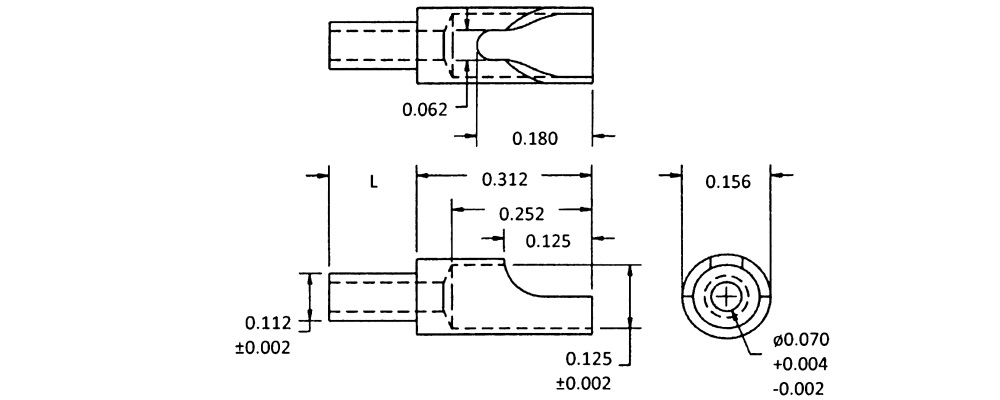

10-456-2-04
10-456-2-04
10-456-2-04
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Electro-Tin YES

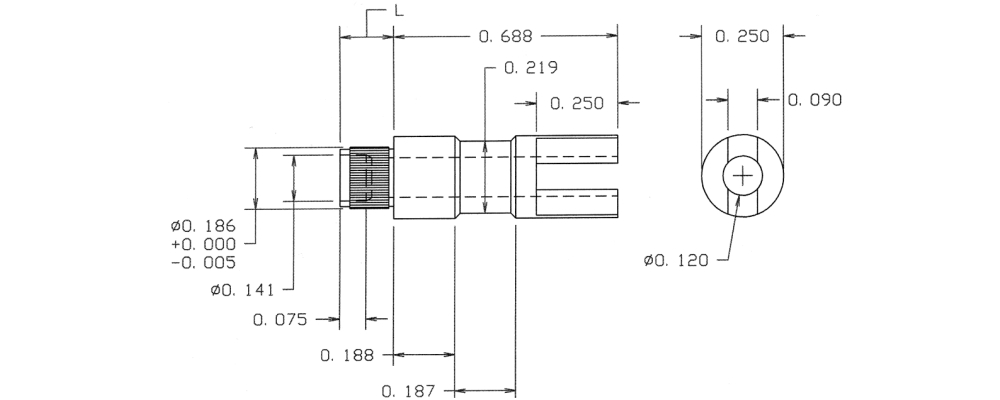

10-467-4-088
10-467-4-088
10-467-4-088
0.853" - - Swage Mount 0.165" 1/8 0.1875 Brass Bright Tin-Lead NO

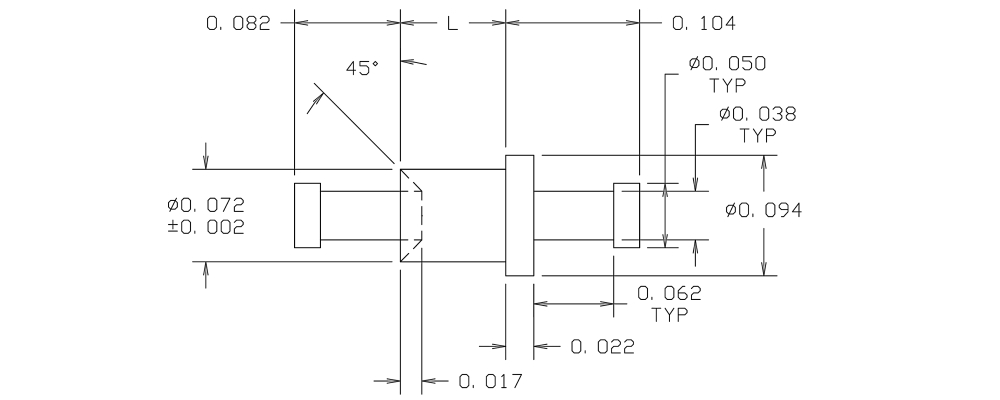

10-501-11-044
10-501-11-044
10-501-11-044
0.223" - Turret/Turret Swage Mount 0.037" 1/64 0.076 Brass Bright Tin YES
10-506-6-044
10-506-6-044
10-506-6-044
0.500" - Turret/Turret Swage Mount 0.219" 3/16 0.120 Brass Bright Tin YES

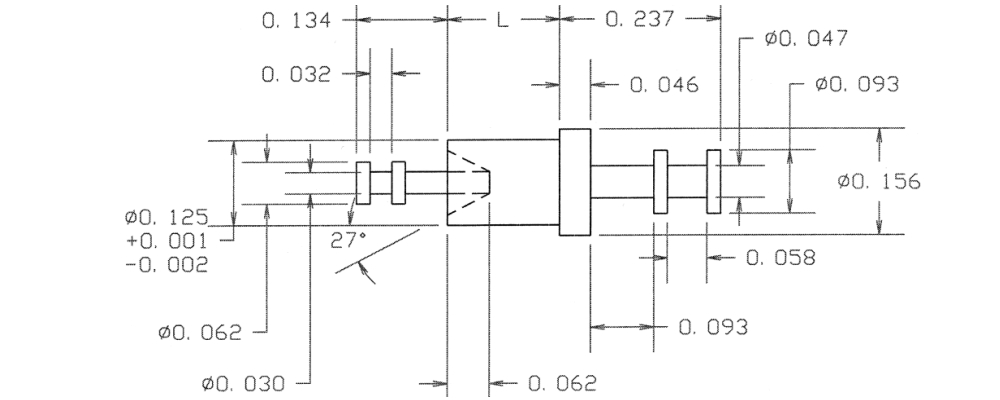

10-512-6-044
10-512-6-044
10-512-6-044
0.599" - Double Turret/Double Turret Swage Mount 0.228" 3/16 0.129 Brass Bright Tin YES
10-521-6-044
10-521-6-044
10-521-6-044
0.683" 0.094 Pin/Pin Swage Mount 0.230" 3/16 0.185 Brass Bright Tin YES
10-541-4-044
10-541-4-044
10-541-4-044
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-556-2-044
10-556-2-044
10-556-2-044
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES
10-603-3-088
10-603-3-088
10-603-3-088
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
