Commercial
Non-Insulated
Terminals

Filter
09-8794-1-044
09-8794-1-044
09-8794-1-044
0.150" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin YES
09-8794-1-04
09-8794-1-04
09-8794-1-04
0.150" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Electro-Tin YES
10-431-3-04
10-431-3-04
10-431-3-04
0.188" - - Swage Mount 0.108" 3/32 0.036 Brass Electro-Tin YES
09-0150-4-03
09-0150-4-03
09-0150-4-03
0.217" - - Swage Mount 0.147" 1/8 0.037 Brass Gold YES
10-509-2-05
10-509-2-05
10-509-2-05
0.751" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.204 Brass Electro Solder NO
10-938-3-044
10-938-3-044
10-938-3-044
0.457" 0.038 - Swage Mount 0.132" 3/32 0.042 Brass Bright Tin YES
10-417-2-05
10-417-2-05
10-417-2-05
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder NO
10-417-2-03
10-417-2-03
10-417-2-03
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

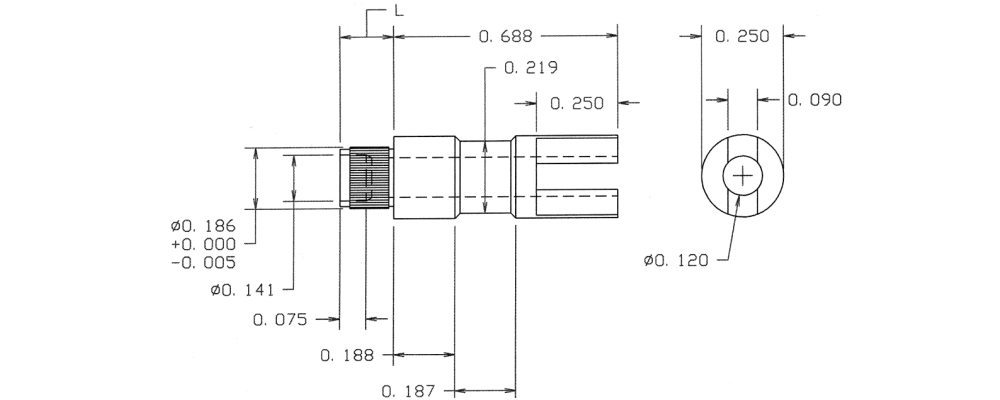

10-467-5-03
10-467-5-03
10-467-5-03
0.883" - - Swage Mount 0.195" 5/32 0.1875 Brass Gold YES
10-467-5-01
10-467-5-01
10-467-5-01
0.883" - - Swage Mount 0.195" 5/32 0.1875 Brass Silver YES
10-711-1-03
10-711-1-03
10-711-1-03
0.593" - - 4-40 Screw - - CLEARANCE FOR #4 Screw Brass Gold YES
09-8002-1-035
09-8002-1-035
09-8002-1-035
1.053" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Gold YES
10-710-2-01
10-710-2-01
10-710-2-01
0.531" - DOUBLE TURRET/THREAD Swage Mount 0.094" 1/16 0.144 Brass Silver YES
10-710-2-04
10-710-2-04
10-710-2-04
0.531" - DOUBLE TURRET/THREAD Swage Mount 0.094" 1/16 0.144 Brass Electro-Tin YES
09-0066-2A-04
09-0066-2A-04
09-0066-2A-04
0.202" - - Swage Mount 0.098" 1/16 0.076 Brass Electro-Tin YES
10-878-1-03
10-878-1-03
10-878-1-03
0.384" 0.040 Pin/Pin Swage Mount 0.051" 1/32 0.076 Brass Gold YES
09-8171-2-04
09-8171-2-04
09-8171-2-04
0.924" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
10-894-1-088
10-894-1-088
10-894-1-088
0.316" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
10-894-2-03
10-894-2-03
10-894-2-03
0.347" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-501-3-095
10-501-3-095
10-501-3-095
0.299" - Turret/Turret Swage Mount 0.113" 3/32 0.076 Brass Hot Solder Dip NO
