Commercial
Non-Insulated
Terminals

Filter

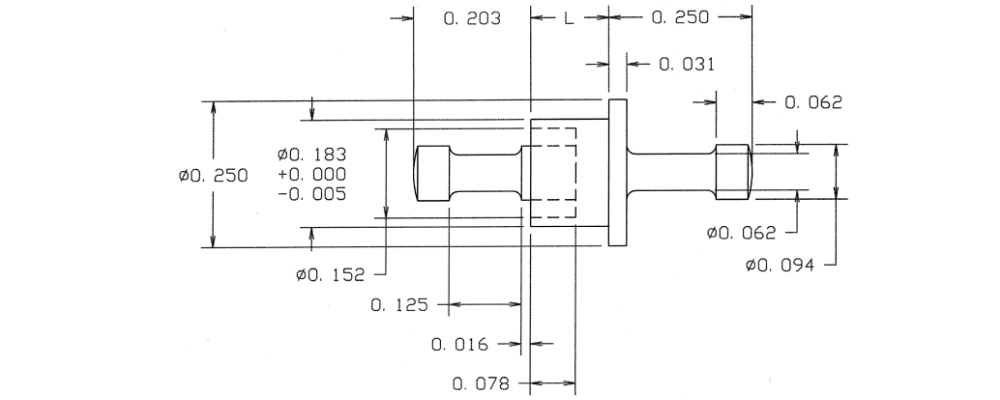

10-521-6-01
10-521-6-01
10-521-6-01
0.683" 0.094 Pin/Pin Swage Mount 0.230" 3/16 0.185 Brass Silver YES

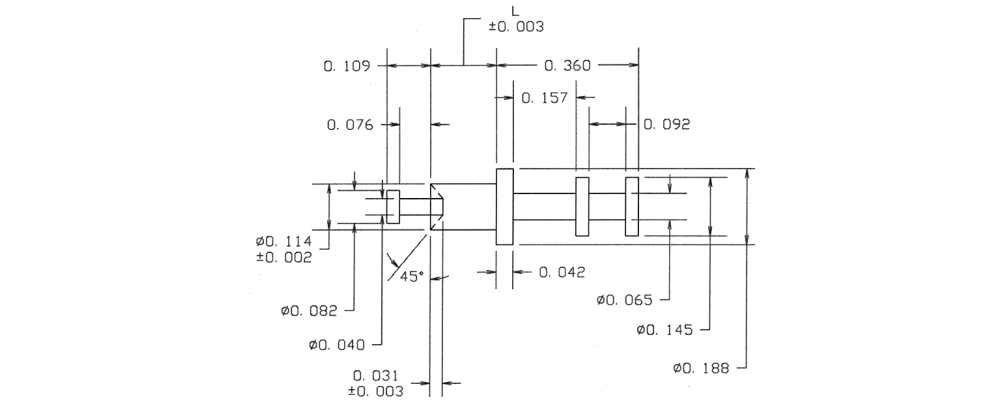

10-541-4-01
10-541-4-01
10-541-4-01
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Silver YES

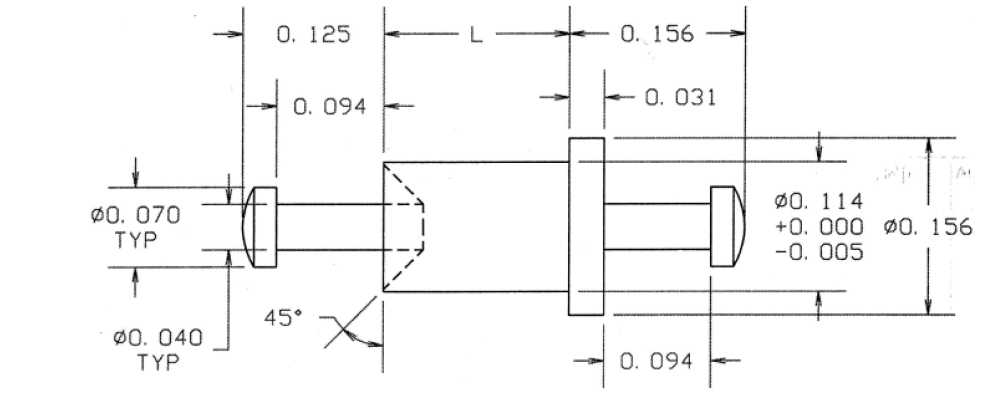

10-556-2-01
10-556-2-01
10-556-2-01
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.116 Brass Silver YES
10-603-3-035
10-603-3-035
10-603-3-035
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-703-8-088
10-703-8-088
10-703-8-088
0.431" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO
10-801-1-04
10-801-1-04
10-801-1-04
0.379" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro-Tin YES
10-8021-3-01
10-8021-3-01
10-8021-3-01
0.433" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
10-806-1-04
10-806-1-04
10-806-1-04
0.505" - - Swage Mount 0.078" 1/32 0.094 Brass Electro-Tin YES
10-811-6-04
10-811-6-04
10-811-6-04
0.546" - - Swage Mount 0.234" 3/16 0.1495 Brass Electro-Tin YES
10-821-1-04
10-821-1-04
10-821-1-04
0.408" 0.040 Pin/Pin Swage Mount 0.075" 1/32 0.094 Brass Electro-Tin YES
10-831-6-05
10-831-6-05
10-831-6-05
0.407" 0.050 - Swage Mount 0.219" 3/16 0.064 Brass Electro Solder NO

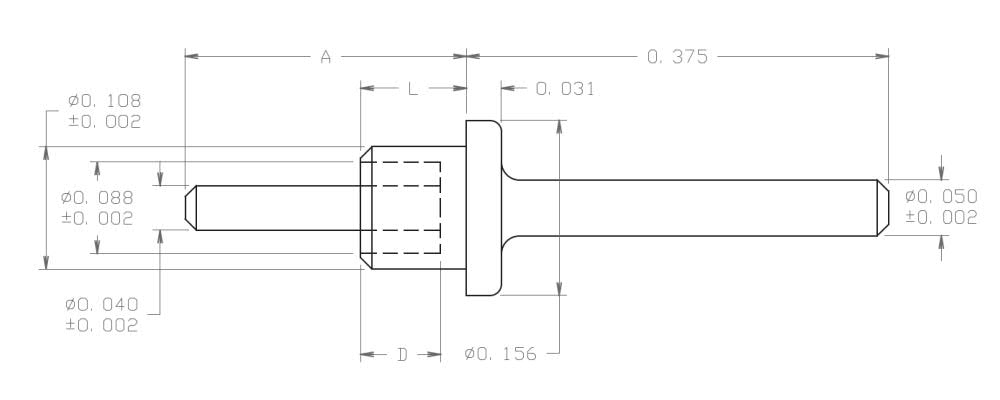

10-839-4-035
10-839-4-035
10-839-4-035
0.875" 0.050 Pin/Pin Swage Mount 0.156" 1/8 0.111 Brass Gold YES
10-861-2-088
10-861-2-088
10-861-2-088
0.266" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin-Lead NO
10-878-2-044
10-878-2-044
10-878-2-044
0.415" 0.040 Pin/Pin Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
10-901-2-04
10-901-2-04
10-901-2-04
0.250" 0.060 - Swage Mount 0.094" 1/16 0.064 Brass Electro-Tin YES
10-916-1-035
10-916-1-035
10-916-1-035
0.371" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
10-930-2-05
10-930-2-05
10-930-2-05
0.198" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO
10-973-1-088
10-973-1-088
10-973-1-088
0.821" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
14-351-5-04
14-351-5-04
14-351-5-04
0.520" - - Swage Mount 0.195" 5/32 0.196 LEADED Red Brass Electro-Tin YES
09-0302-1-04
09-0302-1-04
09-0302-1-04
0.225" - - Swage Mount 0.075" 1/16 0.094 Brass Electro-Tin YES
