Commercial
Non-Insulated
Terminals

Filter
09-0050-3-04
09-0050-3-04
09-0050-3-04
0.453" - - Swage Mount 0.141" 3/32 0.140 Brass Electro-Tin YES
09-0116-2-035
09-0116-2-035
09-0116-2-035
0.219" - - Swage Mount 0.094" 1/16 0.076 Brass Gold YES
09-0175-4-04
09-0175-4-04
09-0175-4-04
0.305" - - Swage Mount 0.150" 1/8 0.063 Brass Electro-Tin YES
09-0217-5-04
09-0217-5-04
09-0217-5-04
0.445" - - Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES
09-0260-1-095
09-0260-1-095
09-0260-1-095
0.376" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Hot Solder Dip NO
09-0310-11-05
09-0310-11-05
09-0310-11-05
0.193" - - Swage Mount 0.037" 1/64 0.043 Brass Electro Solder NO
09-0377-1-035
09-0377-1-035
09-0377-1-035
0.531" - - Swage Mount 0.063" 1/32 0.076 Brass Gold YES
09-7017-3-05
09-7017-3-05
09-7017-3-05
0.285" - - Swage Mount 0.125" 3/32 0.055 LEADED Red Brass Electro Solder NO
09-7132-2-01
09-7132-2-01
09-7132-2-01
0.853" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Silver YES
09-7159-2-044
09-7159-2-044
09-7159-2-044
0.318" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Bright Tin YES

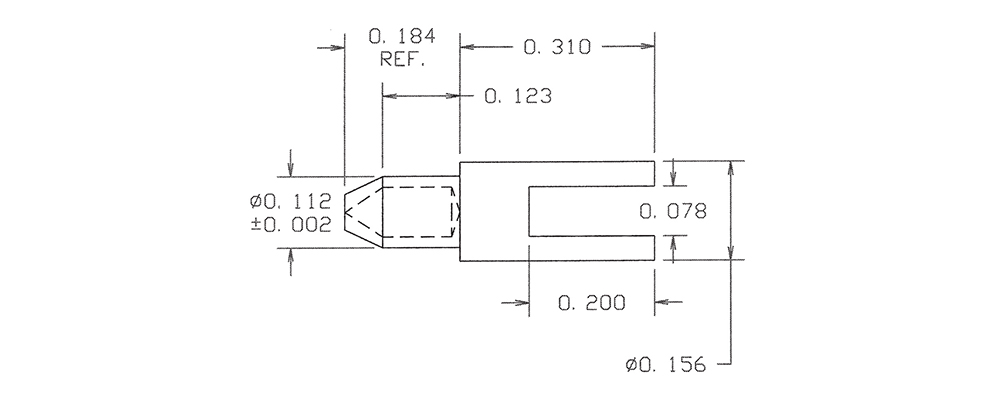

09-7193-2-03
09-7193-2-03
09-7193-2-03
0.494" - - RIVET MOUNT 0.125" 1/16 0.116 Brass Gold YES
09-8041-2-05
09-8041-2-05
09-8041-2-05
0.252" 0.032 TURRET/PC PIN Swage Mount 0.084" 1/16 0.067 Brass Electro Solder NO
09-8072-2-03
09-8072-2-03
09-8072-2-03
0.460" 0.020 (+0.000/-0.001) - Swage Mount 0.085" 1/16 0.031 Brass Gold YES
09-8132-2-05
09-8132-2-05
09-8132-2-05
0.271" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

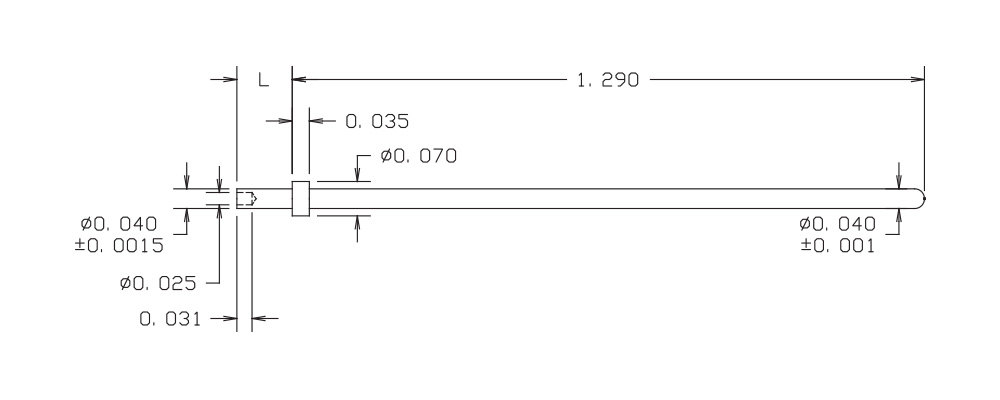

09-8165-2-035
09-8165-2-035
09-8165-2-035
1.375" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Gold YES
09-8251-2-088
09-8251-2-088
09-8251-2-088
0.202" - - Swage Mount 0.098" 1/16 0.076 Brass Bright Tin-Lead NO
09-8422-4-03
09-8422-4-03
09-8422-4-03
0.307" - - Swage Mount 0.156" 1/8 0.067 Brass Gold YES
09-8642-2-01
09-8642-2-01
09-8642-2-01
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

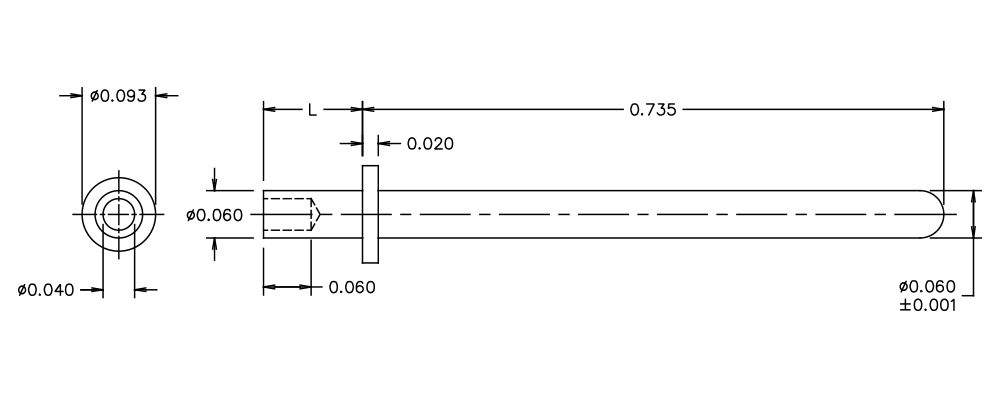

09-8761-3-035
09-8761-3-035
09-8761-3-035
0.860" 0.060 - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
09-8841-1-04
09-8841-1-04
09-8841-1-04
0.300" 0.040 - - - - - Brass Electro-Tin YES
