Commercial
Non-Insulated
Terminals

Filter
10-414-3-01
10-414-3-01
10-414-3-01
0.269" - - Swage Mount 0.113" 3/32 0.052 Brass Silver YES
10-449-11-044
10-449-11-044
10-449-11-044
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Bright Tin YES
10-471-4-03
10-471-4-03
10-471-4-03
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Gold YES
14-414-1-05
14-414-1-05
14-414-1-05
0.208" - - Swage Mount 0.051" 1/32 0.052 LEADED Red Brass Electro Solder NO
09-0050-3-044
09-0050-3-044
09-0050-3-044
0.453" - - Swage Mount 0.141" 3/32 0.140 Brass Bright Tin YES
09-0116-2-04
09-0116-2-04
09-0116-2-04
0.219" - - Swage Mount 0.094" 1/16 0.076 Brass Electro-Tin YES

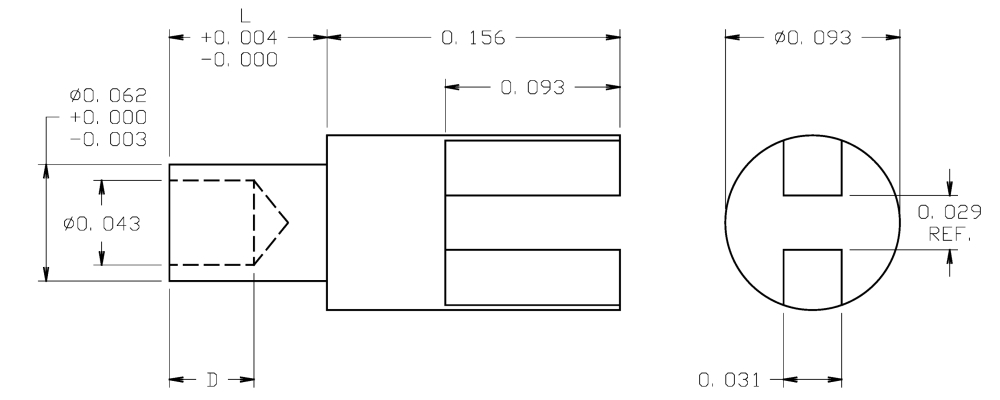

09-0175-4-044
09-0175-4-044
09-0175-4-044
0.305" - - Swage Mount 0.150" 1/8 0.063 Brass Bright Tin YES
09-0217-5-044
09-0217-5-044
09-0217-5-044
0.445" - - Swage Mount 0.165" 1/8 0.094 Brass Bright Tin YES
09-0263-1-01
09-0263-1-01
09-0263-1-01
0.140" - - Swage Mount 0.125" 3/32 0.043 Brass Silver YES

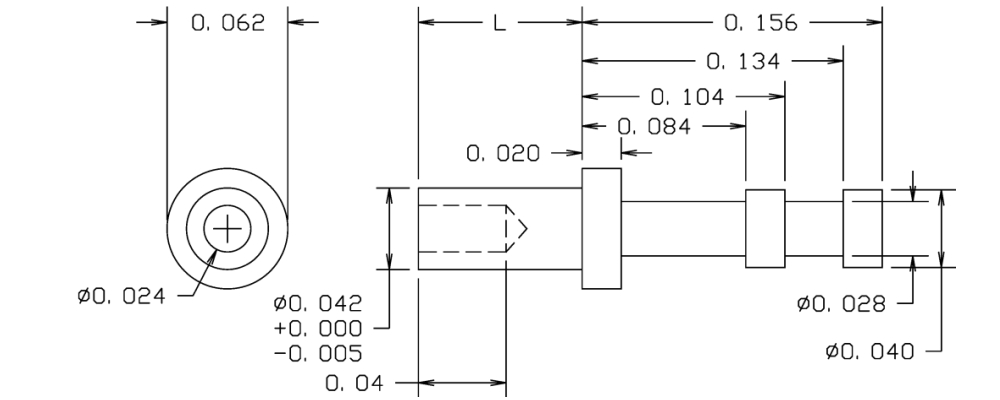

09-0310-11-088
09-0310-11-088
09-0310-11-088
0.193" - - Swage Mount 0.037" 1/64 0.043 Brass Bright Tin-Lead NO
09-0377-1-04
09-0377-1-04
09-0377-1-04
0.531" - - Swage Mount 0.063" 1/32 0.076 Brass Electro-Tin YES
09-7017-3-088
09-7017-3-088
09-7017-3-088
0.285" - - Swage Mount 0.125" 3/32 0.055 LEADED Red Brass Bright Tin-Lead NO

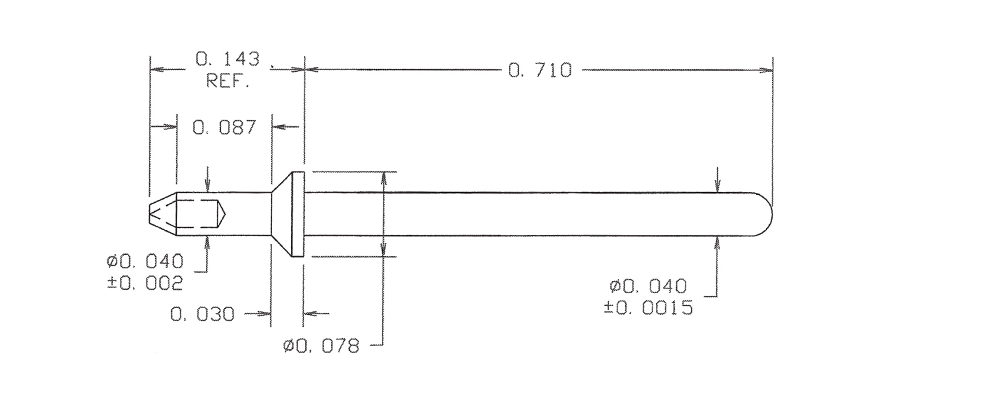

09-7132-2-03
09-7132-2-03
09-7132-2-03
0.853" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES
09-7159-2-05
09-7159-2-05
09-7159-2-05
0.318" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Electro Solder NO
09-7193-2-035
09-7193-2-035
09-7193-2-035
0.494" - - RIVET MOUNT 0.125" 1/16 0.116 Brass Gold YES
09-8041-2-088
09-8041-2-088
09-8041-2-088
0.252" 0.032 TURRET/PC PIN Swage Mount 0.084" 1/16 0.067 Brass Bright Tin-Lead NO

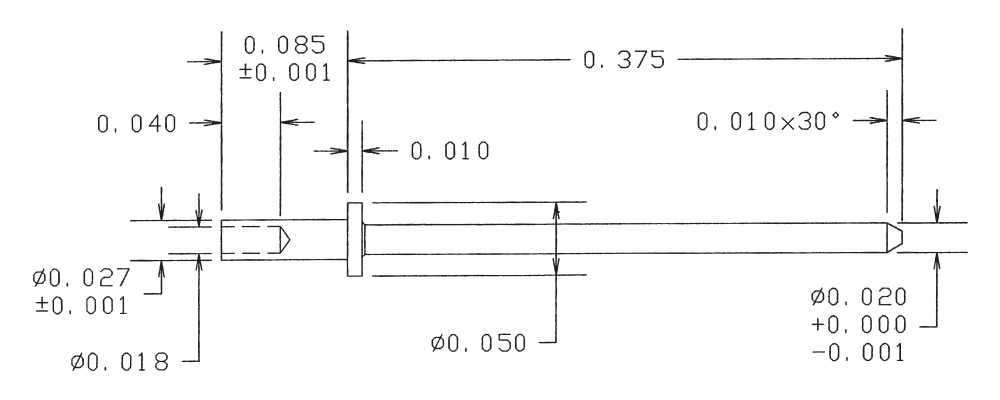

09-8072-2-035
09-8072-2-035
09-8072-2-035
0.460" 0.020 (+0.000/-0.001) - Swage Mount 0.085" 1/16 0.031 Brass Gold YES
09-8132-2-088
09-8132-2-088
09-8132-2-088
0.271" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO

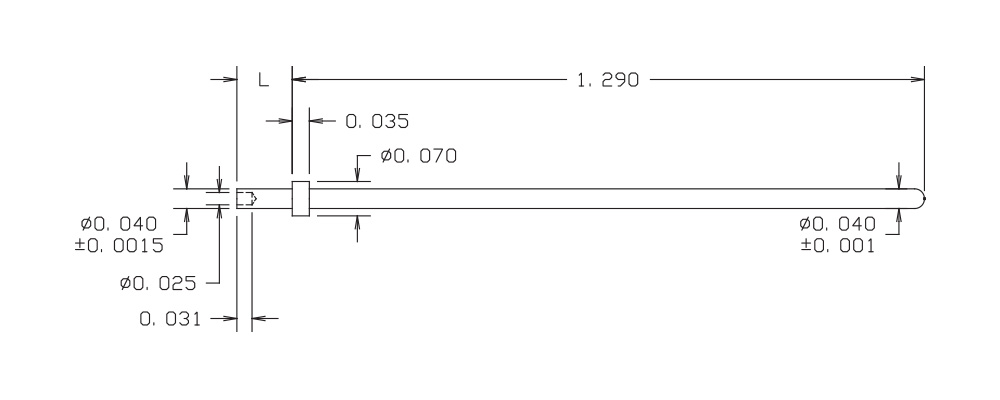

09-8165-2-04
09-8165-2-04
09-8165-2-04
1.375" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Electro-Tin YES

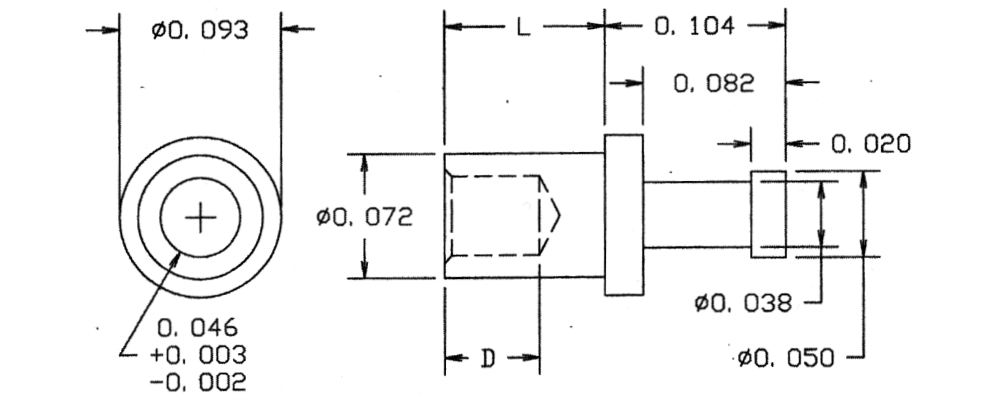

09-8251-2-095
09-8251-2-095
09-8251-2-095
0.202" - - Swage Mount 0.098" 1/16 0.076 Brass Hot Solder Dip NO
