Commercial
Non-Insulated
Terminals

Filter

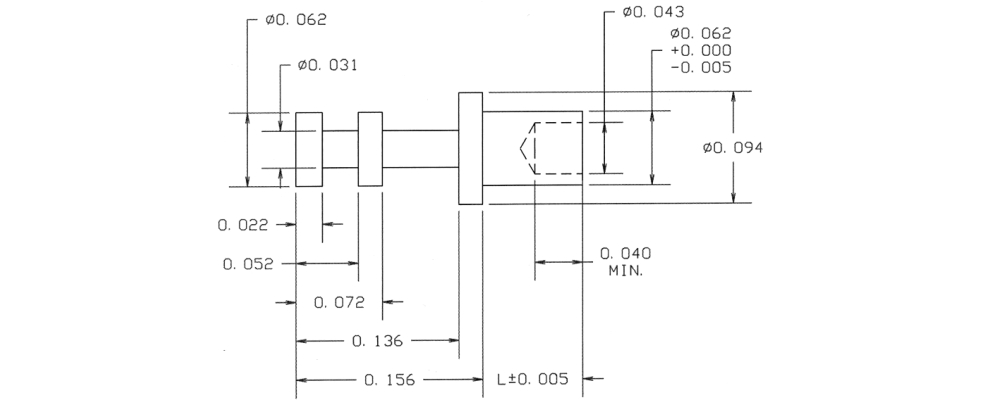

10-266-3-05
10-266-3-05
10-266-3-05
0.271" - - Swage Mount 0.115" 3/32 0.206 Brass Electro Solder NO
10-309-3-04
10-309-3-04
10-309-3-04
0.452" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES
10-317-4-01
10-317-4-01
10-317-4-01
0.477" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES

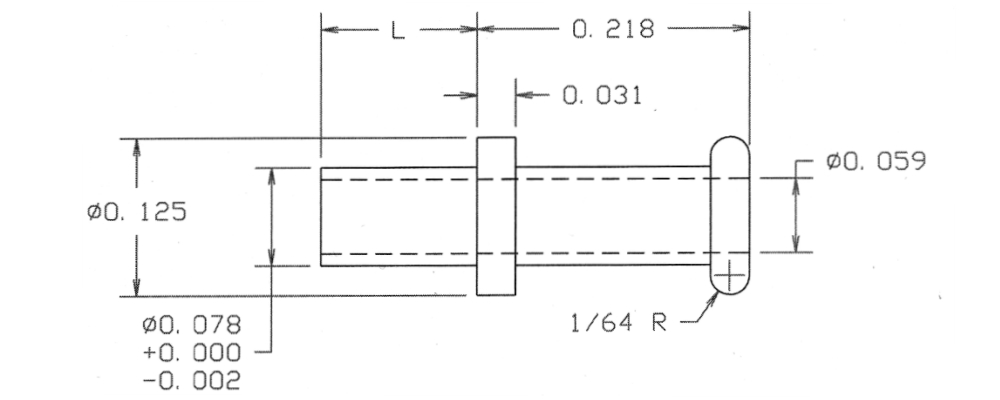

10-335-2-044
10-335-2-044
10-335-2-044
0.311" - - Swage Mount 0.093" 1/16 0.081 Brass Bright Tin YES

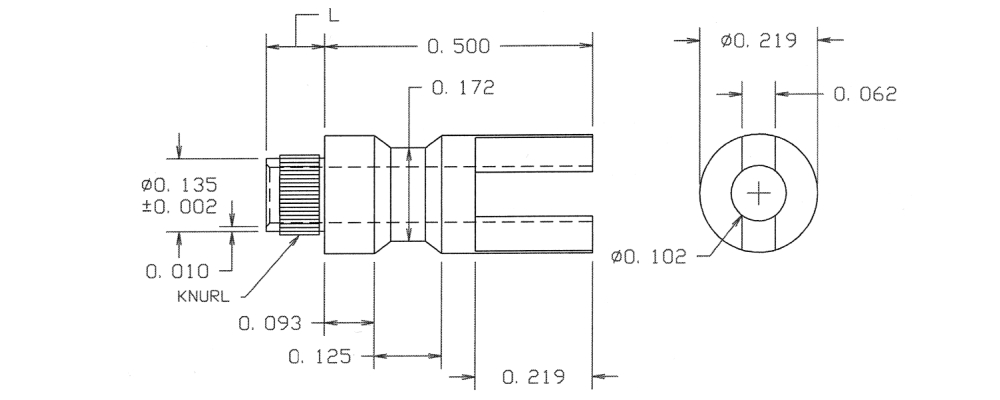

10-407-4-03
10-407-4-03
10-407-4-03
0.672" - - Swage Mount 0.172" 1/8 0.1405 Brass Gold YES
10-421-2-035
10-421-2-035
10-421-2-035
0.574" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-434-3-035
10-434-3-035
10-434-3-035
0.403" - - Swage Mount 0.135" 3/32 0.189 Brass Gold YES
10-455-3-088
10-455-3-088
10-455-3-088
0.375" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin-Lead NO
10-467-3-035
10-467-3-035
10-467-3-035
0.823" - - Swage Mount 0.135" 3/32 0.1875 Brass Gold YES
10-501-1-03
10-501-1-03
10-501-1-03
0.237" - Turret/Turret Swage Mount 0.051" 1/32 0.076 Brass Gold YES

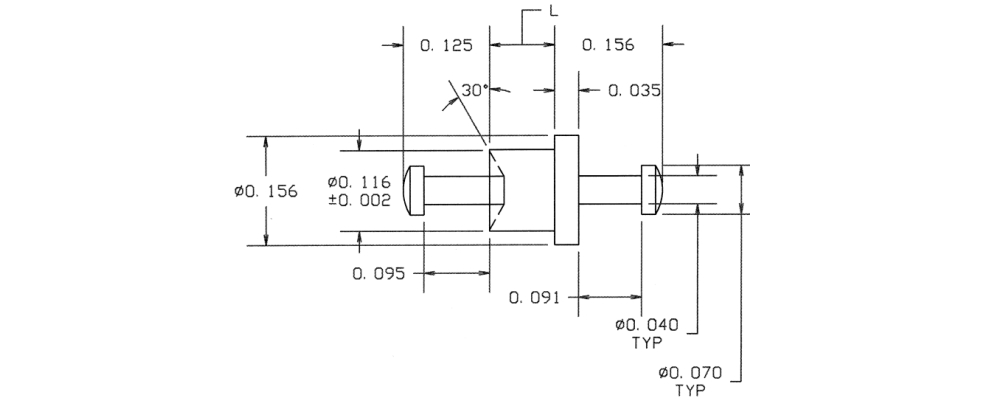

10-506-4-03
10-506-4-03
10-506-4-03
0.437" - Turret/Turret Swage Mount 0.156" 1/8 0.120 Brass Gold YES

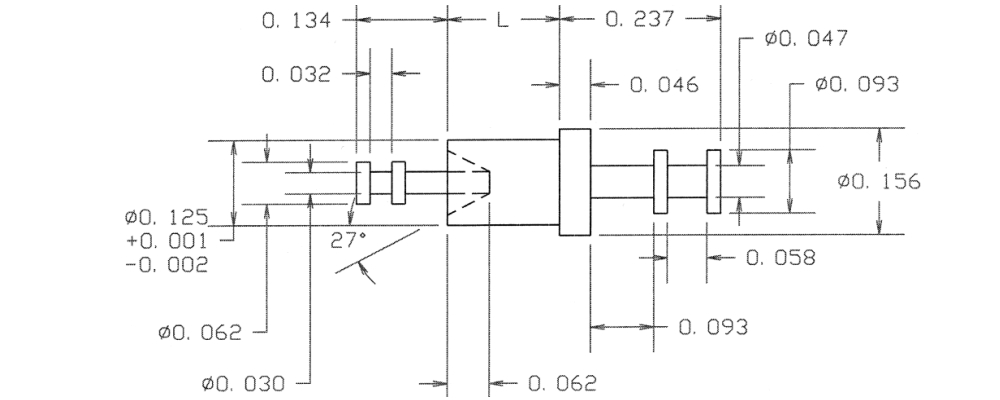

10-512-4-03
10-512-4-03
10-512-4-03
0.536" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.129 Brass Gold YES
10-521-5-03
10-521-5-03
10-521-5-03
0.648" 0.094 Pin/Pin Swage Mount 0.195" 5/32 0.185 Brass Gold YES
10-541-3-03
10-541-3-03
10-541-3-03
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-556-1-03
10-556-1-03
10-556-1-03
0.356" - Turret/Turret Swage Mount 0.075" 1/32 0.116 Brass Gold YES
10-603-2-035
10-603-2-035
10-603-2-035
0.526" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES

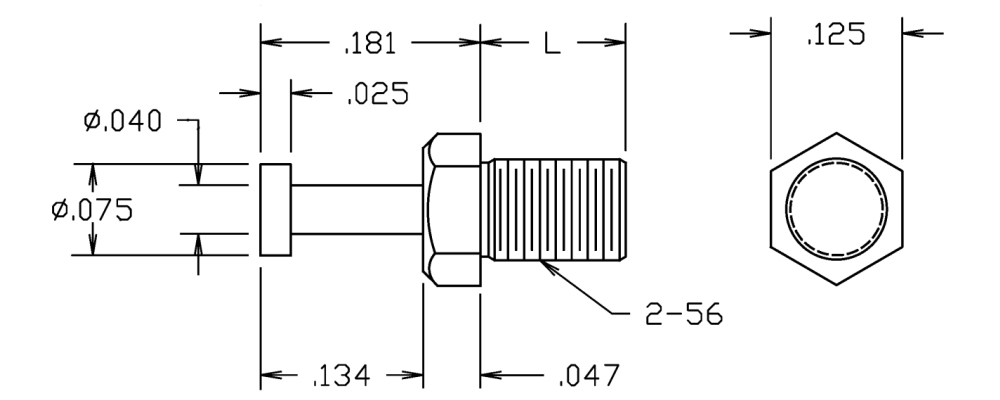

10-703-6-088
10-703-6-088
10-703-6-088
0.368" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO
10-8009-3-04
10-8009-3-04
10-8009-3-04
0.328" 0.062 - Swage Mount 0.115" 3/32 0.067 Brass Electro-Tin YES
10-8021-2-01
10-8021-2-01
10-8021-2-01
0.402" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

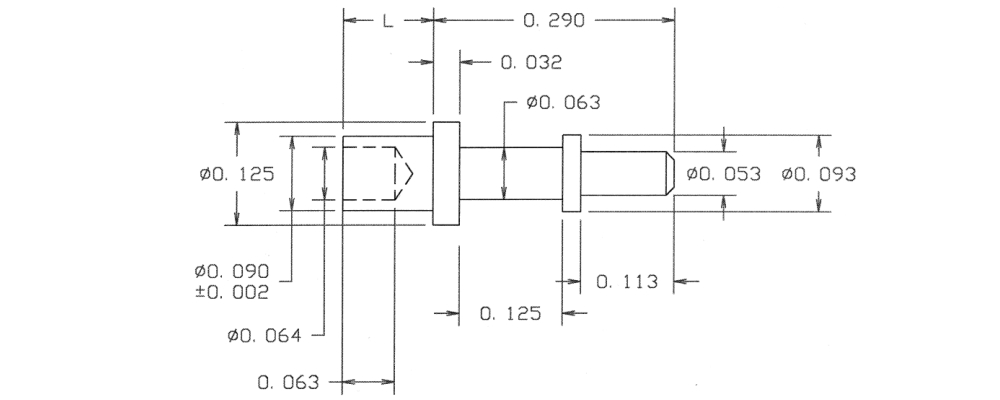

10-805-8-044
10-805-8-044
10-805-8-044
0.587" - - Swage Mount 0.297" 1/4 0.094 Brass Bright Tin YES
