Commercial
Non-Insulated
Terminals

Filter

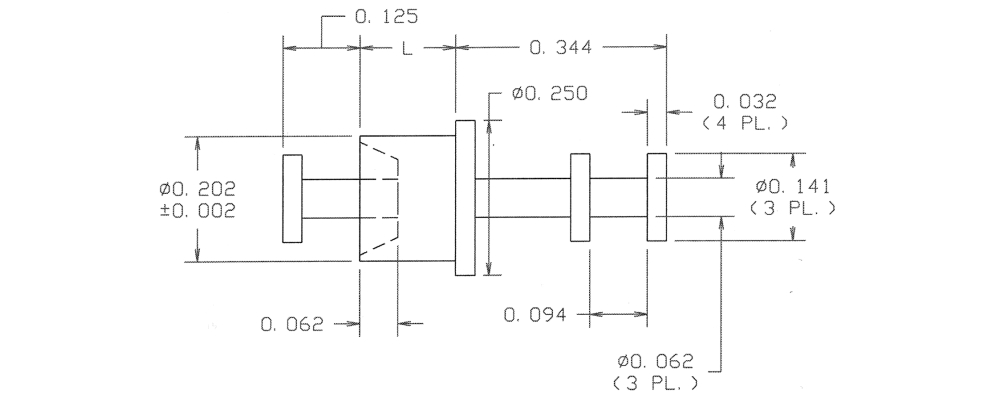

09-0033-2-03
09-0033-2-03
09-0033-2-03
0.594" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.206 Brass Gold YES

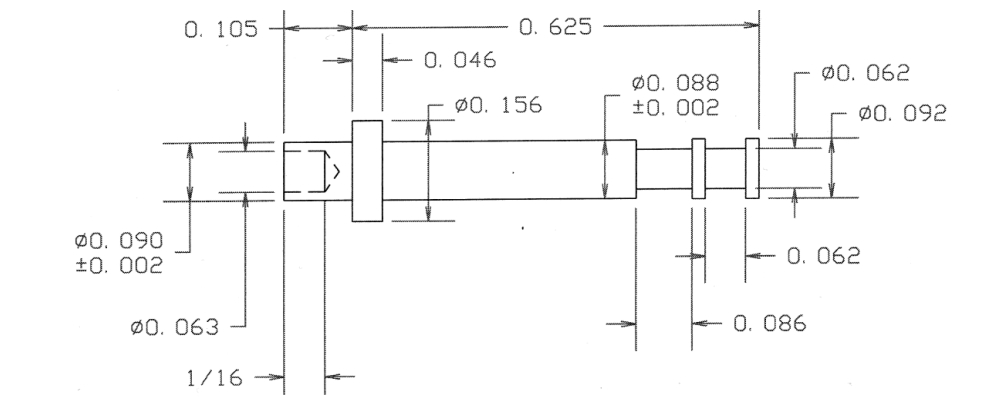

09-0084-2-035
09-0084-2-035
09-0084-2-035
0.730" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES

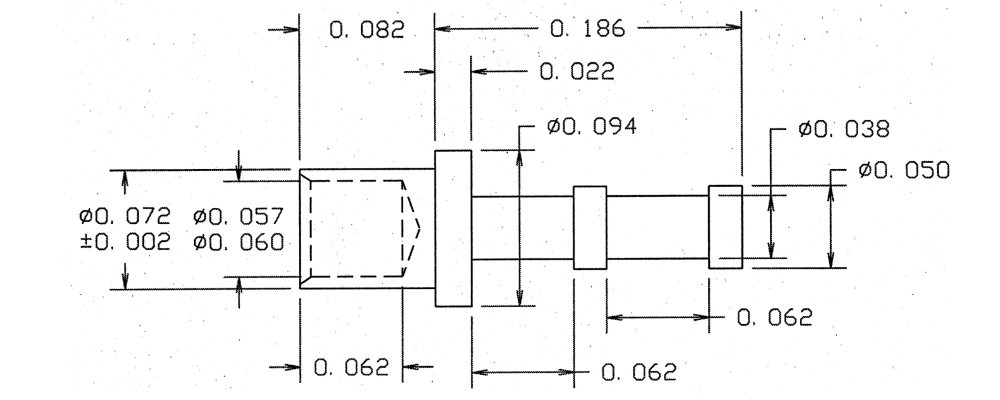

09-0167-2-035
09-0167-2-035
09-0167-2-035
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Gold YES

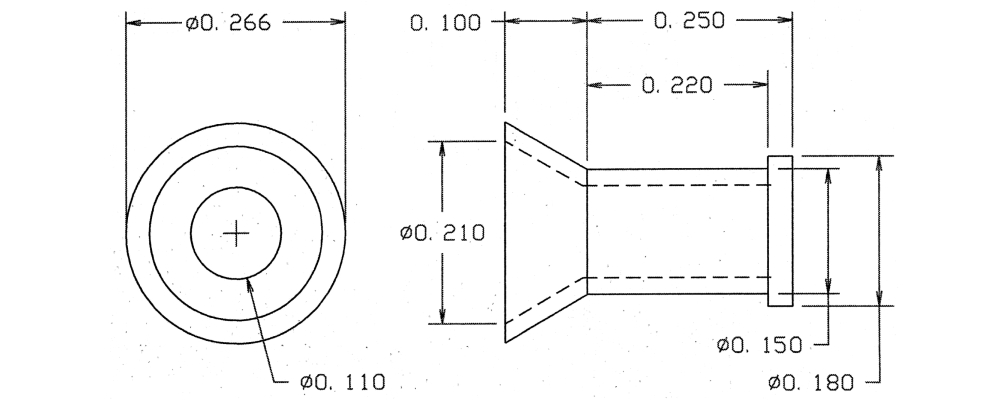

09-0206-1-05
09-0206-1-05
09-0206-1-05
0.350" - - Solder - - - Brass Electro Solder NO

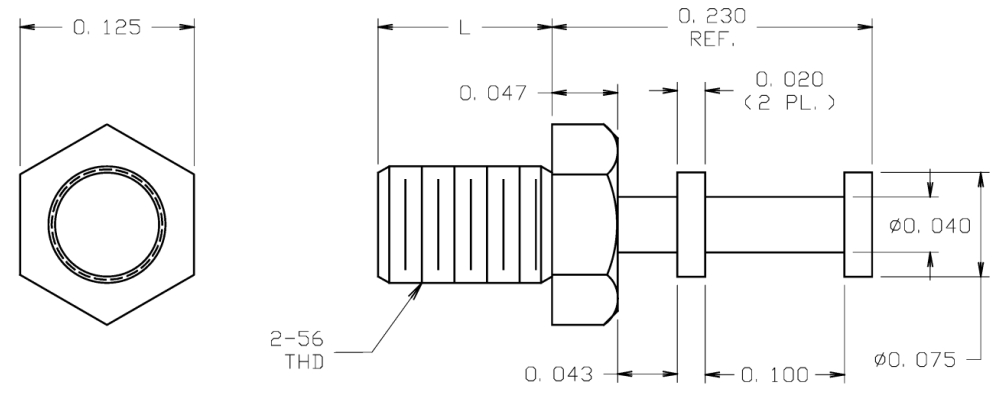

09-0241-2-04
09-0241-2-04
09-0241-2-04
0.355" - - 2-56 - - 2-56 THREAD Brass Electro-Tin YES

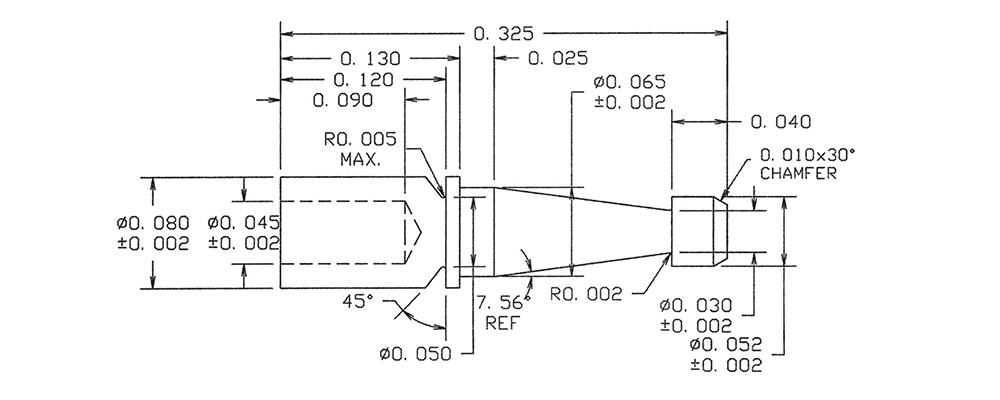

09-0287-2-04
09-0287-2-04
09-0287-2-04
0.325" 0.052 - - - - - Brass Electro-Tin YES
09-0353-2-05
09-0353-2-05
09-0353-2-05
0.375" - - Swage Mount 0.085" 1/16 0.067 Brass Electro Solder NO

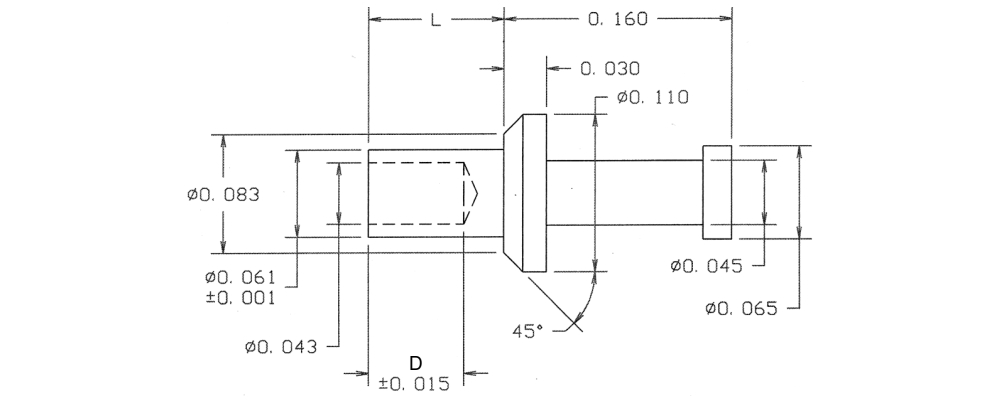

09-7012-3-03
09-7012-3-03
09-7012-3-03
0.285" - - Swage Mount 0.125" 3/32 0.067 Brass Gold YES

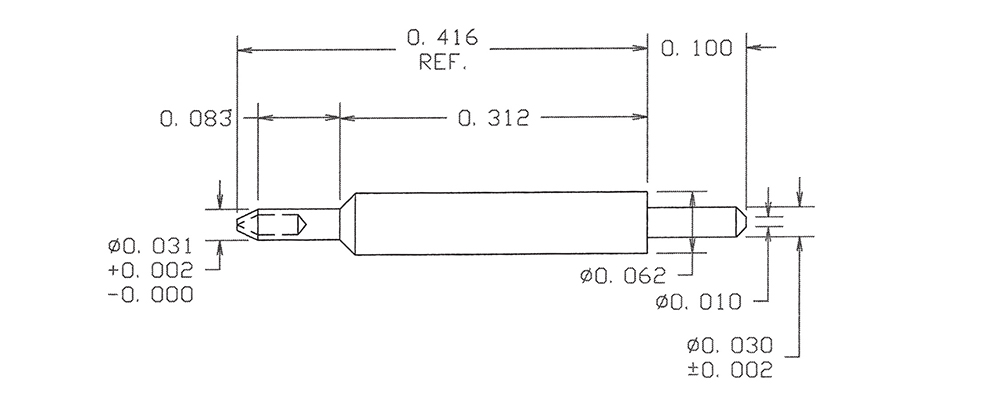

09-7117-2-05
09-7117-2-05
09-7117-2-05
0.516" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro Solder NO

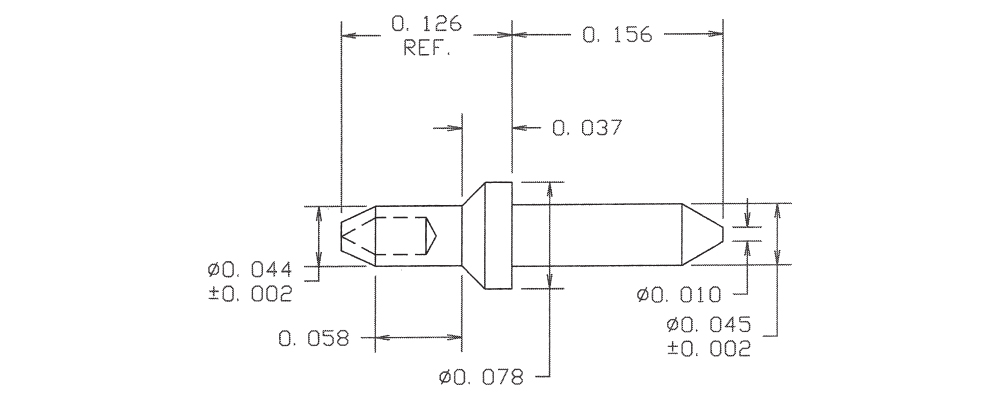

09-7149-1-035
09-7149-1-035
09-7149-1-035
0.282" 0.045 - RIVET MOUNT 0.058" 1/32 0.048 Brass Gold YES
09-7181-1-088
09-7181-1-088
09-7181-1-088
0.197" - - RIVET MOUNT 0.052" 1/32 0.036 Brass Bright Tin-Lead NO

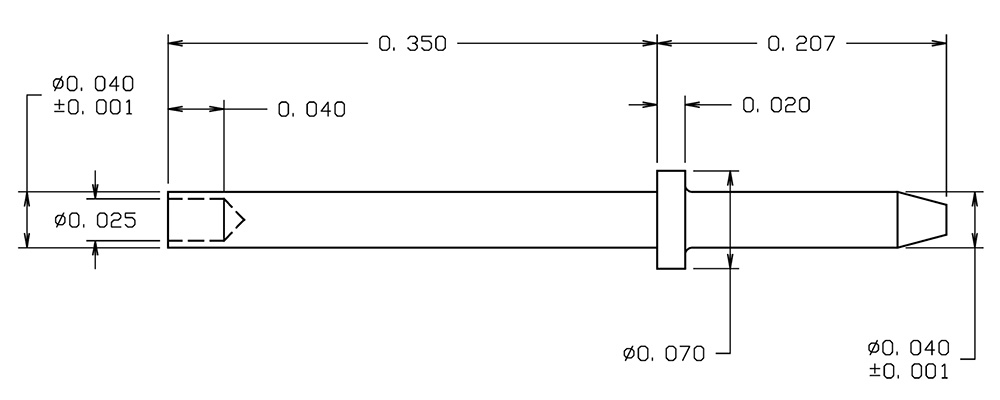

09-8022-10-04
09-8022-10-04
09-8022-10-04
0.538" 0.040 - Swage Mount 0.350" 10/32 0.043 Brass Electro-Tin YES

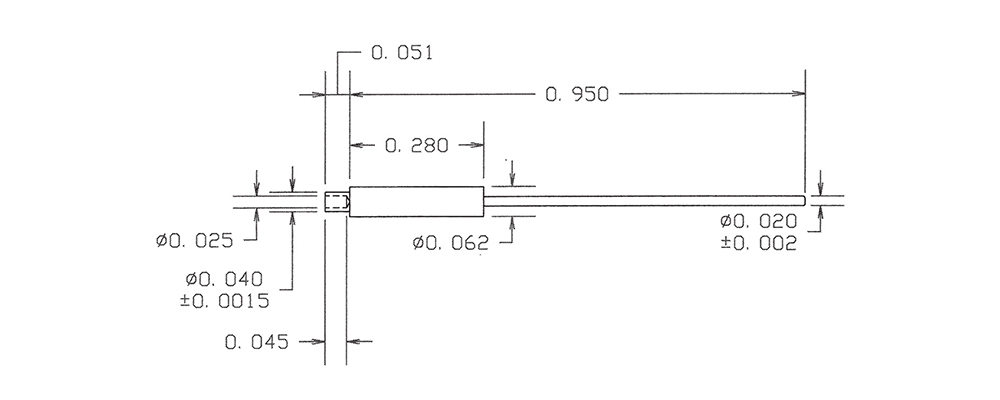

09-8058-1-088
09-8058-1-088
09-8058-1-088
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

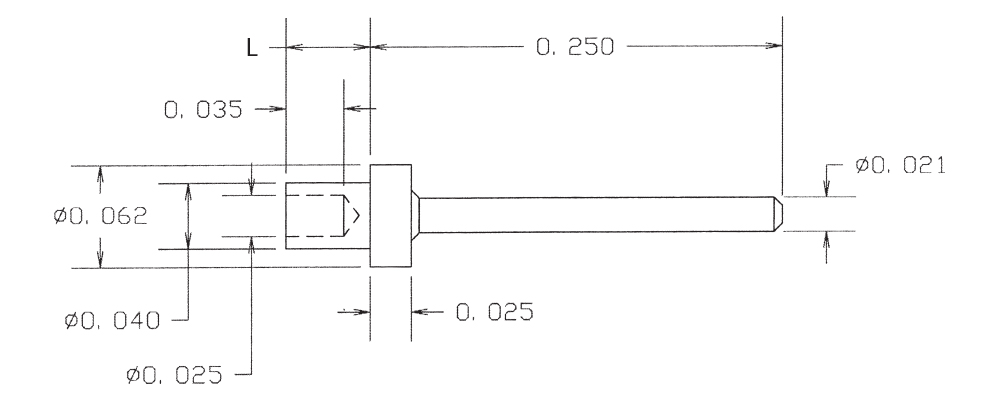

09-8096-2-04
09-8096-2-04
09-8096-2-04
0.332" 0.021 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

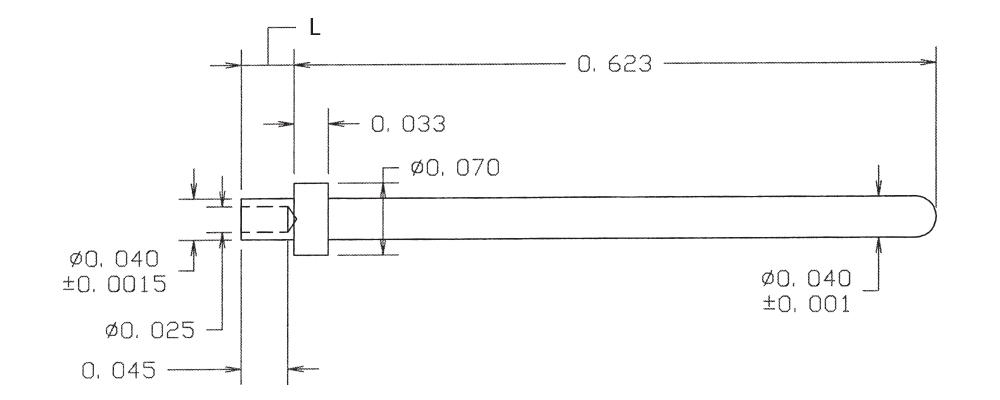

09-8154-2-01
09-8154-2-01
09-8154-2-01
0.714" 0.040 - Swage Mount 0.091" 1/16 0.043 Brass Silver YES

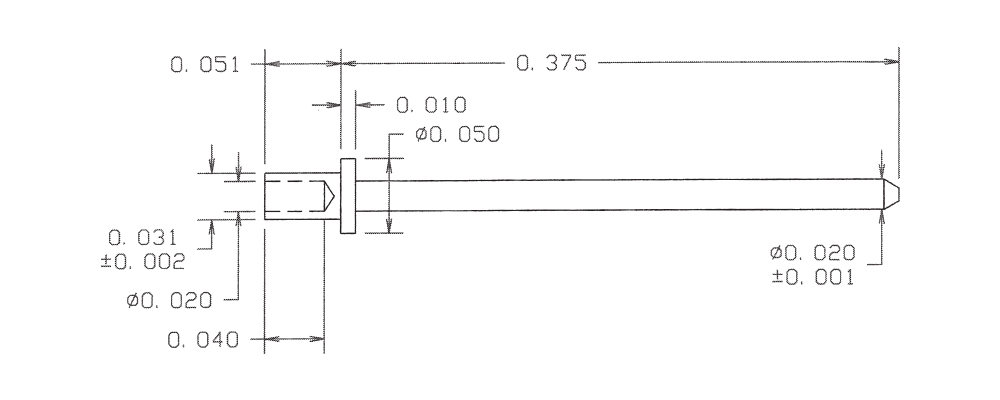

09-8182-1-044
09-8182-1-044
09-8182-1-044
0.426" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES

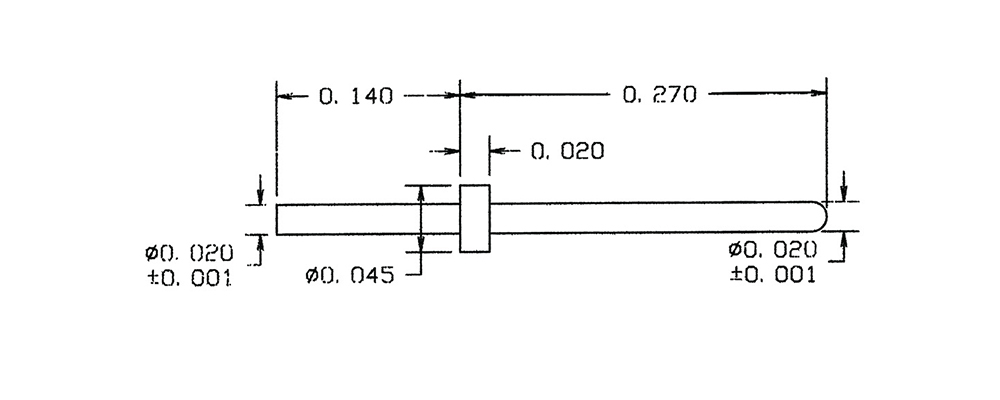

09-8348-3-04
09-8348-3-04
09-8348-3-04
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Electro-Tin YES

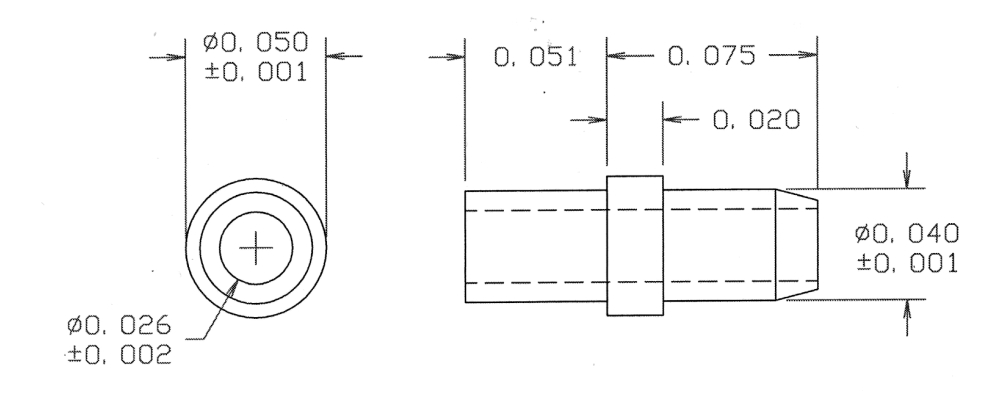

09-8588-1-035
09-8588-1-035
09-8588-1-035
0.126" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8705-3-095
09-8705-3-095
09-8705-3-095
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Hot Solder Dip NO

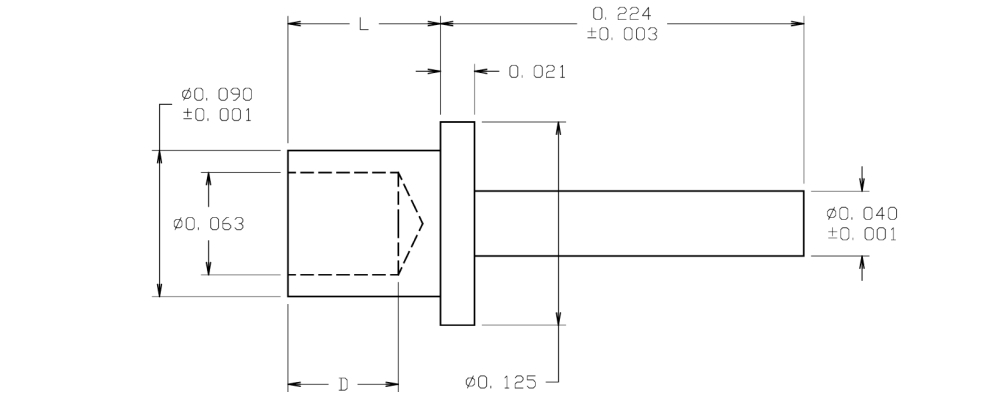

09-8816-2A-044
09-8816-2A-044
09-8816-2A-044
0.324" 0.040 - Swage Mount 0.100" 1/16 0.094 Brass Bright Tin YES
