Commercial
Non-Insulated
Terminals

Filter

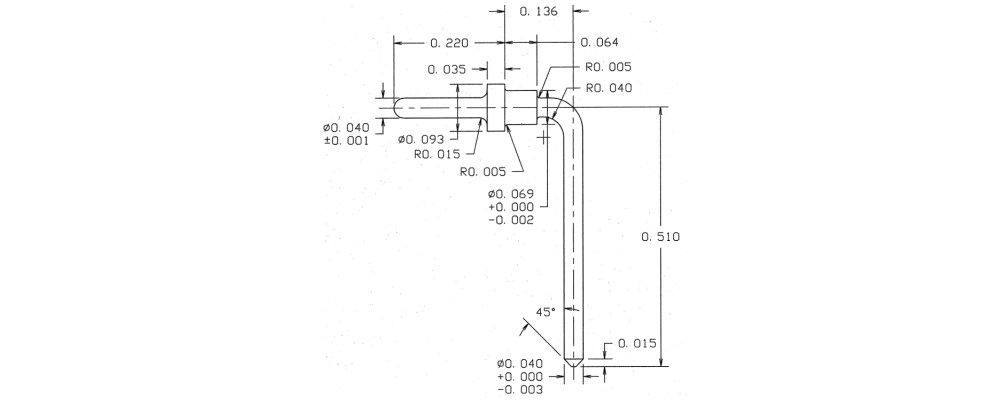

09-0259-1-044
09-0259-1-044
09-0259-1-044
0.557" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Bright Tin YES
09-0310-1-035
09-0310-1-035
09-0310-1-035
0.210" - - Swage Mount 0.054" 1/32 0.043 Brass Gold YES

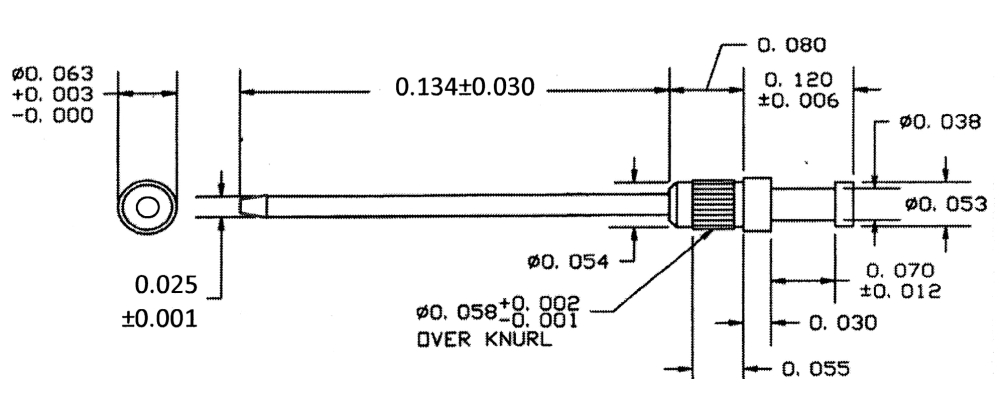

09-0374-1-05
09-0374-1-05
09-0374-1-05
0.334" 0.025 TURRET/PIN Press Fit/Solder 0.080" 1/16 0.055 Brass Electro Solder NO
09-7017-2-035
09-7017-2-035
09-7017-2-035
0.255" - - Swage Mount 0.095" 1/16 0.055 LEADED Red Brass Gold YES
09-7130-1-04
09-7130-1-04
09-7130-1-04
0.982" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro-Tin YES
09-7158-2-01
09-7158-2-01
09-7158-2-01
0.238" 0.025 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Silver YES
09-7191-2-044
09-7191-2-044
09-7191-2-044
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Bright Tin YES

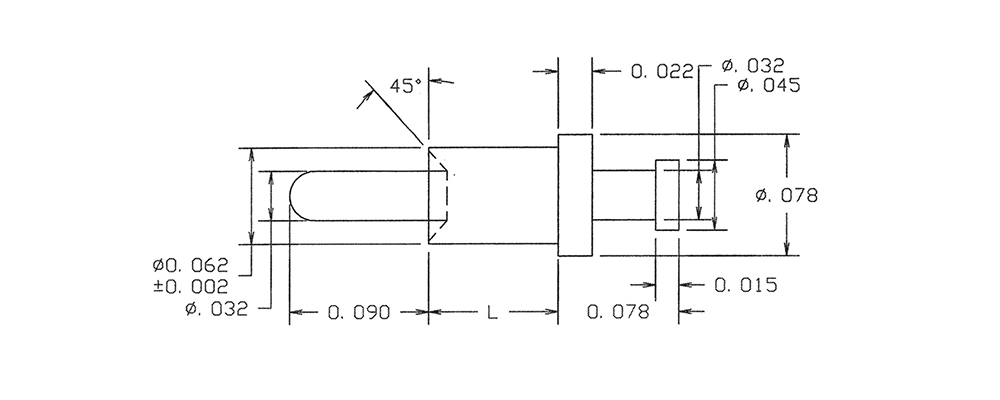

09-8041-1-03
09-8041-1-03
09-8041-1-03
0.222" 0.032 TURRET/PC PIN Swage Mount 0.054" 1/32 0.067 Brass Gold YES
09-8068-1-044
09-8068-1-044
09-8068-1-044
0.361" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES
09-8131-2-03
09-8131-2-03
09-8131-2-03
0.271" 0.032 TURRET/PIN Swage Mount 0.082" 1/16 0.067 Brass Gold YES

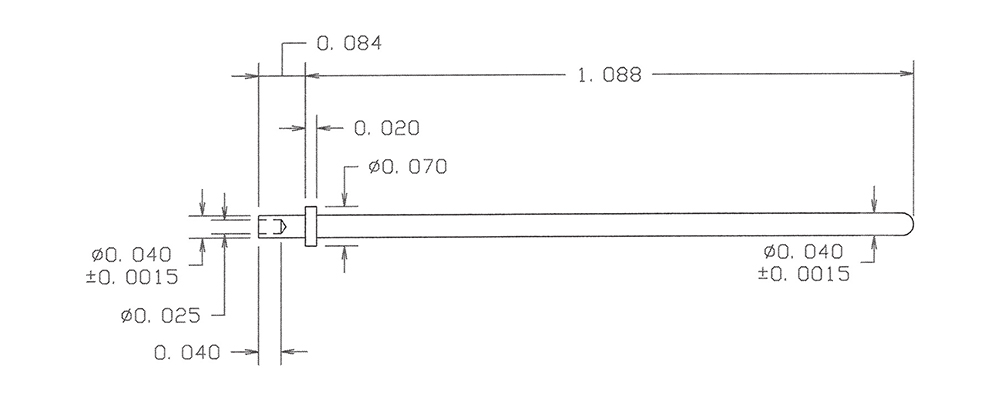

09-8162-2-05
09-8162-2-05
09-8162-2-05
1.172" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO
09-8193-2A-035
09-8193-2A-035
09-8193-2A-035
0.377" 0.040 - Swage Mount 0.097" 1/16 0.043 Brass Gold YES
09-8422-2-088
09-8422-2-088
09-8422-2-088
0.245" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin-Lead NO
09-8637-1-04
09-8637-1-04
09-8637-1-04
0.170" 0.020 - Solder - - 0.022 Beryllium Copper Electro-Tin YES

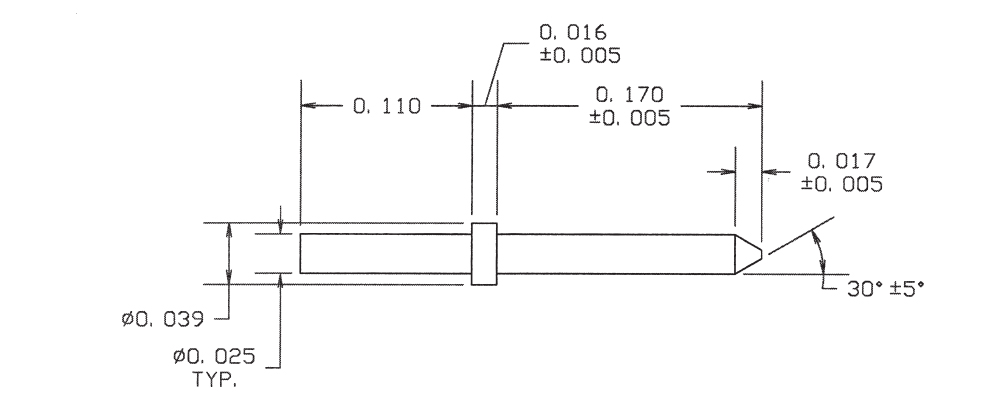

09-8754-3-05
09-8754-3-05
09-8754-3-05
0.296" 0.025 - Solder 0.110" 1/64 TO 3/32 0.028 Brass Electro Solder NO
09-8839-1-088
09-8839-1-088
09-8839-1-088
0.166" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
10-101-6-044
10-101-6-044
10-101-6-044
0.311" - - Swage Mount 0.207" 3/16 0.076 Brass Bright Tin YES
10-108-11-01
10-108-11-01
10-108-11-01
0.130" - - Swage Mount 0.037" 1/64 0.067 Brass Silver YES
10-117-2-044
10-117-2-044
10-117-2-044
0.178" - - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin YES
10-137-3-088
10-137-3-088
10-137-3-088
0.300" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin-Lead NO
