Commercial
Non-Insulated
Terminals

Filter
10-407-3-035
10-407-3-035
10-407-3-035
0.641" - - Swage Mount 0.141" 3/32 0.1405 Brass Gold YES
10-421-1-04
10-421-1-04
10-421-1-04
0.544" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-434-2-04
10-434-2-04
10-434-2-04
0.373" - - Swage Mount 0.105" 1/16 0.189 Brass Electro-Tin YES
10-455-3-01
10-455-3-01
10-455-3-01
0.375" - - Swage Mount 0.125" 3/32 0.076 Brass Silver YES
10-466-4-044
10-466-4-044
10-466-4-044
0.403" - TURRET/THREAD Swage Mount 0.145" 1/8 0.076 Brass Bright Tin YES
10-492-4-035
10-492-4-035
10-492-4-035
0.446" - Slotted/Slotted Swage Mount 0.165" 1/8 0.120 Brass Gold YES
10-506-3-04
10-506-3-04
10-506-3-04
0.406" - Turret/Turret Swage Mount 0.125" 3/32 0.120 Brass Electro-Tin YES
10-512-3-04
10-512-3-04
10-512-3-04
0.506" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.129 Brass Electro-Tin YES
10-521-4-04
10-521-4-04
10-521-4-04
0.618" 0.094 Pin/Pin Swage Mount 0.165" 1/8 0.185 Brass Electro-Tin YES
10-541-2-04
10-541-2-04
10-541-2-04
0.574" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES
10-554-4-04
10-554-4-04
10-554-4-04
0.487" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES

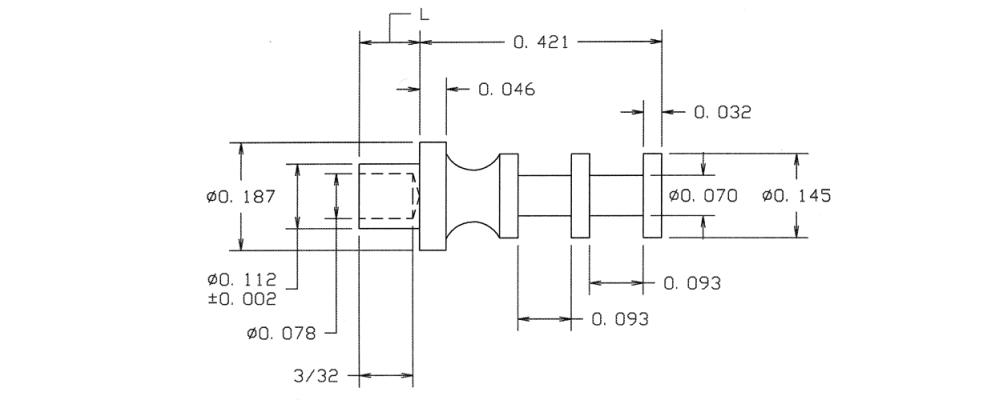

10-603-1-04
10-603-1-04
10-603-1-04
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-703-6-01
10-703-6-01
10-703-6-01
0.368" - - 2-56 - - 2-56 THREAD Brass Silver YES
10-8009-2-044
10-8009-2-044
10-8009-2-044
0.297" 0.062 - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin YES
10-8021-1-03
10-8021-1-03
10-8021-1-03
0.371" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

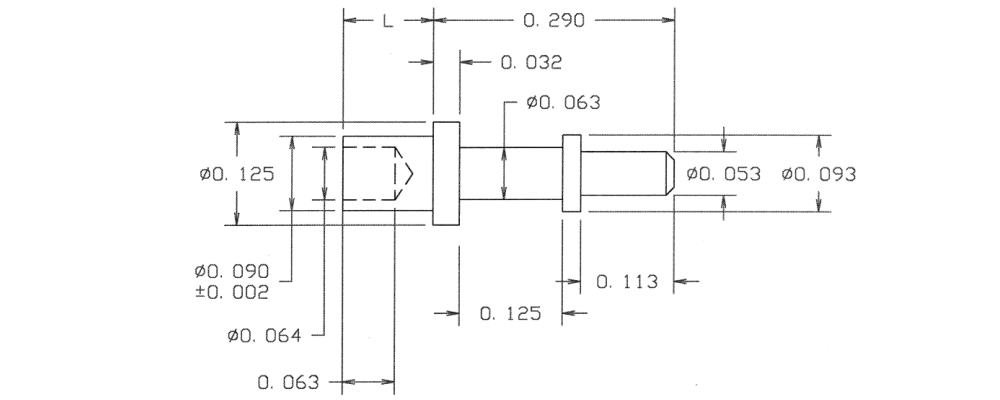

10-805-6-088
10-805-6-088
10-805-6-088
0.524" - - Swage Mount 0.234" 3/16 0.094 Brass Bright Tin-Lead NO
10-811-3-044
10-811-3-044
10-811-3-044
0.453" - - Swage Mount 0.141" 3/32 0.1495 Brass Bright Tin YES
10-820-3-088
10-820-3-088
10-820-3-088
0.308" 0.040 - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin-Lead NO

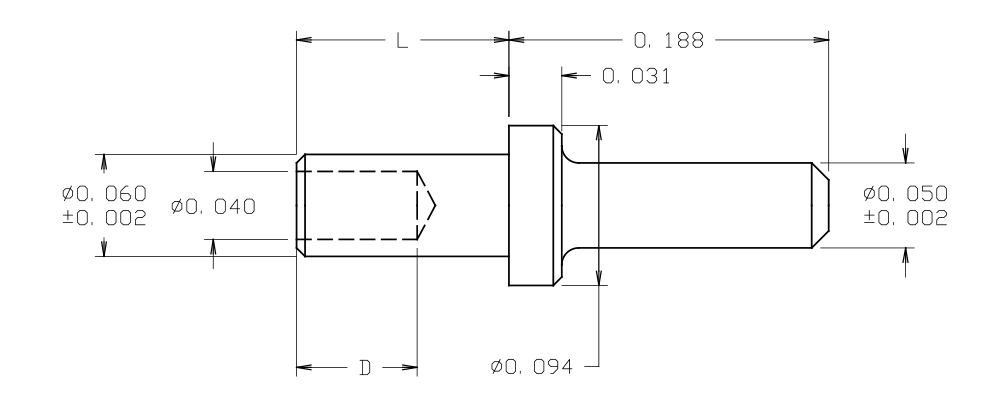

10-831-3-088
10-831-3-088
10-831-3-088
0.313" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin-Lead NO
10-839-2-04
10-839-2-04
10-839-2-04
0.813" 0.050 Pin/Pin Swage Mount 0.094" 1/16 0.111 Brass Electro-Tin YES
