Commercial
Non-Insulated
Terminals

Filter
10-266-2-04
10-266-2-04
10-266-2-04
0.240" - - Swage Mount 0.084" 1/16 0.206 Brass Electro-Tin YES
10-309-2-01
10-309-2-01
10-309-2-01
0.422" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
10-317-2-044
10-317-2-044
10-317-2-044
0.417" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES
10-333-2-03
10-333-2-03
10-333-2-03
0.250" - - Swage Mount 0.094" 1/16 0.063 Brass Gold YES
10-407-2-05
10-407-2-05
10-407-2-05
0.609" - - Swage Mount 0.109" 1/16 0.1405 Brass Electro Solder NO

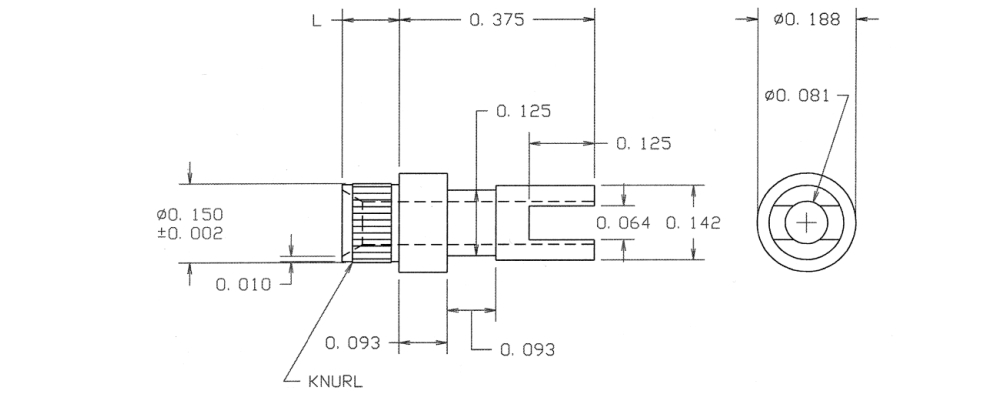

10-420-6-088
10-420-6-088
10-420-6-088
0.609" - - Swage Mount 0.234" 3/16 0.154 Brass Bright Tin-Lead NO

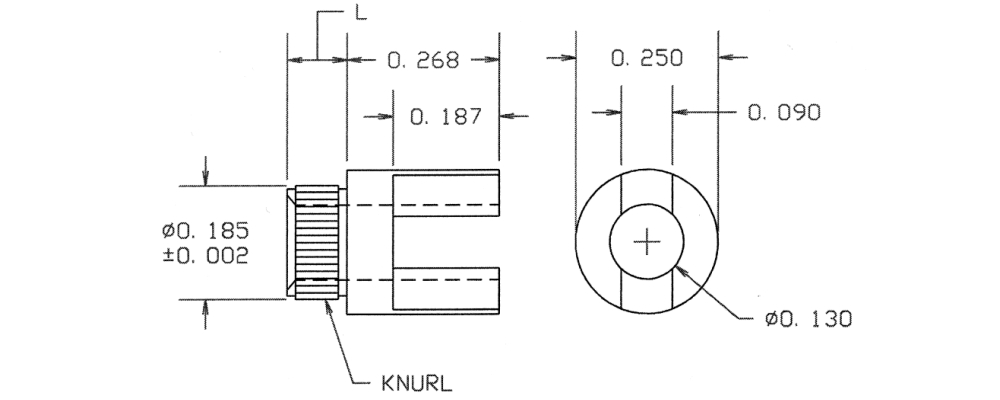

10-434-1-088
10-434-1-088
10-434-1-088
0.343" - - Swage Mount 0.075" 1/32 0.189 Brass Bright Tin-Lead NO
10-455-2-04
10-455-2-04
10-455-2-04
0.344" - - Swage Mount 0.094" 1/16 0.076 Brass Electro-Tin YES
10-466-4-01
10-466-4-01
10-466-4-01
0.403" - TURRET/THREAD Swage Mount 0.145" 1/8 0.076 Brass Silver YES
10-492-3-05
10-492-3-05
10-492-3-05
0.416" - Slotted/Slotted Swage Mount 0.135" 3/32 0.120 Brass Electro Solder NO
10-506-2-095
10-506-2-095
10-506-2-095
0.375" - Turret/Turret Swage Mount 0.094" 1/16 0.120 Brass Hot Solder Dip NO
10-512-2-095
10-512-2-095
10-512-2-095
0.476" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.129 Brass Hot Solder Dip NO
10-521-3-095
10-521-3-095
10-521-3-095
0.588" 0.094 Pin/Pin Swage Mount 0.135" 3/32 0.185 Brass Hot Solder Dip NO
10-533-4-095
10-533-4-095
10-533-4-095
0.411" - Turret/Turret Swage Mount 0.165" 1/8 0.094 Brass Hot Solder Dip NO
10-554-3-095
10-554-3-095
10-554-3-095
0.457" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.094 Brass Hot Solder Dip NO
10-602-8-095
10-602-8-095
10-602-8-095
0.781" - - Swage Mount 0.297" 1/4 0.116 Brass Hot Solder Dip NO
10-703-4-04
10-703-4-04
10-703-4-04
0.306" - - 2-56 - - 2-56 THREAD Brass Electro-Tin YES

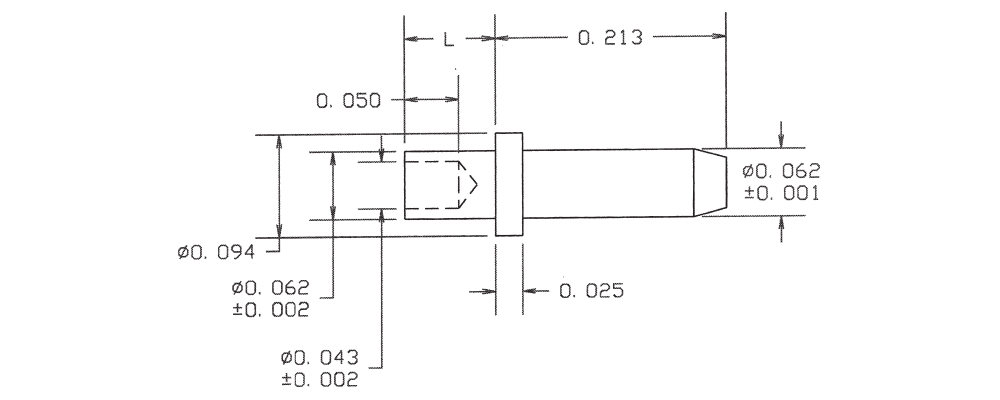

10-8009-2-01
10-8009-2-01
10-8009-2-01
0.297" 0.062 - Swage Mount 0.084" 1/16 0.067 Brass Silver YES
10-802-1-05
10-802-1-05
10-802-1-05
0.272" 0.032 TURRET/PIN Swage Mount 0.054" 1/32 0.067 Brass Electro Solder NO
10-805-6-035
10-805-6-035
10-805-6-035
0.524" - - Swage Mount 0.234" 3/16 0.094 Brass Gold YES
