Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS
10-413-6-01	0.363"	-	-	Swage Mount	0.207"	3/16	0.052	Brass	Silver	YES
10-448-11-044	0.349"	-	-	Swage Mount	0.037"	1/64	0.063	Brass	Bright Tin	YES
10-464-4-03	0.217"	-	-	Swage Mount	0.147"	1/8	0.035	Brass	Gold	YES
10-940-4-05	0.344"	-	-	Swage Mount	0.156"	1/8	0.0635	Brass	Electro Solder	NO
09-0042-2-088	0.297"	-	-	Swage Mount	0.109"	1/16	0.116	Brass	Bright Tin-Lead	NO

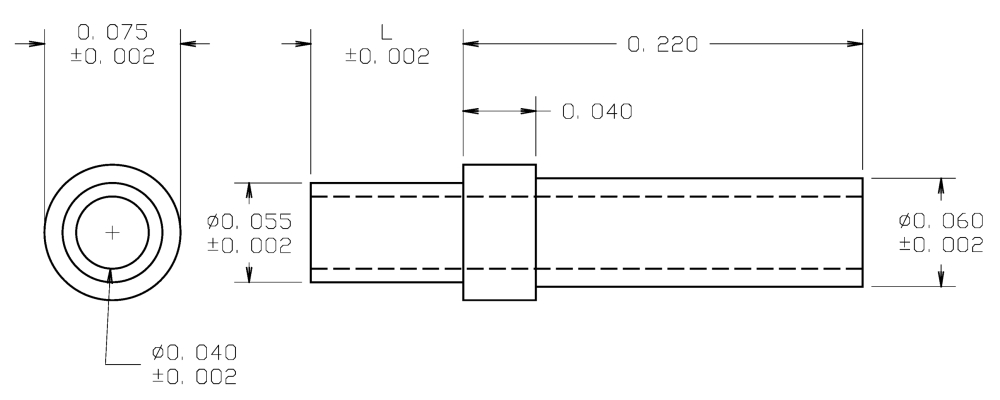

09-0108-2-04	0.304"	-	-	Swage Mount	0.084"	1/16	0.059	Brass	Electro-Tin	YES
09-0175-1-03	0.209"	-	-	Swage Mount	0.053"	1/32	0.063	Brass	Gold	YES
09-0210-8-03	0.400"	-	-	2-56	-	-	2-56 THREAD	Brass	Gold	YES

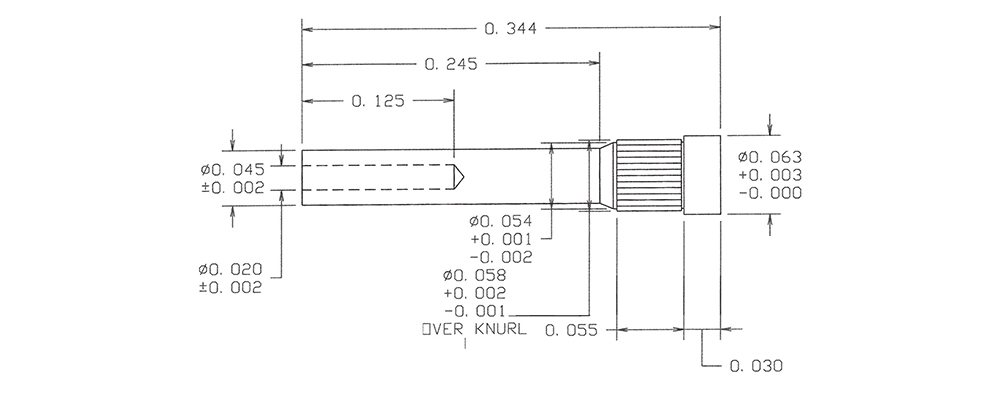

09-0255-1-044	0.344"	0.045	-	Press Fit/Solder	0.055"	1/16	0.052	Brass	Bright Tin	YES
09-0303-4-035	0.307"	-	-	Swage Mount	0.150"	1/8	0.063	Brass	Gold	YES
09-0364-3-044	0.641"	-	-	Swage Mount	0.141"	3/32	0.140	Brass	Bright Tin	YES

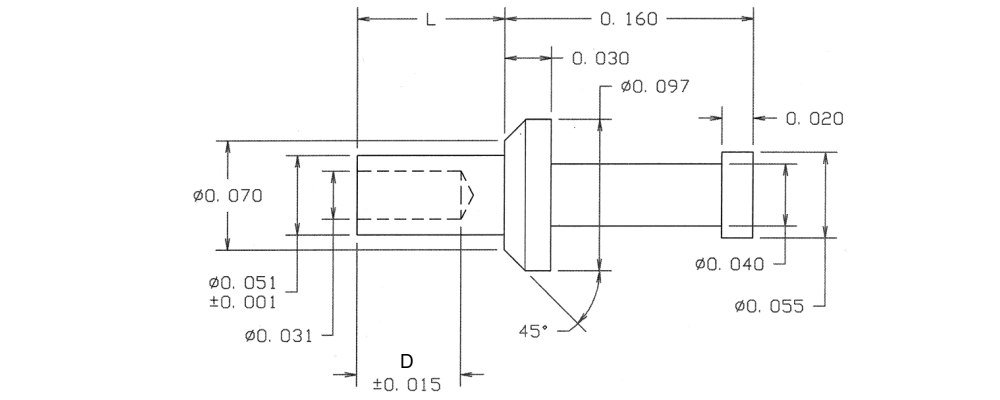

09-7016-3-04	0.285"	-	-	Swage Mount	0.125"	3/32	0.055	Brass	Electro-Tin	YES
09-7127-1-03	0.674"	0.0405	-	RIVET MOUNT	0.056"	1/32	0.044	Brass	Gold	YES

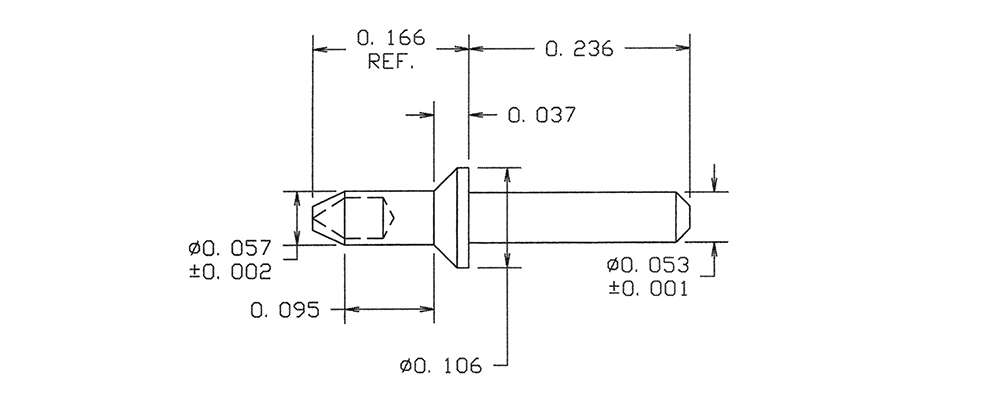

09-7156-2-05	0.402"	0.053	-	RIVET MOUNT	0.095"	1/16	0.0625	Brass	Electro Solder	NO
09-7186-4-035	0.300"	-	-	RIVET MOUNT	0.150"	1/8	0.044	Brass	Gold	YES
09-8035-1-088	1.125"	0.0625	-	-	-	-	-	Brass	Bright Tin-Lead	NO
09-8065-1-035	1.191"	0.020	-	Swage Mount	0.051"	1/32	0.043	Brass	Gold	YES

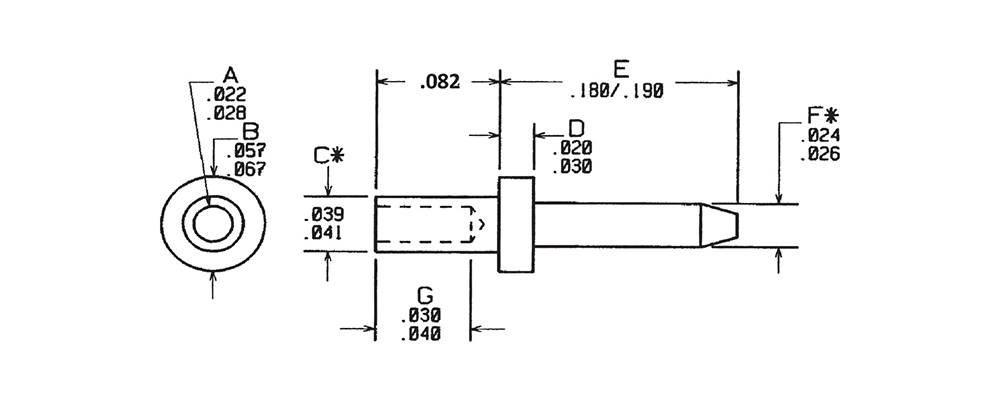

09-8116-2-088	0.267"	0.025	-	Swage Mount	0.082"	1/16	0.043	Brass	Bright Tin-Lead	NO

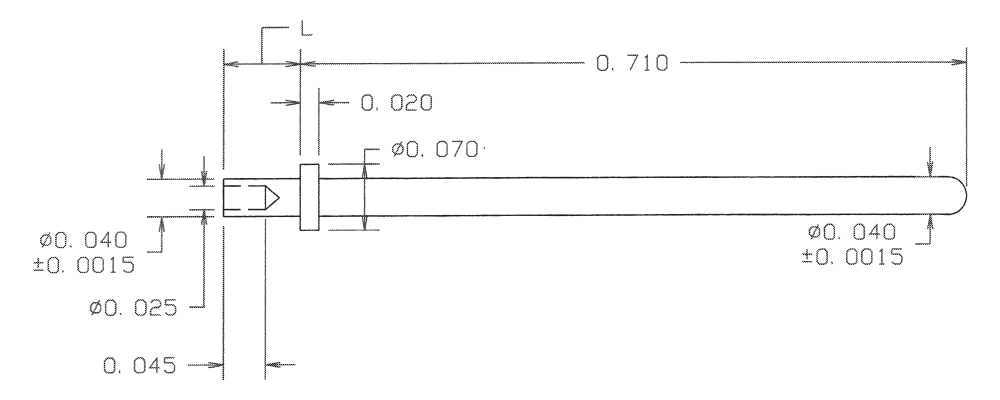

09-8160-2-04	0.792"	0.0405	-	Swage Mount	0.082"	1/16	0.043	Brass	Electro-Tin	YES
09-8188-2A-01	0.150"	0.025	-	Swage Mount	0.060"	3/64	0.035	Brass	Silver	YES
