Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS

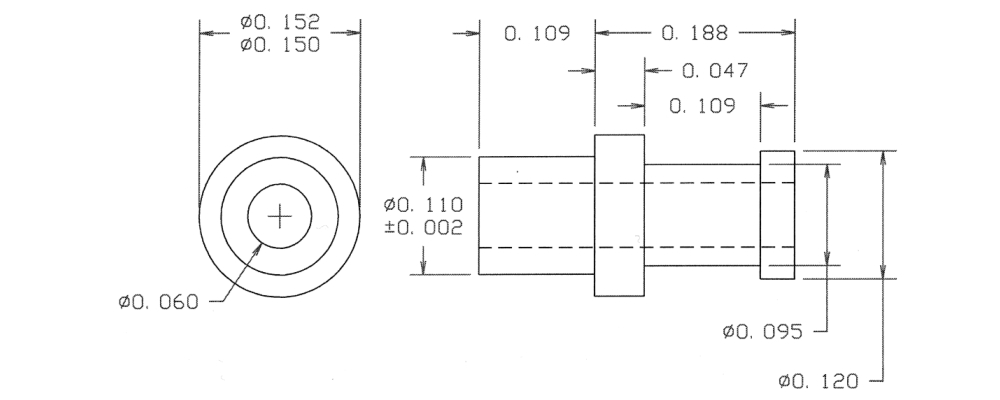

09-0042-2-05	0.297"	-	-	Swage Mount	0.109"	1/16	0.116	Brass	Electro Solder	NO

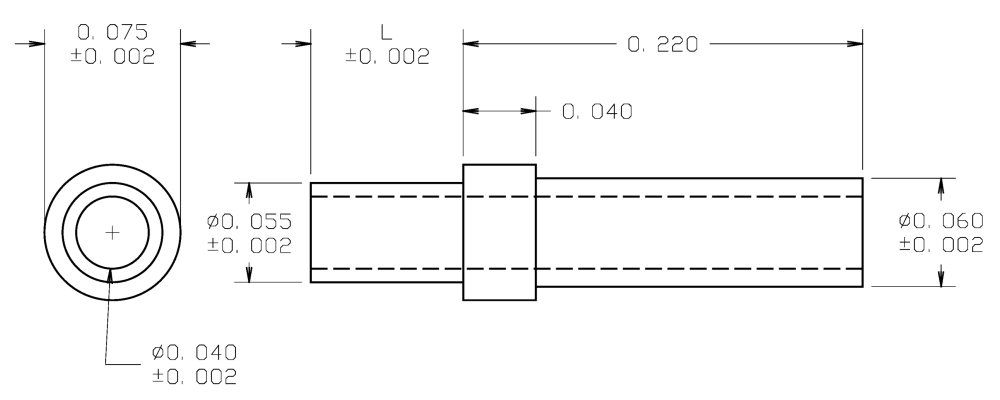

09-0108-2-035	0.304"	-	-	Swage Mount	0.084"	1/16	0.059	Brass	Gold	YES
09-0175-1-01	0.209"	-	-	Swage Mount	0.053"	1/32	0.063	Brass	Silver	YES

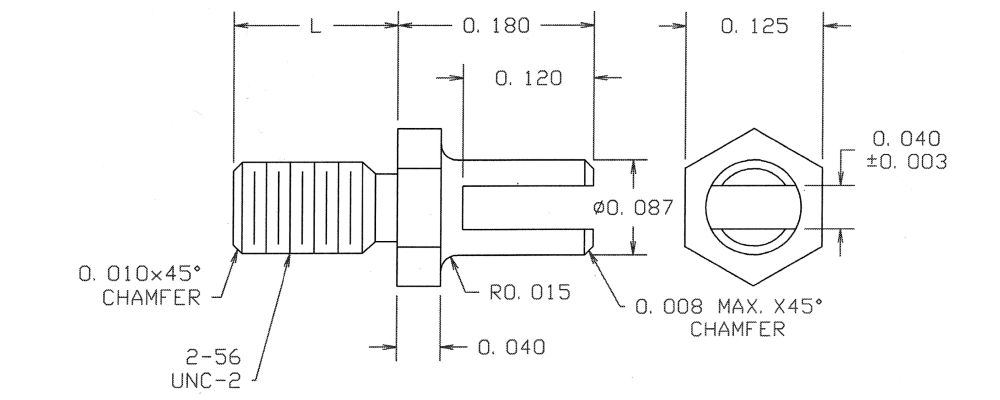

09-0210-8-01	0.400"	-	-	2-56	-	-	2-56 THREAD	Brass	Silver	YES

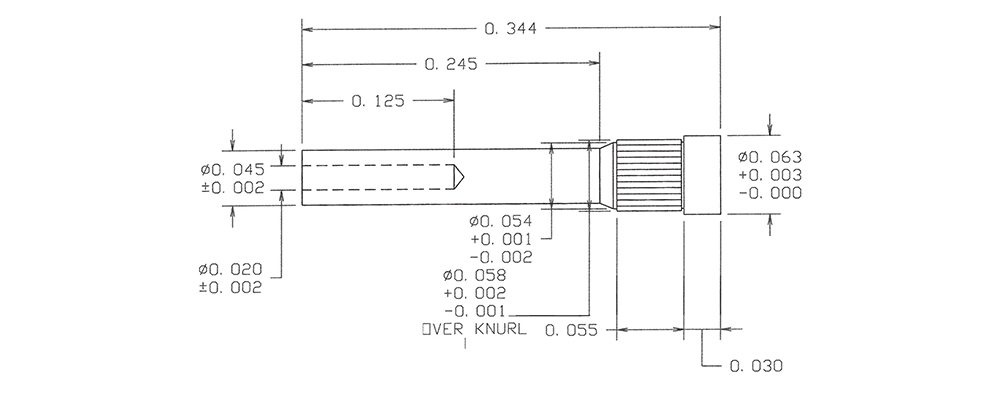

09-0255-1-04	0.344"	0.045	-	Press Fit/Solder	0.055"	1/16	0.052	Brass	Electro-Tin	YES
09-0303-4-03	0.307"	-	-	Swage Mount	0.150"	1/8	0.063	Brass	Gold	YES
09-0364-3-04	0.641"	-	-	Swage Mount	0.141"	3/32	0.140	Brass	Electro-Tin	YES
09-7016-3-035	0.285"	-	-	Swage Mount	0.125"	3/32	0.055	Brass	Gold	YES

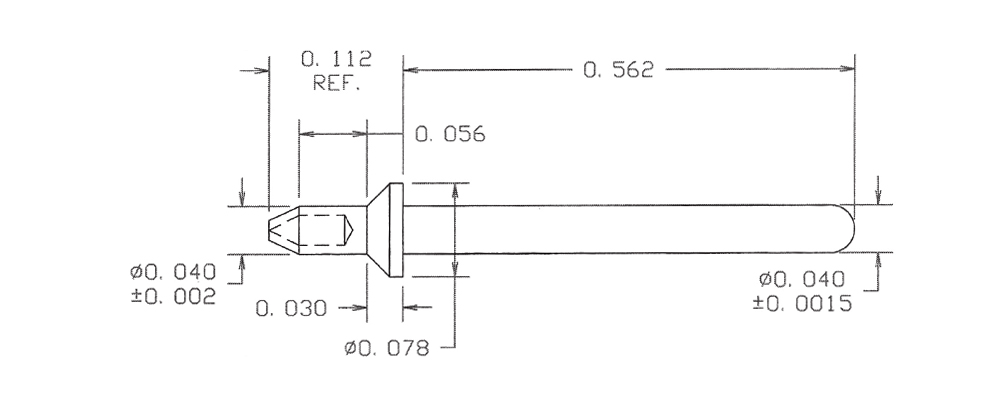

09-7127-1-01	0.674"	0.0405	-	RIVET MOUNT	0.056"	1/32	0.044	Brass	Silver	YES
09-7156-2-044	0.402"	0.053	-	RIVET MOUNT	0.095"	1/16	0.0625	Brass	Bright Tin	YES
09-7186-4-03	0.300"	-	-	RIVET MOUNT	0.150"	1/8	0.044	Brass	Gold	YES
09-8035-1-05	1.125"	0.0625	-	-	-	-	-	Brass	Electro Solder	NO
09-8065-1-03	1.191"	0.020	-	Swage Mount	0.051"	1/32	0.043	Brass	Gold	YES
09-8116-2-05	0.267"	0.025	-	Swage Mount	0.082"	1/16	0.043	Brass	Electro Solder	NO
09-8160-2-035	0.792"	0.0405	-	Swage Mount	0.082"	1/16	0.043	Brass	Gold	YES
09-8188-2-088	0.165"	0.025	-	Swage Mount	0.075"	1/16	0.035	Brass	Bright Tin-Lead	NO
09-8420-2-044	0.150"	0.040	-	Solder	-	-	0.042	Brass	Bright Tin	YES
09-8632-1-01	0.794"	0.032	-	Swage Mount	0.051"	1/32	0.055	Brass	Silver	YES
09-8738-1-035	0.250"	0.020	-	-	-	-	-	Brass	Gold	YES
09-8836-1-04	0.760"	0.040	-	Swage Mount	0.053"	1/32	0.043	Brass	Electro-Tin	YES
