Commercial
Non-Insulated
Terminals

Filter

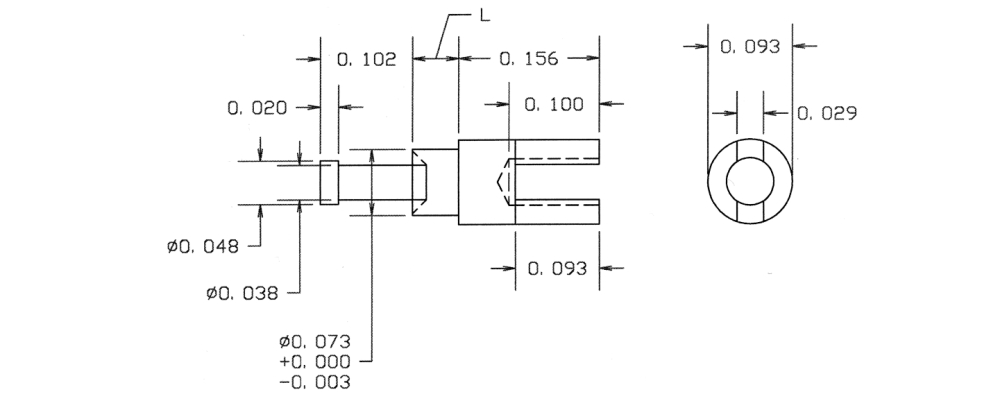

10-466-1-095
10-466-1-095
10-466-1-095
0.309" - TURRET/THREAD Swage Mount 0.051" 1/32 0.076 Brass Hot Solder Dip NO
10-492-1-035
10-492-1-035
10-492-1-035
0.356" - Slotted/Slotted Swage Mount 0.075" 1/32 0.120 Brass Gold YES
10-505-4-088
10-505-4-088
10-505-4-088
0.479" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead NO
10-511-6-088
10-511-6-088
10-511-6-088
0.902" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.116 Brass Bright Tin-Lead NO
10-520-8-088
10-520-8-088
10-520-8-088
1.230" - Double Turret/Double Turret Swage Mount 0.293" 1/4 0.266 Brass Bright Tin-Lead NO
10-533-2-088
10-533-2-088
10-533-2-088
0.351" - Turret/Turret Swage Mount 0.105" 1/16 0.094 Brass Bright Tin-Lead NO

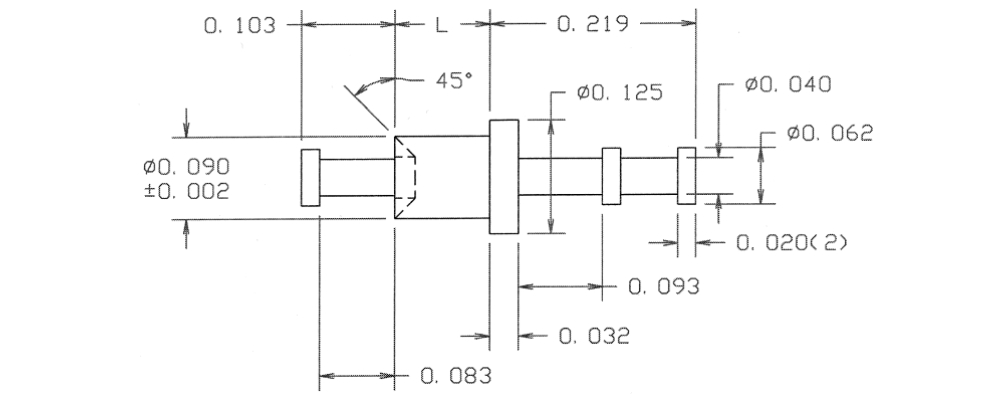

10-554-1-088
10-554-1-088
10-554-1-088
0.397" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-602-4-088
10-602-4-088
10-602-4-088
0.656" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO

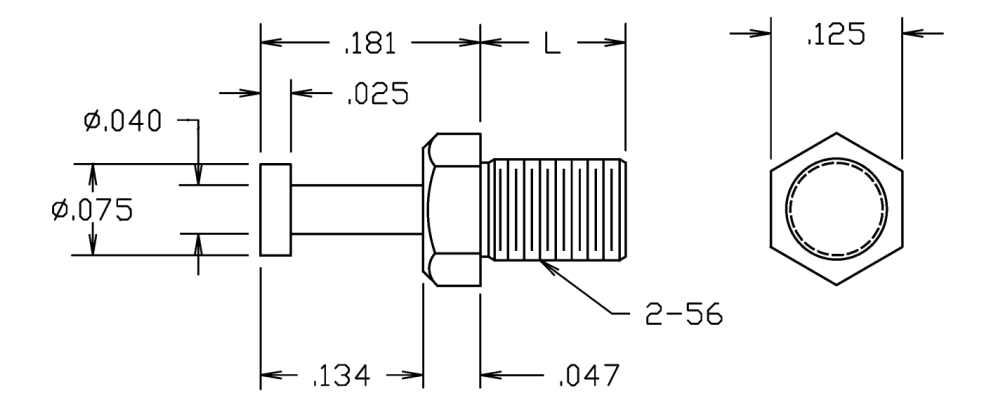

10-703-2-01
10-703-2-01
10-703-2-01
0.244" - - 2-56 - - 2-56 THREAD Brass Silver YES

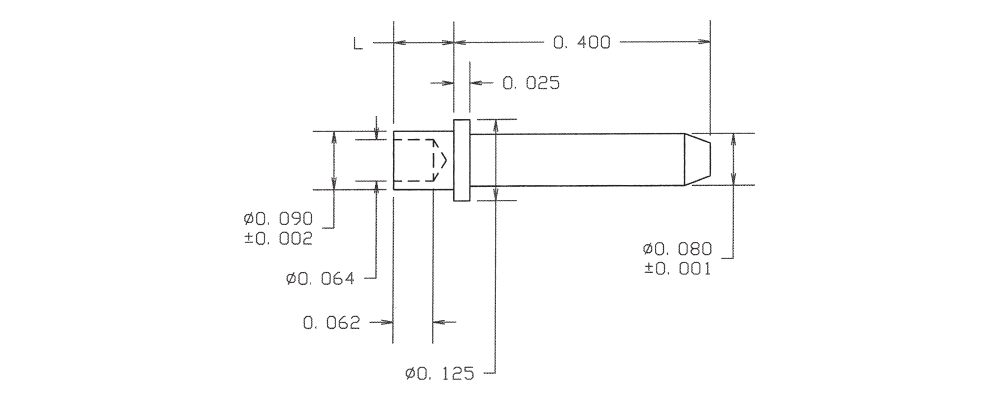

10-8008-3-044
10-8008-3-044
10-8008-3-044
0.525" 0.080 - Swage Mount 0.125" 3/32 0.094 Brass Bright Tin YES

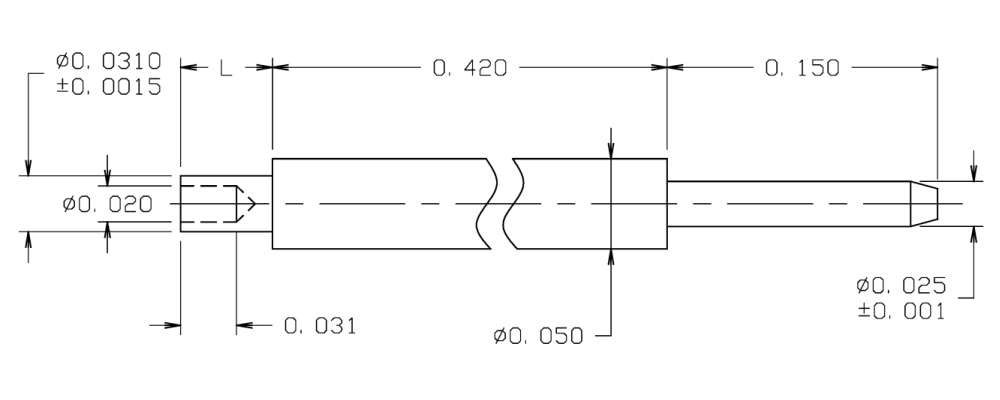

10-8020-1-035
10-8020-1-035
10-8020-1-035
0.621" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

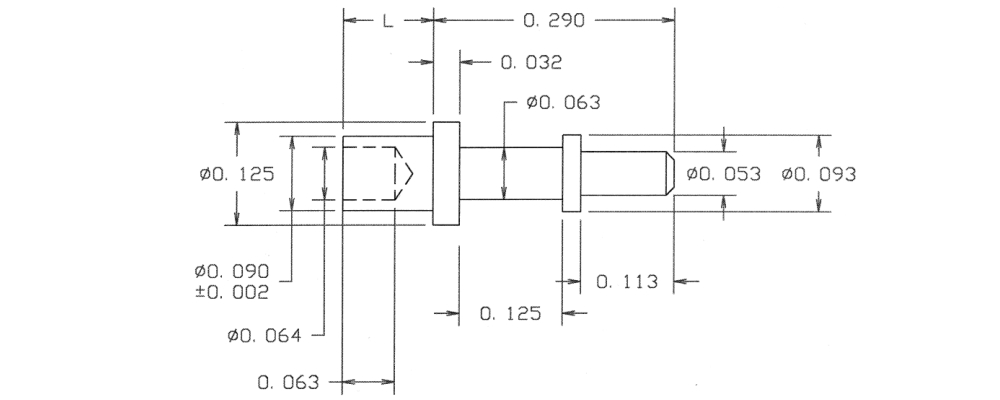

10-805-3-03
10-805-3-03
10-805-3-03
0.431" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES

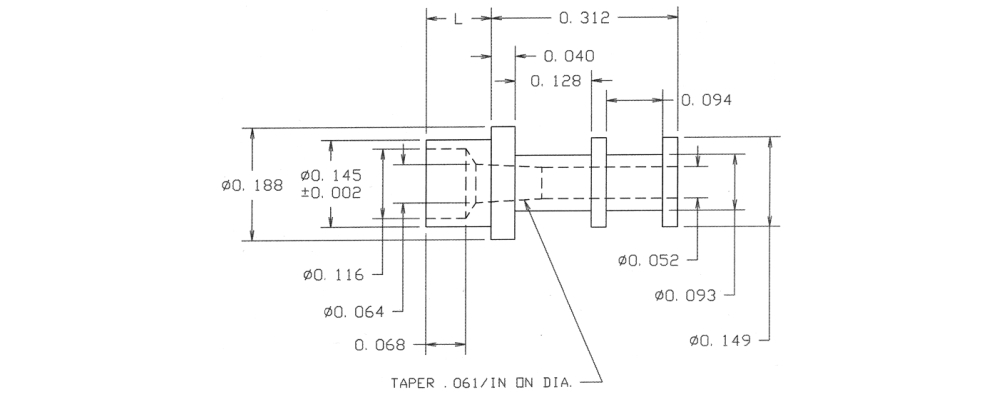

10-810-8-044
10-810-8-044
10-810-8-044
0.609" - - Swage Mount 0.297" 1/4 0.1495 Brass Bright Tin YES
10-820-1-03
10-820-1-03
10-820-1-03
0.248" 0.040 - Swage Mount 0.075" 1/32 0.094 Brass Gold YES

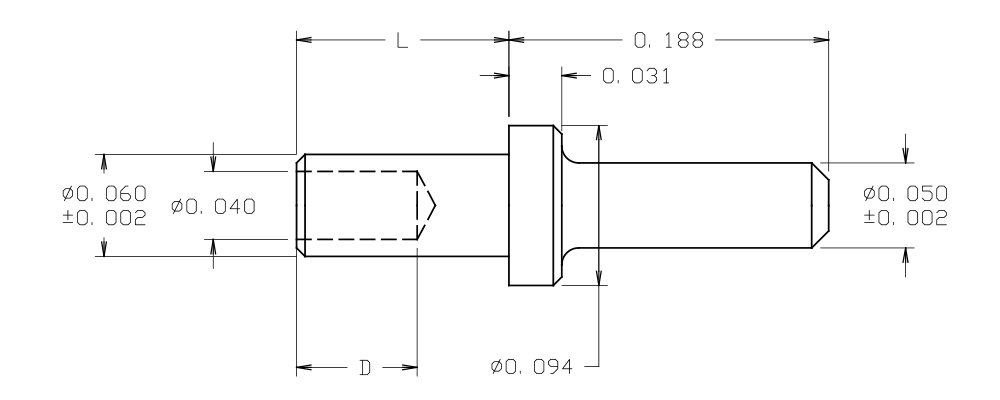

10-831-1-088
10-831-1-088
10-831-1-088
0.251" 0.050 - Swage Mount 0.063" 1/32 0.064 Brass Bright Tin-Lead NO
10-838-6-04
10-838-6-04
10-838-6-04
0.750" 0.050 Pin/Pin Swage Mount 0.219" 3/16 0.111 Brass Electro-Tin YES
10-858-3-01
10-858-3-01
10-858-3-01
0.594" 0.040 Pin/Pin Swage Mount 0.125" 3/32 0.094 Brass Silver YES

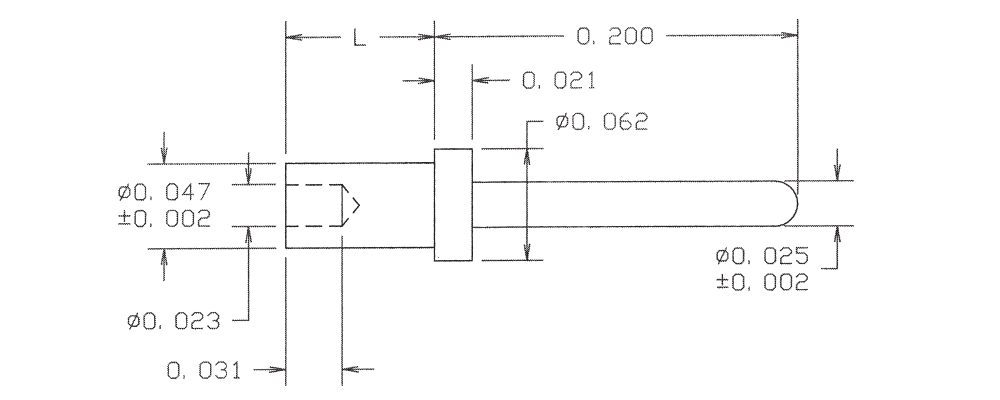

10-876-4-05
10-876-4-05
10-876-4-05
0.345" 0.025 - Swage Mount 0.145" 1/8 0.052 Brass Electro Solder NO
10-895-7-01
10-895-7-01
10-895-7-01
0.400" 0.040 - - - - - Brass Silver YES

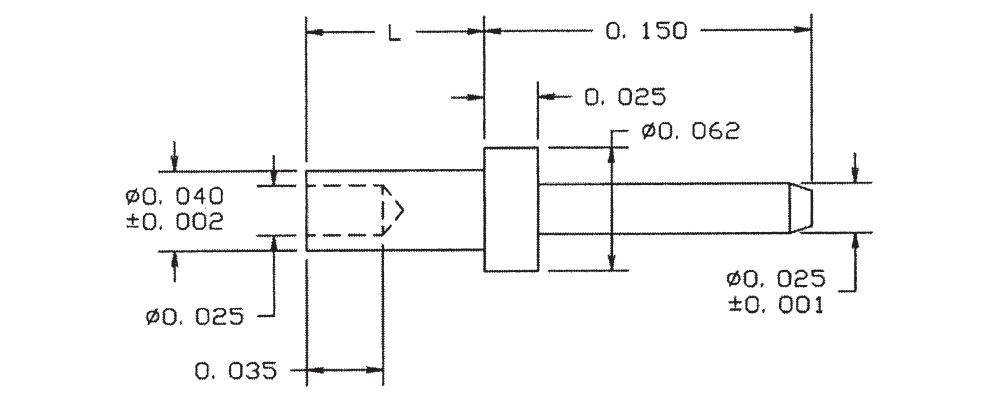

10-915-1-04
10-915-1-04
10-915-1-04
0.201" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES
