Commercial
Non-Insulated
Terminals

Filter

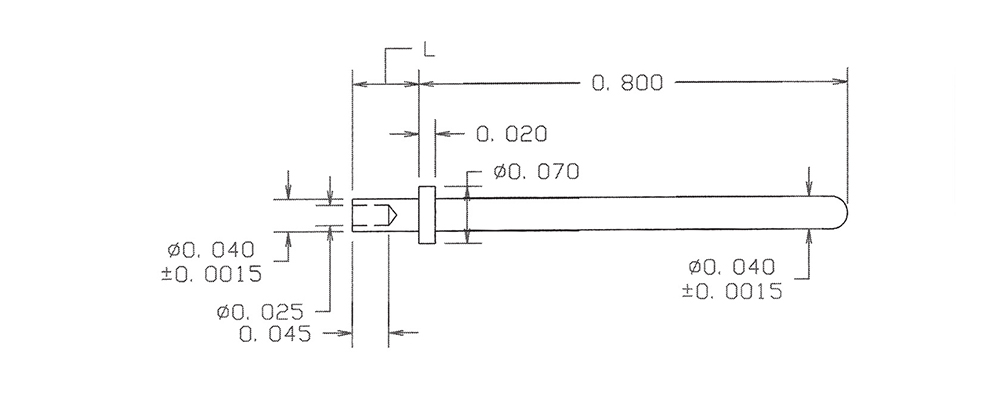

09-8060-2-05
09-8060-2-05
09-8060-2-05
0.882" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

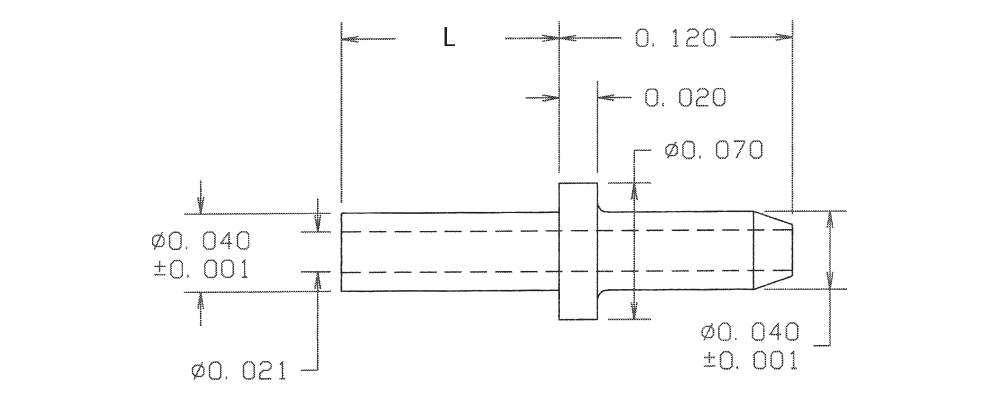

09-8113-1-035
09-8113-1-035
09-8113-1-035
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

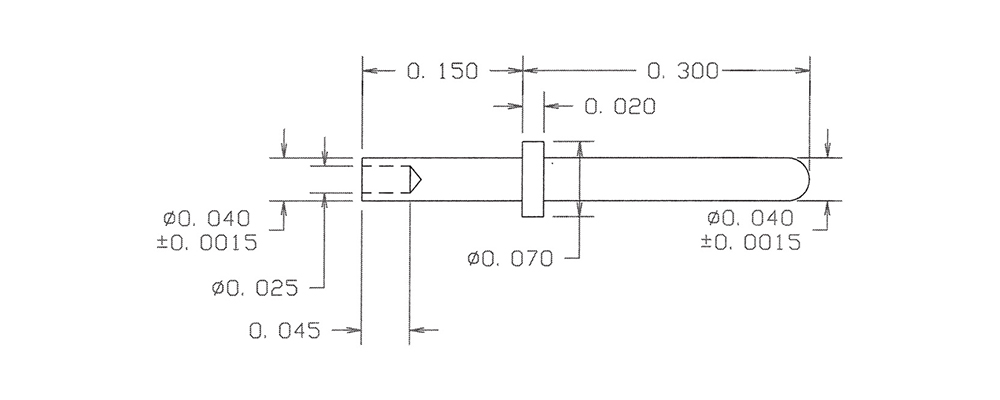

09-8156-4-088
09-8156-4-088
09-8156-4-088
0.450" 0.0405 - Swage Mount 0.150" 1/8 0.043 Brass Bright Tin-Lead NO

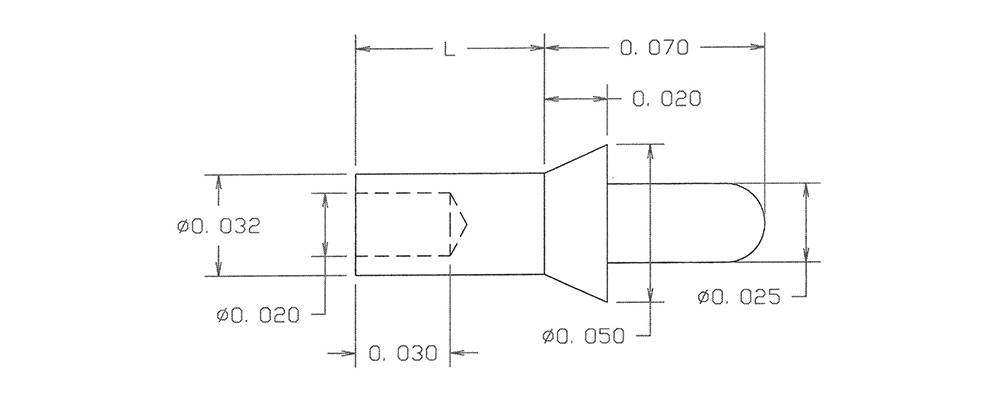

09-8186-1-04
09-8186-1-04
09-8186-1-04
0.117" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Electro-Tin YES
09-8390-2-035
09-8390-2-035
09-8390-2-035
0.328" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Gold YES

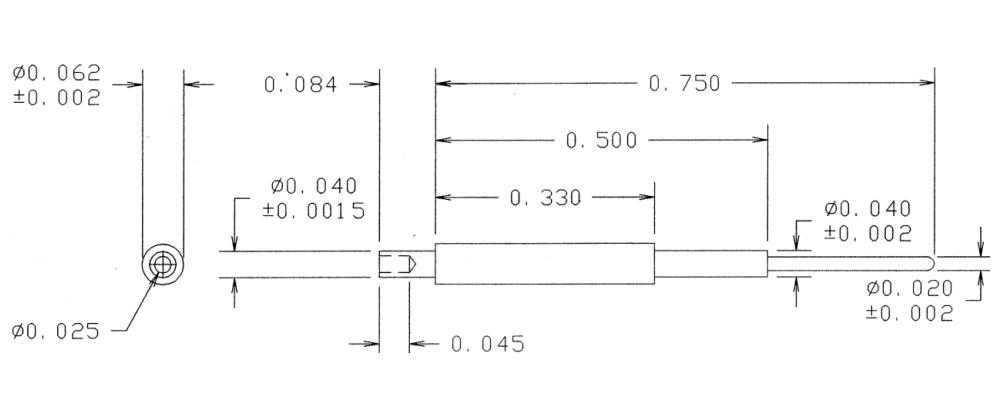

09-8617-2-088
09-8617-2-088
09-8617-2-088
0.834" 0.020 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO

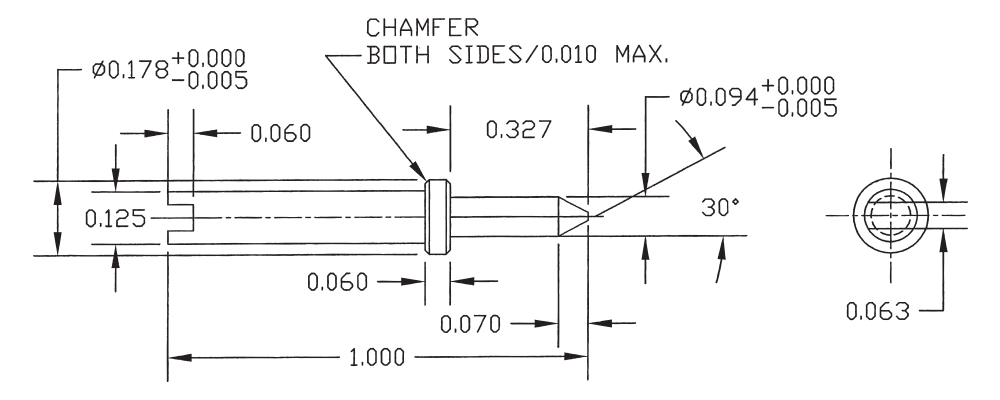

09-8724-1-035
09-8724-1-035
09-8724-1-035
1.000" 0.094 (+0.000/-0.005) SLOTTED/PIN - - - - Beryllium Copper Gold YES

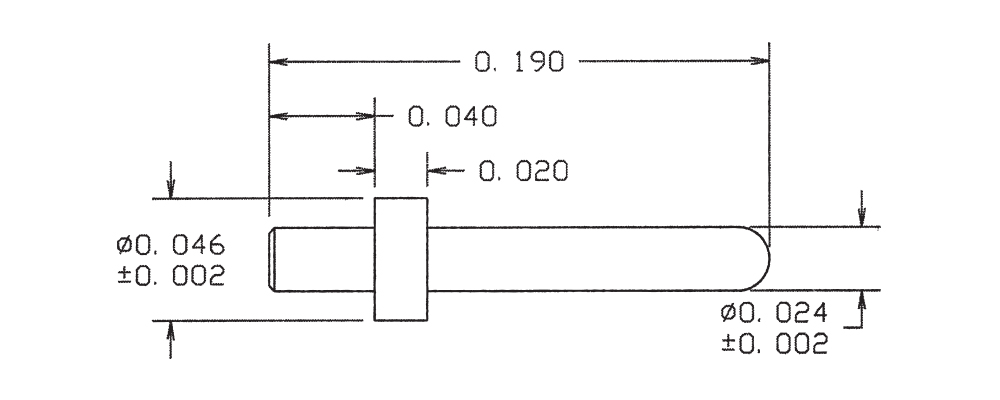

09-8827-1-03
09-8827-1-03
09-8827-1-03
0.190" 0.024 - Solder 0.040" 1/64 0.028 Brass Gold YES

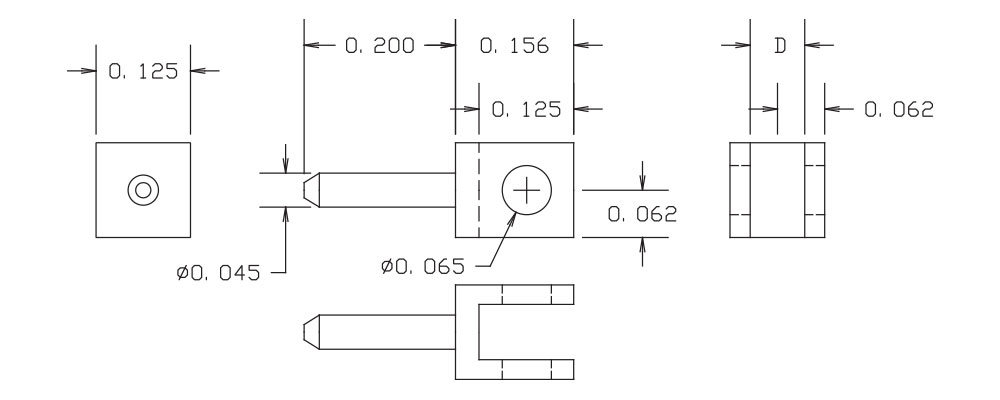

09-9504-1-035
09-9504-1-035
09-9504-1-035
0.356" 0.045 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES

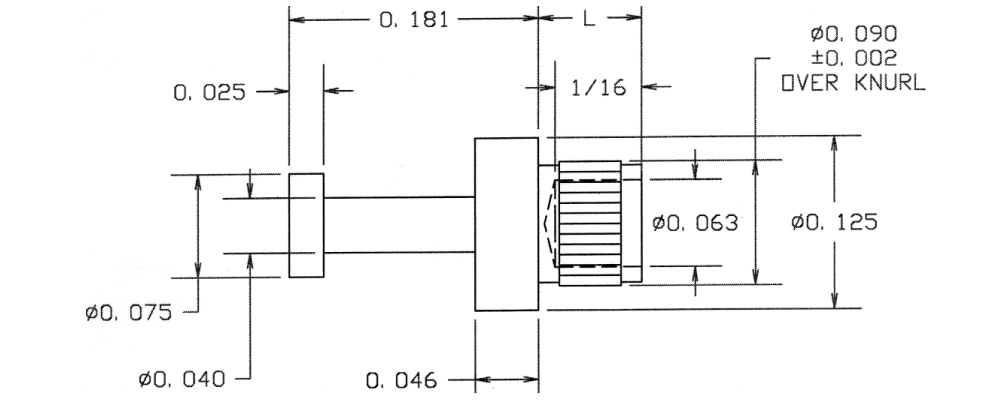

10-106-3-01
10-106-3-01
10-106-3-01
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Silver YES
10-114-2-088
10-114-2-088
10-114-2-088
0.178" - - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO
10-135-3-01
10-135-3-01
10-135-3-01
0.499" - - Swage Mount 0.140" 3/32 0.116 Brass Silver YES
10-205-3-01
10-205-3-01
10-205-3-01
0.495" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES
10-214-2-044
10-214-2-044
10-214-2-044
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin YES
10-221-1-04
10-221-1-04
10-221-1-04
0.266" - - Swage Mount 0.053" 1/32 0.076 Brass Electro-Tin YES
10-232-1-088
10-232-1-088
10-232-1-088
0.277" - - Swage Mount 0.047" 1/32 0.052 Brass Bright Tin-Lead NO
10-259-1-04
10-259-1-04
10-259-1-04
0.281" - - Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES
10-307-2-01
10-307-2-01
10-307-2-01
0.371" - - Swage Mount 0.105" 1/16 0.096 Brass Silver YES
10-315-2-044
10-315-2-044
10-315-2-044
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Bright Tin YES
10-329-6-03
10-329-6-03
10-329-6-03
0.562" - - Swage Mount 0.234" 3/16 0.125 Brass Gold YES
