Commercial
Non-Insulated
Terminals

Filter

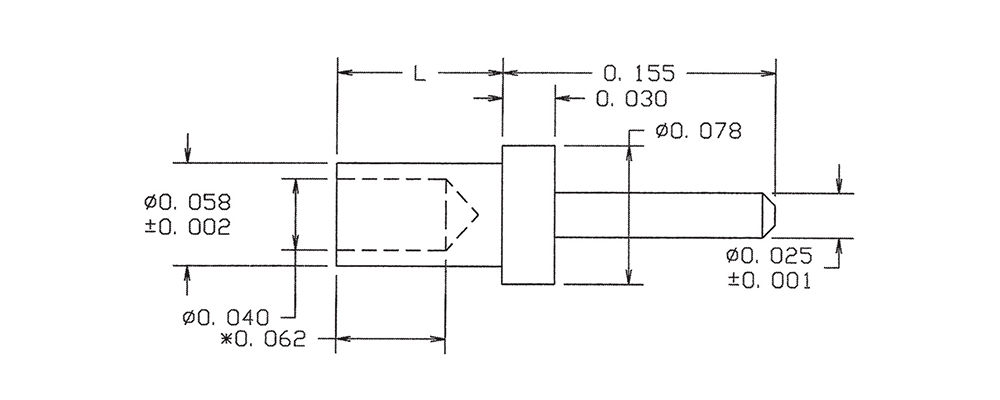

10-925-3-035
10-925-3-035
10-925-3-035
0.280" 0.025 - Swage Mount 0.125" 3/32 0.0625 Brass Gold YES

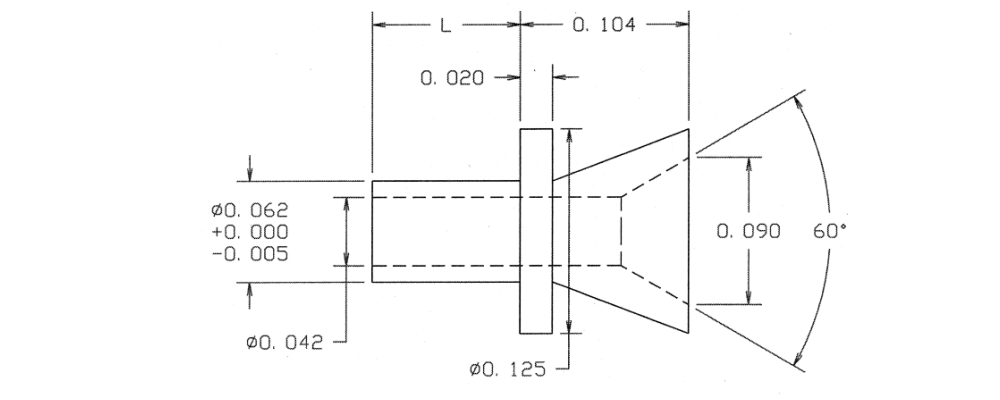

10-961-4-04
10-961-4-04
10-961-4-04
0.260" - - Swage Mount 0.156" 1/8 0.0635 Brass Electro-Tin YES
14-348-3-088
14-348-3-088
14-348-3-088
0.463" - - Swage Mount 0.135" 3/32 0.082 LEADED Red Brass Bright Tin-Lead NO

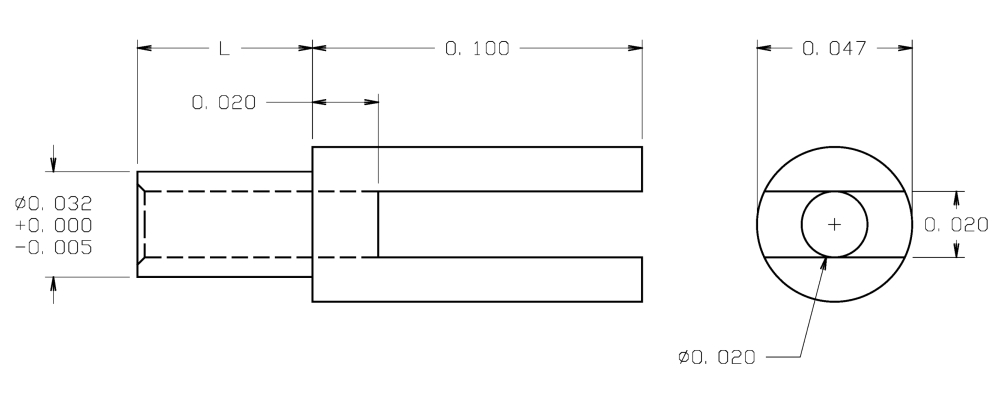

09-0118-2-01
09-0118-2-01
09-0118-2-01
0.184" - - Swage Mount 0.084" 1/16 0.033 Brass Silver YES

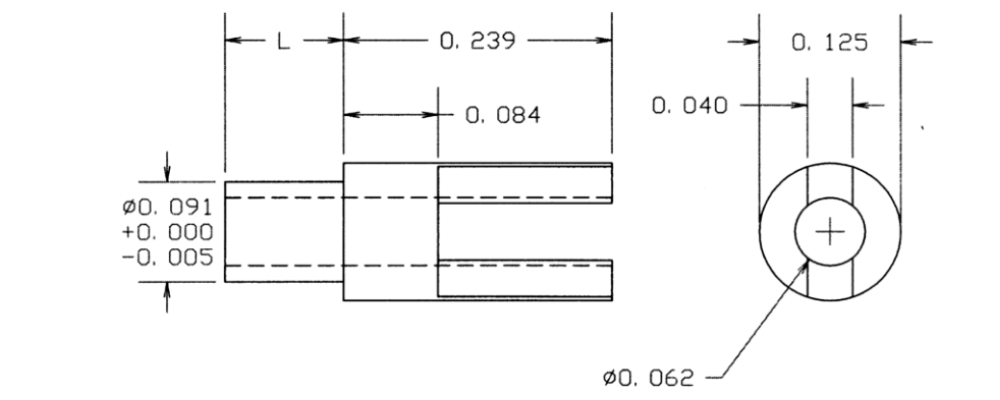

10-412-4-04
10-412-4-04
10-412-4-04
0.404" - - Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES

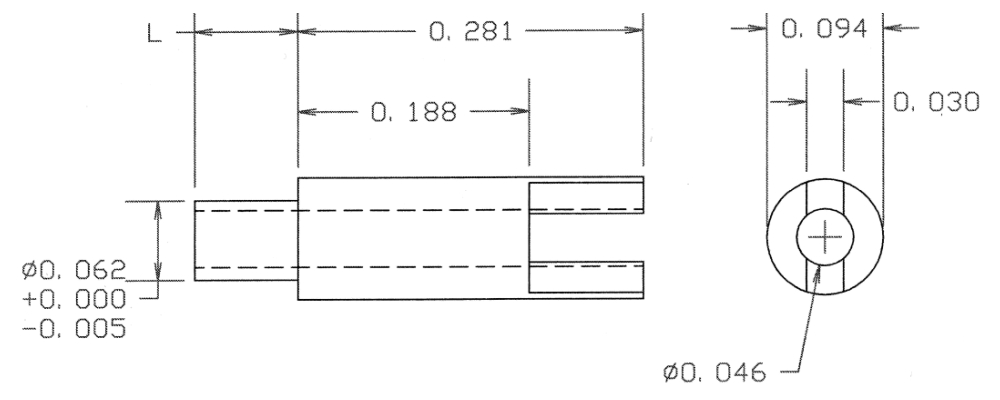

10-447-11-01
10-447-11-01
10-447-11-01
0.318" - - Swage Mount 0.037" 1/64 0.063 Brass Silver YES
10-461-3-044
10-461-3-044
10-461-3-044
0.427" - - Swage Mount 0.115" 3/32 0.043 Brass Bright Tin YES

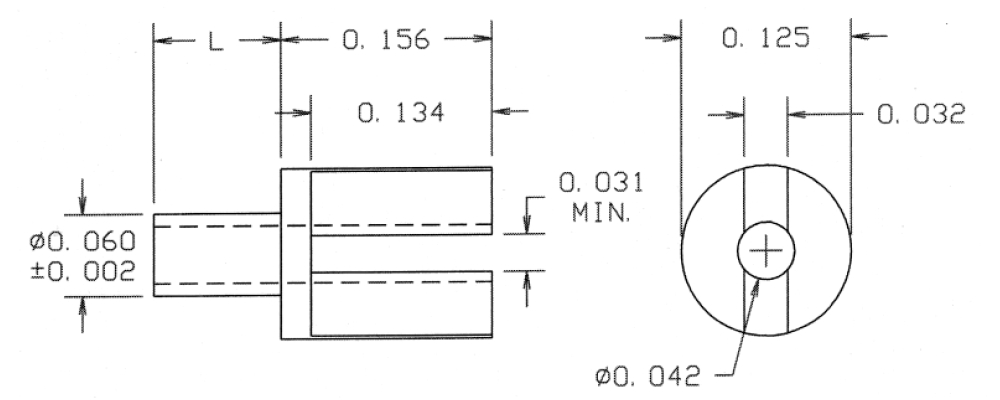

10-932-3-03
10-932-3-03
10-932-3-03
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Gold YES
09-0035-2-05
09-0035-2-05
09-0035-2-05
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Electro Solder NO

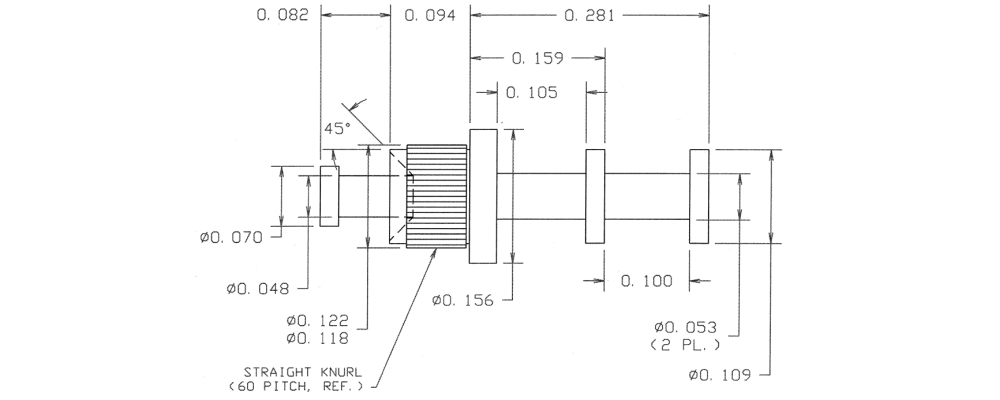

09-0090-2-088
09-0090-2-088
09-0090-2-088
0.457" - Turret/Turret Swage Mount 0.094" 1/16 0.125 Brass Bright Tin-Lead NO
09-0168-4-01
09-0168-4-01
09-0168-4-01
0.484" - - Swage Mount 0.172" 1/8 0.141 Brass Silver YES

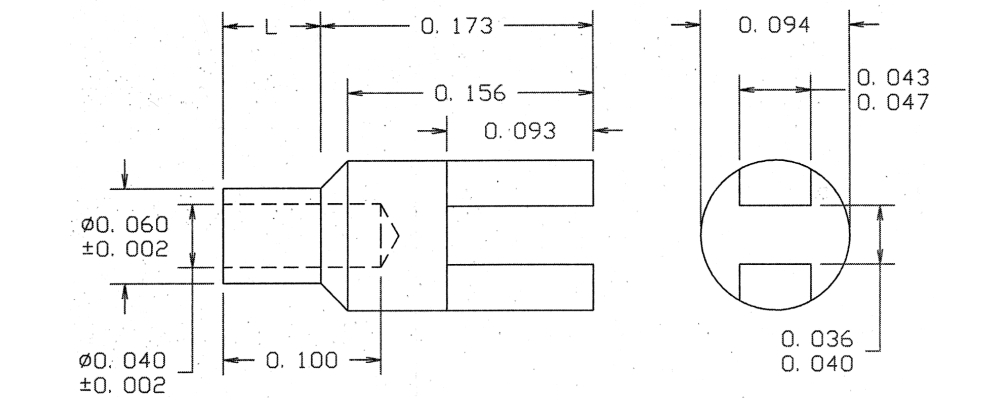

09-0208-4-03
09-0208-4-03
09-0208-4-03
0.329" - - Swage Mount 0.156" 1/8 0.067 LEADED Red Brass Gold YES

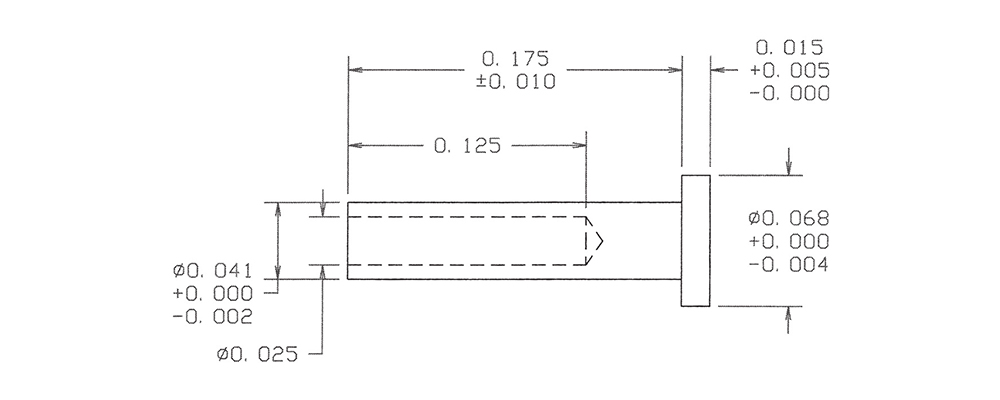

09-0246-1-035
09-0246-1-035
09-0246-1-035
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Gold YES

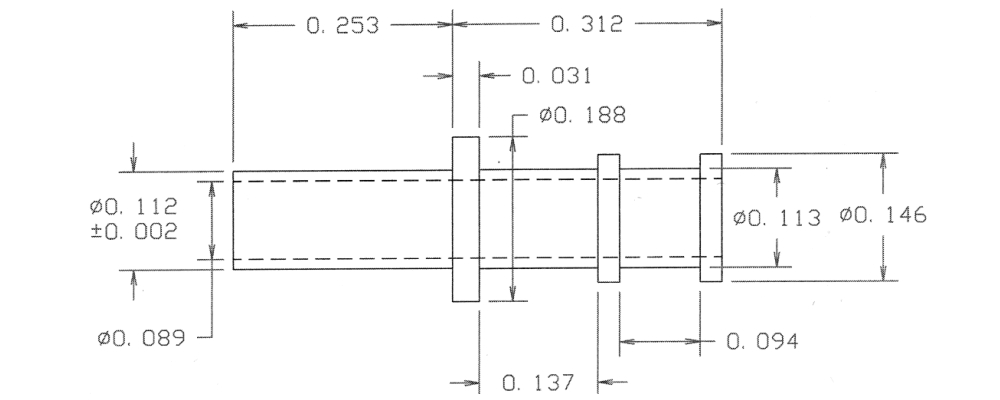

09-0294-7-01
09-0294-7-01
09-0294-7-01
0.565" - - Swage Mount 0.253" 7/32 0.116 Brass Silver YES

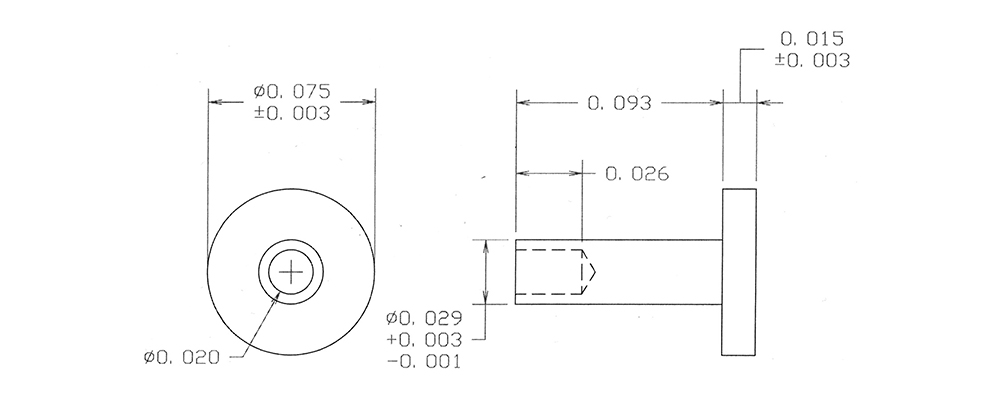

09-0356-1-01
09-0356-1-01
09-0356-1-01
0.108" 0.029 (+0.003/-0.001) - - 0.093" - - Brass Silver YES

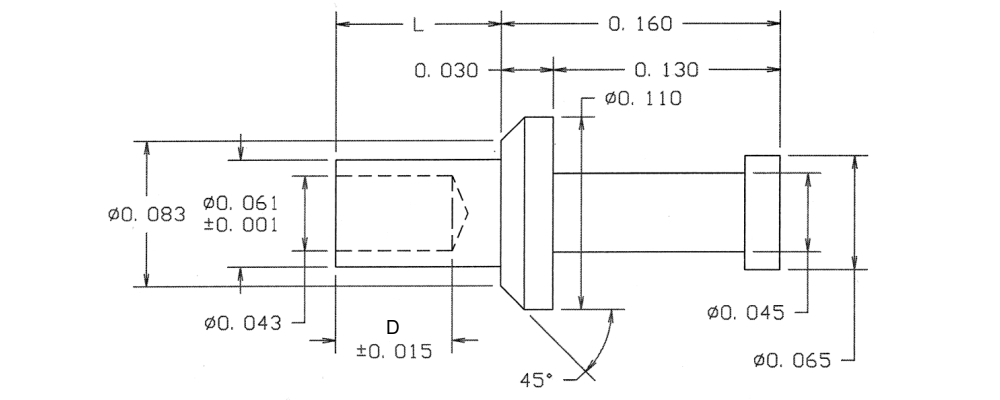

09-7013-2-044
09-7013-2-044
09-7013-2-044
0.255" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Bright Tin YES

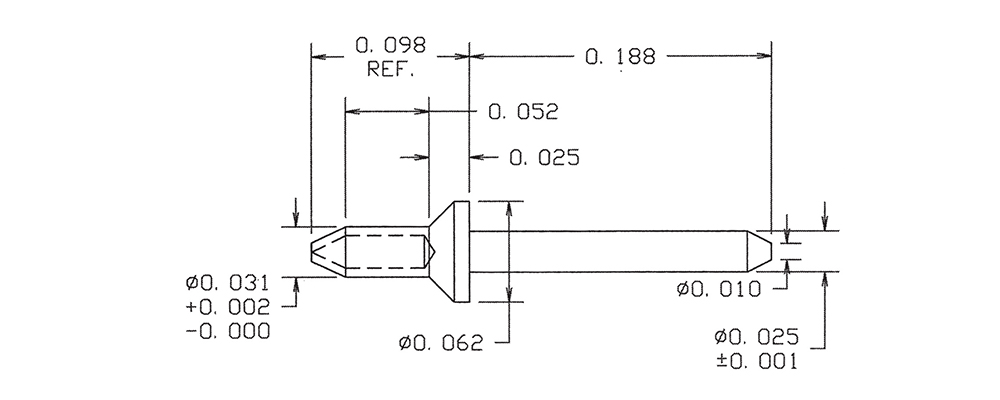

09-7121-1-044
09-7121-1-044
09-7121-1-044
0.286" 0.025 - RIVET MOUNT 0.052" 1/32 0.035 Brass Bright Tin YES

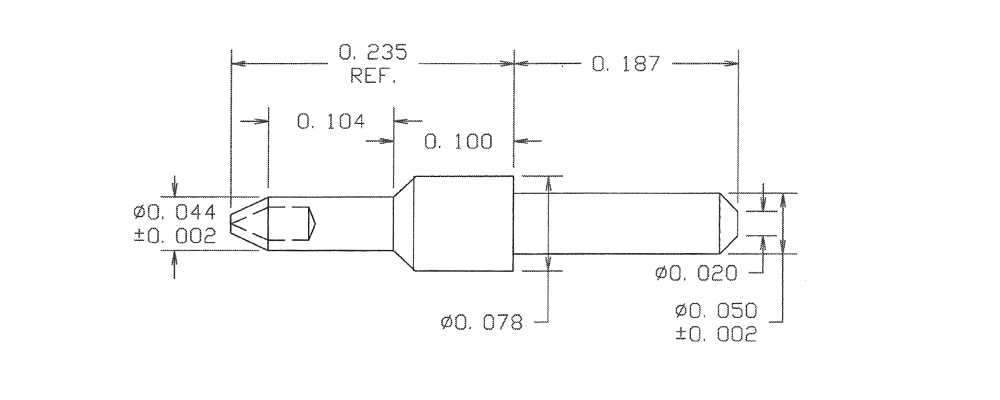

09-7151-2-03
09-7151-2-03
09-7151-2-03
0.422" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Gold YES

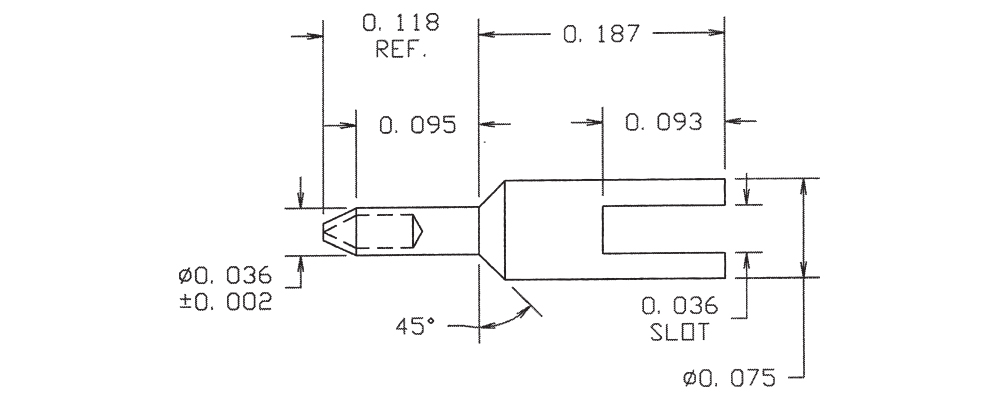

09-7183-2B-05
09-7183-2B-05
09-7183-2B-05
0.305" - - RIVET MOUNT 0.095" 9/128 0.040 Brass Electro Solder NO

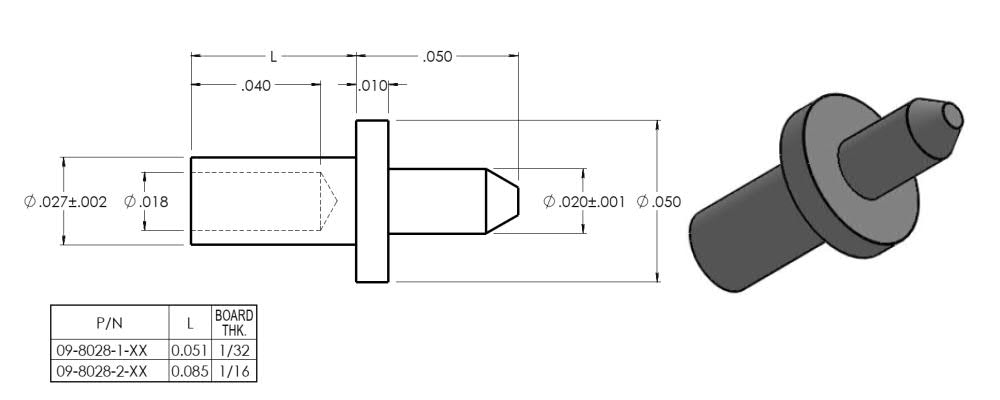

09-8028-1-035
09-8028-1-035
09-8028-1-035
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Gold YES
