Commercial
Non-Insulated
Terminals

Filter
10-412-4-035
10-412-4-035
10-412-4-035
0.404" - - Swage Mount 0.165" 1/8 0.094 Brass Gold YES
10-447-1-088
10-447-1-088
10-447-1-088
0.334" - - Swage Mount 0.053" 1/32 0.063 Brass Bright Tin-Lead NO
10-461-3-04
10-461-3-04
10-461-3-04
0.427" - - Swage Mount 0.115" 3/32 0.043 Brass Electro-Tin YES

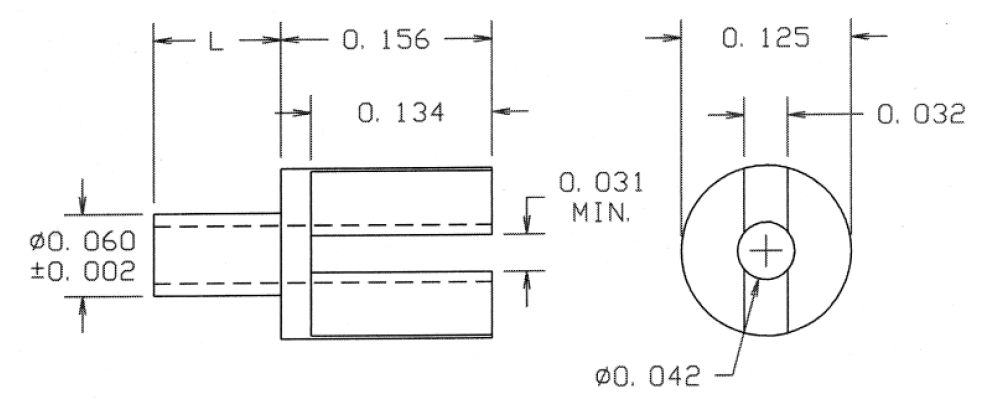

10-932-3-01
10-932-3-01
10-932-3-01
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Silver YES

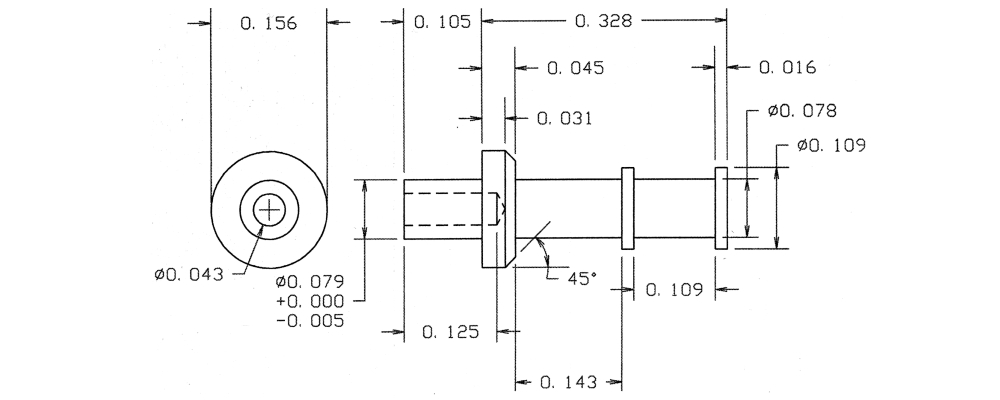

09-0035-2-044
09-0035-2-044
09-0035-2-044
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Bright Tin YES

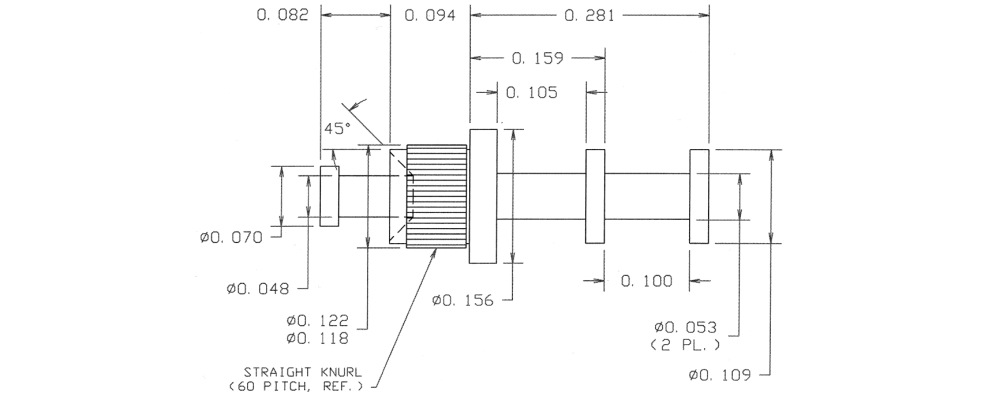

09-0090-2-05
09-0090-2-05
09-0090-2-05
0.457" - Turret/Turret Swage Mount 0.094" 1/16 0.125 Brass Electro Solder NO

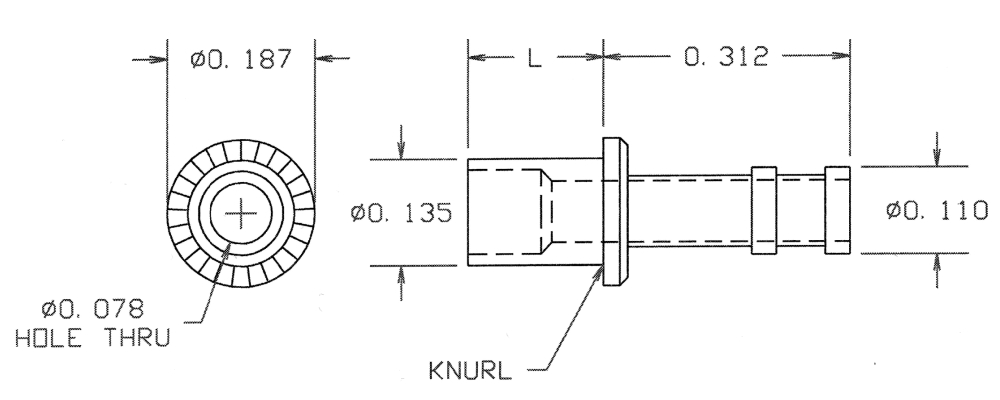

09-0168-3-088
09-0168-3-088
09-0168-3-088
0.453" - - Swage Mount 0.141" 3/32 0.141 Brass Bright Tin-Lead NO
09-0208-4-01
09-0208-4-01
09-0208-4-01
0.329" - - Swage Mount 0.156" 1/8 0.067 LEADED Red Brass Silver YES
09-0246-1-03
09-0246-1-03
09-0246-1-03
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Gold YES

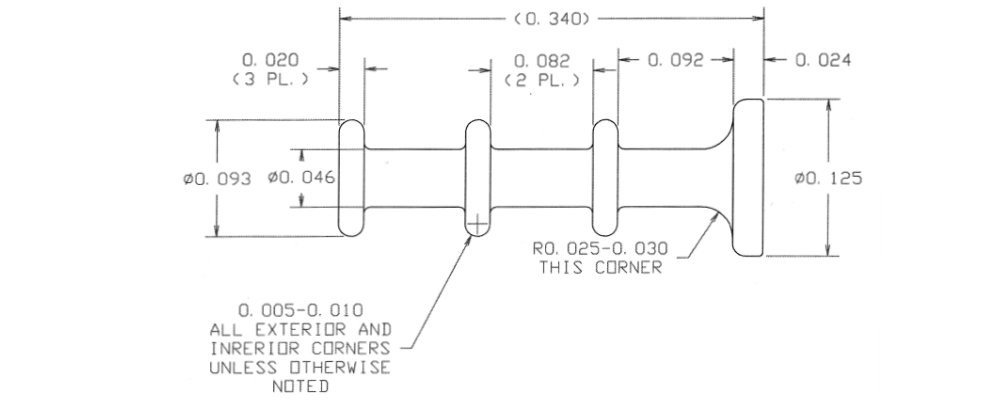

09-0293-1-095
09-0293-1-095
09-0293-1-095
0.340" - - Solder - - - Brass Hot Solder Dip NO
09-0353-5-095
09-0353-5-095
09-0353-5-095
0.468" - - Swage Mount 0.178" 5/32 0.067 Brass Hot Solder Dip NO

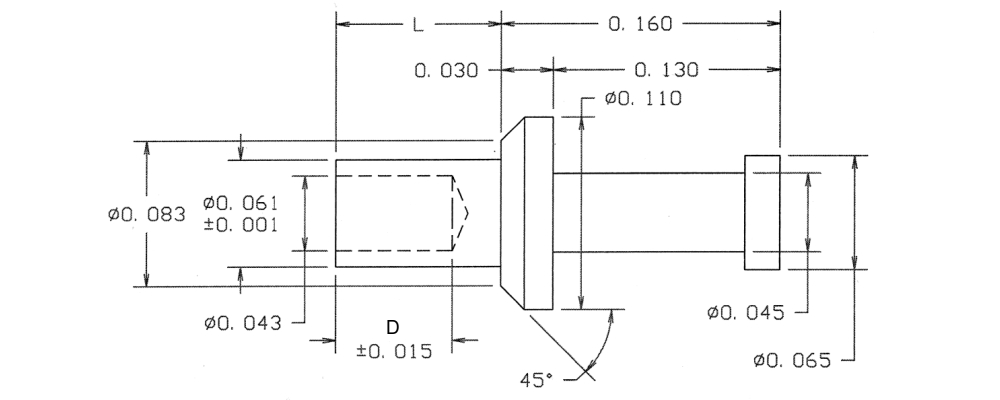

09-7013-2-04
09-7013-2-04
09-7013-2-04
0.255" - - Swage Mount 0.095" 1/16 0.067 LEADED Red Brass Electro-Tin YES

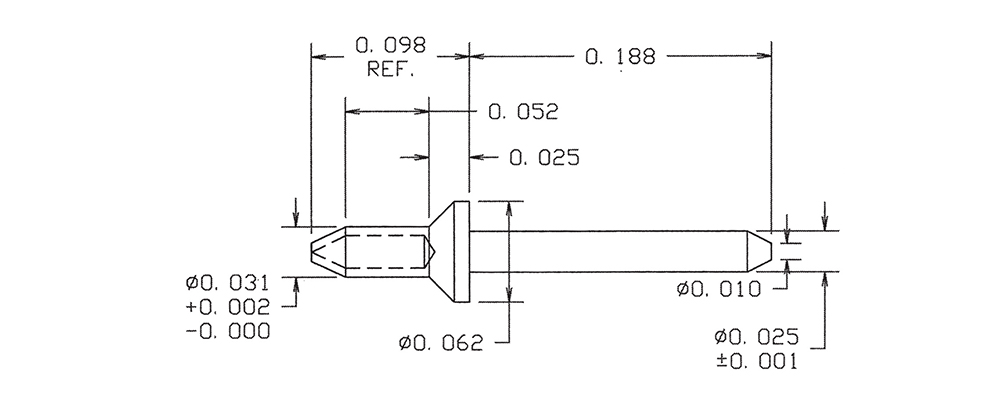

09-7121-1-04
09-7121-1-04
09-7121-1-04
0.286" 0.025 - RIVET MOUNT 0.052" 1/32 0.035 Brass Electro-Tin YES

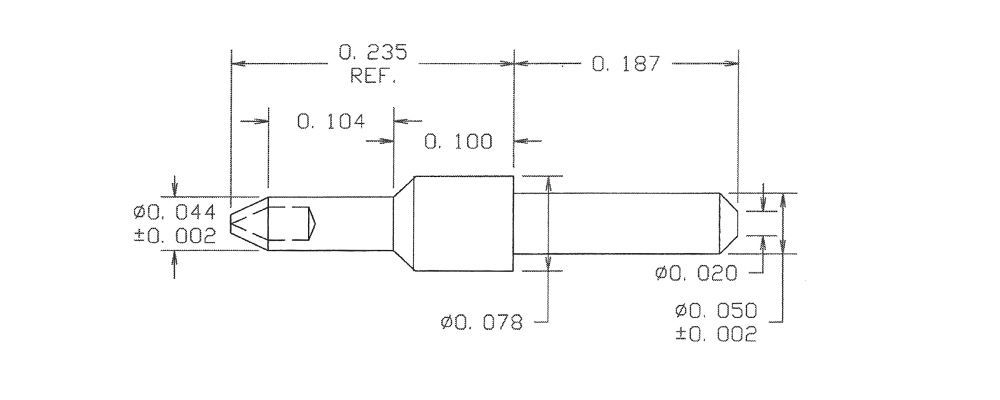

09-7151-2-01
09-7151-2-01
09-7151-2-01
0.422" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Silver YES

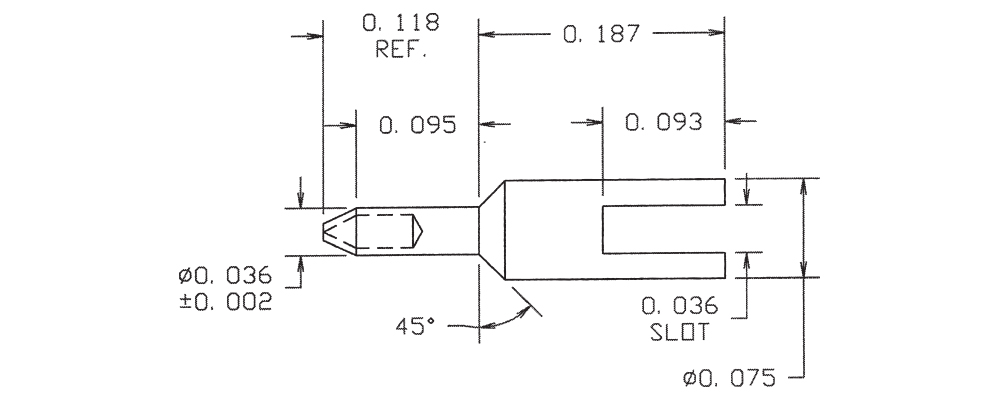

09-7183-2B-044
09-7183-2B-044
09-7183-2B-044
0.305" - - RIVET MOUNT 0.095" 9/128 0.040 Brass Bright Tin YES

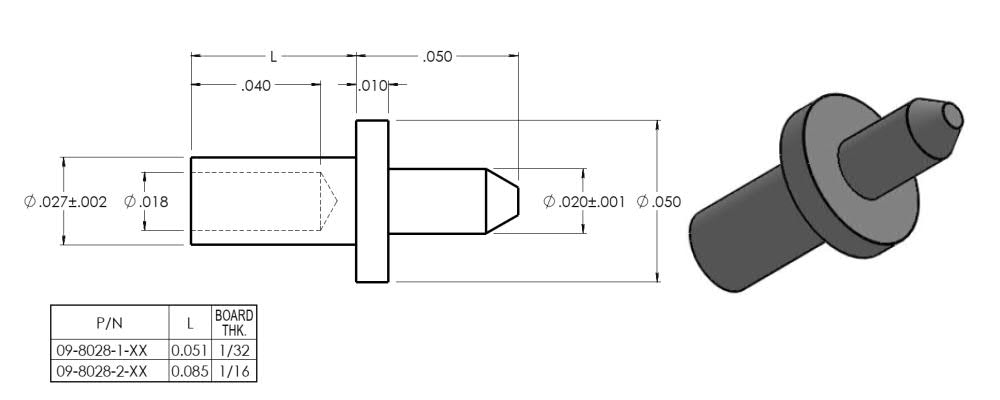

09-8028-1-03
09-8028-1-03
09-8028-1-03
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Gold YES

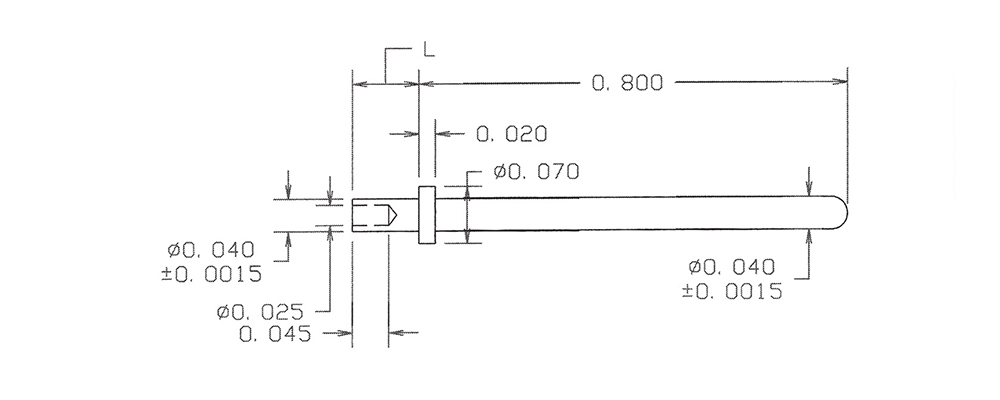

09-8060-2-044
09-8060-2-044
09-8060-2-044
0.882" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

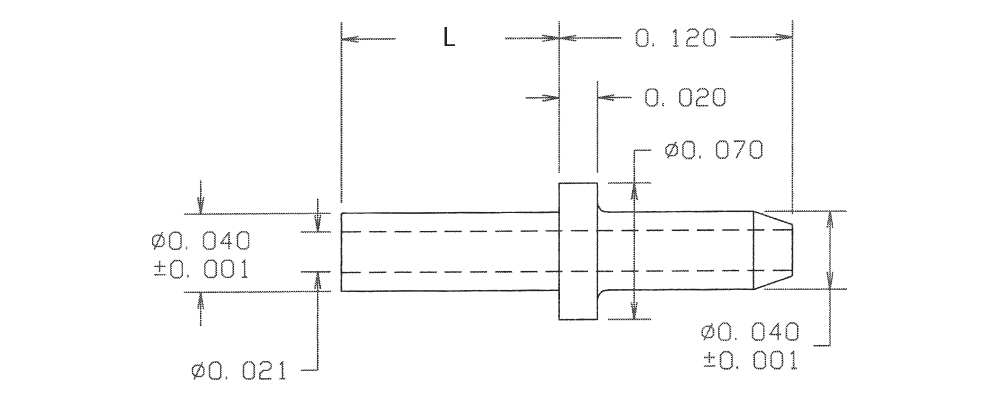

09-8113-1-03
09-8113-1-03
09-8113-1-03
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

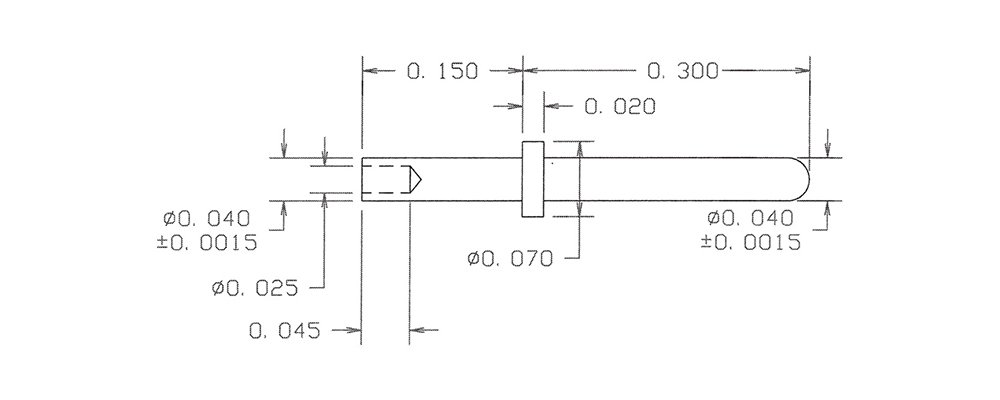

09-8156-4-05
09-8156-4-05
09-8156-4-05
0.450" 0.0405 - Swage Mount 0.150" 1/8 0.043 Brass Electro Solder NO

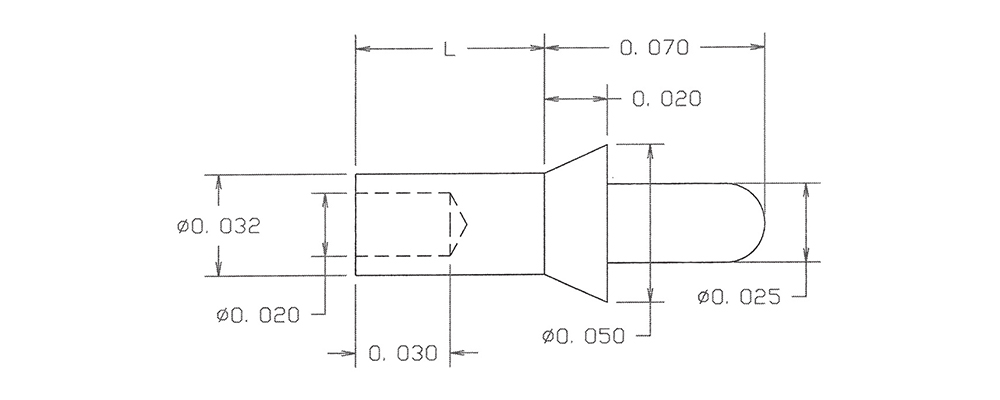

09-8186-1-035
09-8186-1-035
09-8186-1-035
0.117" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Gold YES
