Commercial
Non-Insulated
Terminals

Filter

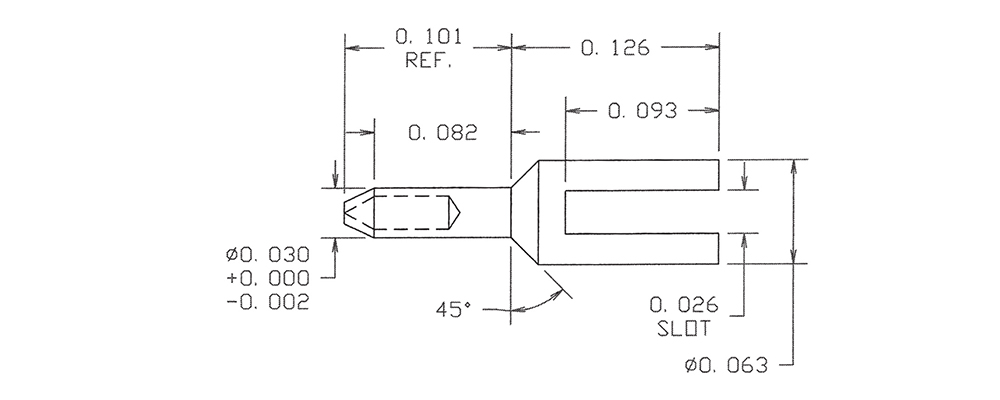

09-7180-2-01
09-7180-2-01
09-7180-2-01
0.227" - - RIVET MOUNT 0.083" 1/16 0.032 Brass Silver YES

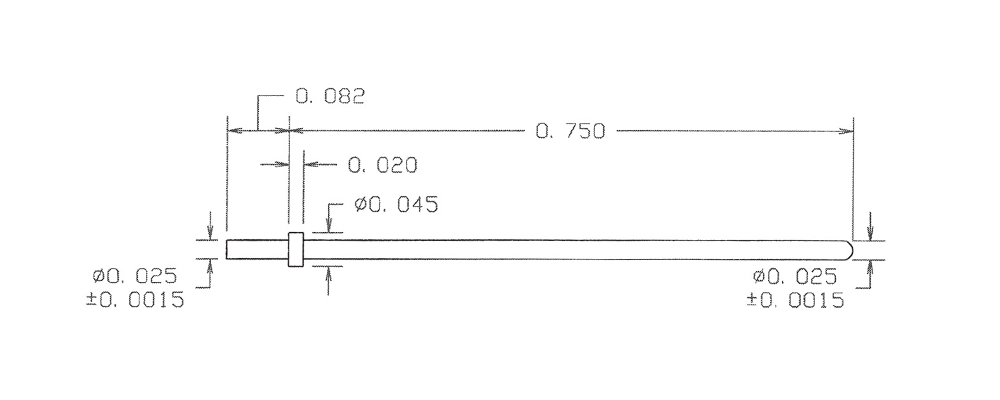

09-8020-2-044
09-8020-2-044
09-8020-2-044
0.832" 0.0255 - Solder 0.082" 1/16 0.028 Brass Bright Tin YES

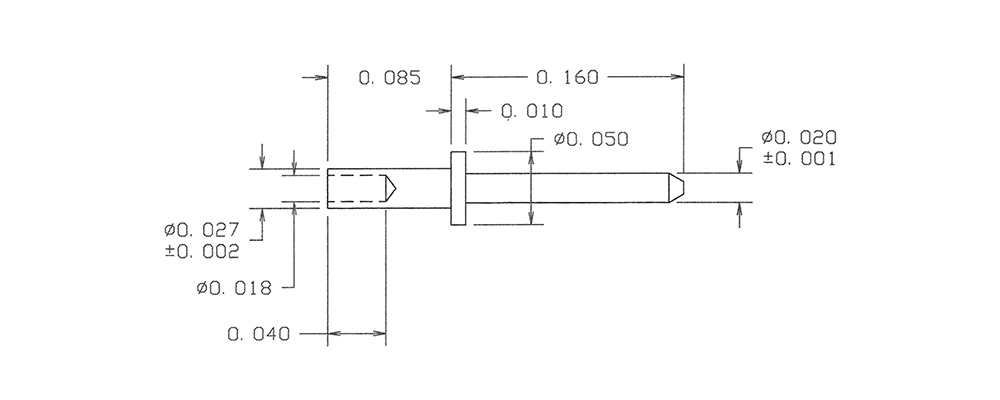

09-8056-2-01
09-8056-2-01
09-8056-2-01
0.245" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Silver YES
09-8094-5-044
09-8094-5-044
09-8094-5-044
0.287" 0.025 - Swage Mount 0.187" 5/32 0.035 Brass Bright Tin YES

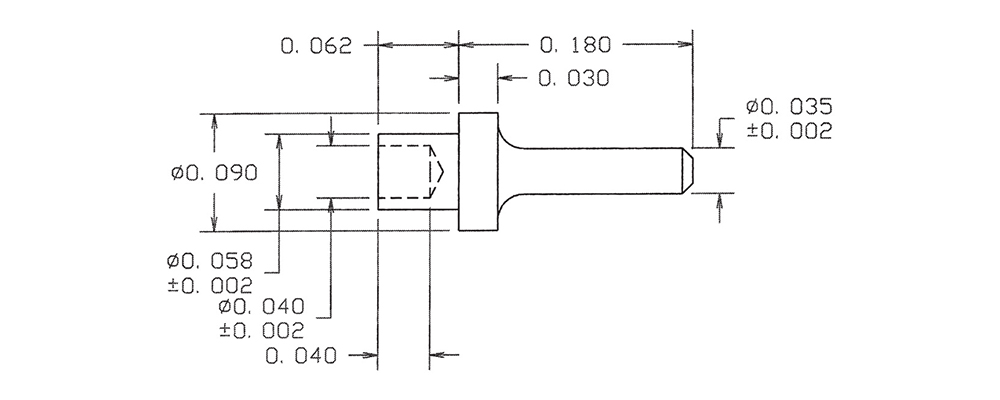

09-8153-1-03
09-8153-1-03
09-8153-1-03
0.242" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Gold YES

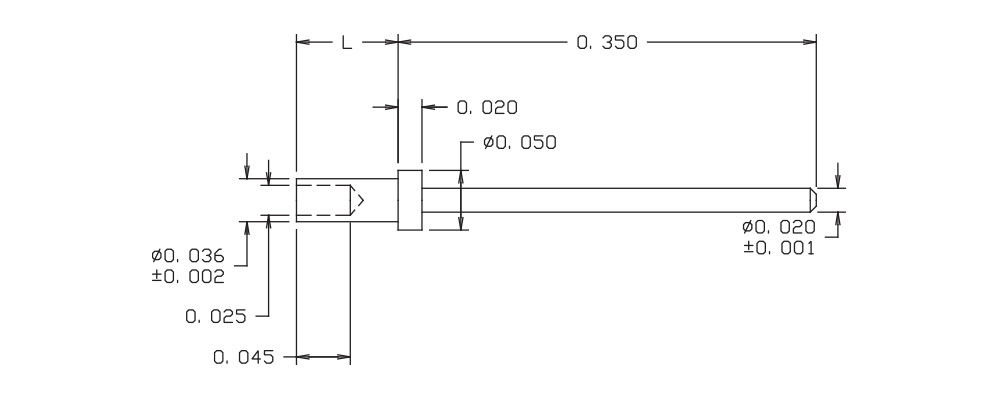

09-8180-3-05
09-8180-3-05
09-8180-3-05
0.469" 0.020 - Swage Mount 0.119" 3/32 0.039 Brass Electro Solder NO

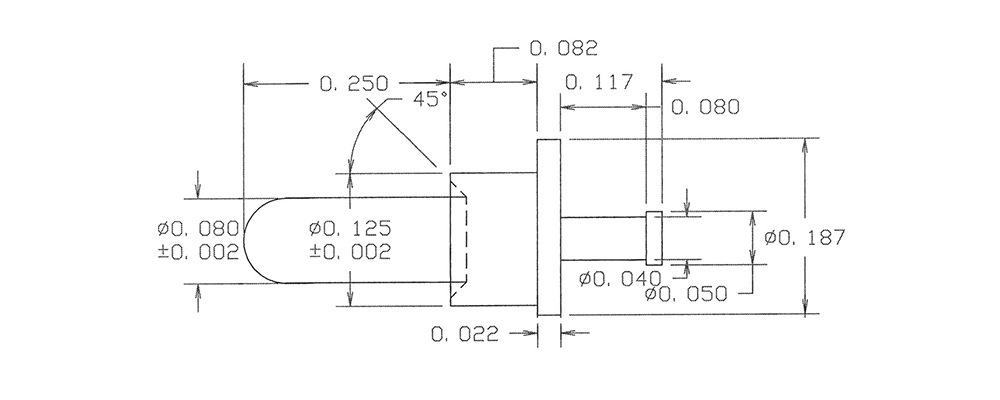

09-8344-2-05
09-8344-2-05
09-8344-2-05
0.349" 0.080 PIN/TURRET Swage Mount 0.082" 1/16 0.1285 Brass Electro Solder NO

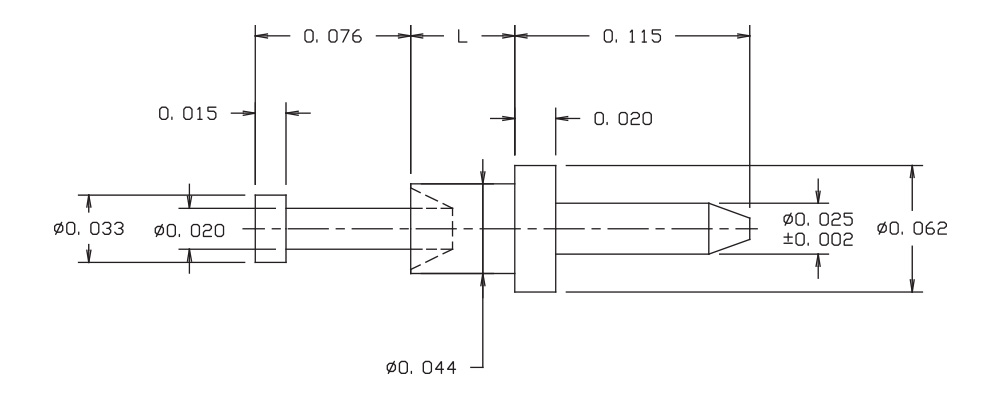

09-8584-2-04
09-8584-2-04
09-8584-2-04
0.273" 0.025 TURRET/PIN Swage Mount 0.082" 1/16 0.047 Brass Electro-Tin YES
09-8705-2A-035
09-8705-2A-035
09-8705-2A-035
0.424" - - Swage Mount 0.094" 1/16 0.094 LEADED Red Brass Gold YES

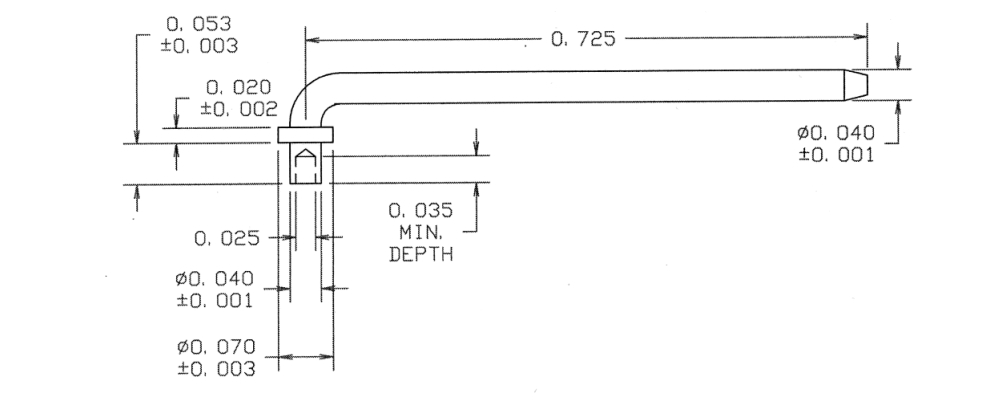

09-8811-1-095
09-8811-1-095
09-8811-1-095
0.760" 0.040 - Swage Mount 0.053" 1/32 0.043 Brass Hot Solder Dip NO

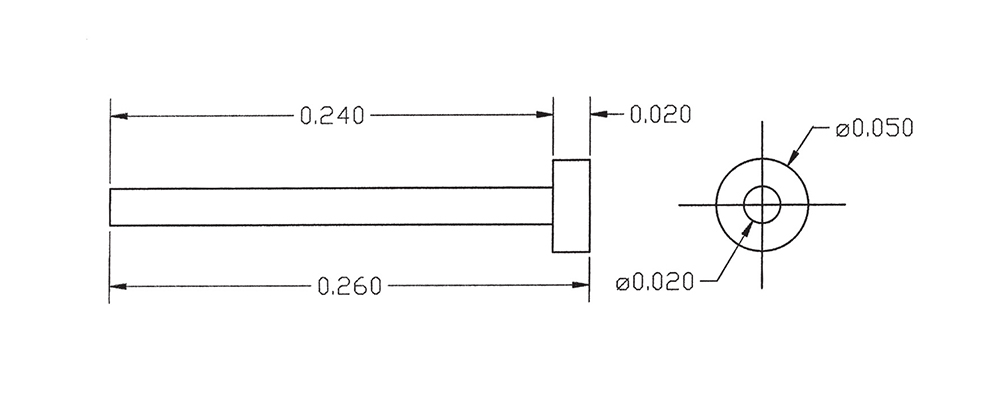

09-8886-1-044
09-8886-1-044
09-8886-1-044
0.260" 0.020 - - - - - Beryllium Copper Bright Tin YES
10-105-11-088
10-105-11-088
10-105-11-088
0.146" - - Swage Mount 0.037" 1/64 0.076 Brass Bright Tin-Lead NO
10-112-2-088
10-112-2-088
10-112-2-088
0.286" - - Swage Mount 0.105" 1/16 0.082 Brass Bright Tin-Lead NO
10-134-2-01
10-134-2-01
10-134-2-01
0.251" - - Swage Mount 0.094" 1/16 0.081 Brass Silver YES
10-204-3-088
10-204-3-088
10-204-3-088
0.500" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin-Lead NO
10-212-2-03
10-212-2-03
10-212-2-03
0.371" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-218-4-05
10-218-4-05
10-218-4-05
0.402" - - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder NO
10-230-3-03
10-230-3-03
10-230-3-03
0.369" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-254-11-04
10-254-11-04
10-254-11-04
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Electro-Tin YES
10-305-4-035
10-305-4-035
10-305-4-035
0.360" - - Swage Mount 0.172" 1/8 0.113 Brass Gold YES
