Commercial
Non-Insulated
Terminals

Filter

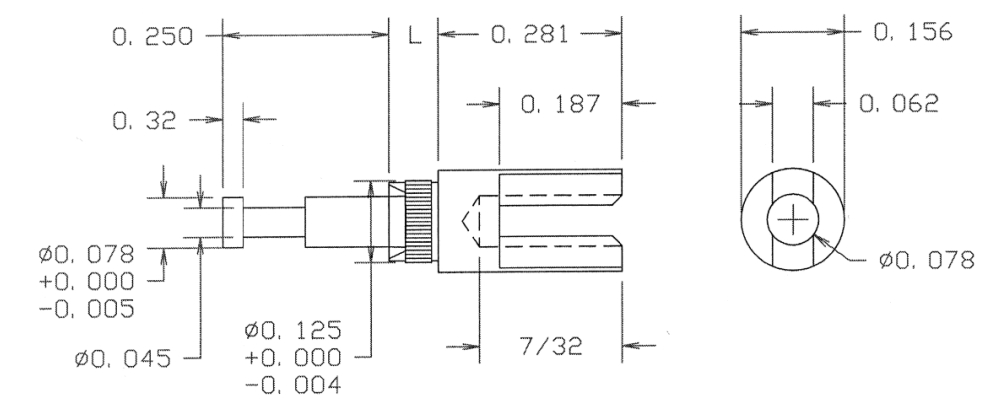

10-418-2-044
10-418-2-044
10-418-2-044
0.636" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Bright Tin YES

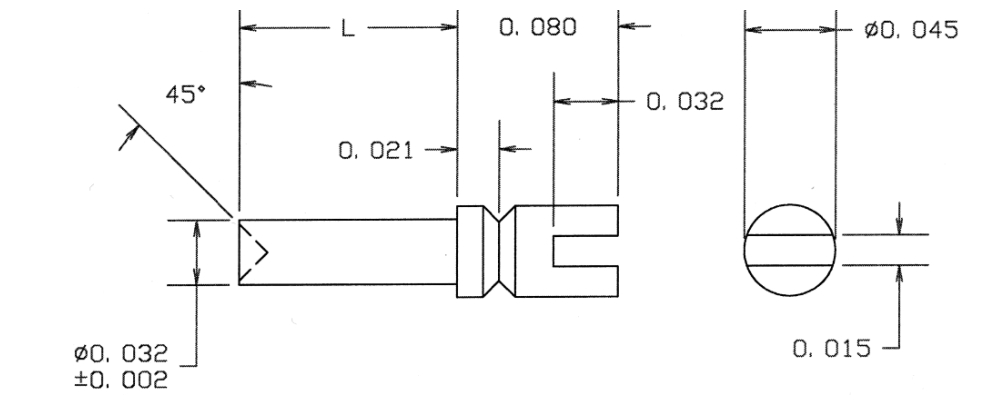

10-431-2-01
10-431-2-01
10-431-2-01
0.157" - - Swage Mount 0.077" 1/16 0.036 Brass Silver YES

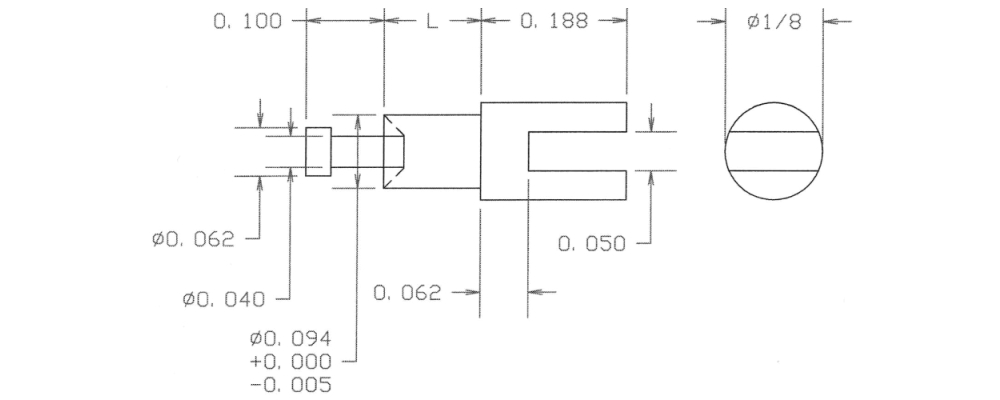

10-445-2-044
10-445-2-044
10-445-2-044
0.382" - SLOTTED/TURRET Swage Mount 0.094" 1/16 0.096 Brass Bright Tin YES
10-460-4-044
10-460-4-044
10-460-4-044
0.428" - - Swage Mount 0.147" 1/8 0.063 Brass Bright Tin YES

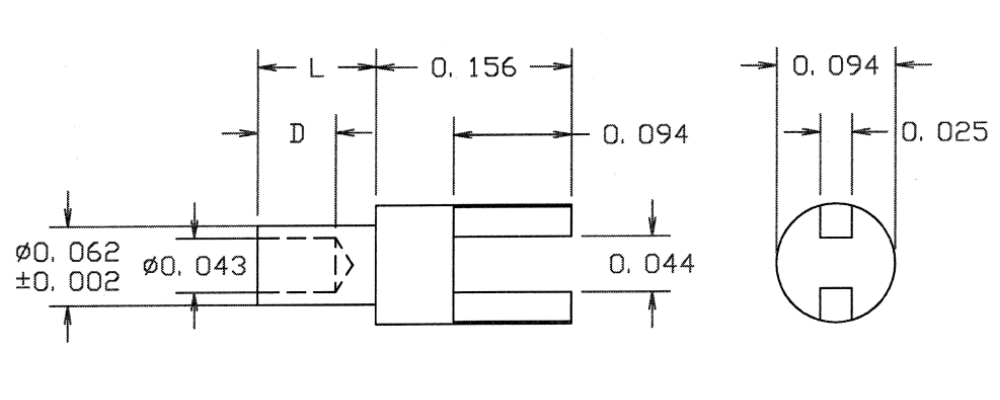

10-489-1-044
10-489-1-044
10-489-1-044
0.201" - - Swage Mount 0.045" 1/32 0.067 Brass Bright Tin YES

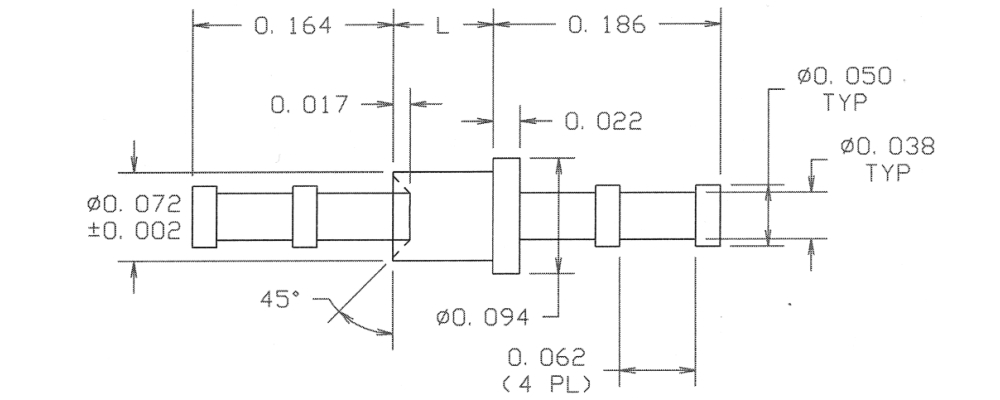

10-503-4-088
10-503-4-088
10-503-4-088
0.495" - Double Turret/Double Turret Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO

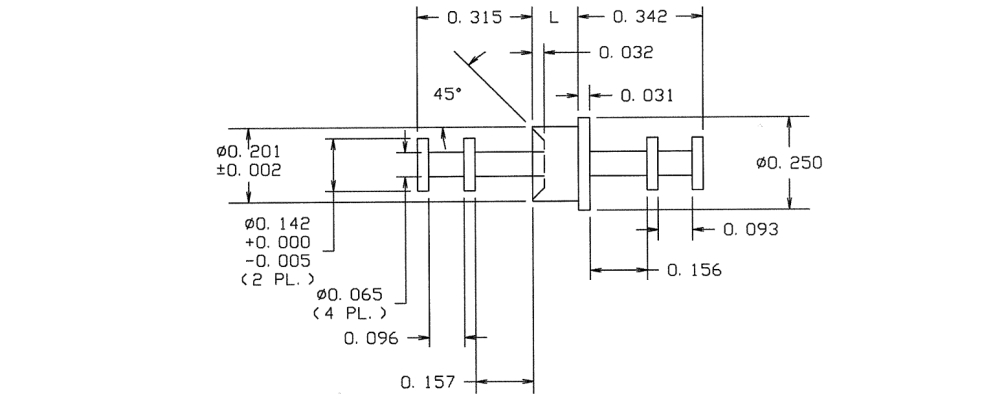

10-509-5-088
10-509-5-088
10-509-5-088
0.852" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.204 Brass Bright Tin-Lead NO

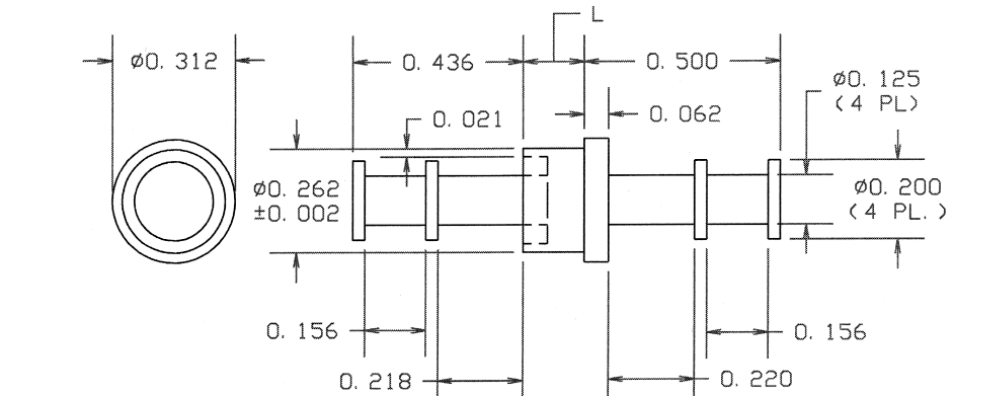

10-519-2-088
10-519-2-088
10-519-2-088
1.030" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.266 Brass Bright Tin-Lead NO

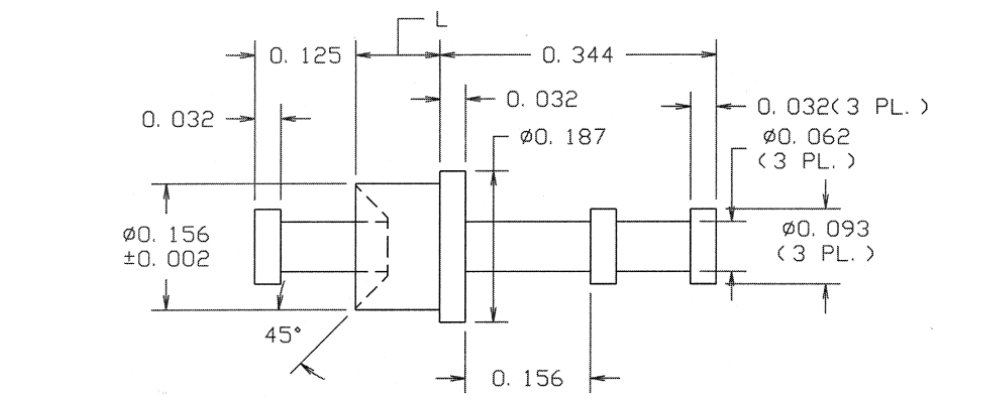

10-530-4-088
10-530-4-088
10-530-4-088
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.159 Brass Bright Tin-Lead NO

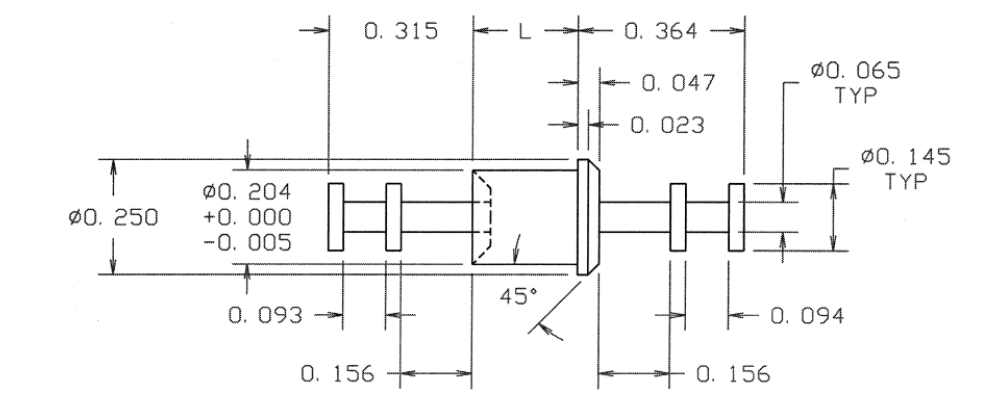

10-549-3-088
10-549-3-088
10-549-3-088
0.814" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.206 Brass Bright Tin-Lead NO

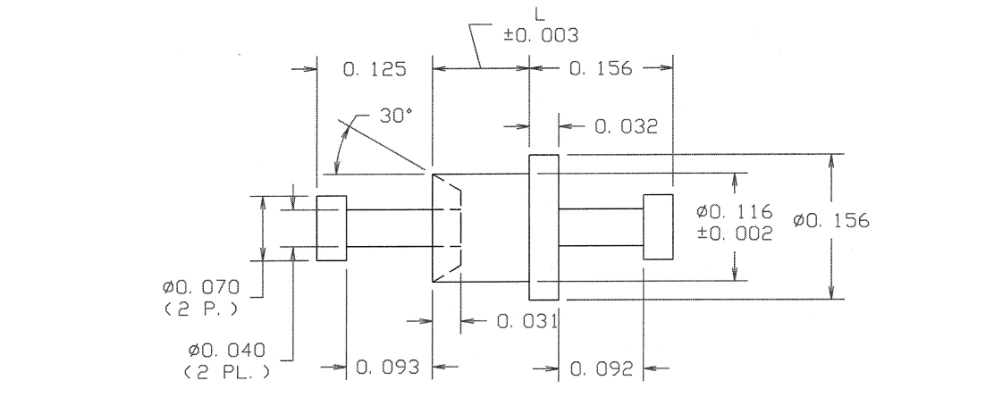

10-576-3-088
10-576-3-088
10-576-3-088
0.416" - Turret/Turret Swage Mount 0.135" 3/32 0.120 Brass Bright Tin-Lead NO

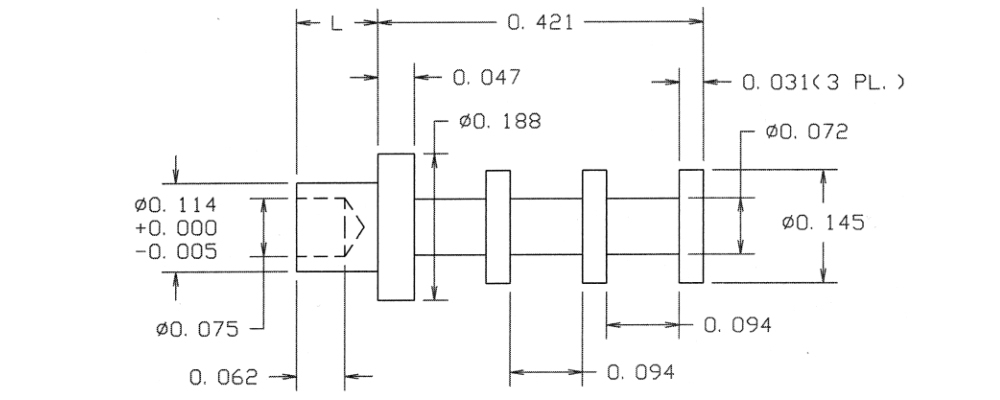

10-607-4-035
10-607-4-035
10-607-4-035
0.586" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES

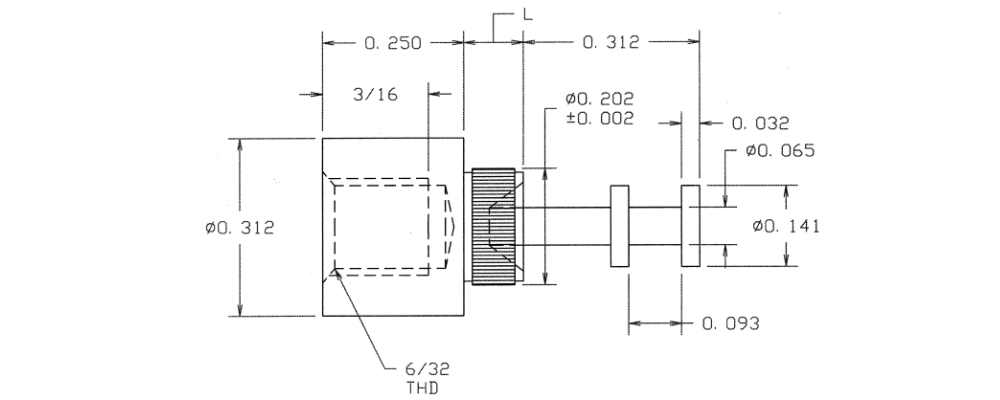

10-714-5-03
10-714-5-03
10-714-5-03
0.757" - DOUBLE TURRET/THREAD Swage Mount 0.195" 5/32 0.204 Brass Gold YES

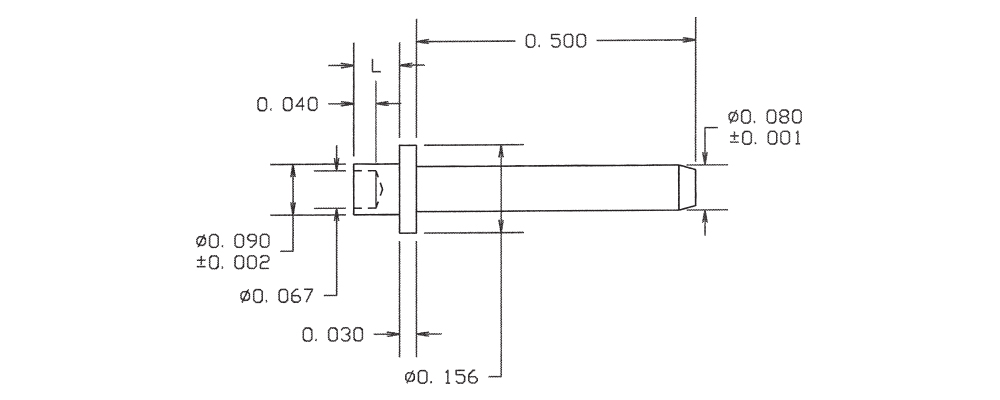

10-8016-1-01
10-8016-1-01
10-8016-1-01
0.581" 0.080 - Swage Mount 0.051" 1/32 0.094 Brass Silver YES

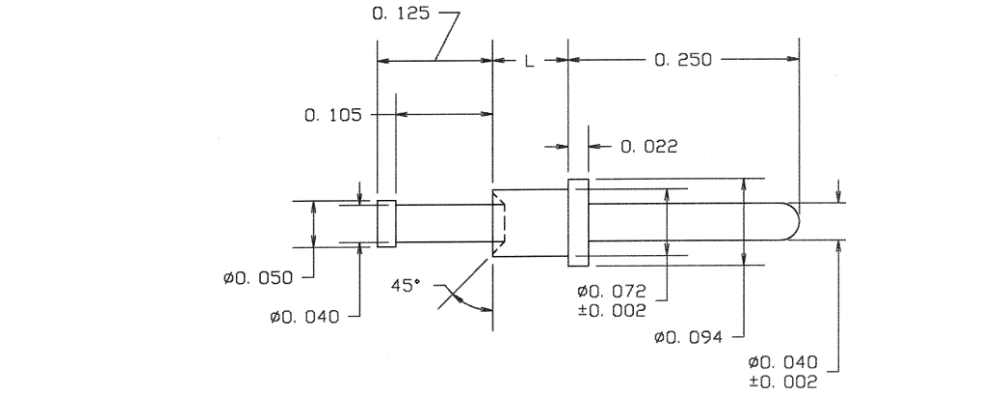

10-803-2-05
10-803-2-05
10-803-2-05
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

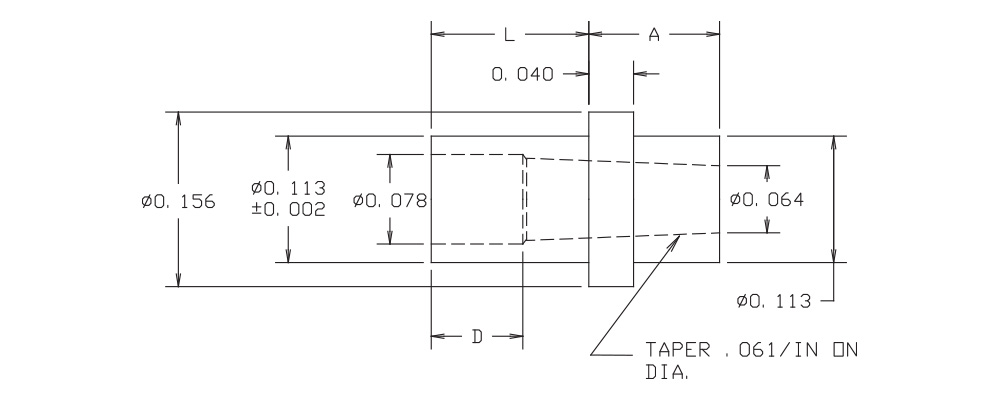

10-809-1-03
10-809-1-03
10-809-1-03
0.258" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES

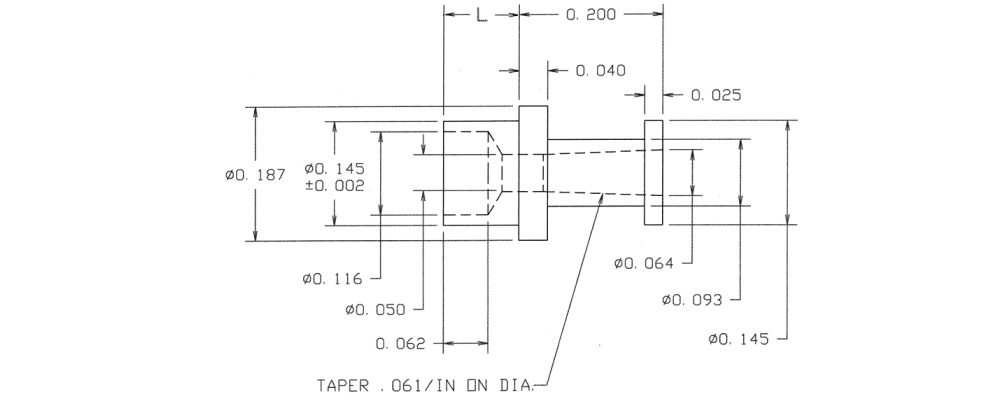

10-816-1-05
10-816-1-05
10-816-1-05
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Electro Solder NO

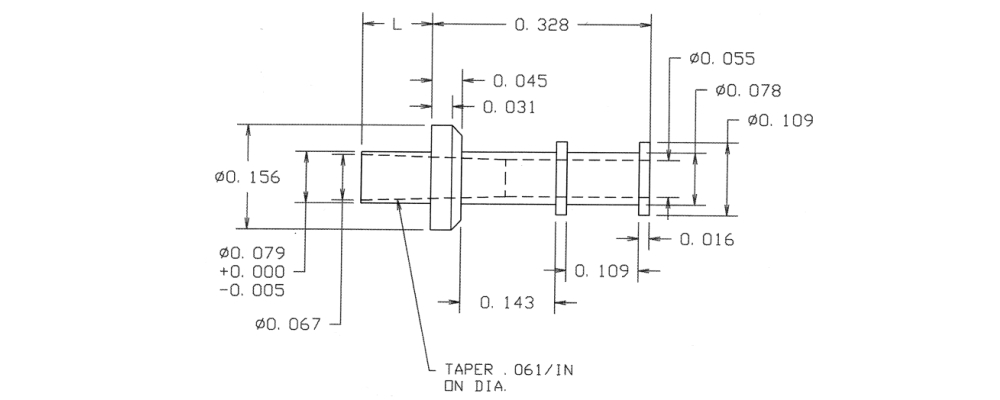

10-826-2-03
10-826-2-03
10-826-2-03
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Gold YES

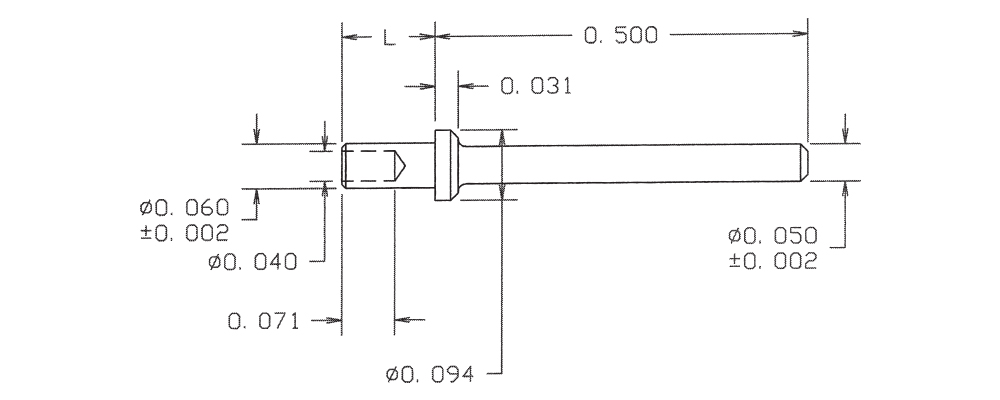

10-836-4-01
10-836-4-01
10-836-4-01
0.656" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Silver YES

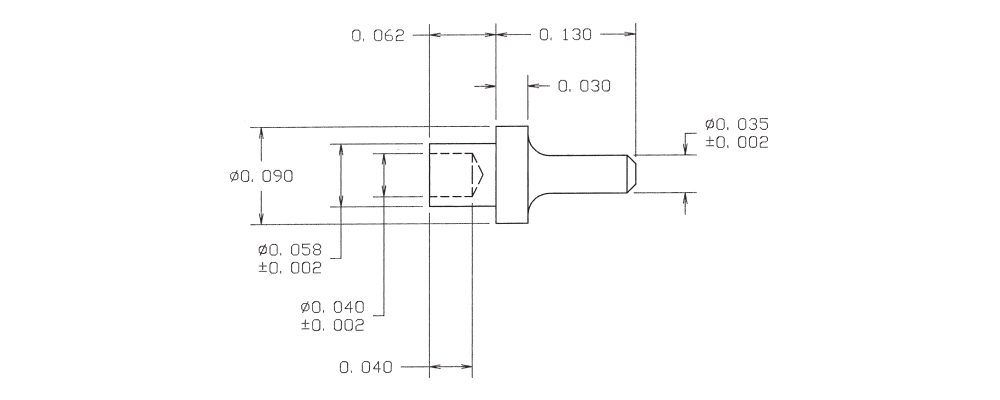

10-849-1-044
10-849-1-044
10-849-1-044
0.192" 0.035 - Swage Mount 0.062" 1/32 0.062 Brass Bright Tin YES
