Commercial
Non-Insulated
Terminals

Filter
09-7016-3-035
09-7016-3-035
09-7016-3-035
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Gold YES
09-7017-3-04
09-7017-3-04
09-7017-3-04
0.285" - - Swage Mount 0.125" 3/32 0.055 LEADED Red Brass Electro-Tin YES
09-7017-2-04
09-7017-2-04
09-7017-2-04
0.255" - - Swage Mount 0.095" 1/16 0.055 LEADED Red Brass Electro-Tin YES
09-7016-2-044
09-7016-2-044
09-7016-2-044
0.255" - - Swage Mount 0.095" 1/16 0.055 Brass Bright Tin YES
09-7013-4-04
09-7013-4-04
09-7013-4-04
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Electro-Tin YES
09-7017-4-095
09-7017-4-095
09-7017-4-095
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Hot Solder Dip NO

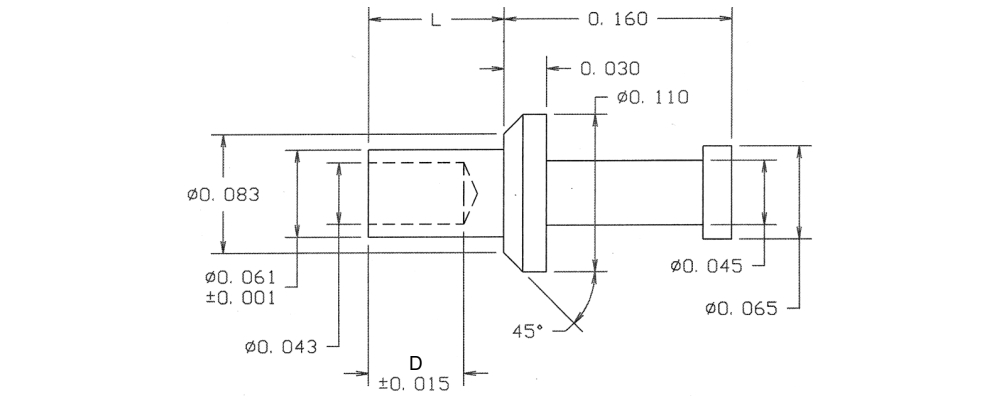

09-7012-4-044
09-7012-4-044
09-7012-4-044
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Bright Tin YES
09-7016-3-01
09-7016-3-01
09-7016-3-01
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Silver YES
09-7017-4-044
09-7017-4-044
09-7017-4-044
0.310" - - Swage Mount 0.150" 1/8 0.055 LEADED Red Brass Bright Tin YES
09-7012-3-01
09-7012-3-01
09-7012-3-01
0.285" - - Swage Mount 0.125" 3/32 0.067 Brass Silver YES
09-7013-4-01
09-7013-4-01
09-7013-4-01
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Silver YES
09-7012-3-095
09-7012-3-095
09-7012-3-095
0.285" - - Swage Mount 0.125" 3/32 0.067 Brass Hot Solder Dip NO
09-7017-3-095
09-7017-3-095
09-7017-3-095
0.285" - - Swage Mount 0.125" 3/32 0.055 LEADED Red Brass Hot Solder Dip NO
09-7017-2-035
09-7017-2-035
09-7017-2-035
0.255" - - Swage Mount 0.095" 1/16 0.055 LEADED Red Brass Gold YES
09-7016-2-03
09-7016-2-03
09-7016-2-03
0.255" - - Swage Mount 0.095" 1/16 0.055 Brass Gold YES
09-7016-3-044
09-7016-3-044
09-7016-3-044
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Bright Tin YES
09-7016-4-095
09-7016-4-095
09-7016-4-095
0.310" - - Swage Mount 0.150" 1/8 0.055 Brass Hot Solder Dip NO
09-7016-3-05
09-7016-3-05
09-7016-3-05
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Electro Solder NO
09-7016-3-088
09-7016-3-088
09-7016-3-088
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Bright Tin-Lead NO
09-8251-3-04
09-8251-3-04
09-8251-3-04
0.229" - - Swage Mount 0.125" 3/32 0.076 Brass Electro-Tin YES
