Commercial
Non-Insulated
Terminals

Filter

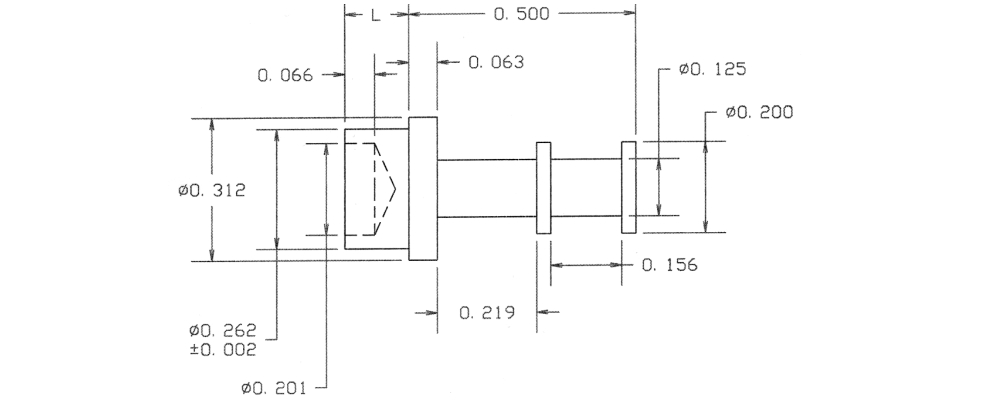

10-211-8-035
10-211-8-035
10-211-8-035
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Gold YES

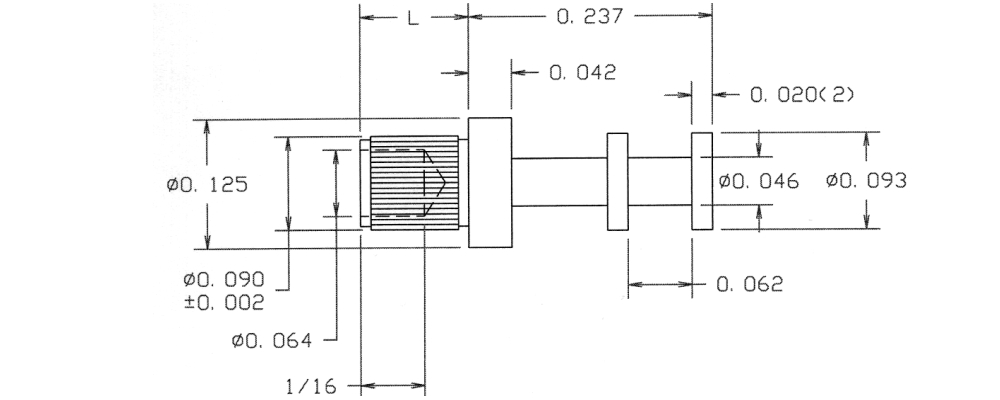

10-218-2-05
10-218-2-05
10-218-2-05
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO

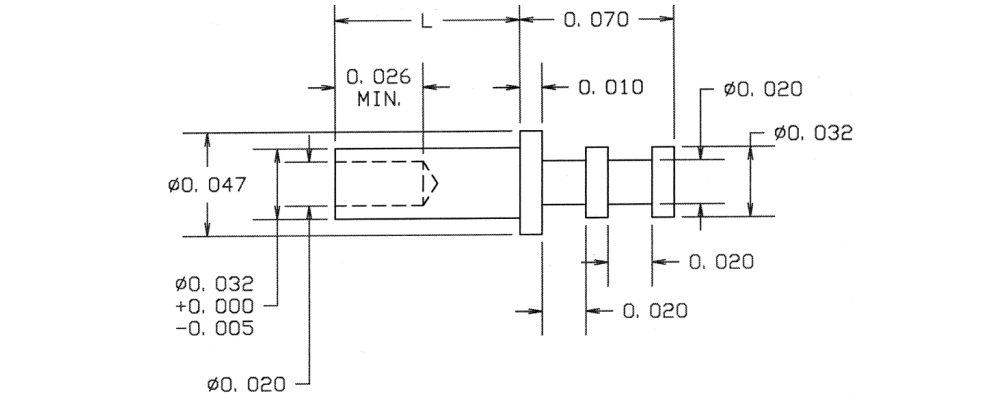

10-229-3-035
10-229-3-035
10-229-3-035
0.185" - - Swage Mount 0.115" 3/32 0.035 Brass Gold YES

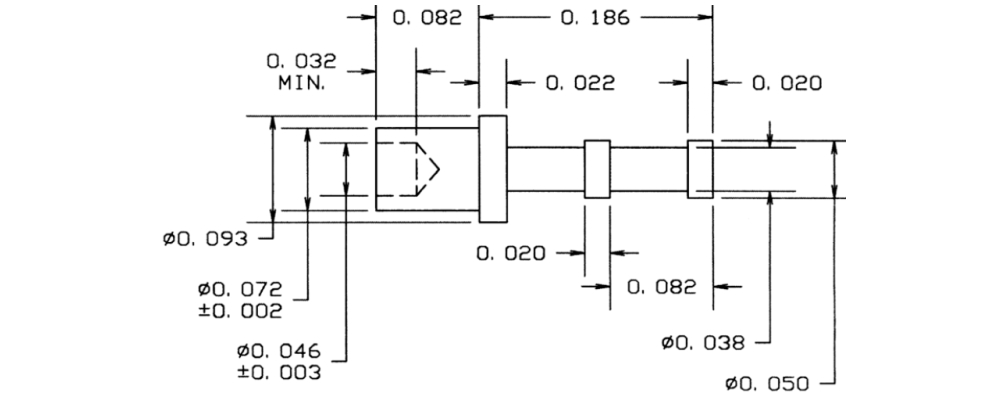

10-251-2-05
10-251-2-05
10-251-2-05
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

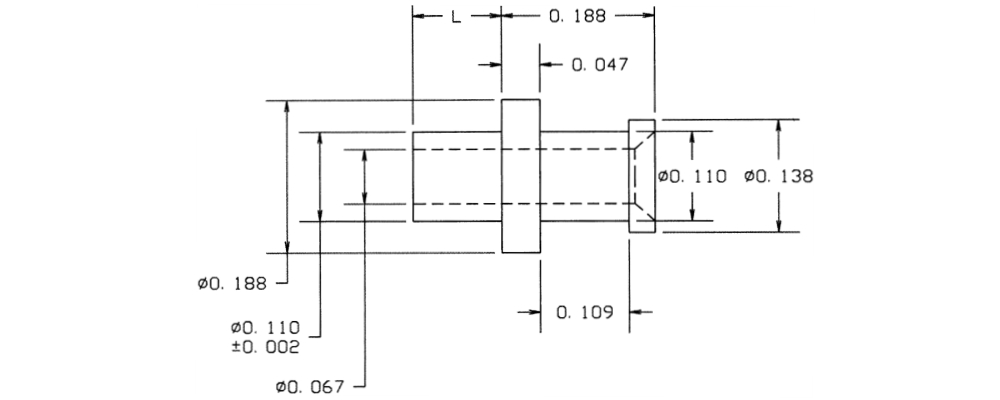

10-305-2-035
10-305-2-035
10-305-2-035
0.297" - - Swage Mount 0.109" 1/16 0.113 Brass Gold YES

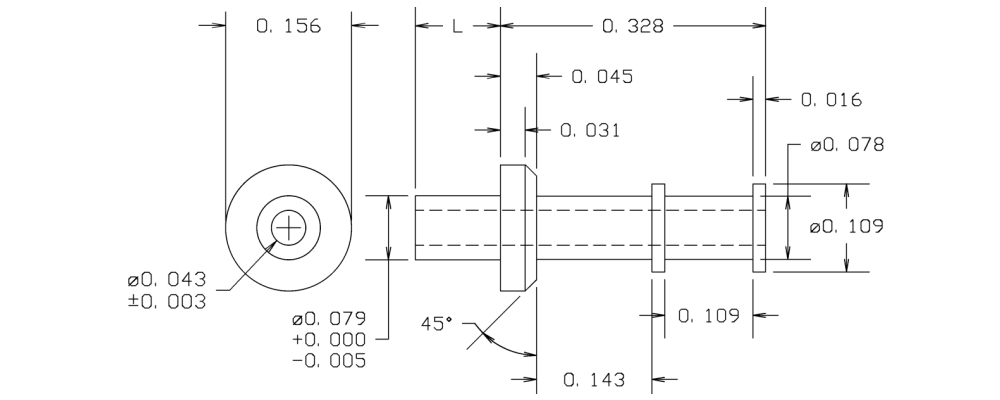

10-312-4-088
10-312-4-088
10-312-4-088
0.493" - - Swage Mount 0.165" 1/8 0.082 Brass Bright Tin-Lead NO

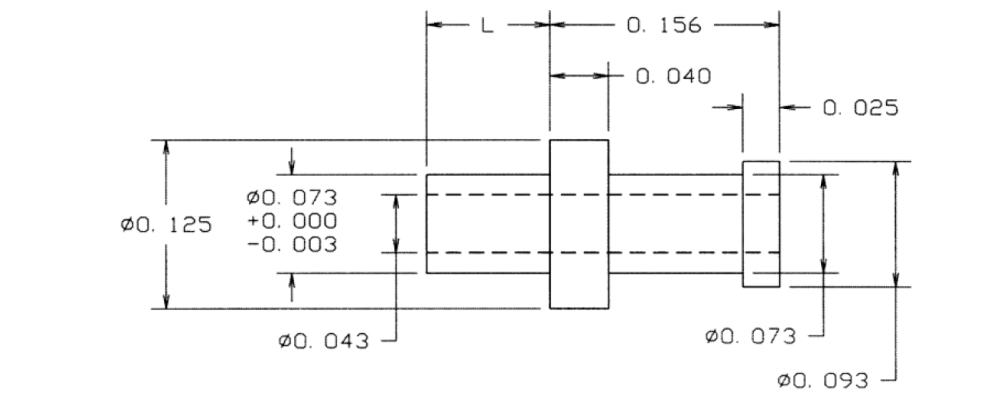

10-323-6-04
10-323-6-04
10-323-6-04
0.365" - - Swage Mount 0.209" 3/16 0.076 Brass Electro-Tin YES

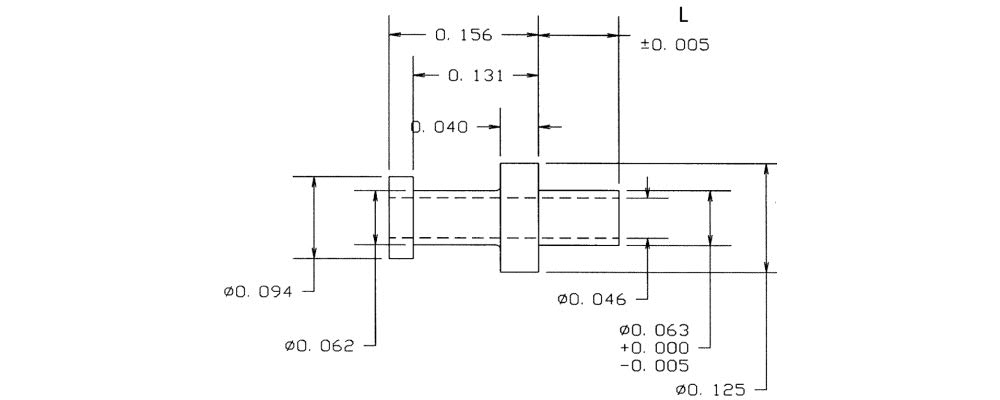

10-372-3-01
10-372-3-01
10-372-3-01
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Silver YES

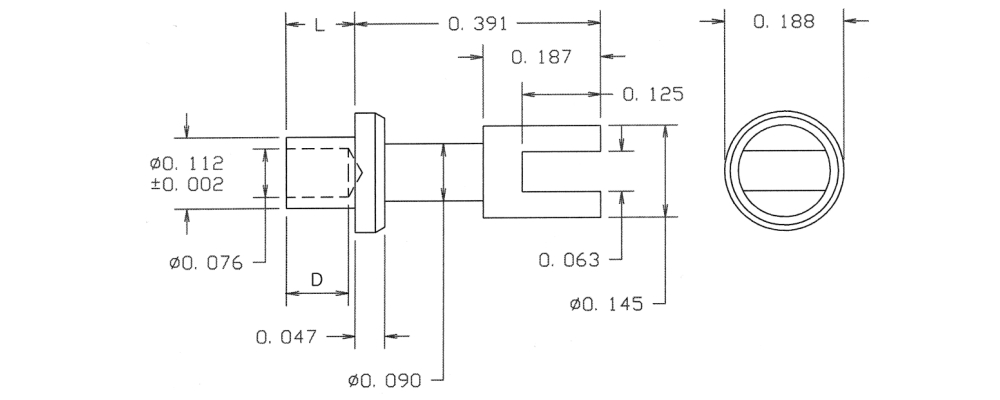

10-417-8-088
10-417-8-088
10-417-8-088
0.688" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin-Lead NO

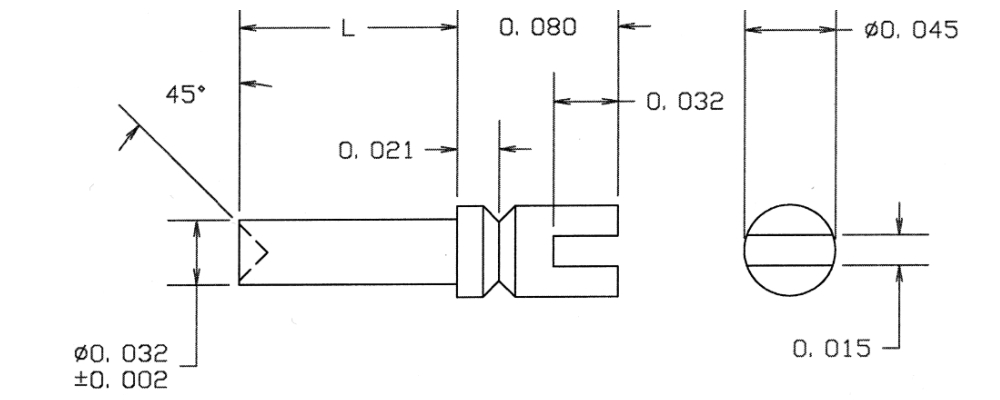

10-431-1-03
10-431-1-03
10-431-1-03
0.125" - - Swage Mount 0.045" 1/32 0.036 Brass Gold YES

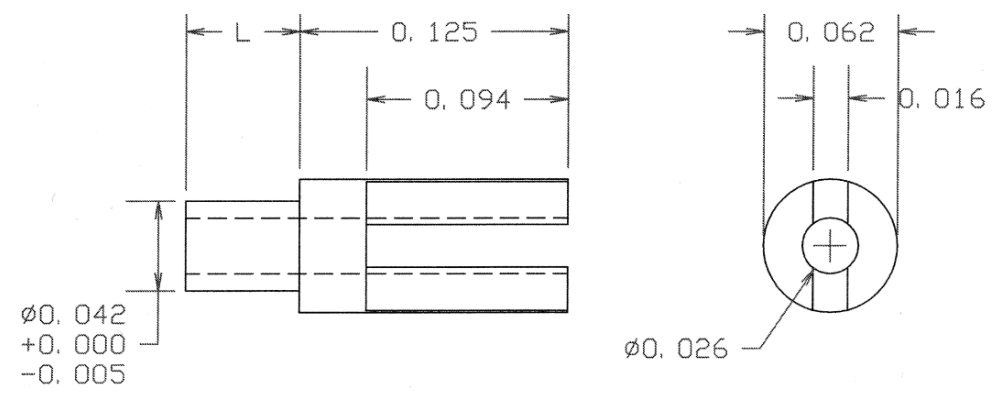

10-444-3-05
10-444-3-05
10-444-3-05
0.240" - - Swage Mount 0.115" 3/32 0.043 Brass Electro Solder NO
10-460-2-095
10-460-2-095
10-460-2-095
0.365" - - Swage Mount 0.084" 1/16 0.063 Brass Hot Solder Dip NO
10-482-4-05
10-482-4-05
10-482-4-05
0.500" - - Swage Mount 0.172" 1/8 0.116 Brass Electro Solder NO

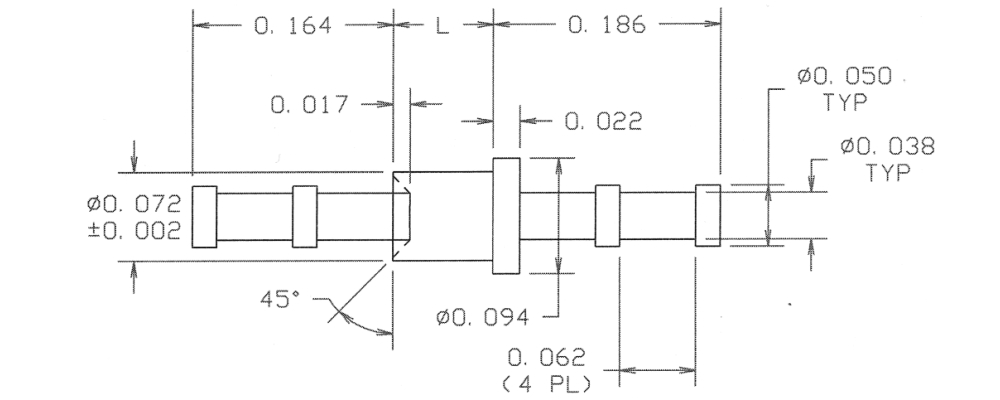

10-503-3-03
10-503-3-03
10-503-3-03
0.463" - Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Brass Gold YES

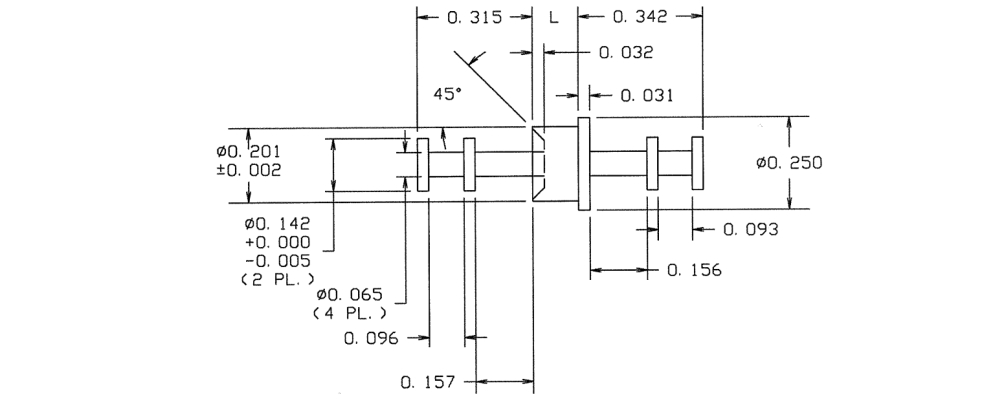

10-509-4-03
10-509-4-03
10-509-4-03
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Gold YES

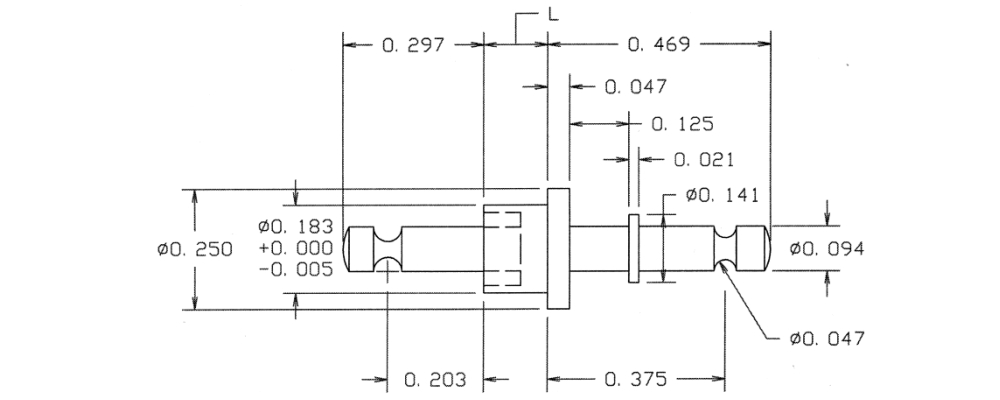

10-515-6-03
10-515-6-03
10-515-6-03
0.996" 0.094 TURRET/PIN Swage Mount 0.230" 3/16 0.185 Brass Gold YES

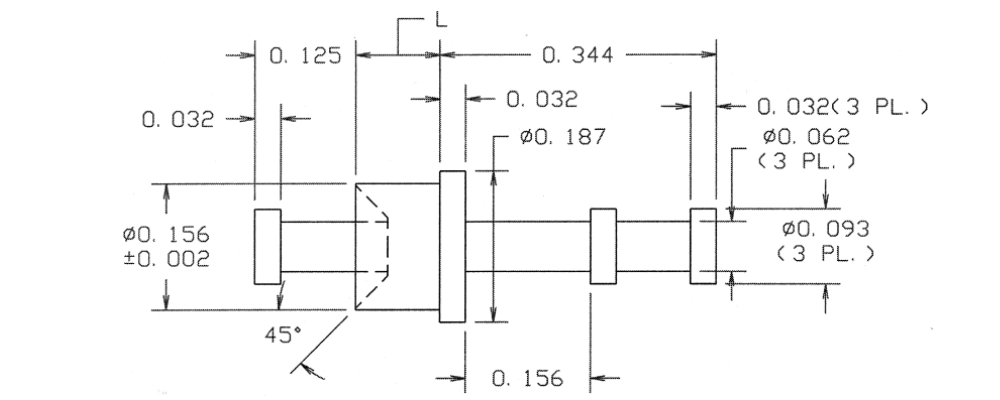

10-530-3-03
10-530-3-03
10-530-3-03
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.159 Brass Gold YES

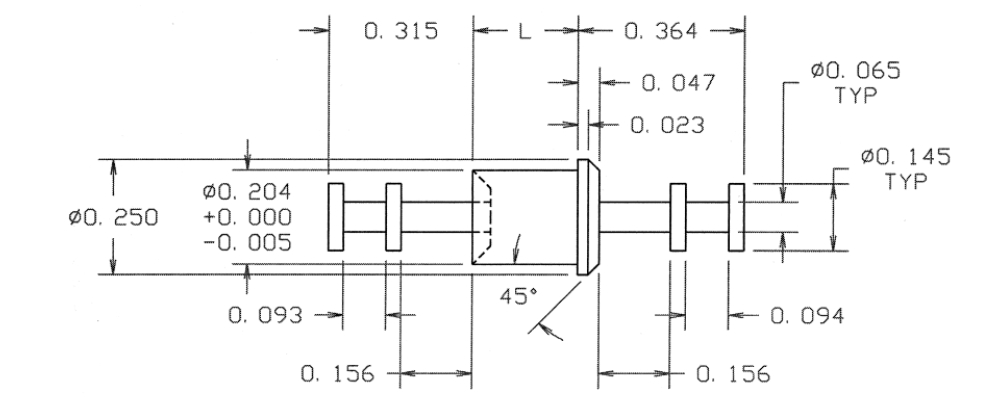

10-549-2-03
10-549-2-03
10-549-2-03
0.784" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.206 Brass Gold YES

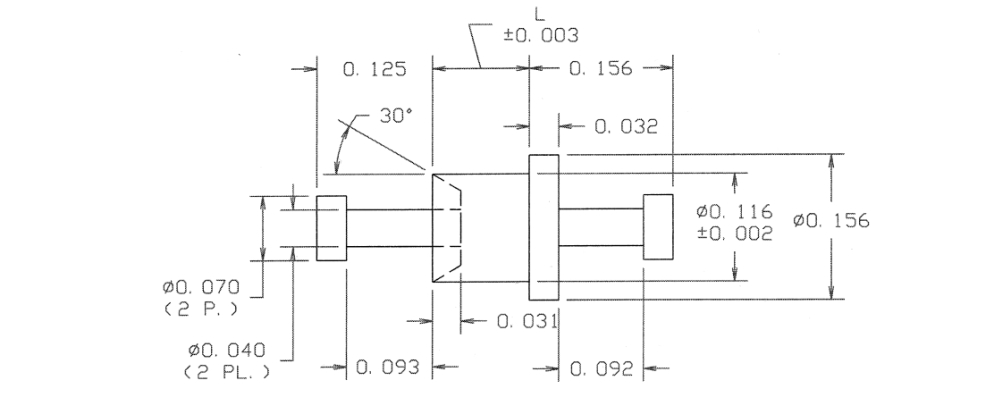

10-576-2-03
10-576-2-03
10-576-2-03
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Gold YES

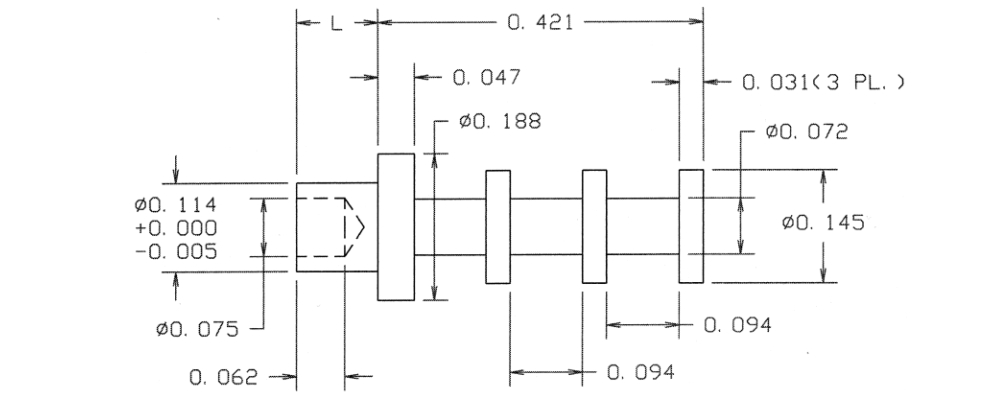

10-607-2-05
10-607-2-05
10-607-2-05
0.526" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
