Commercial
Non-Insulated
Terminals

Filter
09-0282-4-095
09-0282-4-095
09-0282-4-095
0.562" 0.125 - Swage Mount 0.156" 1/8 0.129 Brass Hot Solder Dip NO

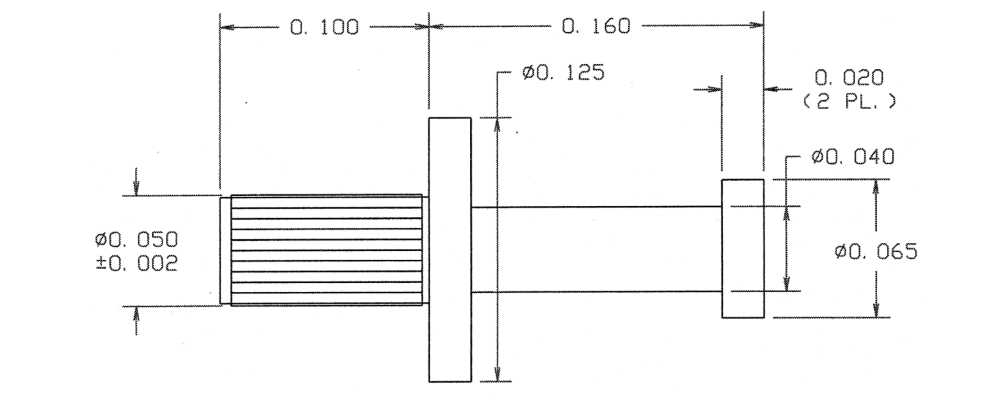

09-0345-1-088
09-0345-1-088
09-0345-1-088
0.260" - - Press Fit/Solder 0.100" 1/16 0.047 Brass Bright Tin-Lead NO

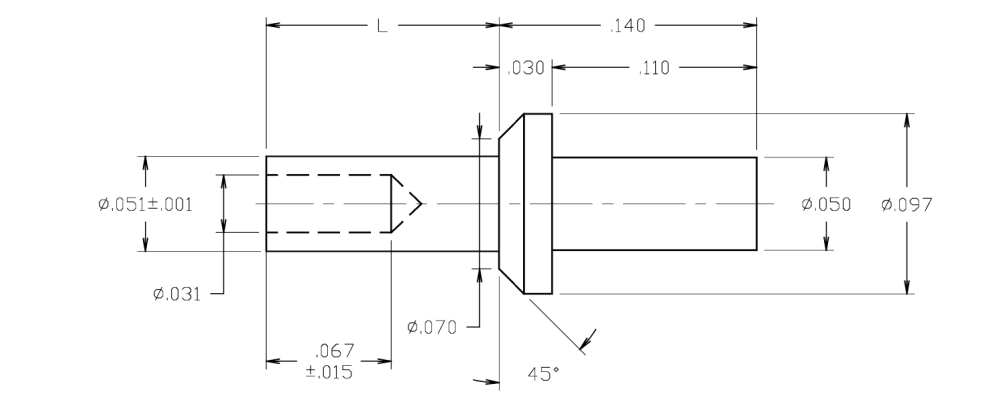

09-7010-3-088
09-7010-3-088
09-7010-3-088
0.265" 0.050 - Swage Mount 0.125" 3/32 0.055 Brass Bright Tin-Lead NO
09-7111-2-088
09-7111-2-088
09-7111-2-088
0.336" 0.026 - RIVET MOUNT 0.082" 1/16 0.032 Brass Bright Tin-Lead NO

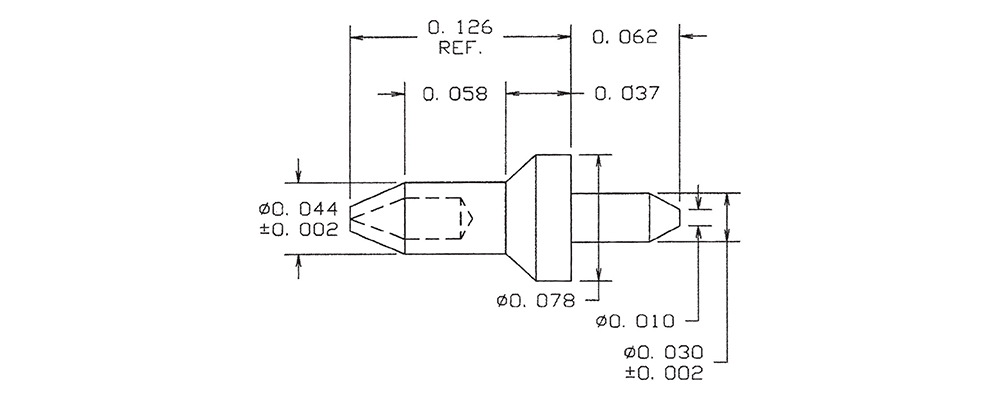

09-7147-1-04
09-7147-1-04
09-7147-1-04
0.188" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Electro-Tin YES

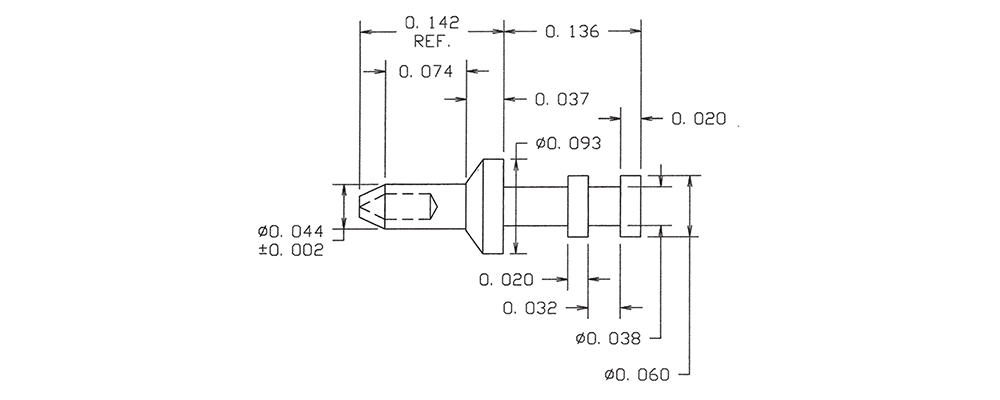

09-7177-1B-01
09-7177-1B-01
09-7177-1B-01
0.278" - - RIVET MOUNT 0.074" 3/64 0.047 Brass Silver YES

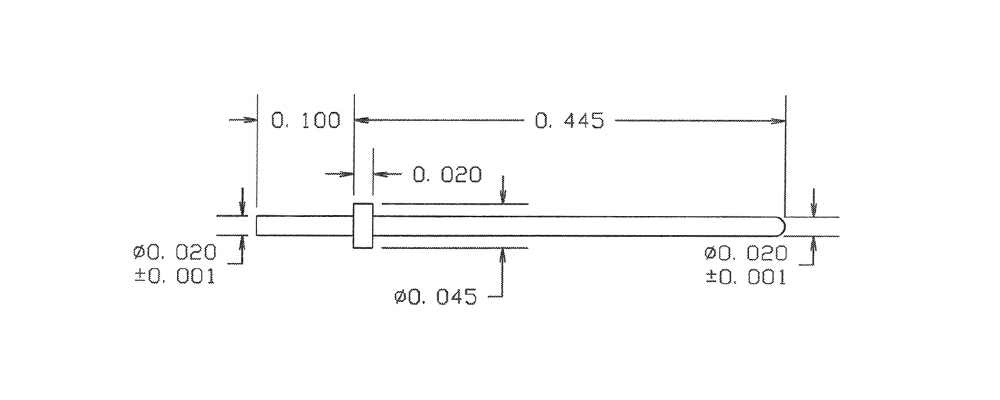

09-8017-2-044
09-8017-2-044
09-8017-2-044
0.545" 0.020 - Solder 0.100" 1/16 0.024 Brass Bright Tin YES

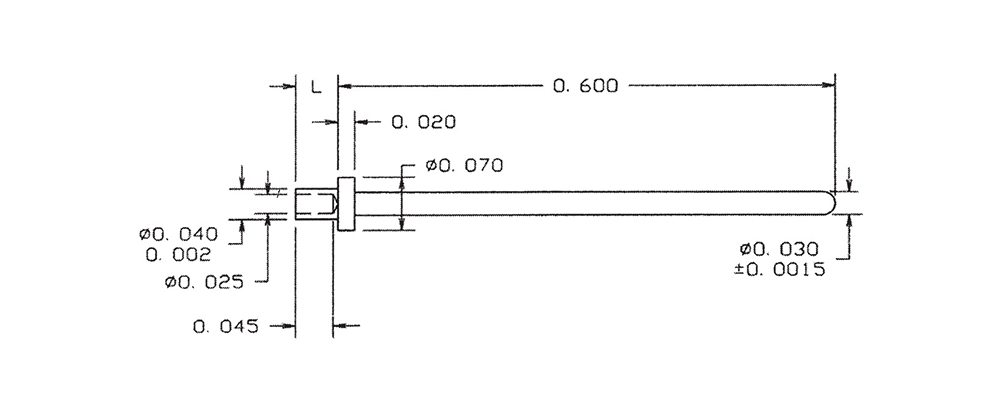

09-8055-1-01
09-8055-1-01
09-8055-1-01
0.651" 0.0305 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

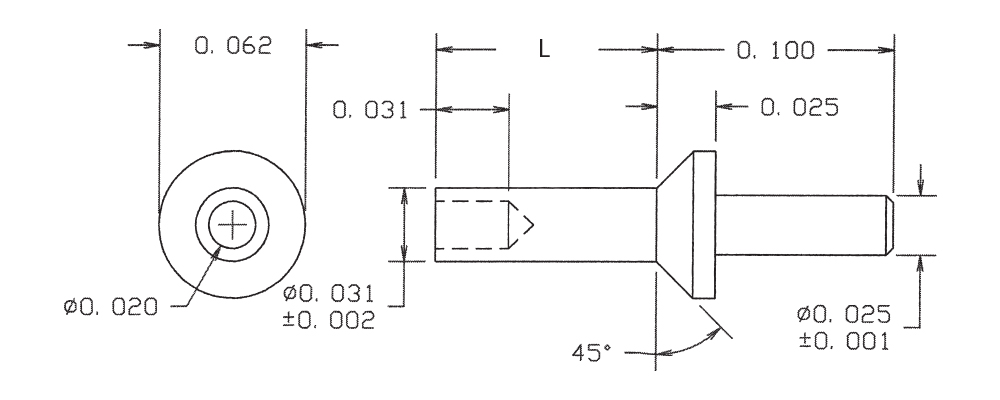

09-8094-2-044
09-8094-2-044
09-8094-2-044
0.194" 0.025 - Swage Mount 0.094" 1/16 0.035 Brass Bright Tin YES

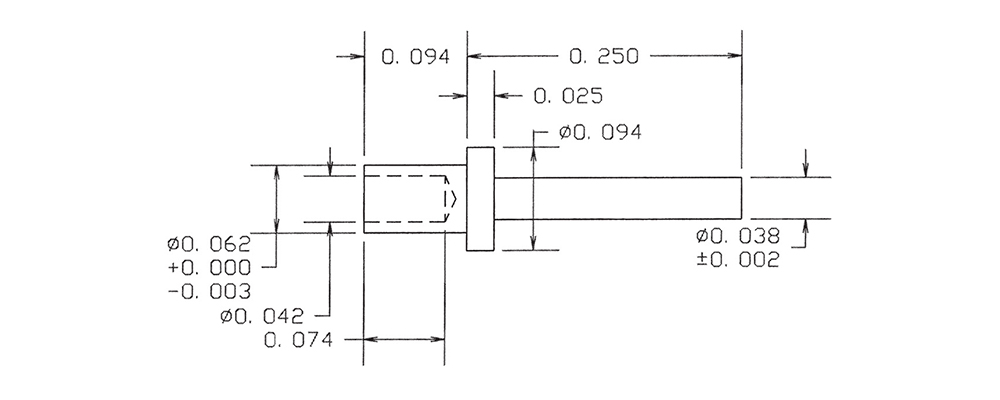

09-8151-2-03
09-8151-2-03
09-8151-2-03
0.344" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

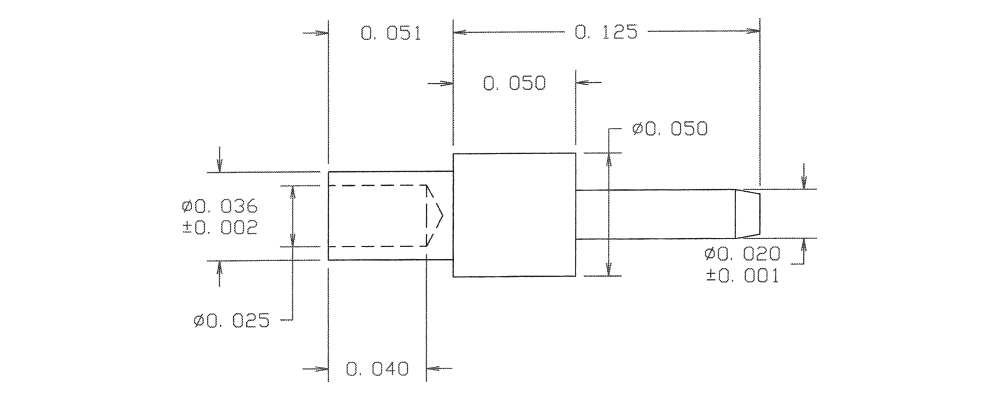

09-8179-1-05
09-8179-1-05
09-8179-1-05
0.176" 0.020 - Swage Mount 0.051" 1/32 0.039 Brass Electro Solder NO

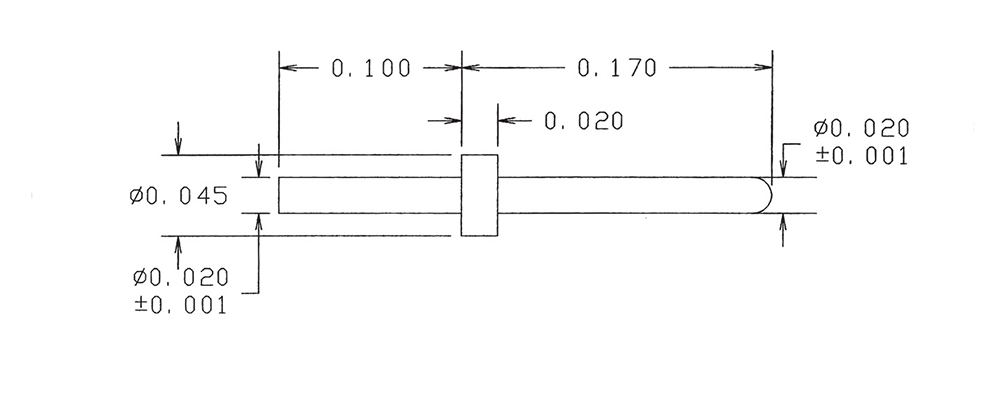

09-8332-2-05
09-8332-2-05
09-8332-2-05
0.270" 0.020 - Solder 0.100" 1/64 TO 1/16 0.0225 Brass Electro Solder NO

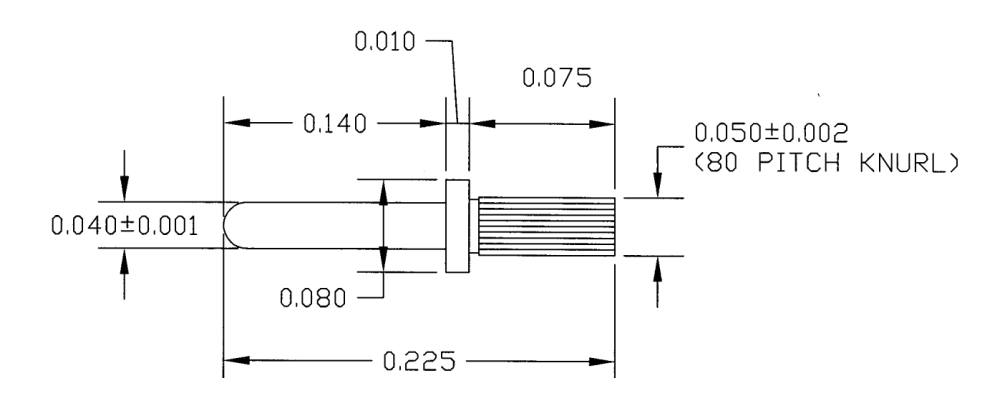

09-8574-1-04
09-8574-1-04
09-8574-1-04
0.225" 0.040 - Press Fit/Solder 0.075" 1/16 0.047 Brass Electro-Tin YES

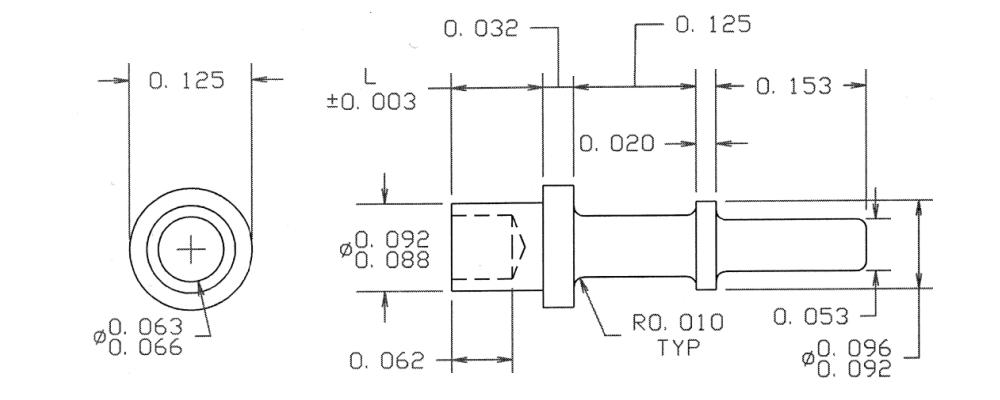

09-8705-1-044
09-8705-1-044
09-8705-1-044
0.408" - - Swage Mount 0.078" 1/32 0.094 LEADED Red Brass Bright Tin YES

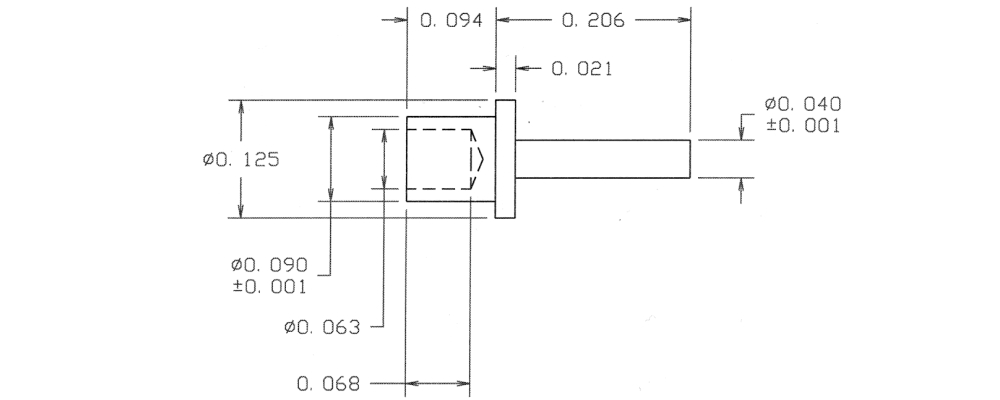

09-8810-2-03
09-8810-2-03
09-8810-2-03
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

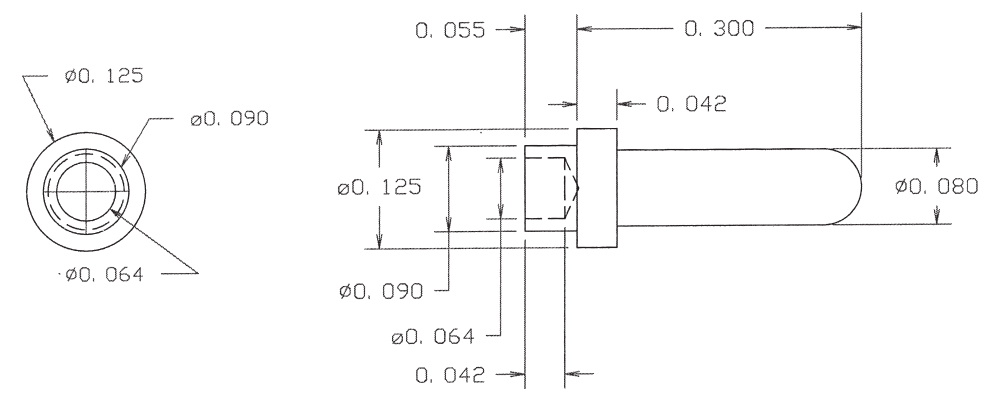

09-8882-1-05
09-8882-1-05
09-8882-1-05
0.355" 0.080 - Swage Mount 0.055" 1/32 0.094 Brass Electro Solder NO

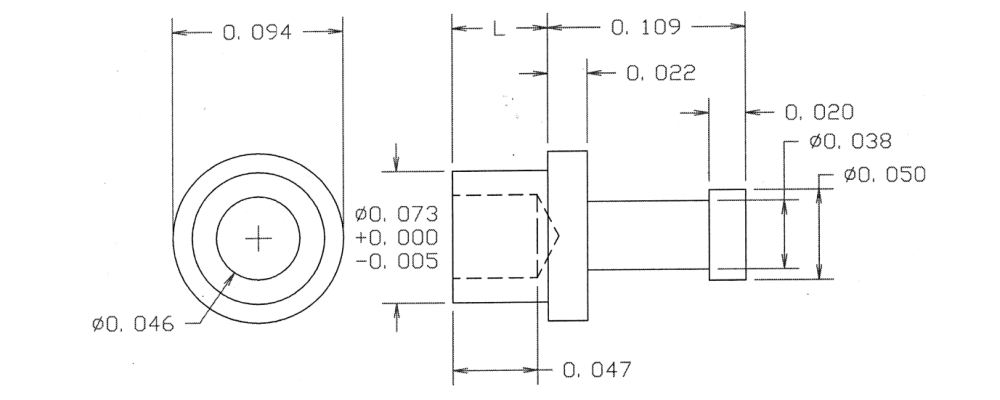

10-105-1-01
10-105-1-01
10-105-1-01
0.162" - - Swage Mount 0.053" 1/32 0.076 Brass Silver YES

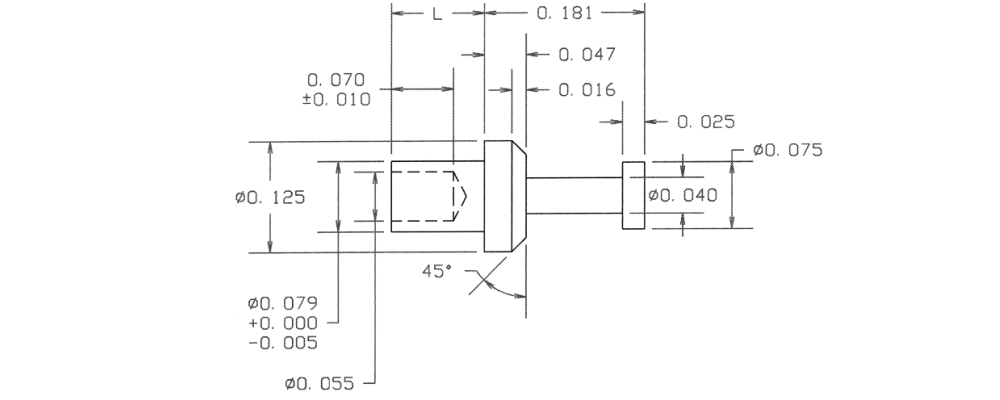

10-112-1-01
10-112-1-01
10-112-1-01
0.256" - - Swage Mount 0.075" 1/32 0.082 Brass Silver YES

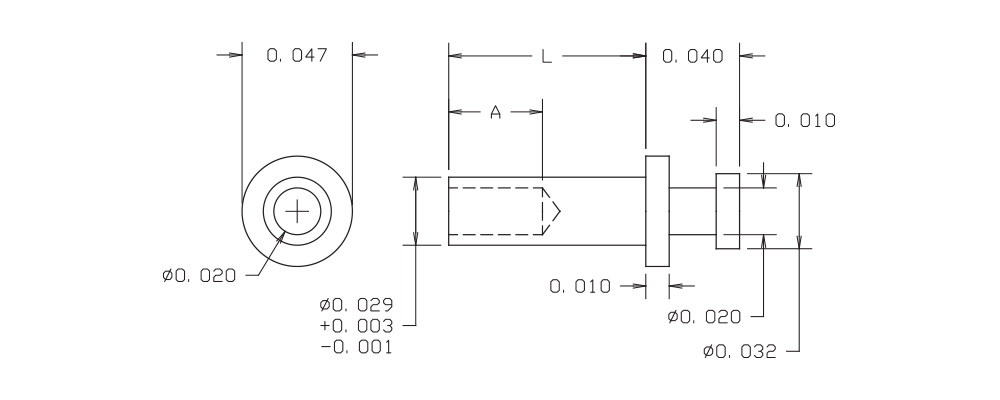

10-133-3-035
10-133-3-035
10-133-3-035
0.155" - - Swage Mount 0.115" 3/32 0.033 Brass Gold YES

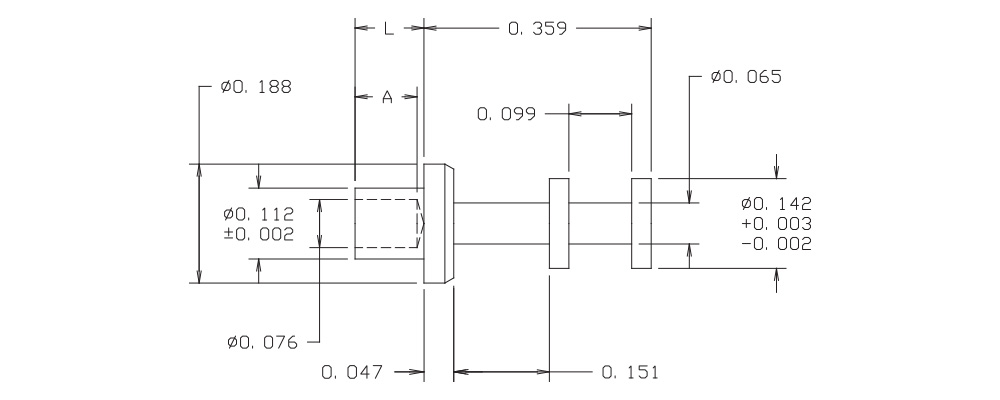

10-204-2-01
10-204-2-01
10-204-2-01
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Silver YES
