Commercial
Non-Insulated
Terminals

Filter

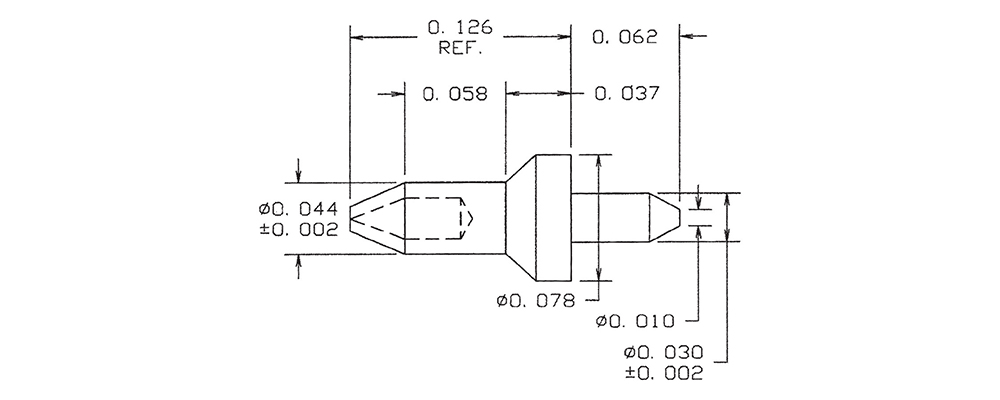

09-7147-1-035
09-7147-1-035
09-7147-1-035
0.188" 0.030 - RIVET MOUNT 0.058" 1/32 0.048 Brass Gold YES

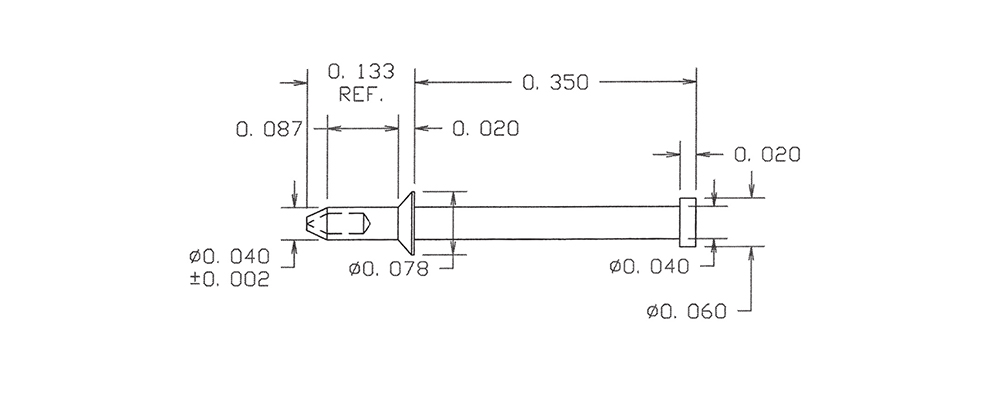

09-7175-2-088
09-7175-2-088
09-7175-2-088
0.483" - - RIVET MOUNT 0.088" 1/16 0.044 Brass Bright Tin-Lead NO

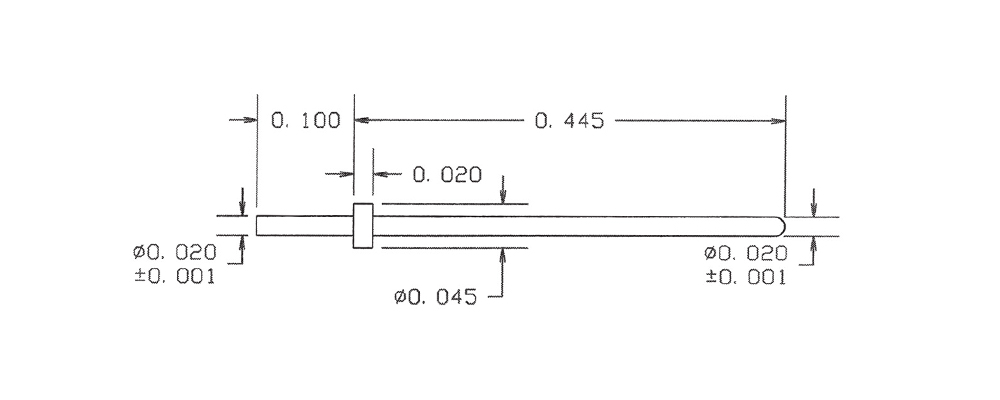

09-8017-2-04
09-8017-2-04
09-8017-2-04
0.545" 0.020 - Solder 0.100" 1/16 0.024 Brass Electro-Tin YES
09-8053-3-088
09-8053-3-088
09-8053-3-088
0.245" 0.040 - Swage Mount 0.125" 3/32 0.043 Brass Bright Tin-Lead NO
09-8094-2-04
09-8094-2-04
09-8094-2-04
0.194" 0.025 - Swage Mount 0.094" 1/16 0.035 Brass Electro-Tin YES

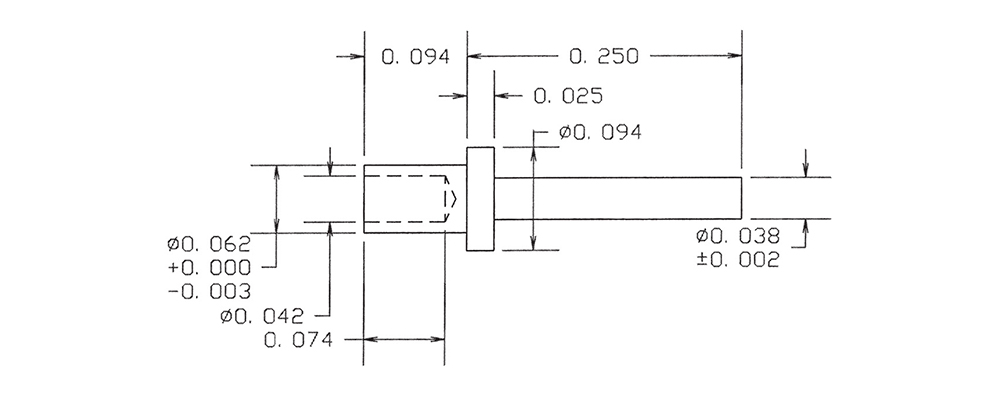

09-8151-2-01
09-8151-2-01
09-8151-2-01
0.344" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Silver YES

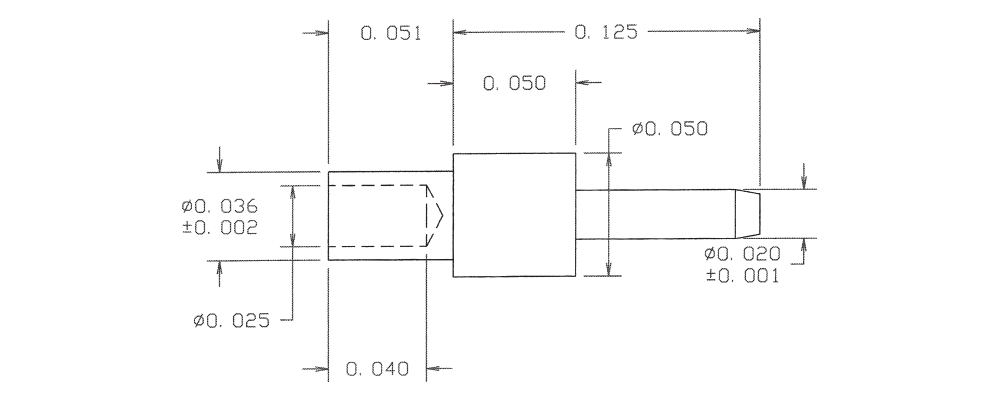

09-8179-1-044
09-8179-1-044
09-8179-1-044
0.176" 0.020 - Swage Mount 0.051" 1/32 0.039 Brass Bright Tin YES

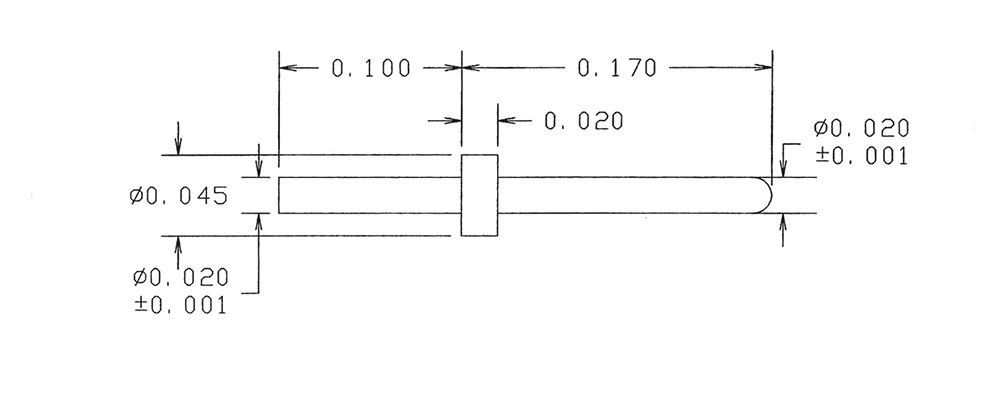

09-8332-2-044
09-8332-2-044
09-8332-2-044
0.270" 0.020 - Solder 0.100" 1/64 TO 1/16 0.0225 Brass Bright Tin YES

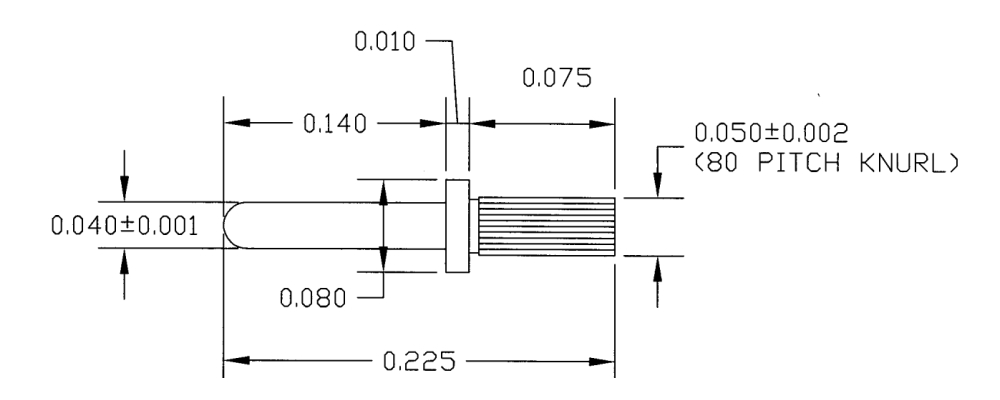

09-8574-1-035
09-8574-1-035
09-8574-1-035
0.225" 0.040 - Press Fit/Solder 0.075" 1/16 0.047 Brass Gold YES
09-8705-1-04
09-8705-1-04
09-8705-1-04
0.408" - - Swage Mount 0.078" 1/32 0.094 LEADED Red Brass Electro-Tin YES

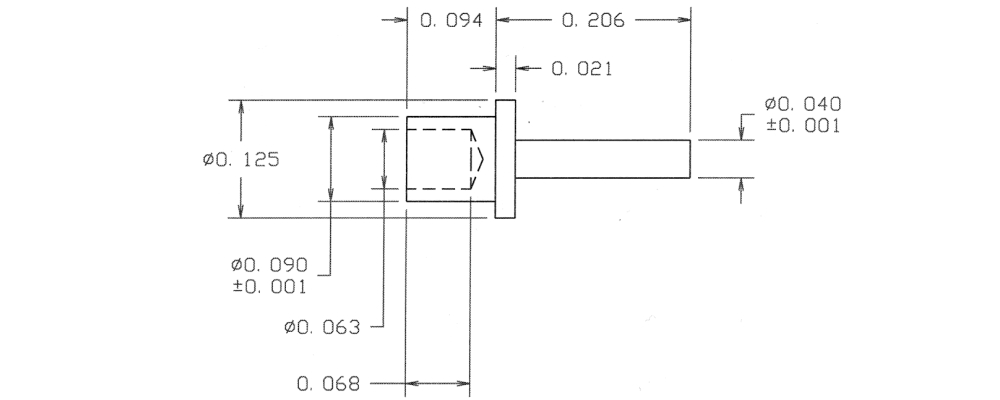

09-8810-2-01
09-8810-2-01
09-8810-2-01
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Silver YES

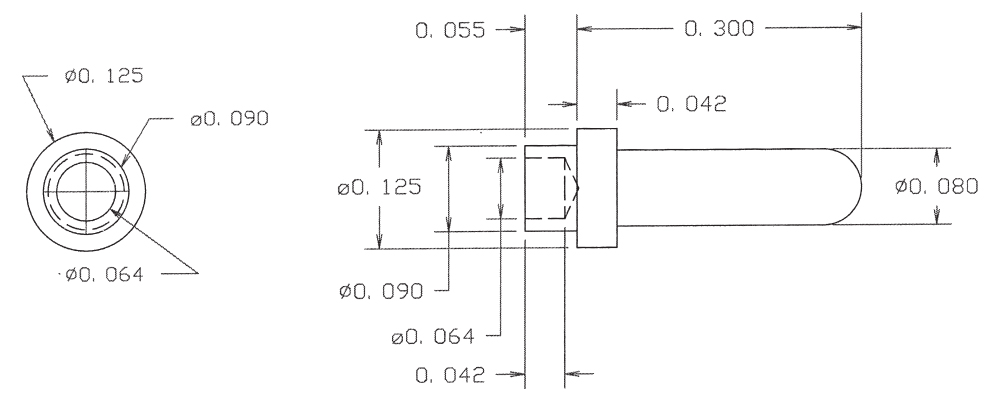

09-8882-1-044
09-8882-1-044
09-8882-1-044
0.355" 0.080 - Swage Mount 0.055" 1/32 0.094 Brass Bright Tin YES
10-104-4-095
10-104-4-095
10-104-4-095
0.239" - - Swage Mount 0.145" 1/8 0.052 Brass Hot Solder Dip NO
10-111-5-095
10-111-5-095
10-111-5-095
0.376" - - Swage Mount 0.195" 5/32 0.094 Brass Hot Solder Dip NO
10-133-3-03
10-133-3-03
10-133-3-03
0.155" - - Swage Mount 0.115" 3/32 0.033 Brass Gold YES
10-204-1-095
10-204-1-095
10-204-1-095
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Hot Solder Dip NO
10-211-8-03
10-211-8-03
10-211-8-03
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Gold YES
10-218-2-044
10-218-2-044
10-218-2-044
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES
10-229-3-03
10-229-3-03
10-229-3-03
0.185" - - Swage Mount 0.115" 3/32 0.035 Brass Gold YES

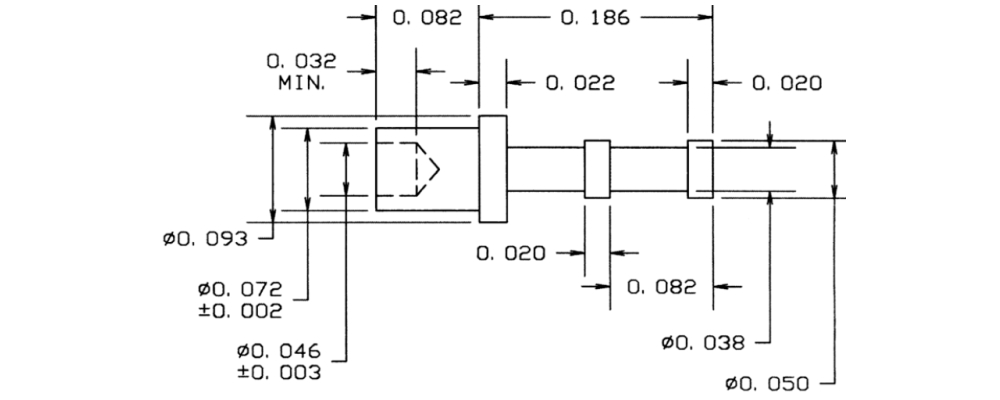

10-251-2-044
10-251-2-044
10-251-2-044
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
