Commercial
Non-Insulated
Terminals

Filter

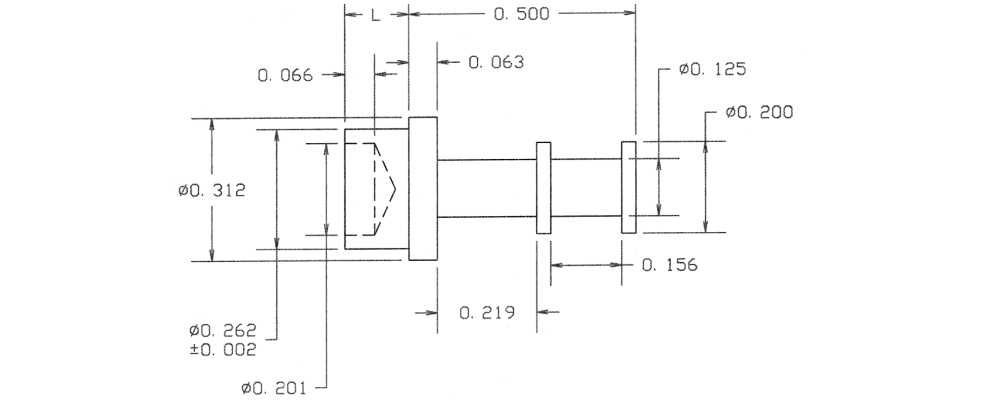

10-211-6-01
10-211-6-01
10-211-6-01
0.734" - - Swage Mount 0.234" 3/16 0.266 Brass Silver YES
10-218-1-035
10-218-1-035
10-218-1-035
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-229-2-01
10-229-2-01
10-229-2-01
0.154" - - Swage Mount 0.084" 1/16 0.035 Brass Silver YES

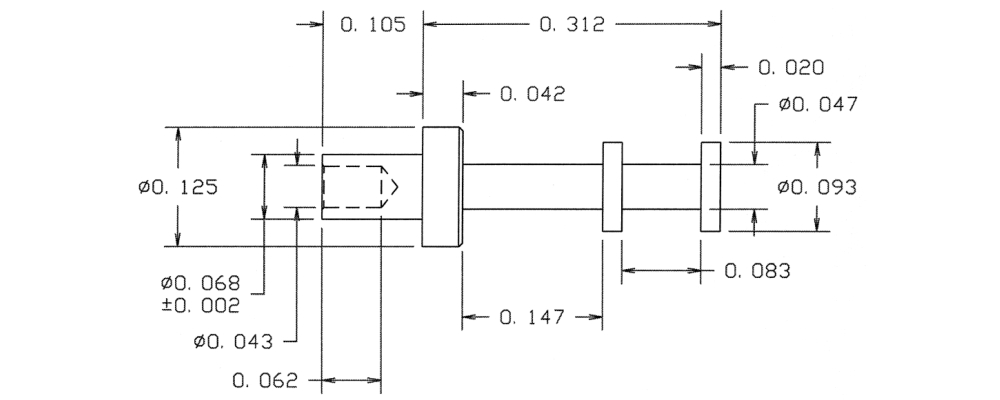

10-248-2-04
10-248-2-04
10-248-2-04
0.417" - - Swage Mount 0.105" 1/16 0.073 Brass Electro-Tin YES
10-304-6-095
10-304-6-095
10-304-6-095
0.546" - - Swage Mount 0.234" 3/16 0.1405 Brass Hot Solder Dip NO
10-312-3-04
10-312-3-04
10-312-3-04
0.463" - - Swage Mount 0.135" 3/32 0.082 Brass Electro-Tin YES
10-323-5-01
10-323-5-01
10-323-5-01
0.334" - - Swage Mount 0.178" 5/32 0.076 Brass Silver YES
10-372-11-044
10-372-11-044
10-372-11-044
0.121" - - Swage Mount 0.037" 1/64 0.064 Brass Bright Tin YES
10-417-6-044
10-417-6-044
10-417-6-044
0.625" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES
10-426-3-095
10-426-3-095
10-426-3-095
0.354" - - Swage Mount 0.135" 3/32 0.094 Brass Hot Solder Dip NO
10-444-2-035
10-444-2-035
10-444-2-035
0.209" - - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
10-460-11-05
10-460-11-05
10-460-11-05
0.318" - - Swage Mount 0.037" 1/64 0.063 Brass Electro Solder NO
10-482-3-035
10-482-3-035
10-482-3-035
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES

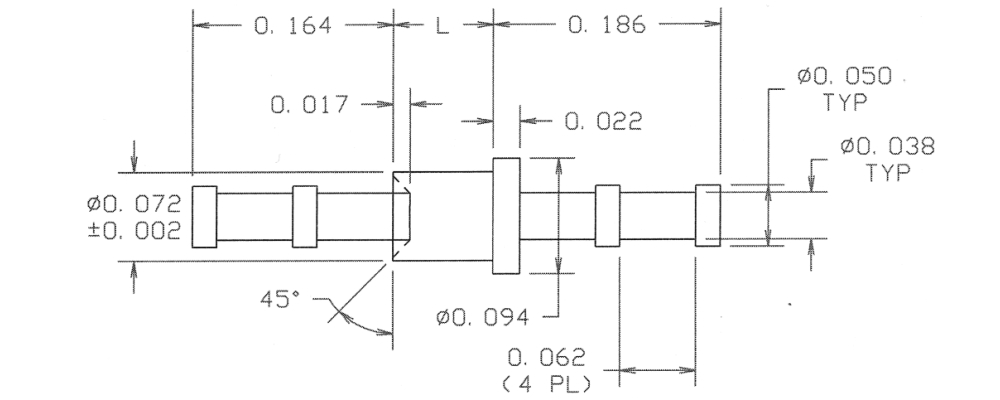

10-503-1-095
10-503-1-095
10-503-1-095
0.401" - Double Turret/Double Turret Swage Mount 0.051" 1/32 0.076 Brass Hot Solder Dip NO
10-509-2-095
10-509-2-095
10-509-2-095
0.751" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.204 Brass Hot Solder Dip NO
10-515-4-095
10-515-4-095
10-515-4-095
0.931" 0.094 TURRET/PIN Swage Mount 0.165" 1/8 0.185 Brass Hot Solder Dip NO

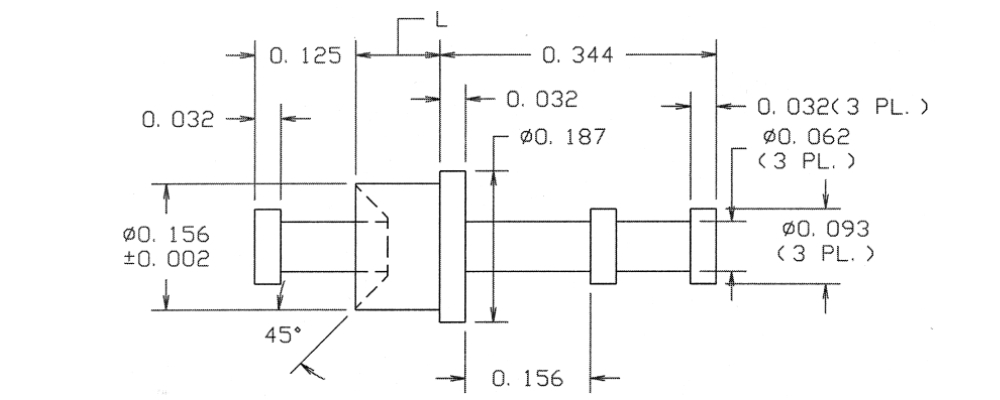

10-530-1-095
10-530-1-095
10-530-1-095
0.544" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.159 Brass Hot Solder Dip NO
10-544-4-095
10-544-4-095
10-544-4-095
0.397" - Turret/Turret Swage Mount 0.156" 1/8 0.094 Brass Hot Solder Dip NO
10-562-5-095
10-562-5-095
10-562-5-095
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Hot Solder Dip NO
10-607-1-04
10-607-1-04
10-607-1-04
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
