Commercial
Non-Insulated
Terminals

Filter

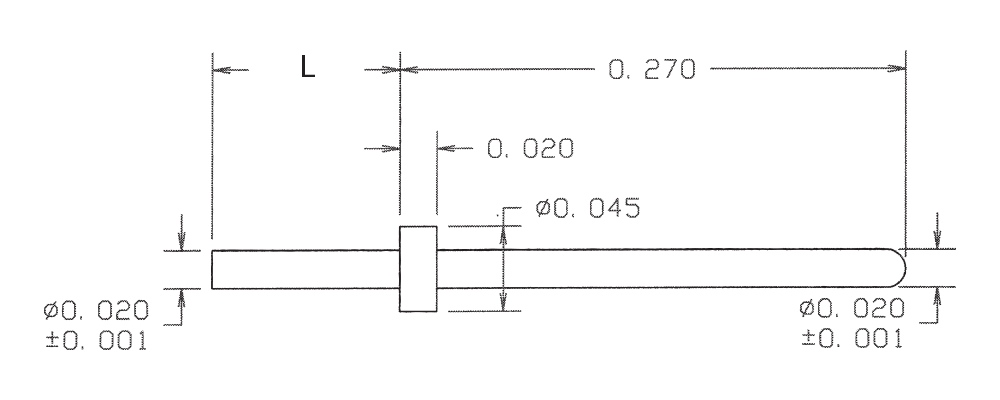

09-8090-3-03
09-8090-3-03
09-8090-3-03
0.405" 0.020 - Solder 0.135" 3/32 0.024 Brass Gold YES

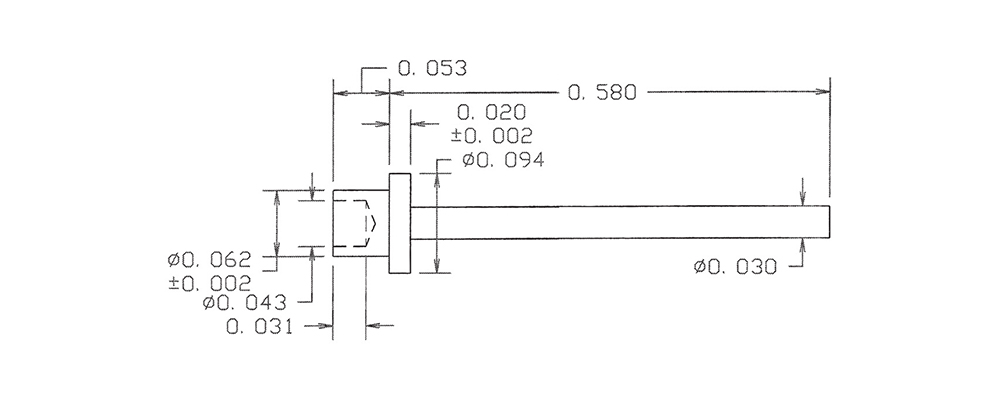

09-8148-1-05
09-8148-1-05
09-8148-1-05
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder NO

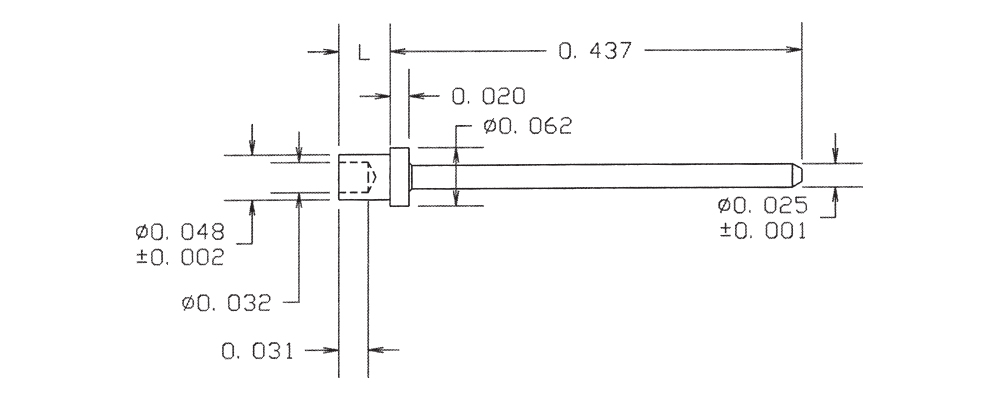

09-8176-2-035
09-8176-2-035
09-8176-2-035
0.531" 0.025 - Swage Mount 0.094" 1/16 0.052 Brass Gold YES

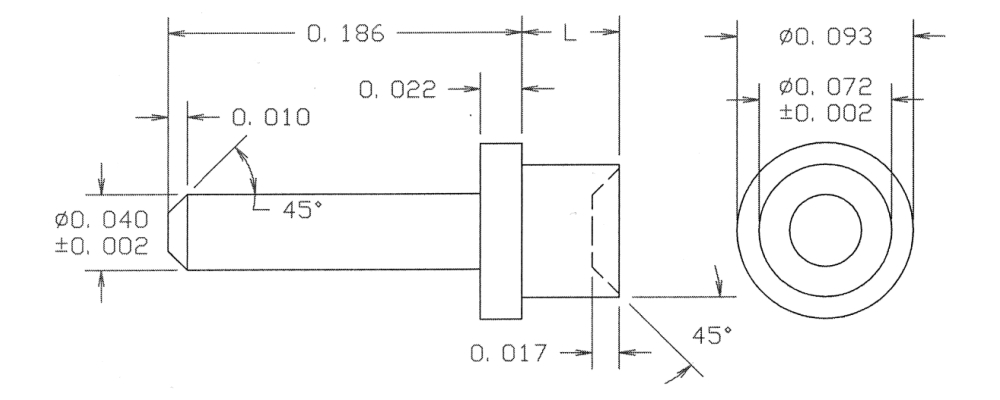

09-8311-3-035
09-8311-3-035
09-8311-3-035
0.299" 0.040 - Swage Mount 0.113" 3/32 0.076 Brass Gold YES

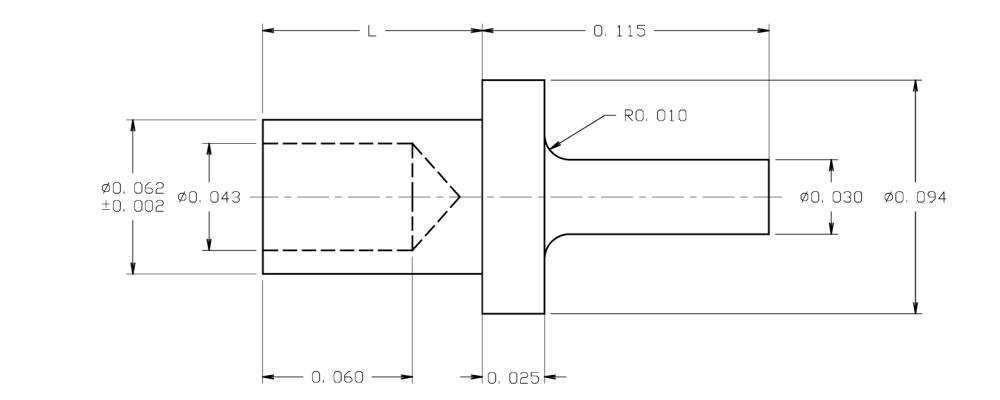

09-8564-2A-035
09-8564-2A-035
09-8564-2A-035
0.203" 0.030 - Swage Mount 0.088" 1/16 0.067 LEADED Red Brass Gold YES

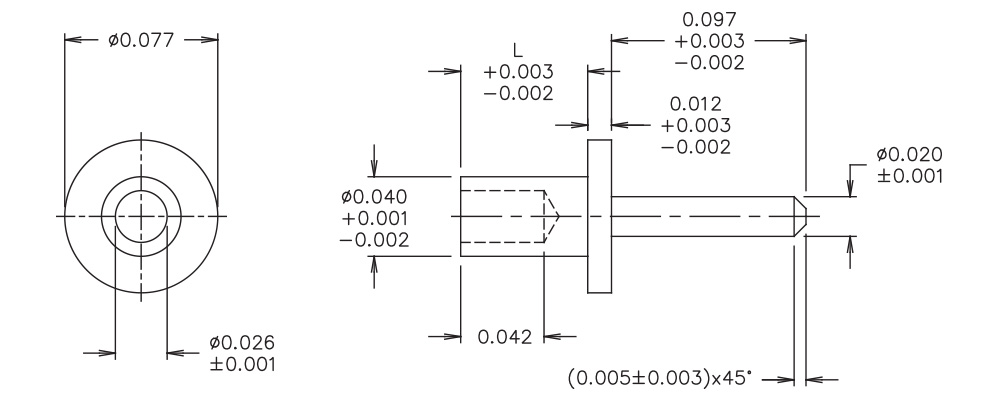

09-8689-4A-03
09-8689-4A-03
09-8689-4A-03
0.245" 0.020 - Swage Mount 0.134" 3/32 0.043 Brass Gold YES

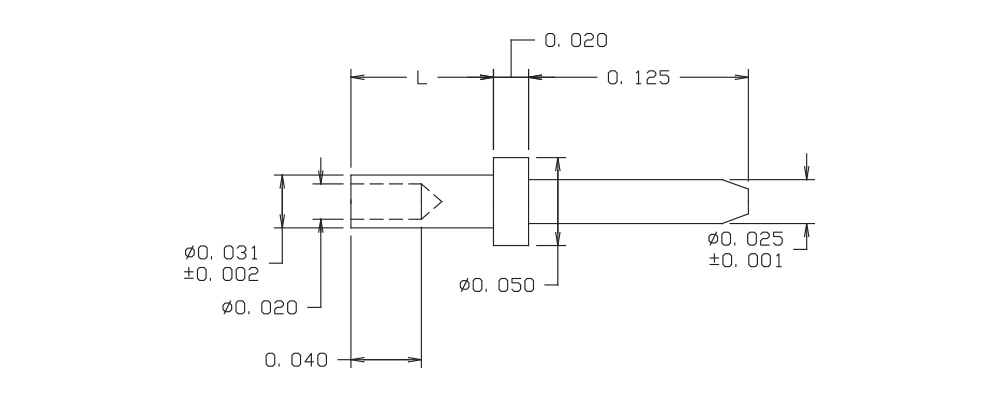

09-8807-1-088
09-8807-1-088
09-8807-1-088
0.196" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO

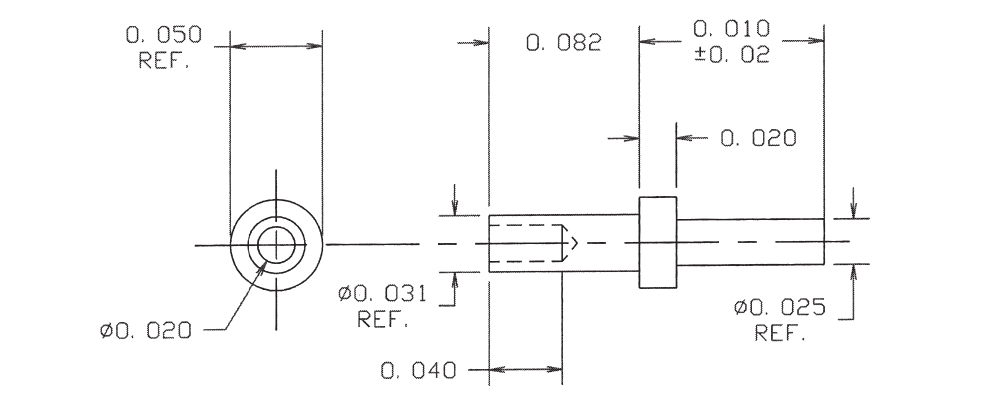

09-8865-2-035
09-8865-2-035
09-8865-2-035
0.092" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Gold YES
10-104-2-095
10-104-2-095
10-104-2-095
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Hot Solder Dip NO
10-111-3-095
10-111-3-095
10-111-3-095
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Hot Solder Dip NO
10-133-11-03
10-133-11-03
10-133-11-03
0.077" - - Swage Mount 0.037" 1/64 0.033 Brass Gold YES

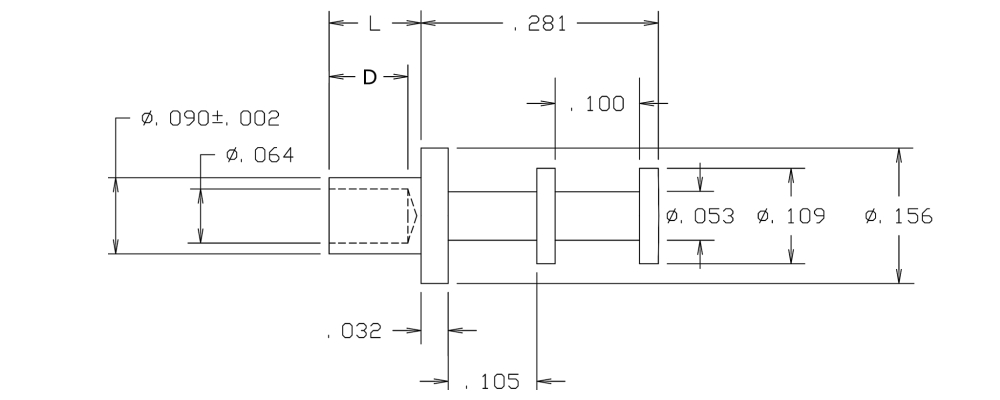

10-203-6-095
10-203-6-095
10-203-6-095
0.515" - - Swage Mount 0.234" 3/16 0.094 Brass Hot Solder Dip NO
10-211-4-03
10-211-4-03
10-211-4-03
0.672" - - Swage Mount 0.172" 1/8 0.266 Brass Gold YES

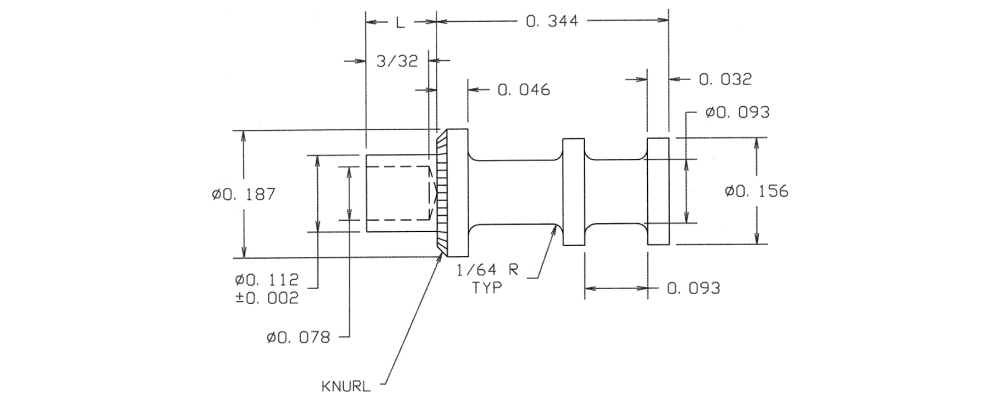

10-217-6-035
10-217-6-035
10-217-6-035
0.574" - - Swage Mount 0.230" 3/16 0.116 Brass Gold YES
10-229-1-03
10-229-1-03
10-229-1-03
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Gold YES

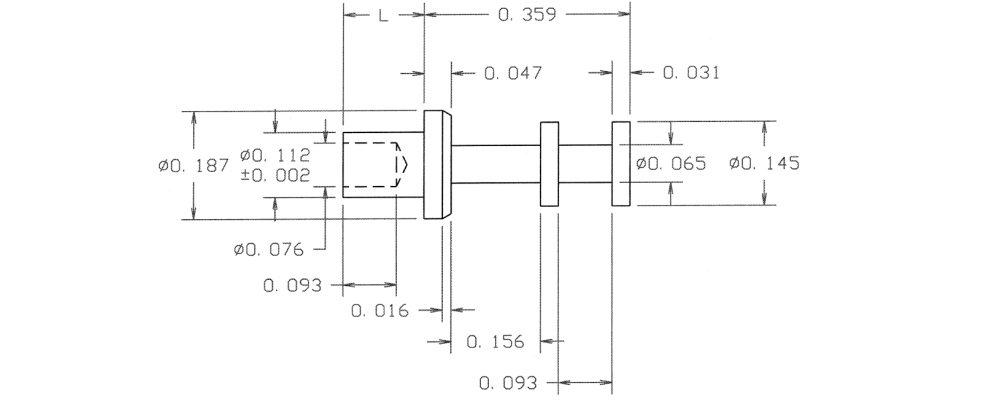

10-247-8-044
10-247-8-044
10-247-8-044
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin YES
10-304-6-01
10-304-6-01
10-304-6-01
0.546" - - Swage Mount 0.234" 3/16 0.1405 Brass Silver YES
10-312-2-04
10-312-2-04
10-312-2-04
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Electro-Tin YES
10-323-4-01
10-323-4-01
10-323-4-01
0.303" - - Swage Mount 0.147" 1/8 0.076 Brass Silver YES
10-372-1-044
10-372-1-044
10-372-1-044
0.209" - - Swage Mount 0.053" 1/32 0.064 Brass Bright Tin YES
