Commercial
Non-Insulated
Terminals

Filter
09-0209-2-044
09-0209-2-044
09-0209-2-044
0.264" - - Swage Mount 0.084" 1/16 0.041 Brass Bright Tin YES
09-0191-2-03
09-0191-2-03
09-0191-2-03
0.300" - - Swage Mount 0.091" 1/16 0.041 Brass Gold YES
09-0042-2-044
09-0042-2-044
09-0042-2-044
0.297" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin YES
10-311-2-05
10-311-2-05
10-311-2-05
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder NO
10-317-2-044
10-317-2-044
10-317-2-044
0.417" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES
10-442-3-088
10-442-3-088
10-442-3-088
0.695" - SLOTTED/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
09-8063-1-05
09-8063-1-05
09-8063-1-05
0.506" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
10-483-1-05
10-483-1-05
10-483-1-05
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
10-838-1-04
10-838-1-04
10-838-1-04
0.594" 0.050 Pin/Pin Swage Mount 0.063" 1/32 0.111 Brass Electro-Tin YES
10-103-1-01
10-103-1-01
10-103-1-01
0.312" - - Swage Mount 0.078" 1/32 0.116 Brass Silver YES
09-8031-1-01
09-8031-1-01
09-8031-1-01
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
10-824-1-05
10-824-1-05
10-824-1-05
0.602" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.062" 1/32 0.147 Brass Electro Solder NO
09-8188-1-01
09-8188-1-01
09-8188-1-01
0.137" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Silver YES
10-111-1-01
10-111-1-01
10-111-1-01
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Silver YES
09-8152-1-01
09-8152-1-01
09-8152-1-01
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Silver YES
10-105-11-044
10-105-11-044
10-105-11-044
0.146" - - Swage Mount 0.037" 1/64 0.076 Brass Bright Tin YES
10-471-11-03
10-471-11-03
10-471-11-03
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Gold YES

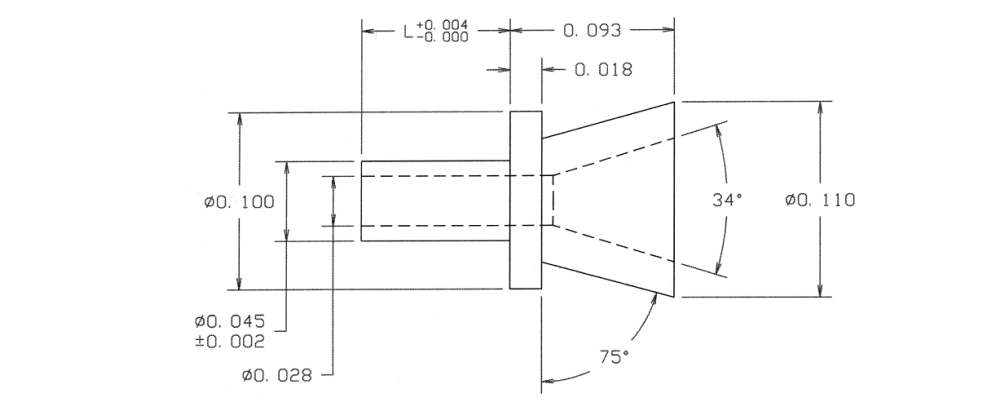

10-936-11-044
10-936-11-044
10-936-11-044
0.134" - - Swage Mount 0.037" 1/64 0.052 Brass Bright Tin YES
10-8020-1-01
10-8020-1-01
10-8020-1-01
0.621" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Silver YES
10-214-11-03
10-214-11-03
10-214-11-03
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Gold YES
