Commercial
Non-Insulated
Terminals

Filter

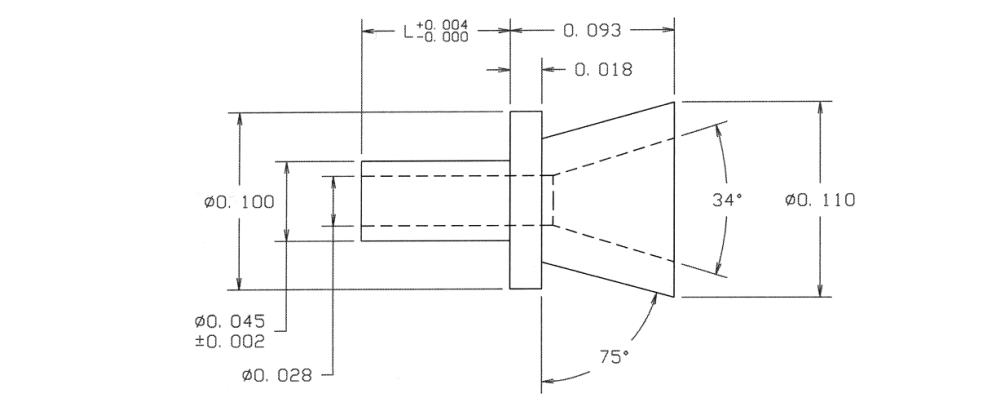

10-936-3-088
10-936-3-088
10-936-3-088
0.208" - - Swage Mount 0.115" 3/32 0.052 Brass Bright Tin-Lead NO
14-345-5-01
14-345-5-01
14-345-5-01
0.522" - - Swage Mount 0.195" 5/32 0.116 LEADED Red Brass Silver YES

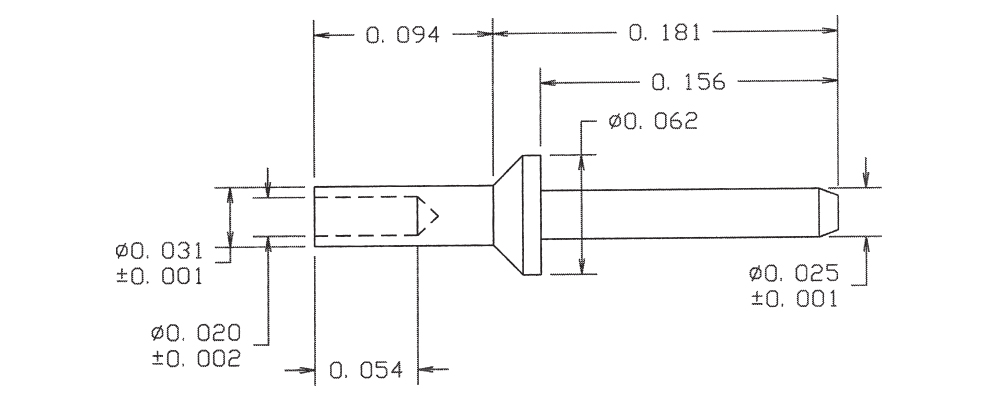

14-991-2-04
14-991-2-04
14-991-2-04
0.275" 0.025 - Swage Mount 0.094" 1/16 0.033 LEADED Red Brass Electro-Tin YES
10-408-3-044
10-408-3-044
10-408-3-044
0.447" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin YES
10-438-2-03
10-438-2-03
10-438-2-03
0.421" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

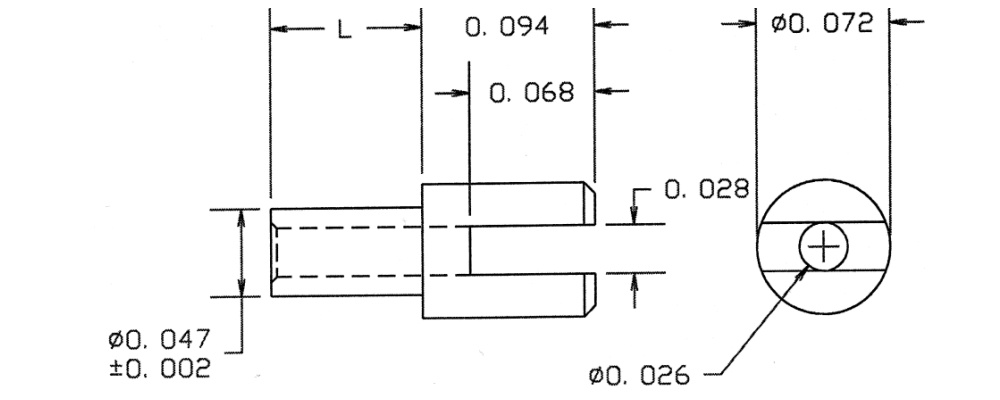

10-453-8-05
10-453-8-05
10-453-8-05
0.364" - - Swage Mount 0.270" 1/4 0.052 Brass Electro Solder NO

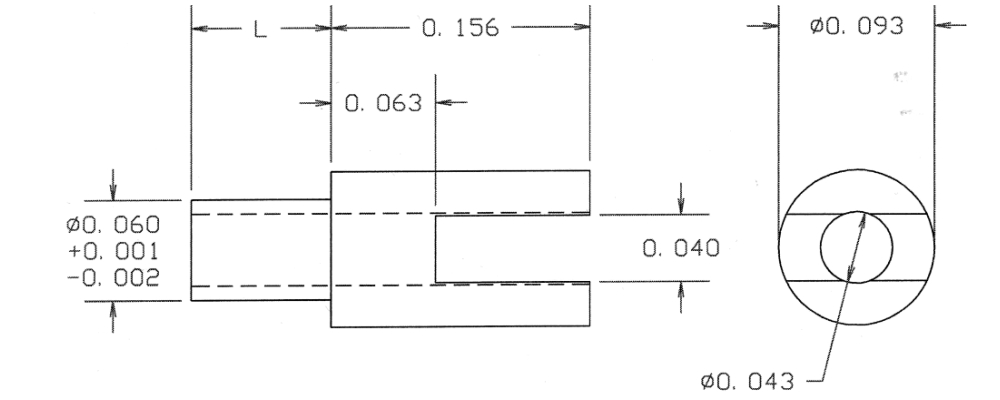

10-477-6-035
10-477-6-035
10-477-6-035
0.374" - - Swage Mount 0.218" 3/16 0.063 Brass Gold YES

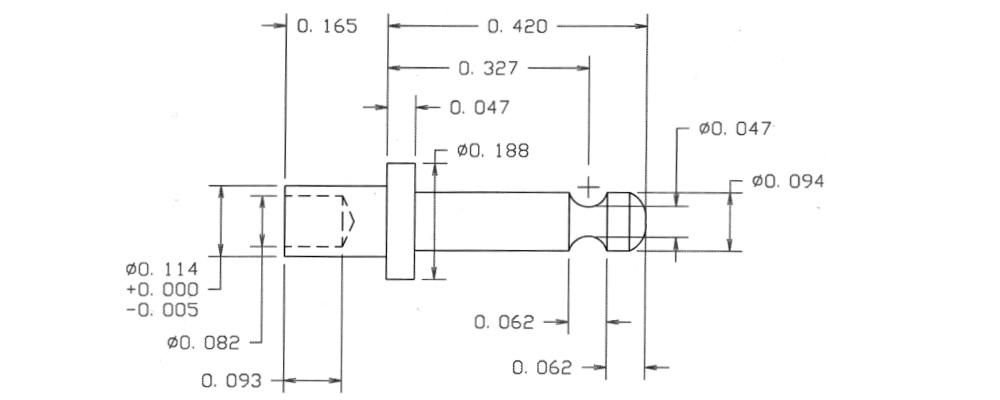

09-0020-4-044
09-0020-4-044
09-0020-4-044
0.585" 0.094 - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES

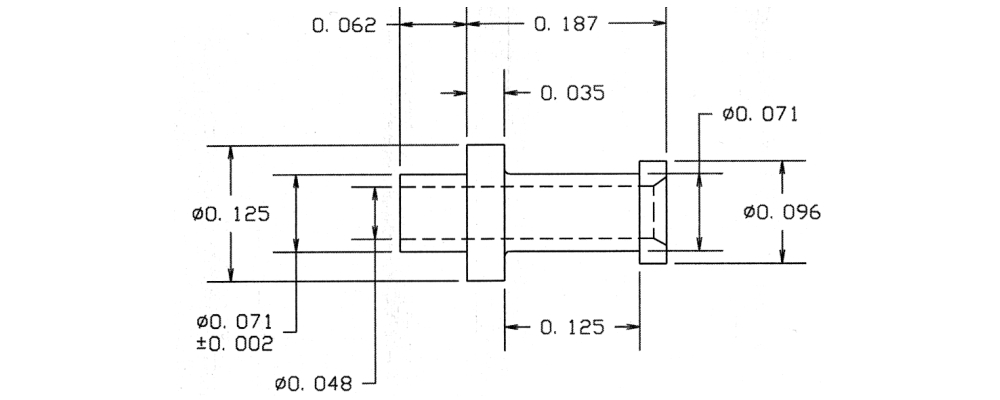

09-0072-1-035
09-0072-1-035
09-0072-1-035
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Gold YES

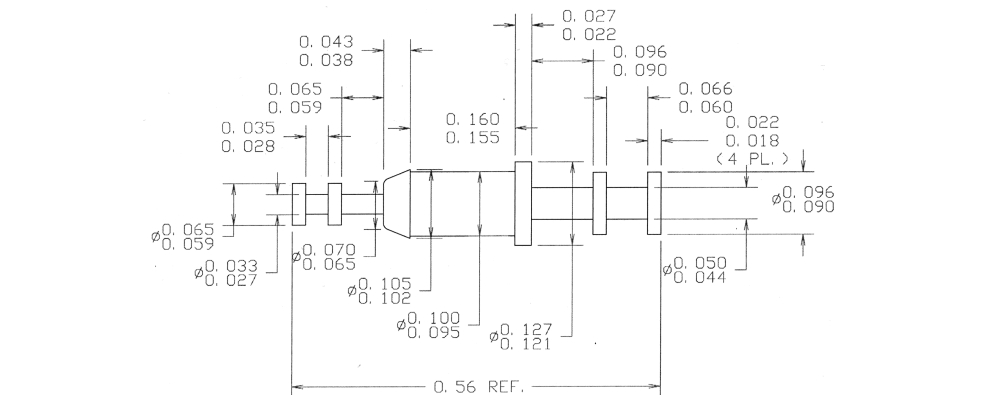

09-0159-2-044
09-0159-2-044
09-0159-2-044
0.560" - Double Turret/Double Turret Solder 0.156" 1/32 TO 5/32 0.109 Brass Bright Tin YES

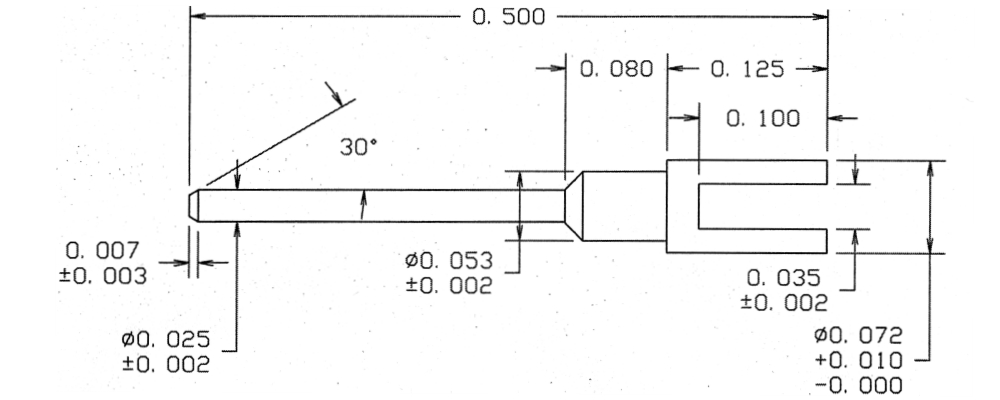

09-0187-2-035
09-0187-2-035
09-0187-2-035
0.500" 0.025 SLOTTED/PIN Solder 0.080" 1/16 0.062 Brass Gold YES

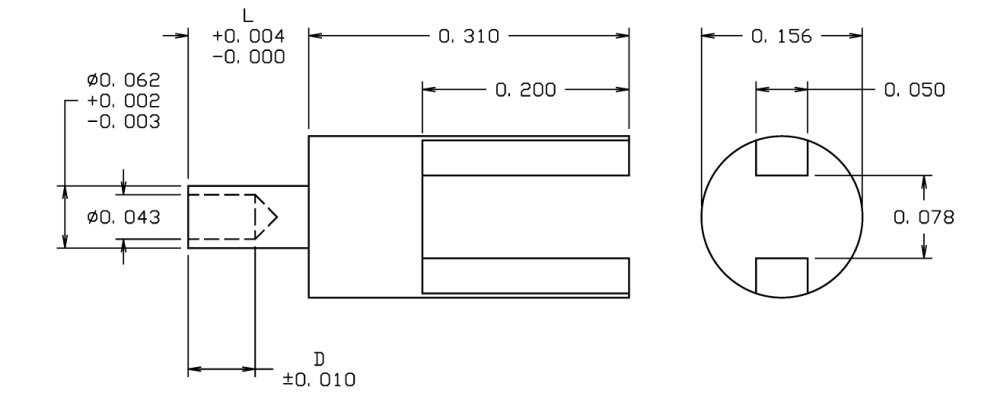

09-0234-3-01
09-0234-3-01
09-0234-3-01
0.425" - - Swage Mount 0.115" 3/32 0.067 Brass Silver YES

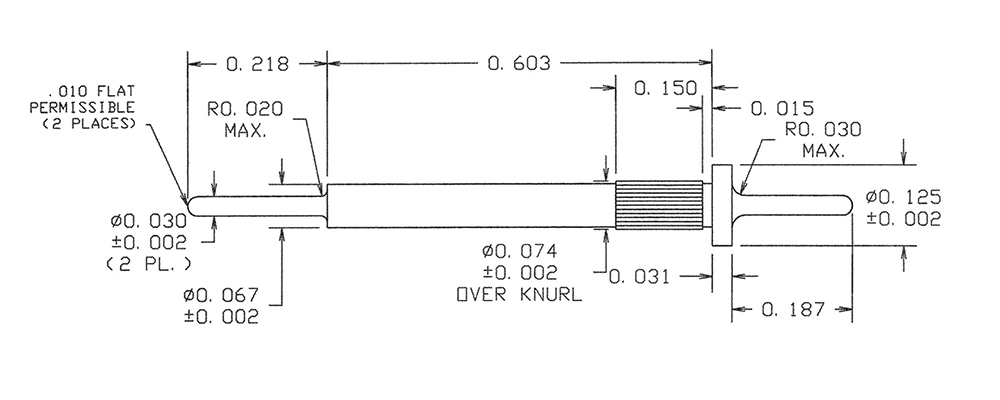

09-0275-4-088
09-0275-4-088
09-0275-4-088
1.039" 0.030 Pin/Pin Press Fit/Solder 0.150" 5/32 0.073 Brass Bright Tin-Lead NO
09-0342-3-088
09-0342-3-088
09-0342-3-088
0.312" - - Swage Mount 0.125" 3/32 0.073 Brass Bright Tin-Lead NO
09-7010-2-01
09-7010-2-01
09-7010-2-01
0.235" 0.050 - Swage Mount 0.095" 1/16 0.055 Brass Silver YES

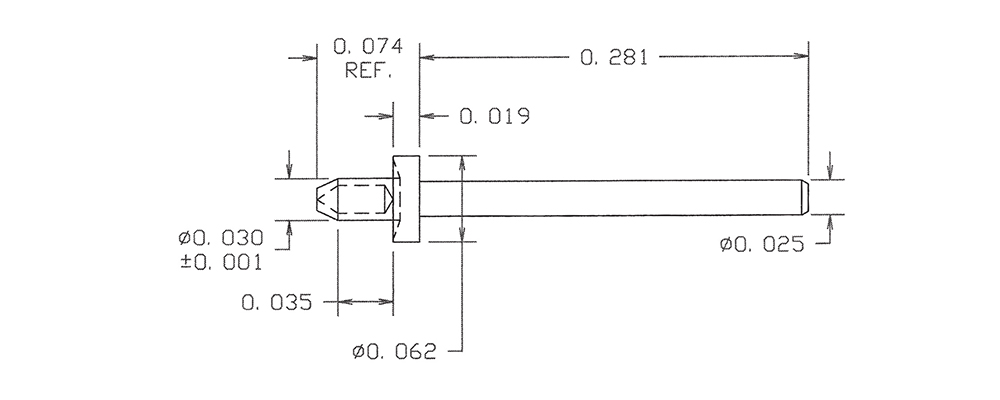

09-7108-1A-05
09-7108-1A-05
09-7108-1A-05
0.355" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Electro Solder NO

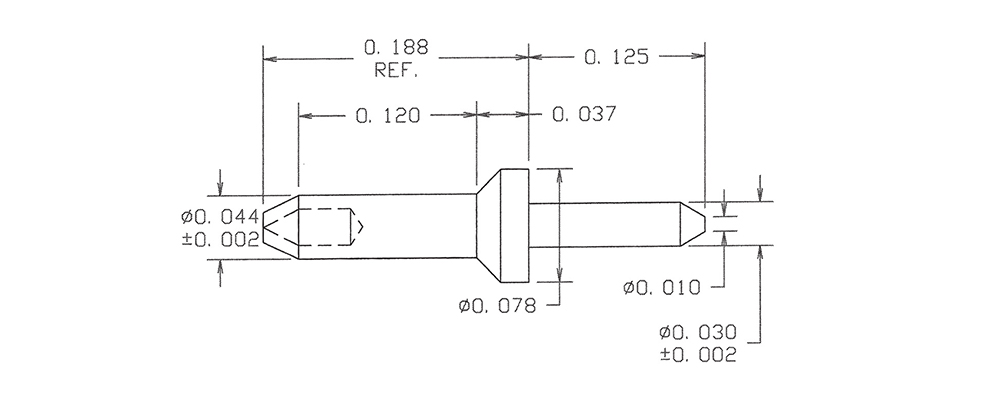

09-7145-3-035
09-7145-3-035
09-7145-3-035
0.313" 0.030 - RIVET MOUNT 0.120" 3/32 0.048 Brass Gold YES

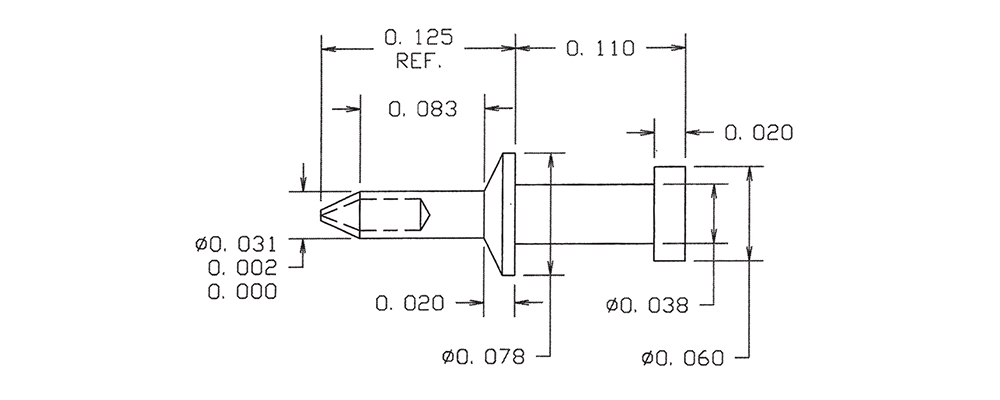

09-7171-2-088
09-7171-2-088
09-7171-2-088
0.235" - - RIVET MOUNT 0.082" 1/16 0.035 Brass Bright Tin-Lead NO

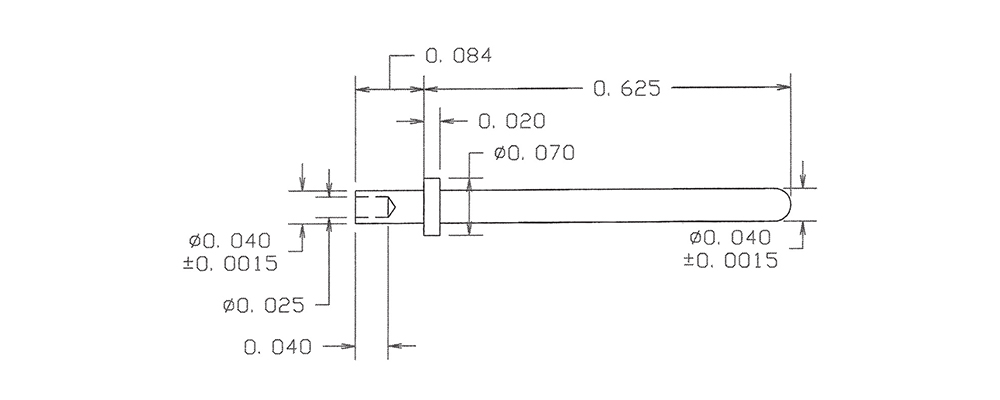

09-8013-2-04
09-8013-2-04
09-8013-2-04
0.709" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Electro-Tin YES

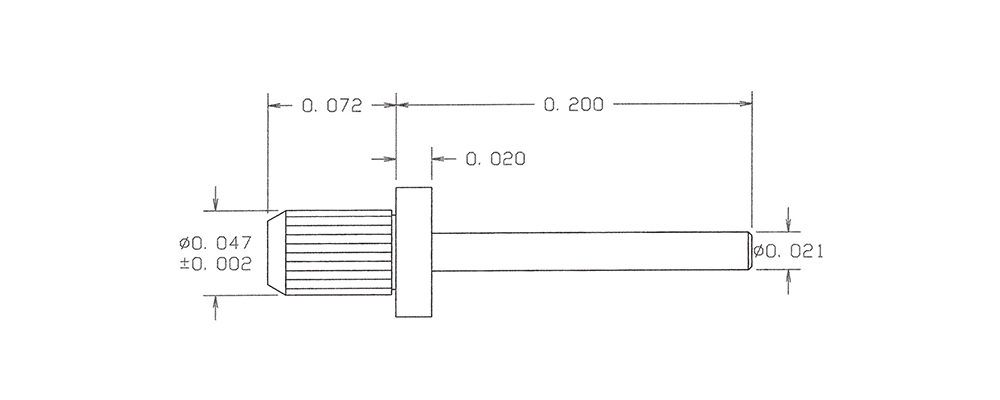

09-8049-1-01
09-8049-1-01
09-8049-1-01
0.272" 0.021 - Press Fit/Solder 0.072" 1/64 TO 1/16 0.0465 Brass Silver YES
