Commercial
Non-Insulated
Terminals

Filter

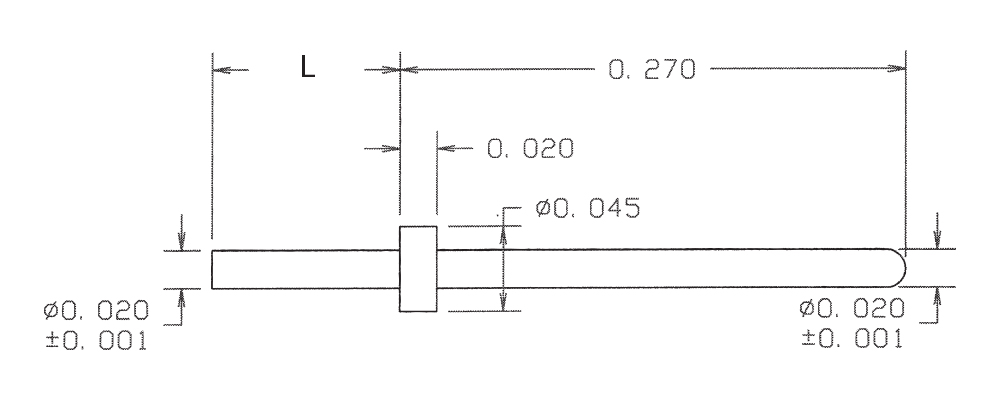

09-8090-2-04
09-8090-2-04
09-8090-2-04
0.370" 0.020 - Solder 0.100" 1/16 0.024 Brass Electro-Tin YES

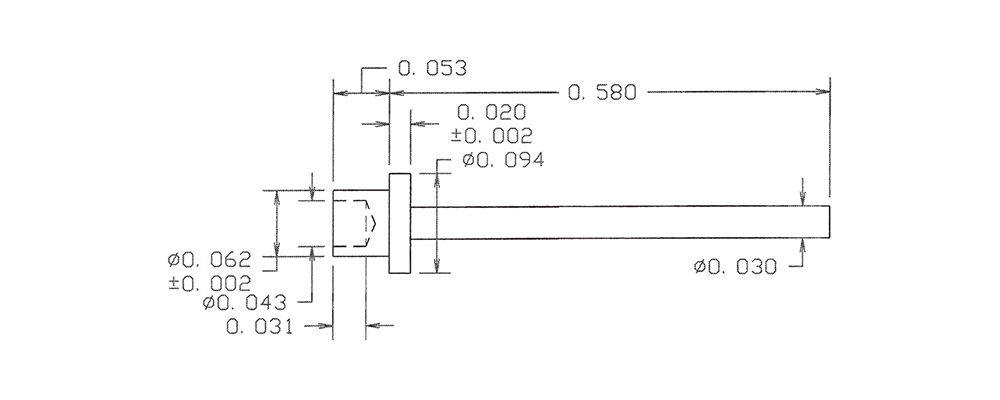

09-8148-1-01
09-8148-1-01
09-8148-1-01
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Silver YES

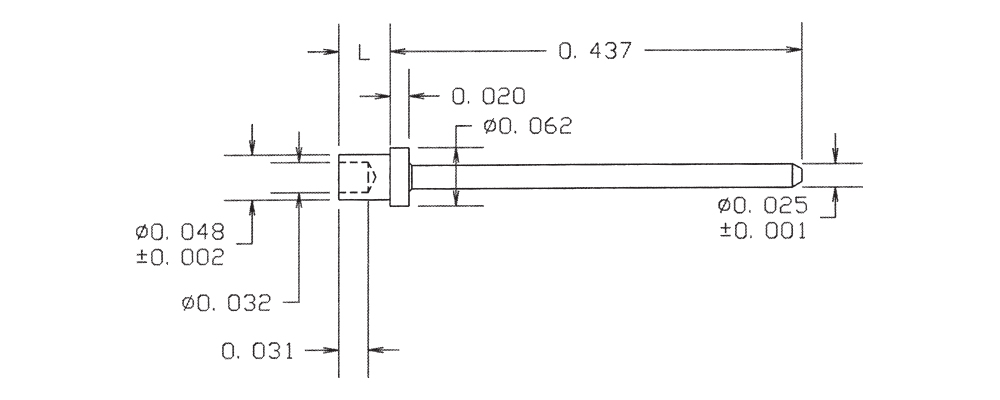

09-8176-1-044
09-8176-1-044
09-8176-1-044
0.491" 0.025 - Swage Mount 0.054" 1/32 0.052 Brass Bright Tin YES

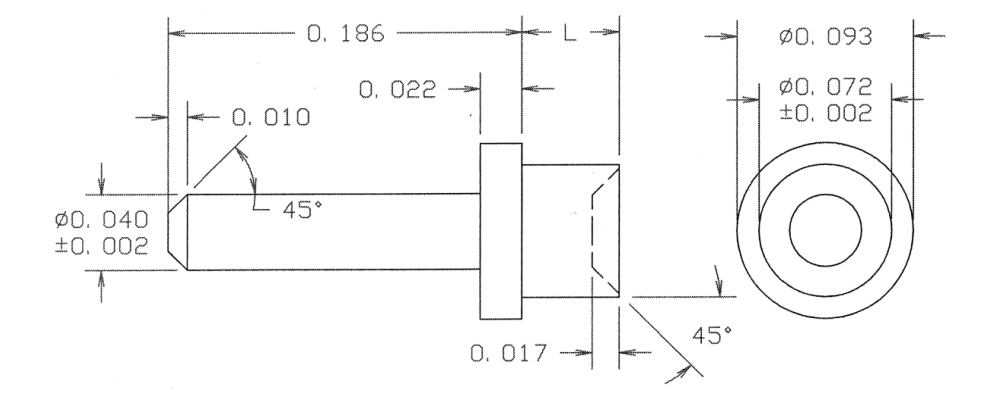

09-8311-2-044
09-8311-2-044
09-8311-2-044
0.268" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES

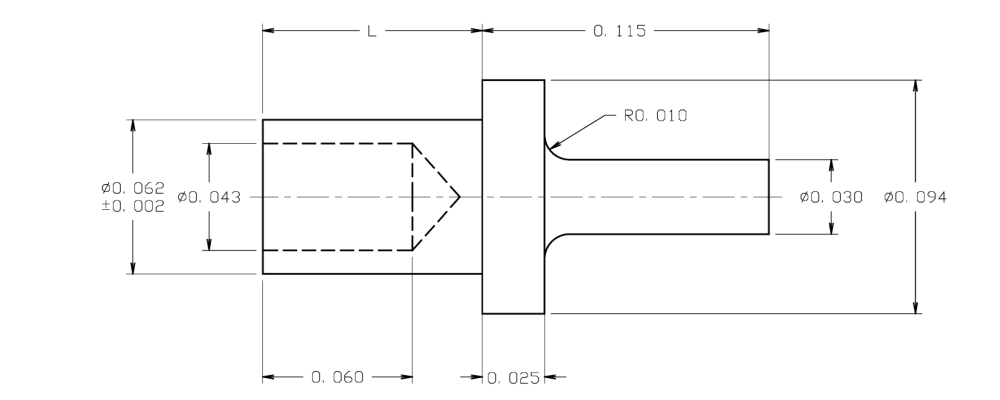

09-8564-2-05
09-8564-2-05
09-8564-2-05
0.214" 0.030 - Swage Mount 0.098" 1/16 0.067 LEADED Red Brass Electro Solder NO

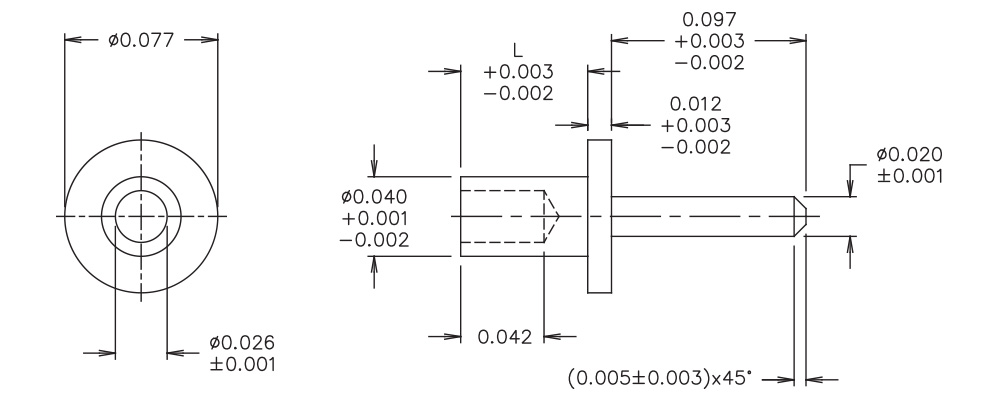

09-8689-4-04
09-8689-4-04
09-8689-4-04
0.235" 0.020 - Swage Mount 0.124" 3/32 0.043 Brass Electro-Tin YES

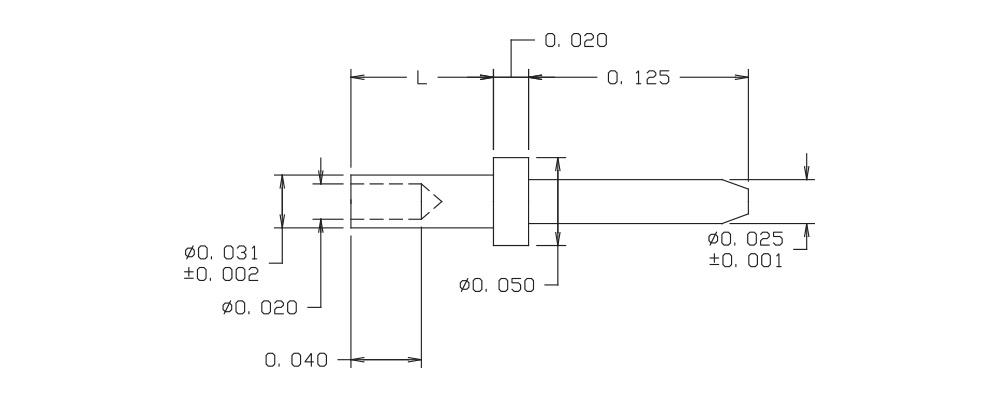

09-8807-1-03
09-8807-1-03
09-8807-1-03
0.196" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES
09-8864-2-044
09-8864-2-044
09-8864-2-044
1.655" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Bright Tin YES
10-104-2-035
10-104-2-035
10-104-2-035
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Gold YES
10-111-3-035
10-111-3-035
10-111-3-035
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Gold YES
10-133-1-044
10-133-1-044
10-133-1-044
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Bright Tin YES
10-203-6-035
10-203-6-035
10-203-6-035
0.515" - - Swage Mount 0.234" 3/16 0.094 Brass Gold YES
10-211-3-044
10-211-3-044
10-211-3-044
0.641" - - Swage Mount 0.141" 3/32 0.266 Brass Bright Tin YES
10-217-5-044
10-217-5-044
10-217-5-044
0.539" - - Swage Mount 0.195" 5/32 0.116 Brass Bright Tin YES
10-228-3-01
10-228-3-01
10-228-3-01
0.344" - - Swage Mount 0.125" 3/32 0.094 ALUMINUM Silver YES

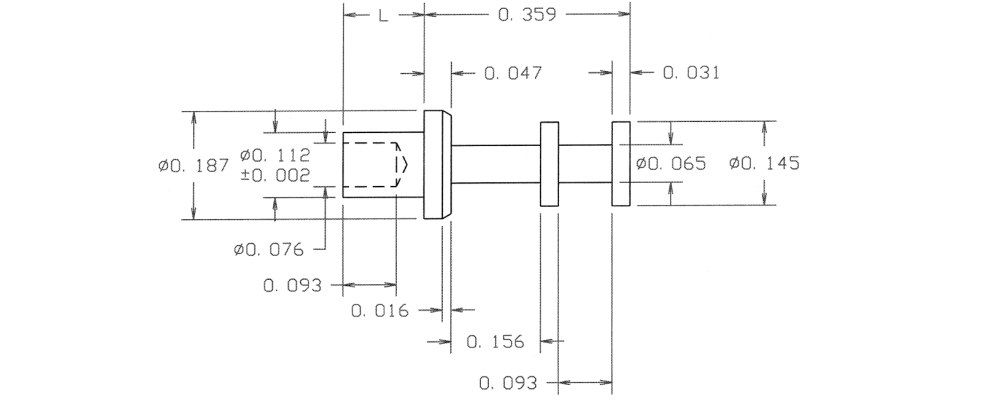

10-247-6-095
10-247-6-095
10-247-6-095
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Hot Solder Dip NO
10-304-4-04
10-304-4-04
10-304-4-04
0.484" - - Swage Mount 0.172" 1/8 0.1405 Brass Electro-Tin YES
10-312-1-05
10-312-1-05
10-312-1-05
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Electro Solder NO
10-323-3-035
10-323-3-035
10-323-3-035
0.271" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES
10-360-2-088
10-360-2-088
10-360-2-088
0.198" - - Swage Mount 0.105" 1/16 0.063 Brass Bright Tin-Lead NO
