Commercial
Non-Insulated
Terminals

Filter
10-526-4-03
10-526-4-03
10-526-4-03
0.687" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Gold YES
10-544-3-03
10-544-3-03
10-544-3-03
0.366" - Turret/Turret Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-562-4-03
10-562-4-03
10-562-4-03
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Gold YES
10-606-3-05
10-606-3-05
10-606-3-05
0.451" - - Swage Mount 0.135" 3/32 0.094 Brass Electro Solder NO

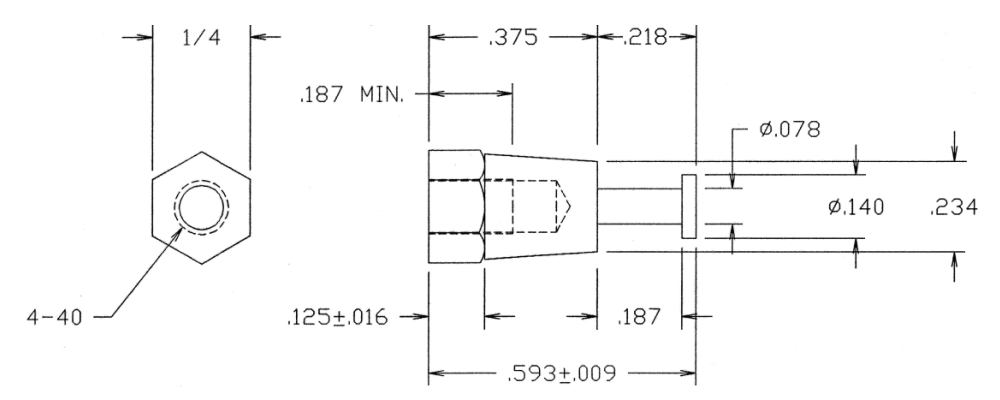

10-711-1-088
10-711-1-088
10-711-1-088
0.593" - - 4-40 Screw - - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead NO
10-8015-2-088
10-8015-2-088
10-8015-2-088
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO
10-8025-2-044
10-8025-2-044
10-8025-2-044
0.379" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
10-808-2-044
10-808-2-044
10-808-2-044
0.580" - - Swage Mount 0.109" 1/16 0.094 Brass Bright Tin YES
10-815-2-04
10-815-2-04
10-815-2-04
0.305" - - Swage Mount 0.105" 1/16 0.1495 Brass Electro-Tin YES

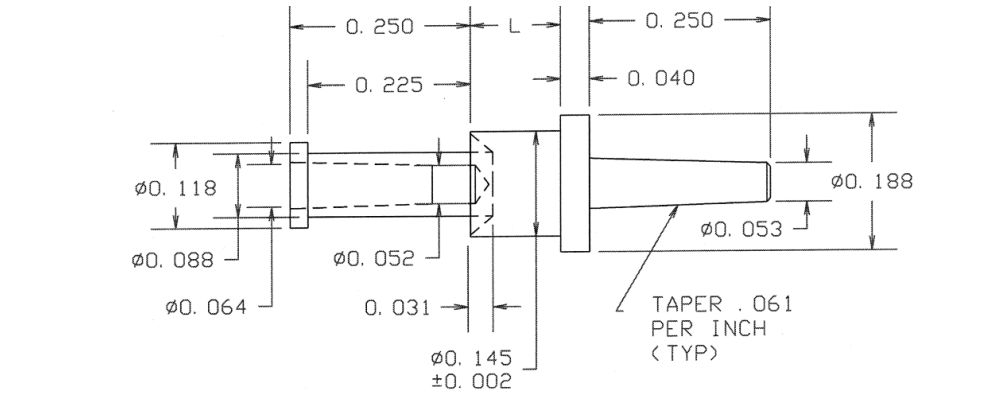

10-824-8-088
10-824-8-088
10-824-8-088
0.821" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.281" 1/4 0.147 Brass Bright Tin-Lead NO

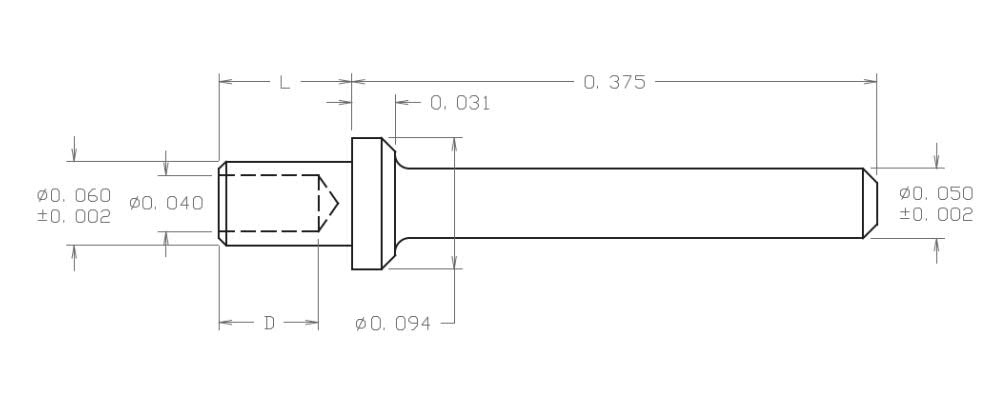

10-834-8-05
10-834-8-05
10-834-8-05
0.656" 0.050 - Swage Mount 0.281" 1/4 0.064 Brass Electro Solder NO
10-846-2-035
10-846-2-035
10-846-2-035
0.433" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES

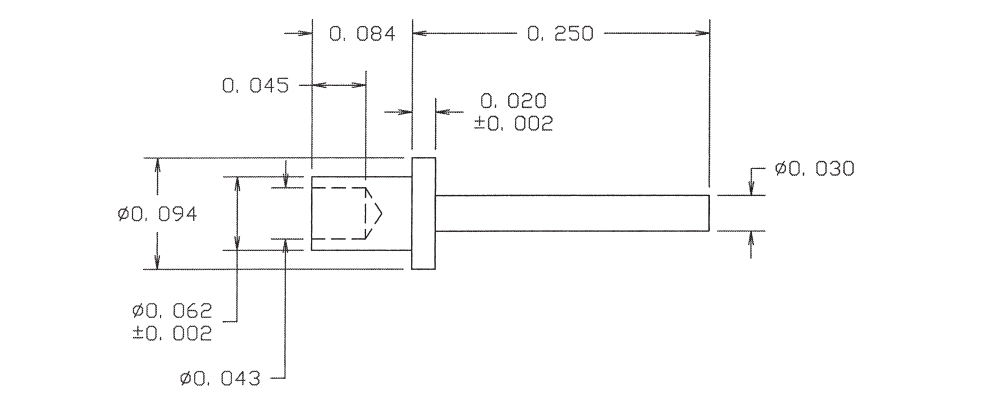

10-868-2-088
10-868-2-088
10-868-2-088
0.334" 0.030 - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin-Lead NO

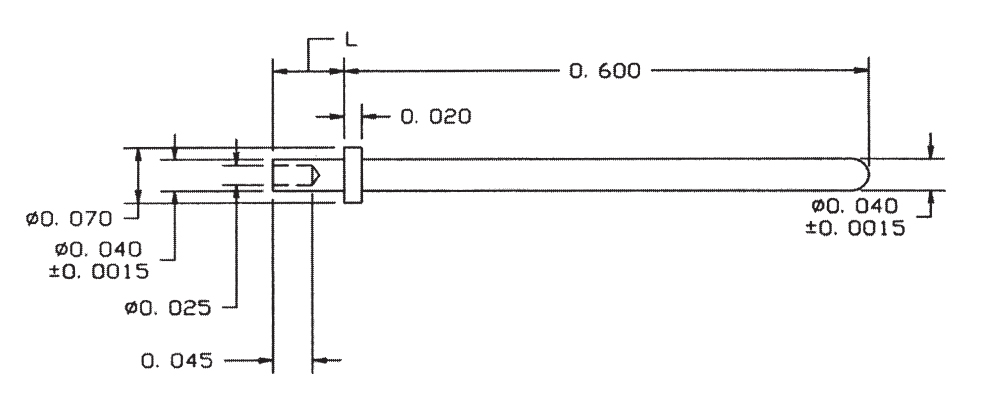

10-892-2-044
10-892-2-044
10-892-2-044
0.682" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

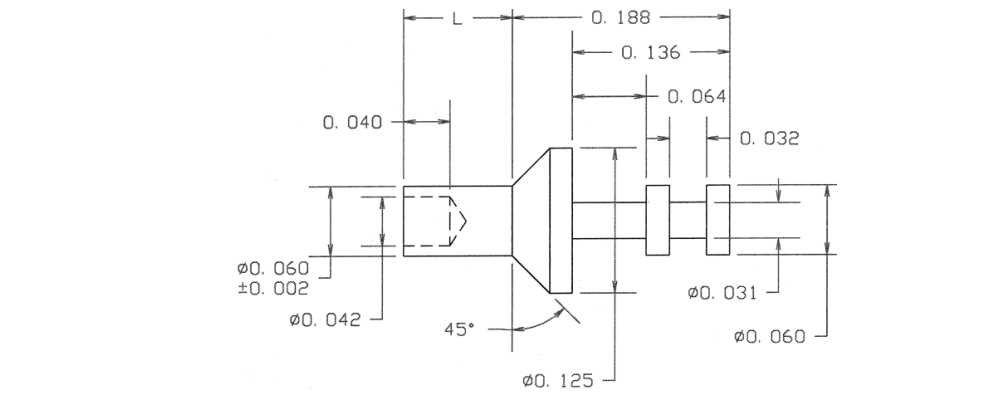

10-905-4-04
10-905-4-04
10-905-4-04
0.344" - - Swage Mount 0.156" 1/8 0.0635 Brass Electro-Tin YES
10-921-1-035
10-921-1-035
10-921-1-035
0.270" 0.045 - Swage Mount 0.062" 1/32 0.064 Brass Gold YES

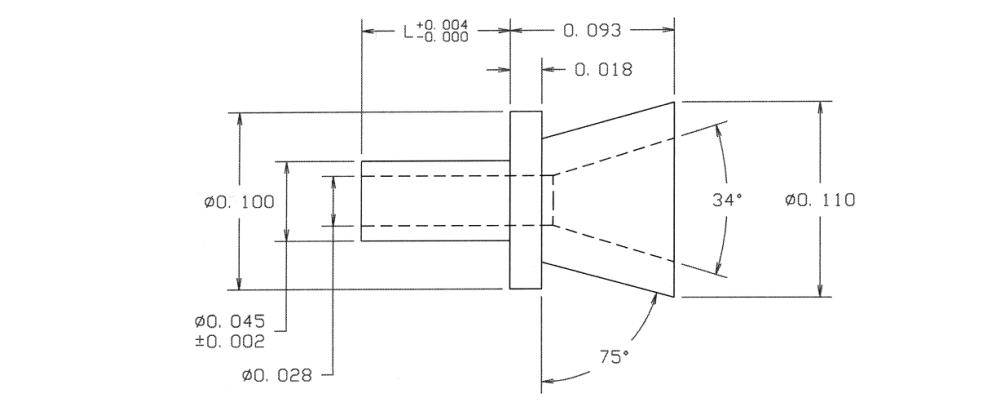

10-936-3-05
10-936-3-05
10-936-3-05
0.208" - - Swage Mount 0.115" 3/32 0.052 Brass Electro Solder NO
14-345-4-088
14-345-4-088
14-345-4-088
0.499" - - Swage Mount 0.172" 1/8 0.116 LEADED Red Brass Bright Tin-Lead NO

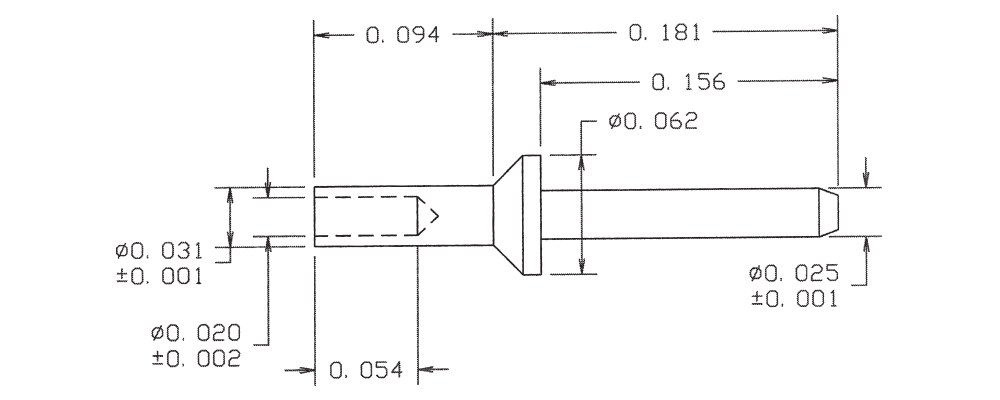

14-991-2-035
14-991-2-035
14-991-2-035
0.275" 0.025 - Swage Mount 0.094" 1/16 0.033 LEADED Red Brass Gold YES
10-408-3-04
10-408-3-04
10-408-3-04
0.447" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES
