Commercial
Non-Insulated
Terminals

Filter

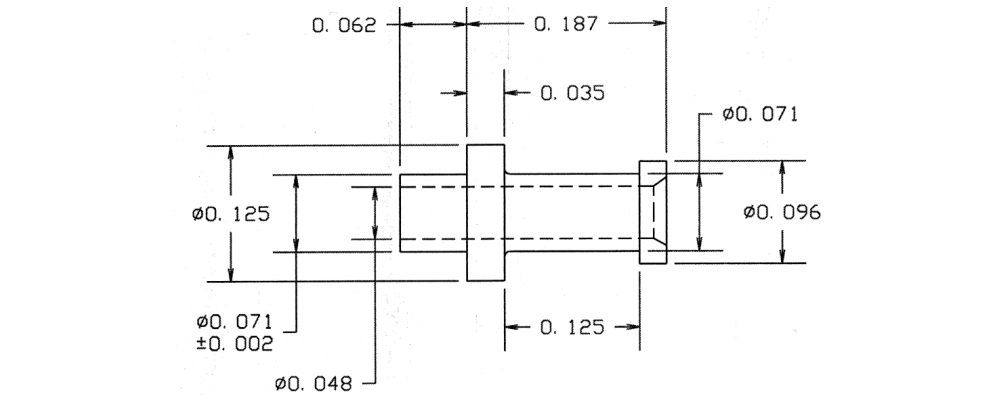

09-0072-1-01
09-0072-1-01
09-0072-1-01
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Silver YES

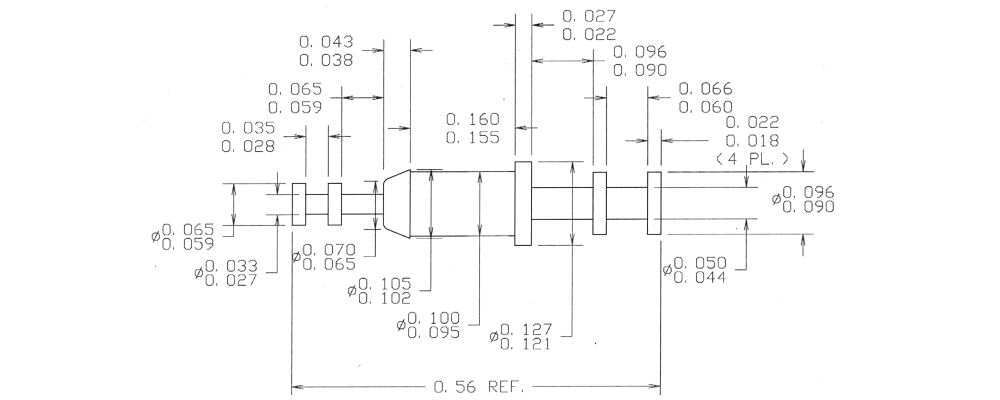

09-0159-2-035
09-0159-2-035
09-0159-2-035
0.560" - Double Turret/Double Turret Solder 0.156" 1/32 TO 5/32 0.109 Brass Gold YES

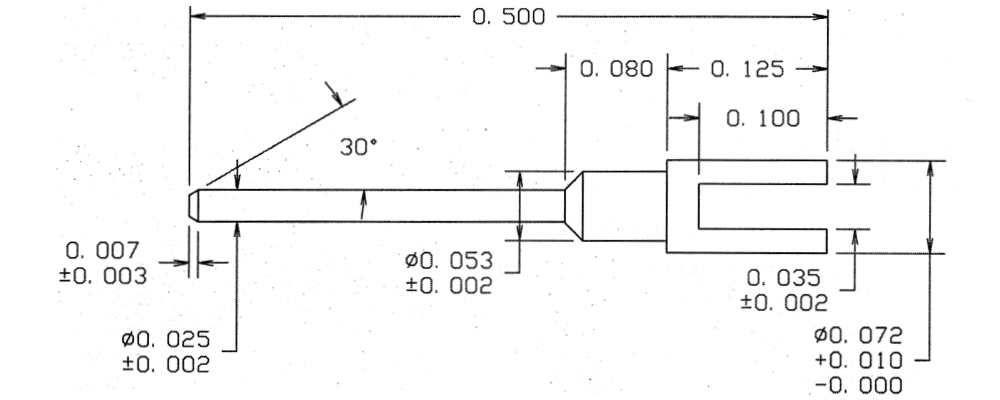

09-0187-2-01
09-0187-2-01
09-0187-2-01
0.500" 0.025 SLOTTED/PIN Solder 0.080" 1/16 0.062 Brass Silver YES

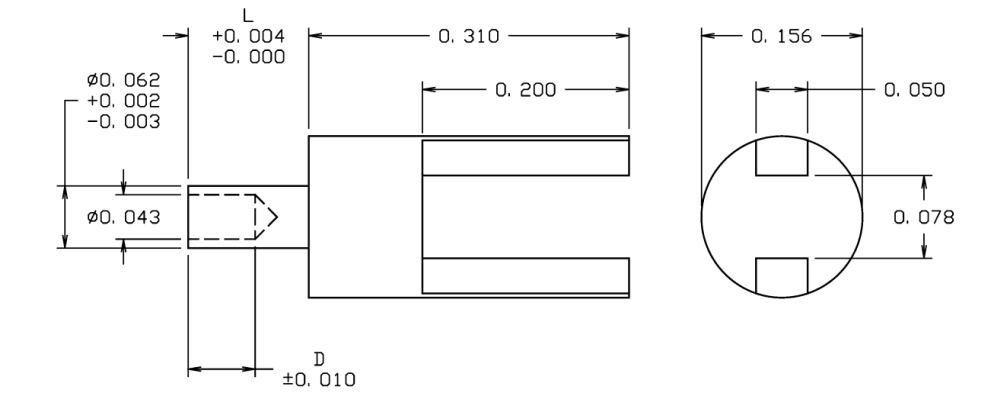

09-0234-2-088
09-0234-2-088
09-0234-2-088
0.397" - - Swage Mount 0.087" 1/16 0.067 Brass Bright Tin-Lead NO

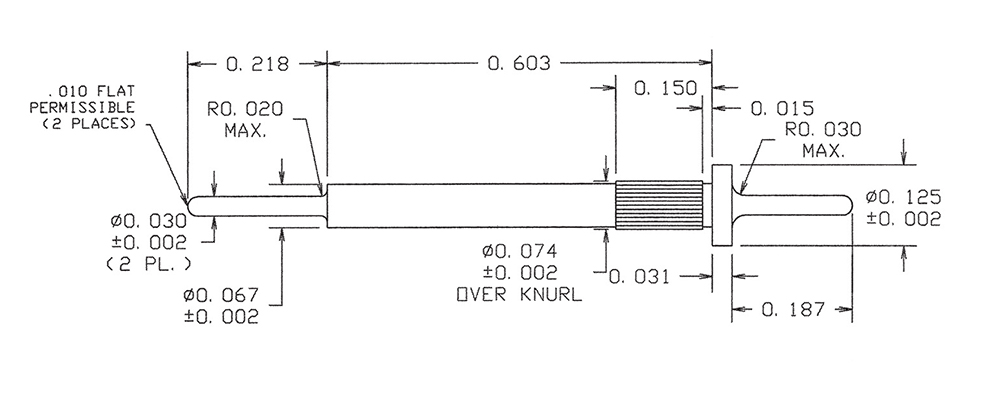

09-0275-4-044
09-0275-4-044
09-0275-4-044
1.039" 0.030 Pin/Pin Press Fit/Solder 0.150" 5/32 0.073 Brass Bright Tin YES

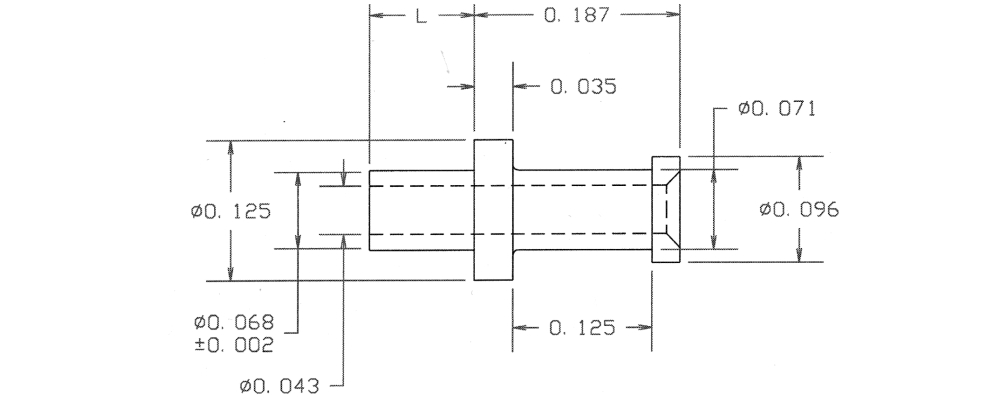

09-0342-3-044
09-0342-3-044
09-0342-3-044
0.312" - - Swage Mount 0.125" 3/32 0.073 Brass Bright Tin YES

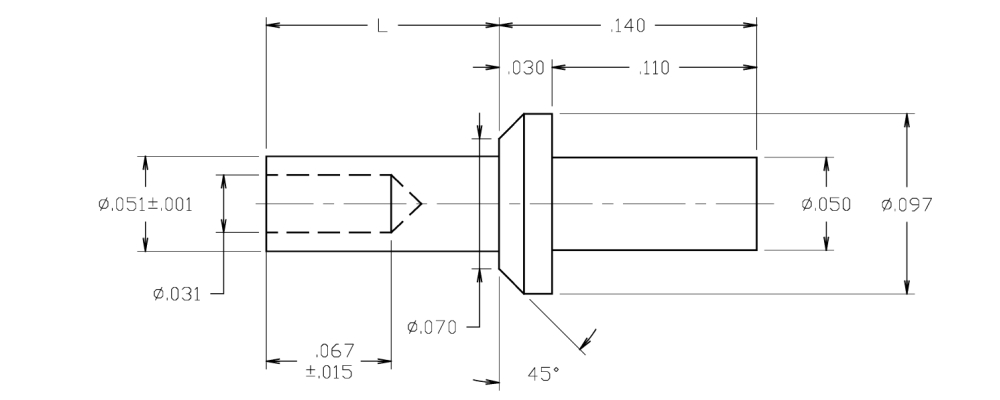

09-7010-1-088
09-7010-1-088
09-7010-1-088
0.202" 0.050 - Swage Mount 0.062" 1/32 0.055 Brass Bright Tin-Lead NO

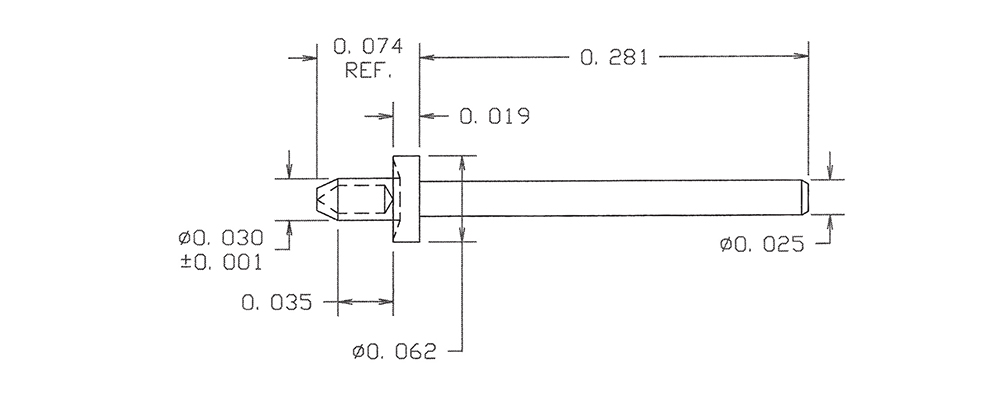

09-7108-1A-04
09-7108-1A-04
09-7108-1A-04
0.355" 0.025 - RIVET MOUNT 0.035" 1/100 0.033 Brass Electro-Tin YES

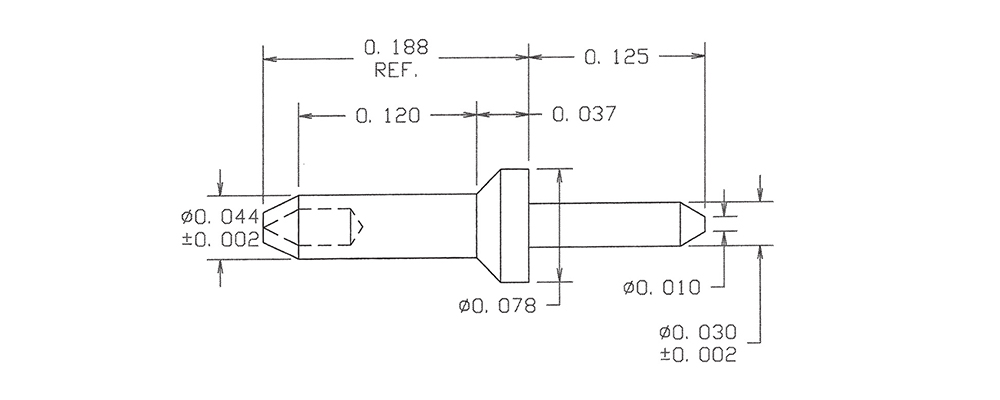

09-7145-3-01
09-7145-3-01
09-7145-3-01
0.313" 0.030 - RIVET MOUNT 0.120" 3/32 0.048 Brass Silver YES

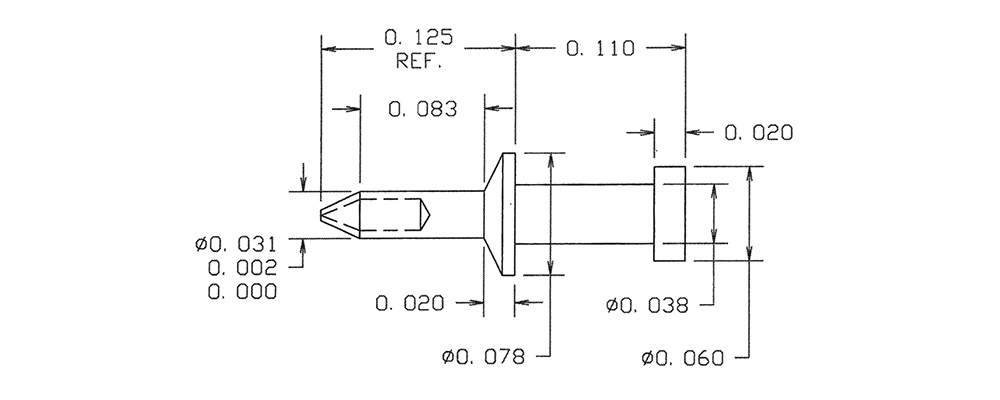

09-7171-2-044
09-7171-2-044
09-7171-2-044
0.235" - - RIVET MOUNT 0.082" 1/16 0.035 Brass Bright Tin YES

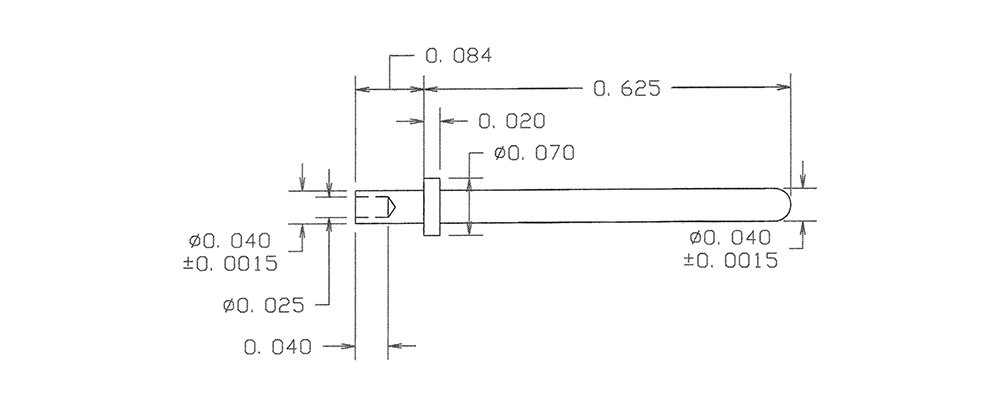

09-8013-2-03
09-8013-2-03
09-8013-2-03
0.709" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES

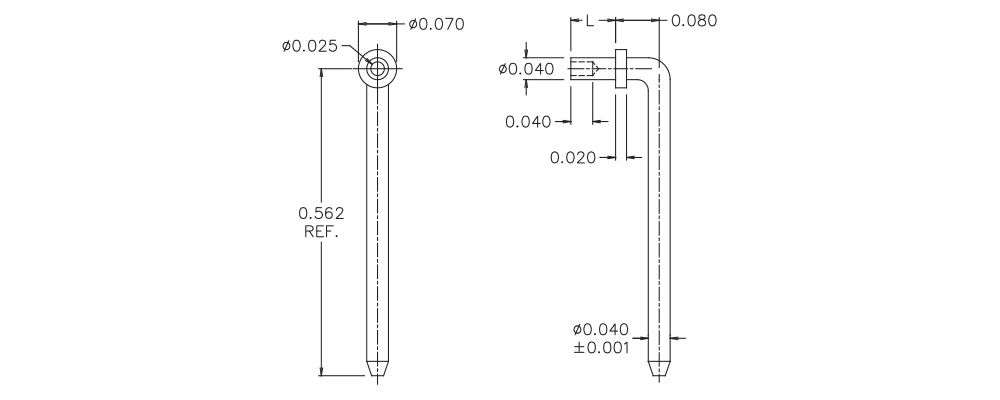

09-8048-2-05
09-8048-2-05
09-8048-2-05
0.597" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

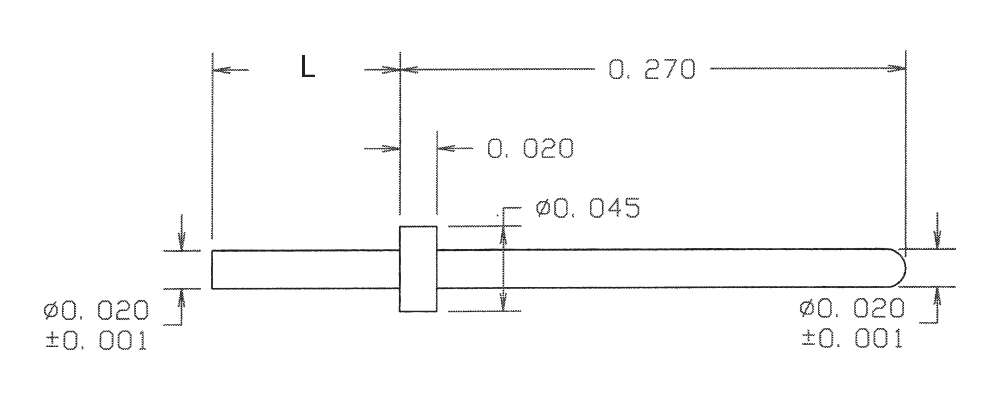

09-8090-2-03
09-8090-2-03
09-8090-2-03
0.370" 0.020 - Solder 0.100" 1/16 0.024 Brass Gold YES

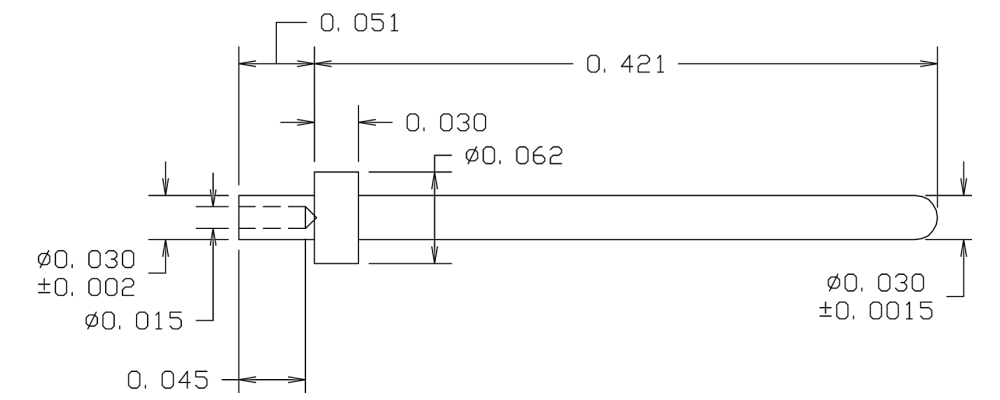

09-8147-1-05
09-8147-1-05
09-8147-1-05
0.472" 0.0305 - Swage Mount 0.051" 1/32 0.033 Brass Electro Solder NO

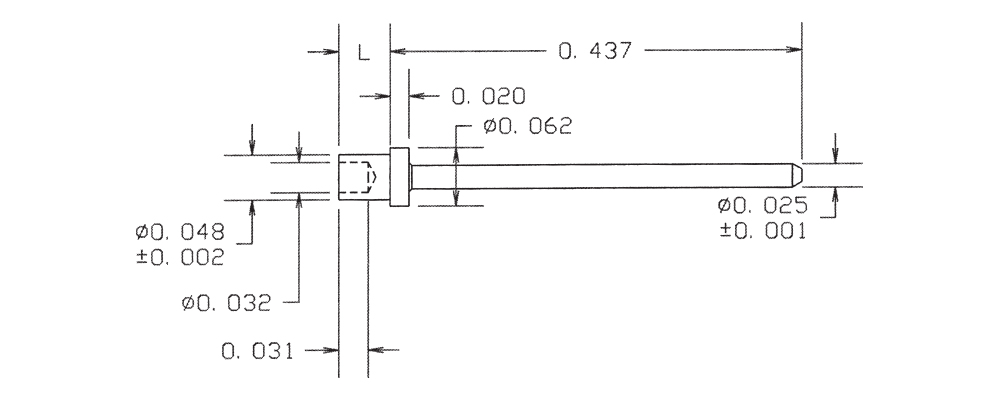

09-8176-1-035
09-8176-1-035
09-8176-1-035
0.491" 0.025 - Swage Mount 0.054" 1/32 0.052 Brass Gold YES

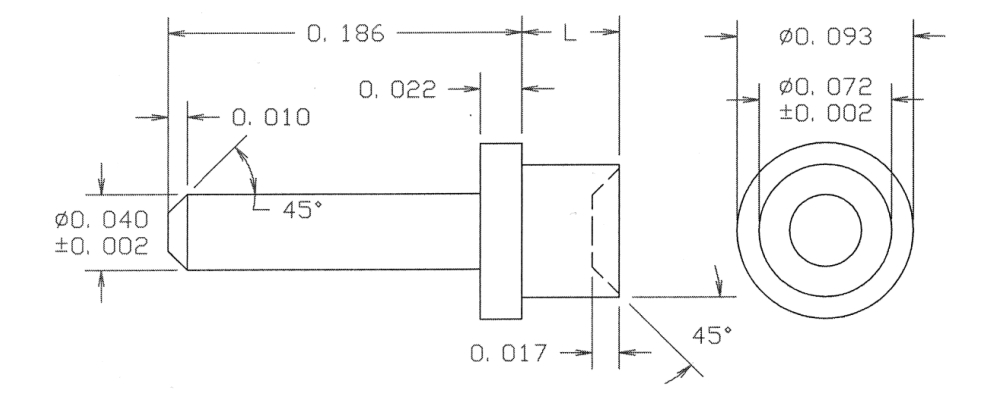

09-8311-2-035
09-8311-2-035
09-8311-2-035
0.268" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Gold YES
09-8564-2-04
09-8564-2-04
09-8564-2-04
0.214" 0.030 - Swage Mount 0.098" 1/16 0.067 LEADED Red Brass Electro-Tin YES

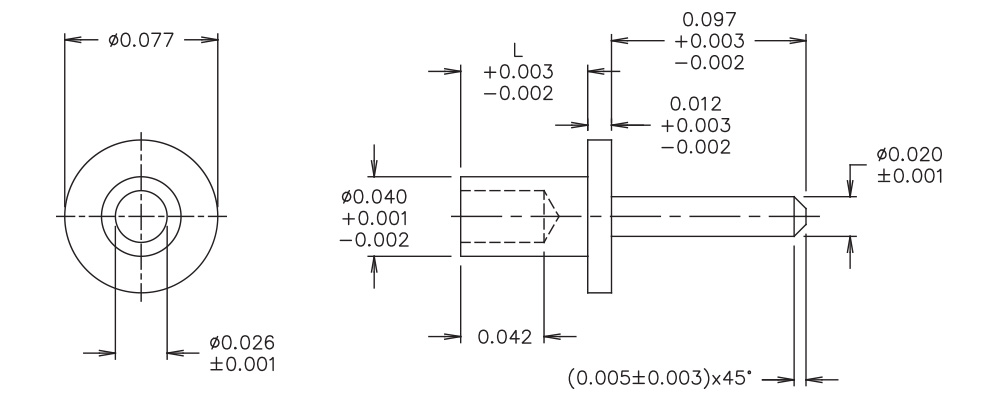

09-8689-4-03
09-8689-4-03
09-8689-4-03
0.235" 0.020 - Swage Mount 0.124" 3/32 0.043 Brass Gold YES
09-8802-6-095
09-8802-6-095
09-8802-6-095
0.364" 0.060 (+0.001/-0.002) - Swage Mount 0.236" 3/16 0.063 Brass Hot Solder Dip NO

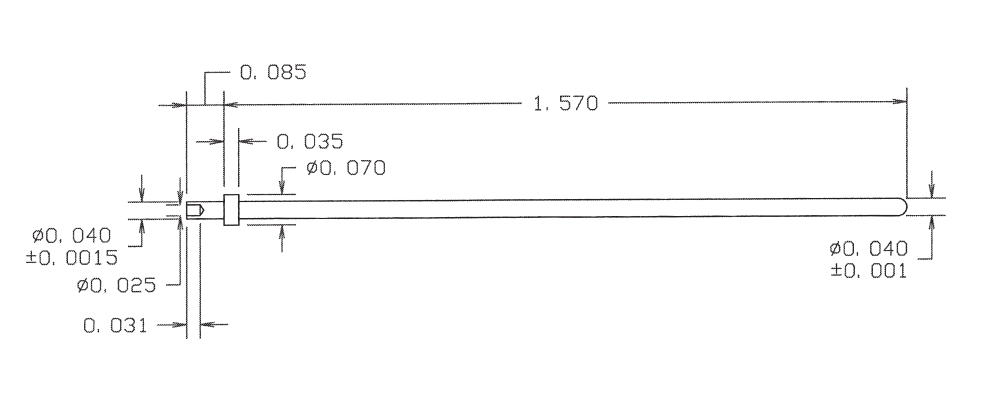

09-8864-2-035
09-8864-2-035
09-8864-2-035
1.655" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Gold YES
