Commercial
Non-Insulated
Terminals

Filter
10-134-4-04
10-134-4-04
10-134-4-04
0.313" - - Swage Mount 0.156" 1/8 0.081 Brass Electro-Tin YES
10-554-4-03
10-554-4-03
10-554-4-03
0.487" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Gold YES
09-7190-2-035
09-7190-2-035
09-7190-2-035
0.288" - - RIVET MOUNT 0.092" 1/16 0.0625 Brass Gold YES
09-8422-3-088
09-8422-3-088
09-8422-3-088
0.276" - - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin-Lead NO
10-114-2-088
10-114-2-088
10-114-2-088
0.178" - - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO
10-703-8-088
10-703-8-088
10-703-8-088
0.431" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO

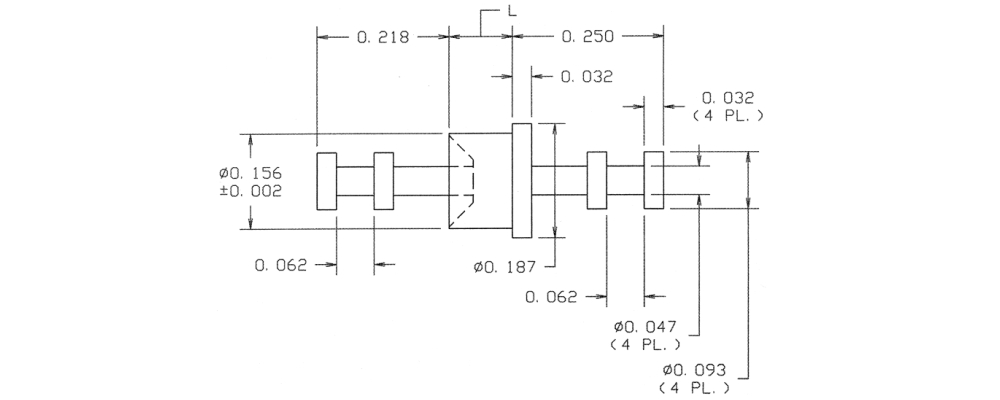

10-532-3-088
10-532-3-088
10-532-3-088
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Bright Tin-Lead NO
10-424-1-088
10-424-1-088
10-424-1-088
0.512" - - Swage Mount 0.075" 1/32 0.141 Brass Bright Tin-Lead NO
10-238-3-088
10-238-3-088
10-238-3-088
0.562" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin-Lead NO
10-402-2-088
10-402-2-088
10-402-2-088
0.453" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead NO
10-321-3-088
10-321-3-088
10-321-3-088
0.499" - Turret/Turret Swage Mount 0.125" 3/32 0.120 Brass Bright Tin-Lead NO
10-321-4-088
10-321-4-088
10-321-4-088
0.530" - Turret/Turret Swage Mount 0.156" 1/8 0.120 Brass Bright Tin-Lead NO
09-0084-2-04
09-0084-2-04
09-0084-2-04
0.730" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-888-1-088
10-888-1-088
10-888-1-088
0.315" 0.023 - Swage Mount 0.065" 1/32 0.042 Brass Bright Tin-Lead NO
09-8543-11-088
09-8543-11-088
09-8543-11-088
0.271" 0.040 - Solder 0.047" 1/64 0.094 Beryllium Copper Bright Tin-Lead NO
10-306-2-035
10-306-2-035
10-306-2-035
0.293" - - Swage Mount 0.105" 1/16 0.113 Brass Gold YES
10-305-3-01
10-305-3-01
10-305-3-01
0.329" - - Swage Mount 0.141" 3/32 0.113 Brass Silver YES
10-408-5-035
10-408-5-035
10-408-5-035
0.507" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES
09-0047-2-05
09-0047-2-05
09-0047-2-05
1.535" - - Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
10-823-2-05
10-823-2-05
10-823-2-05
0.564" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.087" 1/16 0.120 Brass Electro Solder NO
