Commercial
Insulated
Pin Terminals

Filter

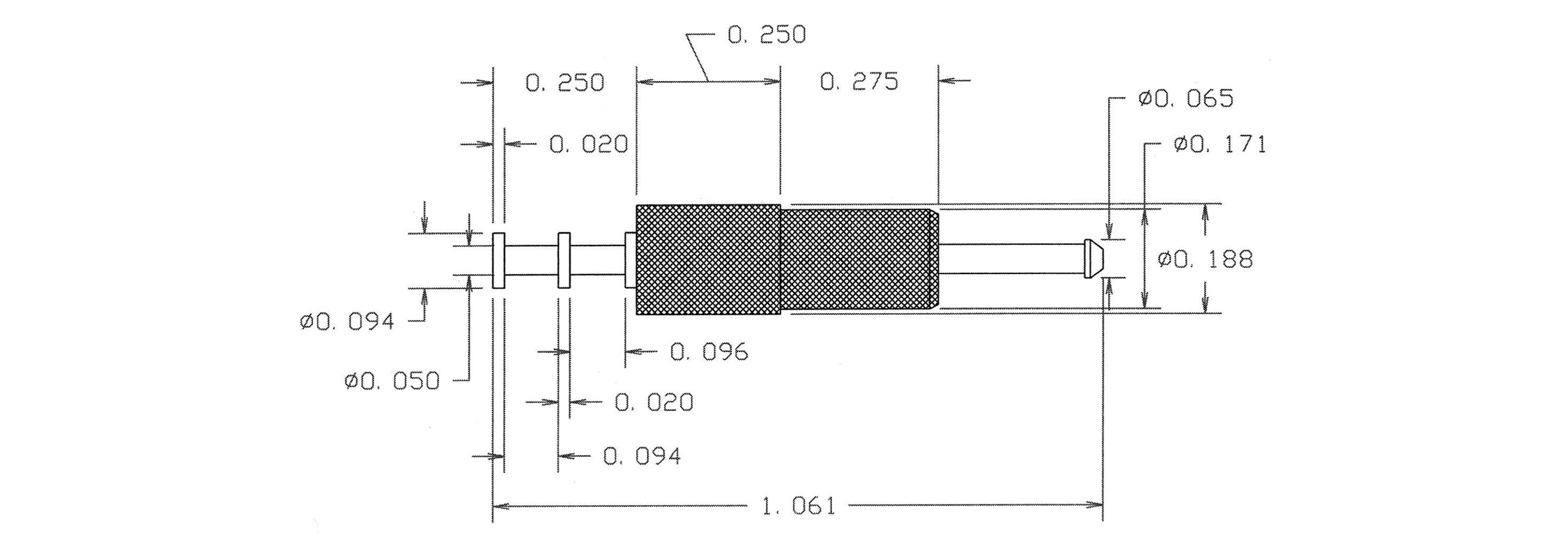

1156-15-0116
1156-15-0116
1156-15-0116
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE Blue YES

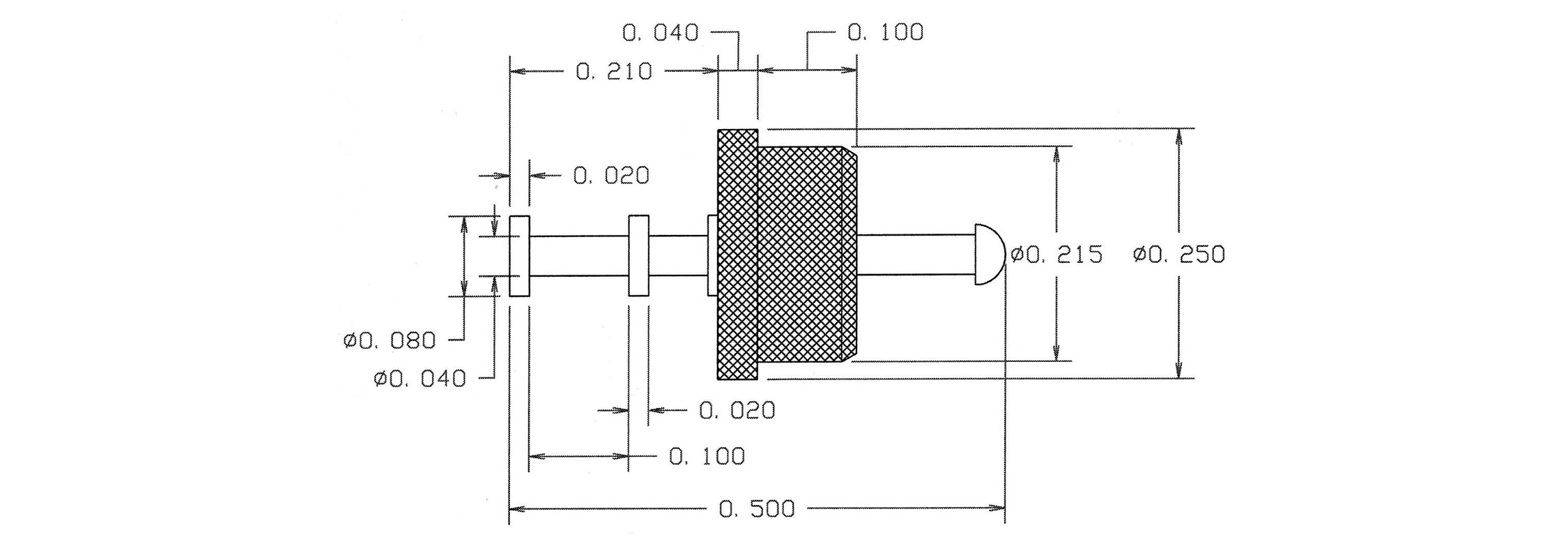

1156-19-0412
1156-19-0412
1156-19-0412
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Red NO
1156R-01-04418
1156R-01-04418
1156R-01-04418
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Gray NO
1157-01-08814
1157-01-08814
1157-01-08814
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

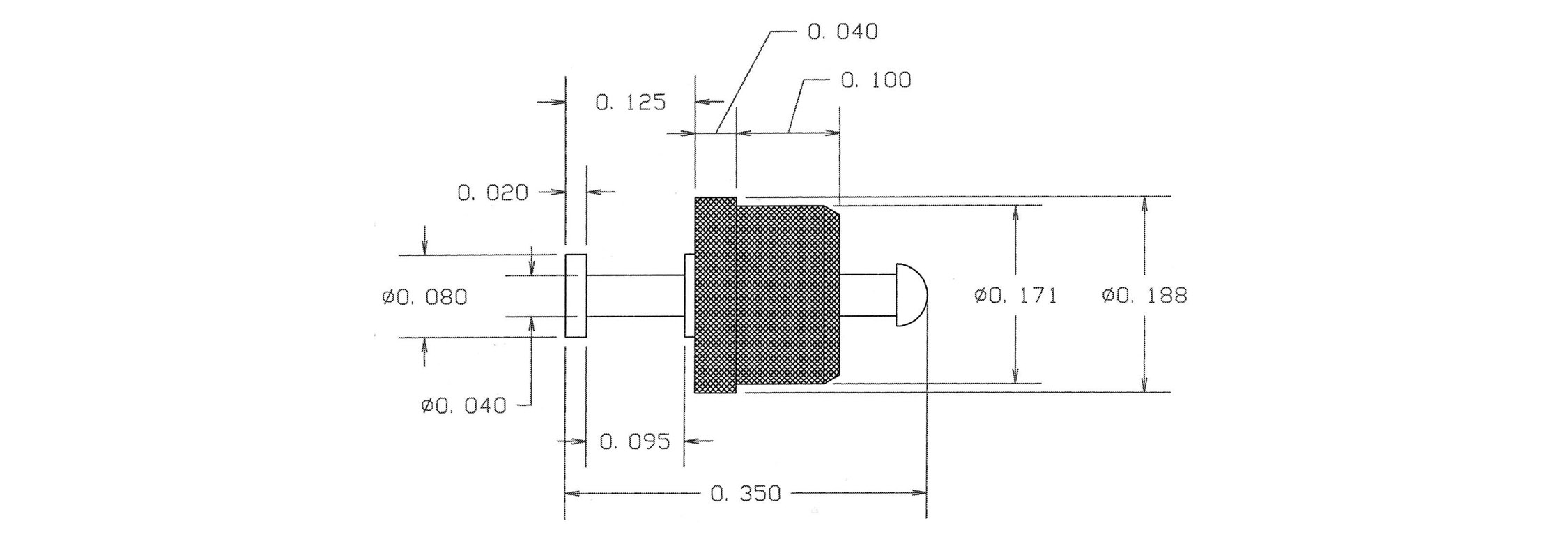

1157-07-0310
1157-07-0310
1157-07-0310
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Gold - - PTFE Black YES
1157R-05-0416
1157R-05-0416
1157R-05-0416
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Blue YES
1160-13-0512
1160-13-0512
1160-13-0512
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO
1167-20-08818
1167-20-08818
1167-20-08818
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO
1167-75-0314
1167-75-0314
1167-75-0314
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES
1169-30-04410
1169-30-04410
1169-30-04410
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES
1169-37-0516
1169-37-0516
1169-37-0516
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Blue NO

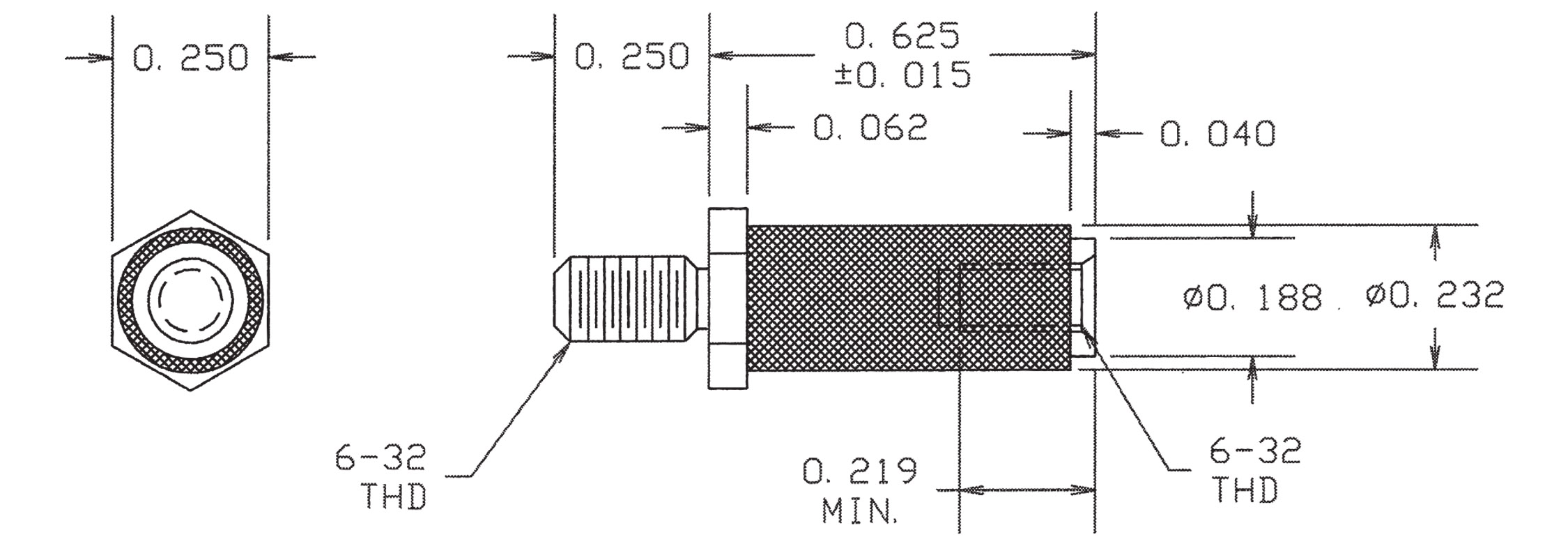

1170-07-07512
1170-07-07512
1170-07-07512
0.875" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Red YES
1170-22-08818
1170-22-08818
1170-22-08818
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO

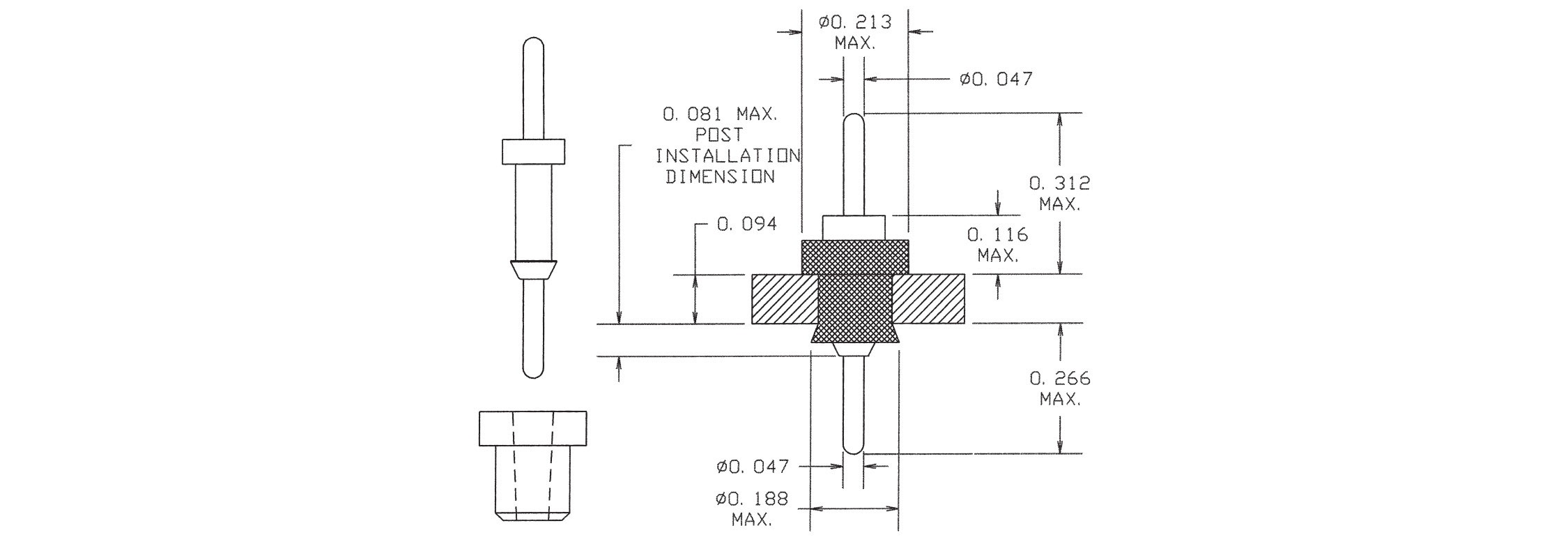

1175-013-0314
1175-013-0314
1175-013-0314
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-301-04410
1175-301-04410
1175-301-04410
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES
1175-351-0516
1175-351-0516
1175-351-0516
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
1175-373-0112
1175-373-0112
1175-373-0112
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-404-0318
1175-404-0318
1175-404-0318
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Gray NO
1175-414-04414
1175-414-04414
1175-414-04414
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO
1175-424-08810
1175-424-08810
1175-424-08810
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
