Commercial
Insulated
Pin Terminals

Filter

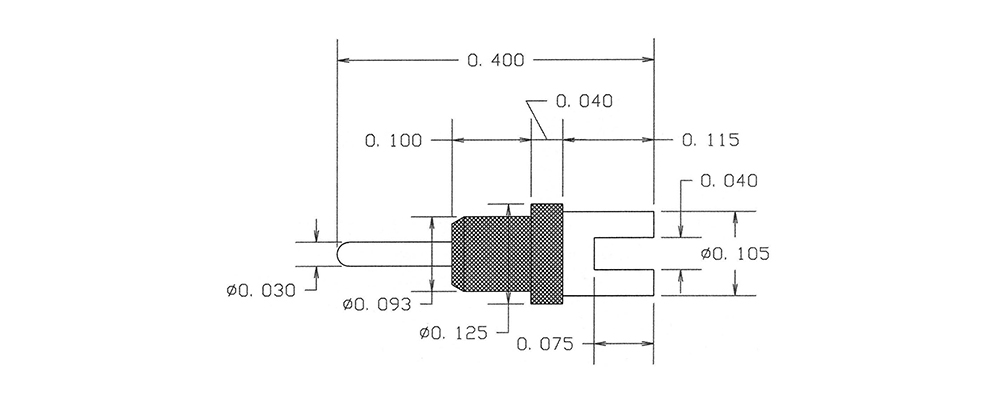

1135-09-0516
1135-09-0516
1135-09-0516
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO

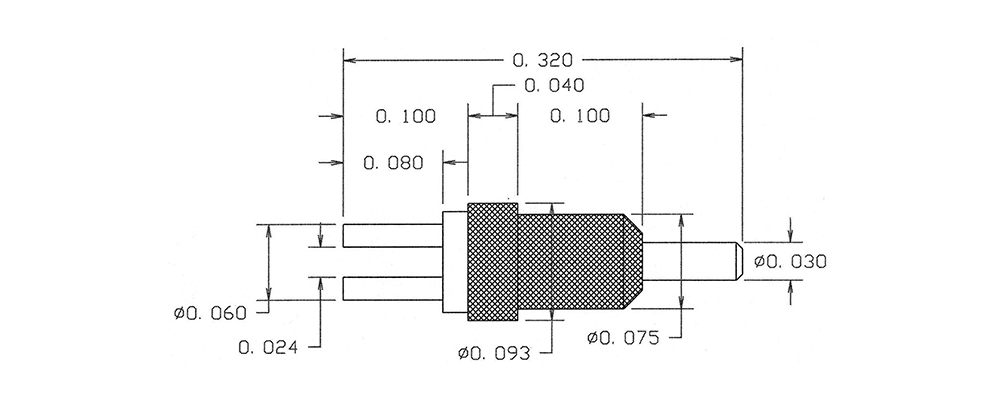

1137-03-0112
1137-03-0112
1137-03-0112
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Red NO
1139-04-0318
1139-04-0318
1139-04-0318
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO

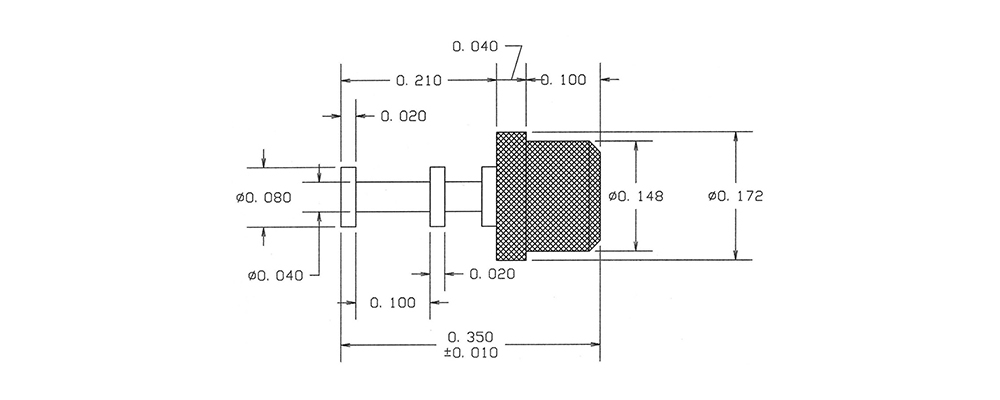

1151-05-04414
1151-05-04414
1151-05-04414
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1151-11-08810
1151-11-08810
1151-11-08810
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Black NO

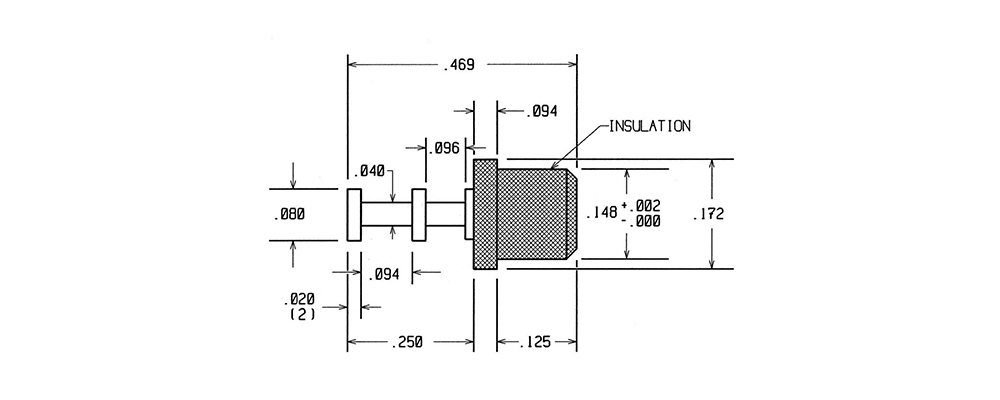

1151-20-0116
1151-20-0116
1151-20-0116
0.469" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Blue YES

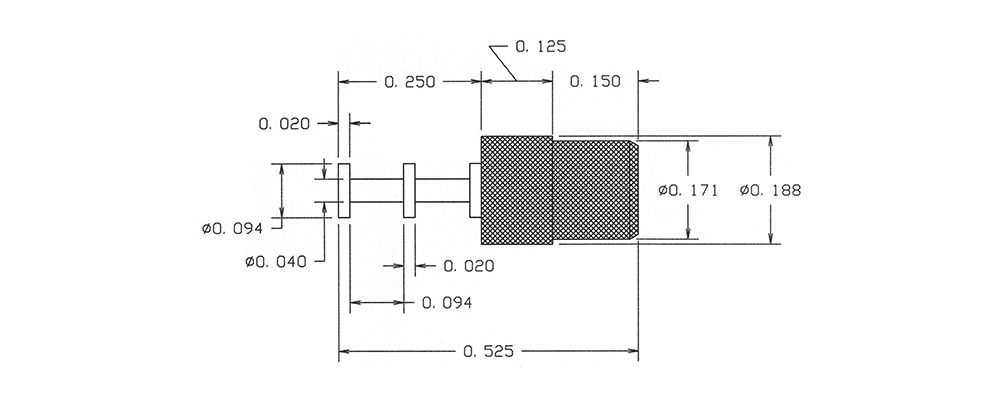

1151-39-0412
1151-39-0412
1151-39-0412
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Red NO
1151-51-04418
1151-51-04418
1151-51-04418
1.234" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE Gray NO
1151R-09-08814
1151R-09-08814
1151R-09-08814
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1152-01-0310
1152-01-0310
1152-01-0310
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1152-31-0416
1152-31-0416
1152-31-0416
0.750" 0.040 - Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Blue YES
1152R-17-0512
1152R-17-0512
1152R-17-0512
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Red NO
1153-06-08818
1153-06-08818
1153-06-08818
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1153-32-0314
1153-32-0314
1153-32-0314
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Yellow NO
1154-10-04410
1154-10-04410
1154-10-04410
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Black YES
1154-44-0516
1154-44-0516
1154-44-0516
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Blue NO

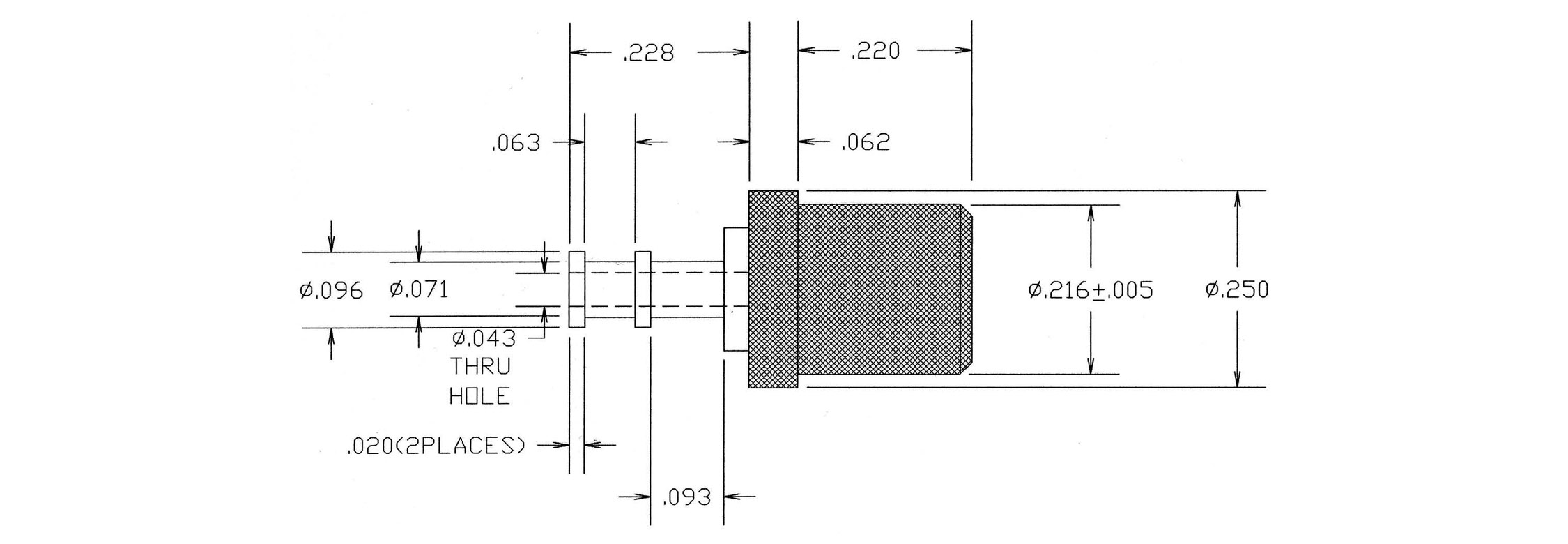

1155-02-0112
1155-02-0112
1155-02-0112
0.510" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Red NO
1155-13-0318
1155-13-0318
1155-13-0318
0.310" 0.040 - Press Fit 1/64 0.108 Brass Gold - - PTFE Gray NO
1156-02-04414
1156-02-04414
1156-02-04414
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Yellow NO
1156-07-08810
1156-07-08810
1156-07-08810
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
