Commercial
Insulated
Pin Terminals

Filter
1153-12-0311
1153-12-0311
1153-12-0311
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO
1100-34-04411
1100-34-04411
1100-34-04411
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Brown NO
1110-95-0417
1110-95-0417
1110-95-0417
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1100-43-0517
1100-43-0517
1100-43-0517
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Violet NO

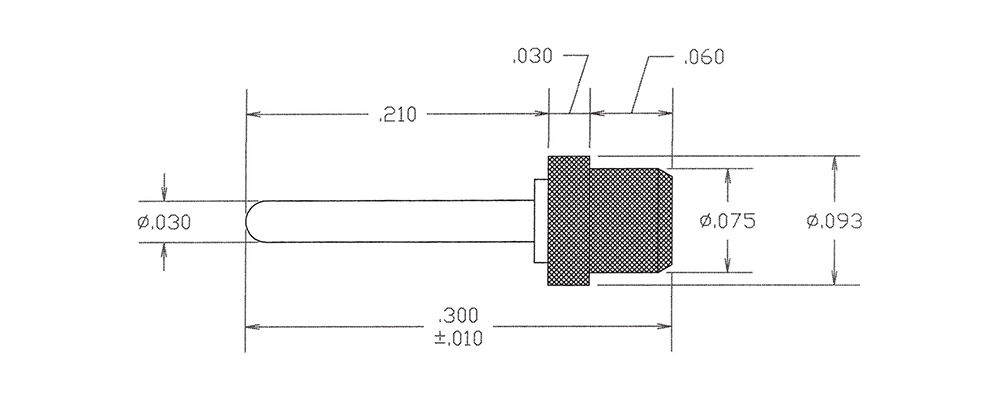

1100-56-0113
1100-56-0113
1100-56-0113
0.300" 0.030 - Press Fit 1/32 0.070 Brass Silver - - PTFE Orange NO

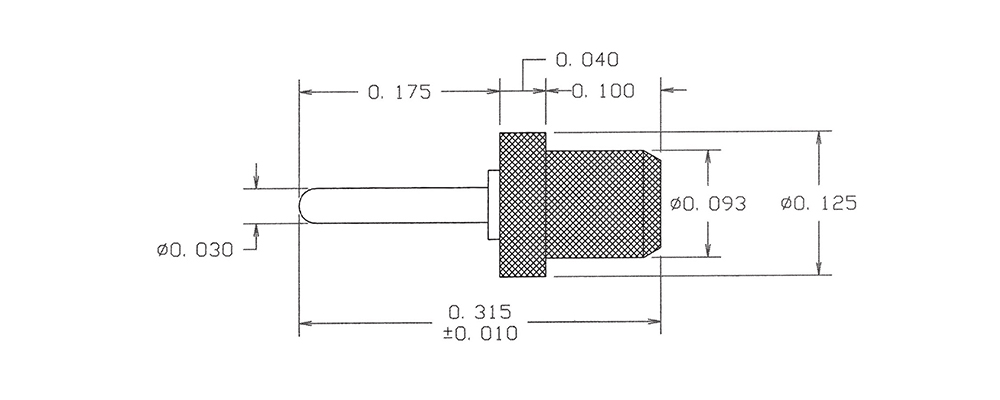

1100-93-0319
1100-93-0319
1100-93-0319
0.315" 0.030 - Press Fit 1/16 0.086 Brass Gold - - PTFE White YES
1100R-08A-04415
1100R-08A-04415
1100R-08A-04415
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Green YES
1100R-17-08811
1100R-17-08811
1100R-17-08811
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1100R-35-0117
1100R-35-0117
1100R-35-0117
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Violet YES
1100R-66-0413
1100R-66-0413
1100R-66-0413
0.350" 0.040 - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Orange NO
1101-05-04419
1101-05-04419
1101-05-04419
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES
1102-02-08815
1102-02-08815
1102-02-08815
0.330" - - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1102-07-0311
1102-07-0311
1102-07-0311
0.480" - - Press Fit 5/32 0.118 Brass Gold - - PTFE Brown NO
1102-12-0417
1102-12-0417
1102-12-0417
0.334" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1102-16-0513
1102-16-0513
1102-16-0513
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO
1102-22-08819
1102-22-08819
1102-22-08819
0.470" - - Press Fit 5/32 0.136 Brass Bright Tin-Lead - - PTFE White NO
1102-27-0315
1102-27-0315
1102-27-0315
0.346" - - Press Fit 1/8 0.140 Brass Gold - - PTFE Green YES
1102-31-04411
1102-31-04411
1102-31-04411
0.431" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Brown NO
1102-35-0517
1102-35-0517
1102-35-0517
0.656" - - Press Fit 1/16 0.152 Brass Electro Solder - - PTFE Violet NO

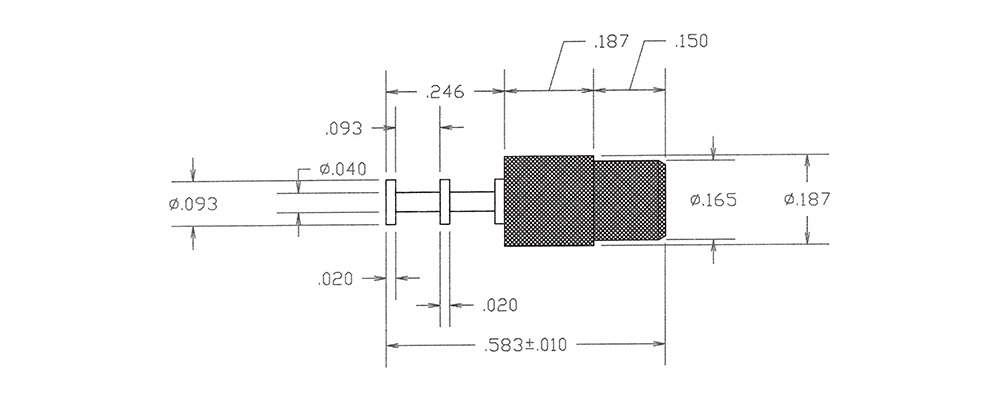

1102-41-0113
1102-41-0113
1102-41-0113
0.583" - - Press Fit 1/8 0.152 Brass Silver - - PTFE Orange NO
