Commercial
Insulated
Pin Terminals

Filter
1121-20-0516
1121-20-0516
1121-20-0516
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro Solder - - PTFE Blue NO

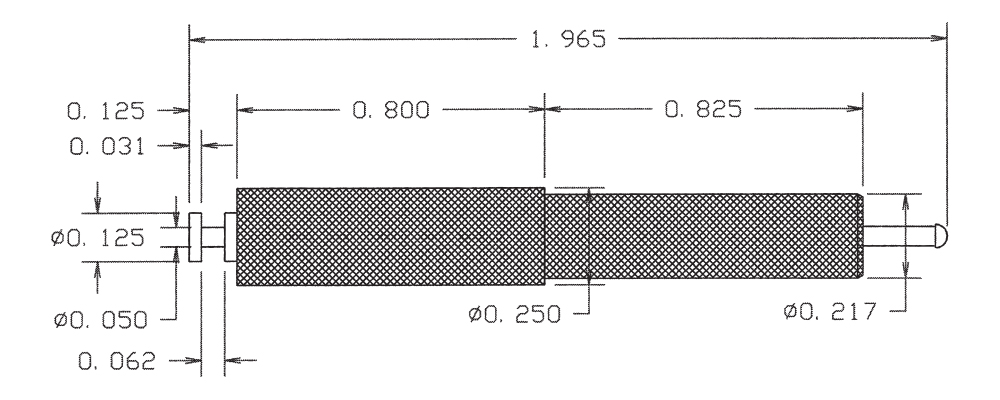

1121-26-0112
1121-26-0112
1121-26-0112
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Silver - - PTFE Red NO
1121-31-0318
1121-31-0318
1121-31-0318
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1121-52-04414
1121-52-04414
1121-52-04414
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1121R-06-08810
1121R-06-08810
1121R-06-08810
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1122-01-0116
1122-01-0116
1122-01-0116
0.250" - - Press Fit 1/64 0.070 Brass Silver - - PTFE Blue YES
1123-04-0412
1123-04-0412
1123-04-0412
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Red NO
1123-08-04418
1123-08-04418
1123-08-04418
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Bright Tin - - PTFE Gray NO
1123-72-08814
1123-72-08814
1123-72-08814
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1123R-07-0310
1123R-07-0310
1123R-07-0310
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Gold - - PTFE Black YES
1123R-70-0416
1123R-70-0416
1123R-70-0416
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1125-35-0512
1125-35-0512
1125-35-0512
0.850" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Electro-Tin Brass PTFE Red NO
1125-40-08818
1125-40-08818
1125-40-08818
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO

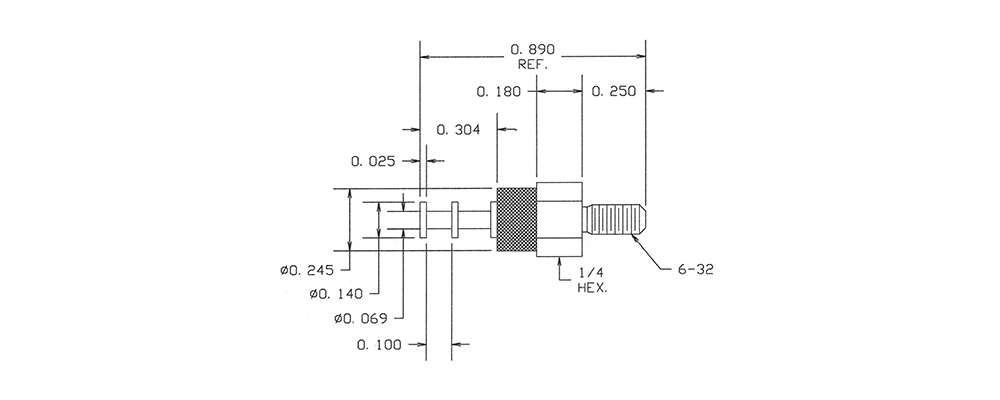

1125-45-0314
1125-45-0314
1125-45-0314
0.890" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Yellow NO
1125-49-04410
1125-49-04410
1125-49-04410
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Black YES
1125-53-0516
1125-53-0516
1125-53-0516
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder Electro-Tin Brass PTFE Blue NO
1125-58-0112
1125-58-0112
1125-58-0112
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Red NO
1125-63-0318
1125-63-0318
1125-63-0318
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Gold ZINC Brass PTFE Gray NO
1125-74-04414
1125-74-04414
1125-74-04414
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass PTFE Yellow NO
1125-78-08810
1125-78-08810
1125-78-08810
0.697" - - Swage Mount 3/32 0.194 Brass Bright Tin-Lead ZINC Brass PTFE Black NO
