Commercial
Insulated
Pin Terminals

Filter
1114-08-0416
1114-08-0416
1114-08-0416
0.310" 0.040 - Press Fit 3/32 0.108 Brass Electro-Tin - - PTFE Blue YES
1114-50-0512
1114-50-0512
1114-50-0512
0.270" 0.060 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO
1114-74-08818
1114-74-08818
1114-74-08818
0.367" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1114R-14-0314
1114R-14-0314
1114R-14-0314
0.193" 0.080 - Press Fit 1/32 0.136 Brass Gold - - PTFE Yellow NO
1114R-20-04410
1114R-20-04410
1114R-20-04410
0.310" 0.040 - Press Fit 1/64 0.136 Brass Bright Tin - - PTFE Black YES
1114R-80-0516
1114R-80-0516
1114R-80-0516
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Blue NO
1115-07-0112
1115-07-0112
1115-07-0112
0.287" 0.060 - Press Fit 1/16 0.205 Brass Silver - - PTFE Red NO
1115-51-0318
1115-51-0318
1115-51-0318
0.453" - - Press Fit 1/16 0.187 Brass Gold - - PTFE Gray NO
1115R-02-04414
1115R-02-04414
1115R-02-04414
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1116-26-08810
1116-26-08810
1116-26-08810
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO

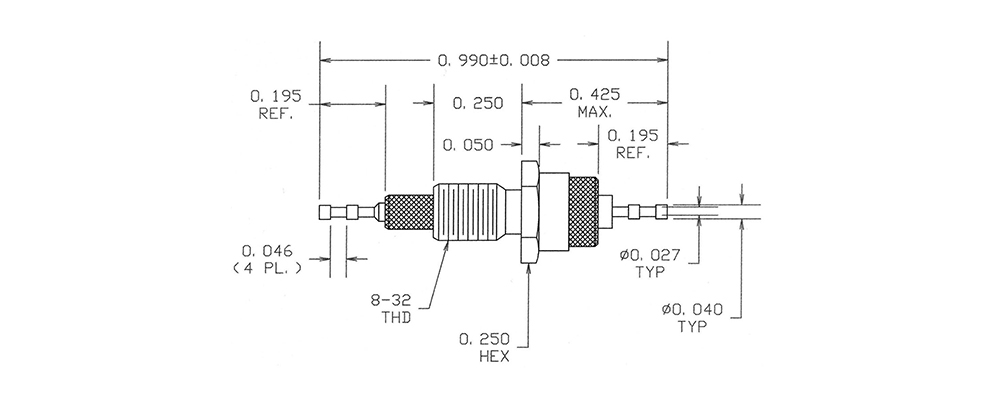

1117-16-0116
1117-16-0116
1117-16-0116
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Blue YES
1117-50-0412
1117-50-0412
1117-50-0412
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Red NO
1117-54-04418
1117-54-04418
1117-54-04418
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin Nickel Brass PTFE Gray NO
1118-32-08814
1118-32-08814
1118-32-08814
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Yellow NO

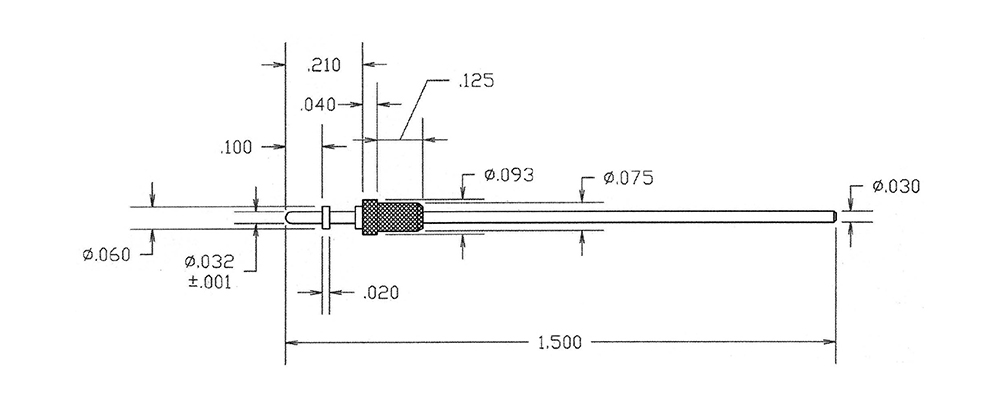

1119-25-0310
1119-25-0310
1119-25-0310
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE Black YES
1119R-20-0416
1119R-20-0416
1119R-20-0416
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1121-02-0512
1121-02-0512
1121-02-0512
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Red NO
1121-06-08818
1121-06-08818
1121-06-08818
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Gray NO

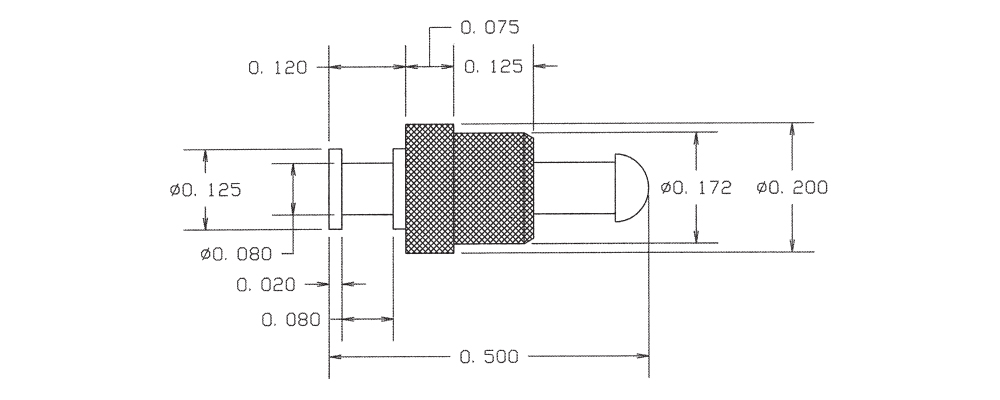

1121-12-0314
1121-12-0314
1121-12-0314
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Yellow NO
1121-16-04410
1121-16-04410
1121-16-04410
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Black YES
