Commercial
Insulated
Pin Terminals

Filter
1177-57-0416
1177-57-0416
1177-57-0416
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1177-61-0512
1177-61-0512
1177-61-0512
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Electro Solder - - PTFE Red NO

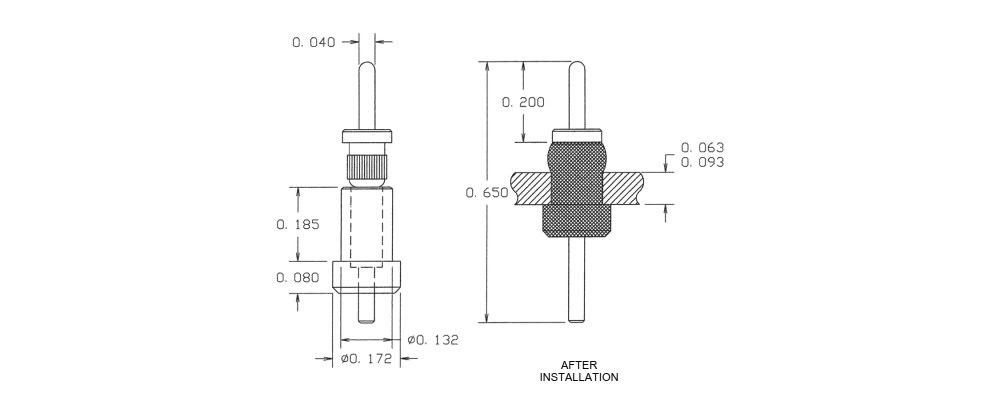

1178R-03-08818
1178R-03-08818
1178R-03-08818
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin-Lead - - PTFE Gray NO
1178R-11-0314
1178R-11-0314
1178R-11-0314
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Gold - - PTFE Yellow NO

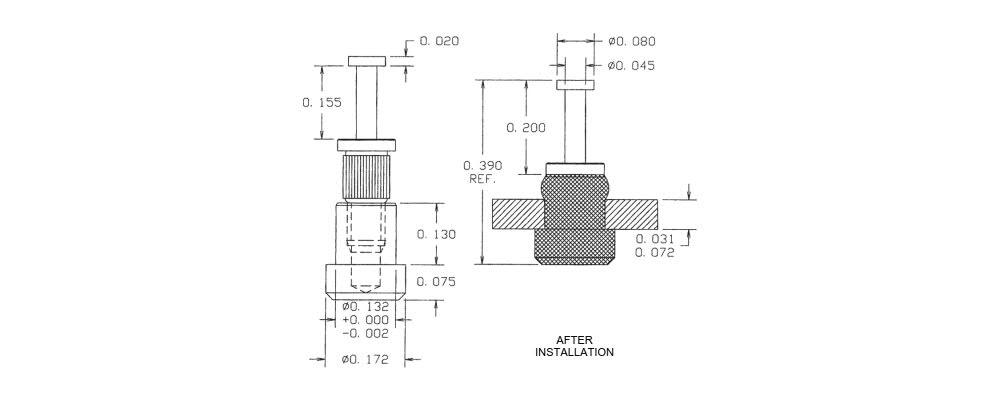

1178R-15-04410
1178R-15-04410
1178R-15-04410
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Bright Tin - - PTFE Black YES

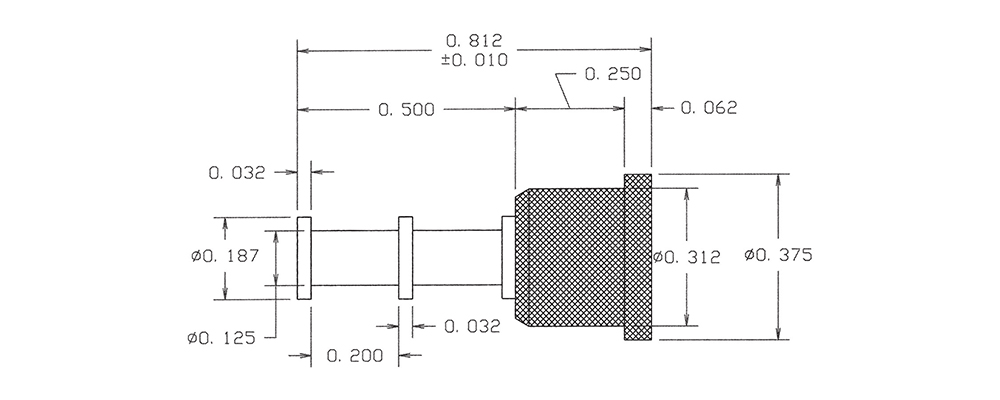

1102R-95-0516
1102R-95-0516
1102R-95-0516
0.812" - - Press Fit 13/64 0.297 Brass Electro Solder - - PTFE Blue NO
1125-03-0112
1125-03-0112
1125-03-0112
0.485" - - 4-40 1/8 4-40 THREAD Brass Silver Electro-Tin Brass PTFE Red NO
1125-07-0318
1125-07-0318
1125-07-0318
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Gray NO

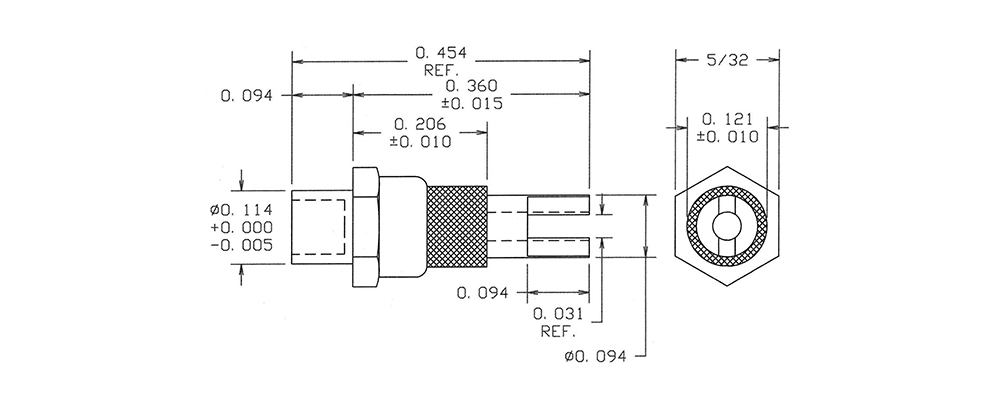

1125-11-04414
1125-11-04414
1125-11-04414
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Yellow NO
1125-15-08810
1125-15-08810
1125-15-08810
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Black NO

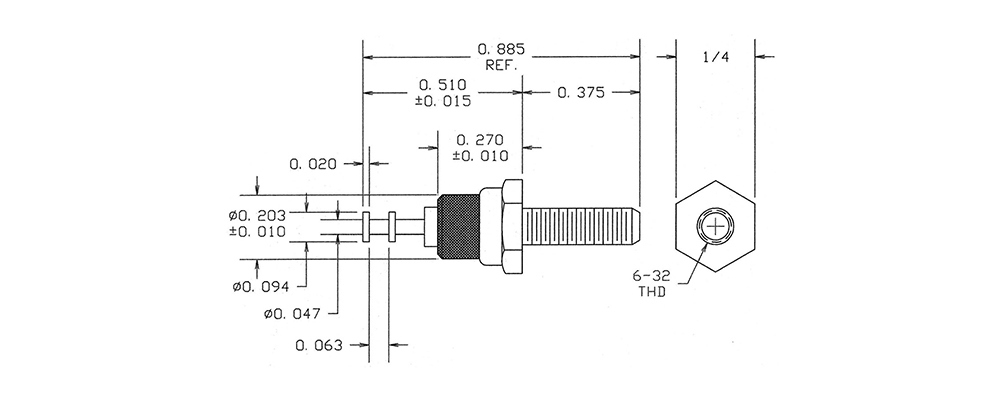

1125-20-0116
1125-20-0116
1125-20-0116
0.885" - - 6-32 Nut 7/32 0.144 Brass Silver Electro-Tin Brass PTFE Blue YES
1125-24-0412
1125-24-0412
1125-24-0412
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Red NO

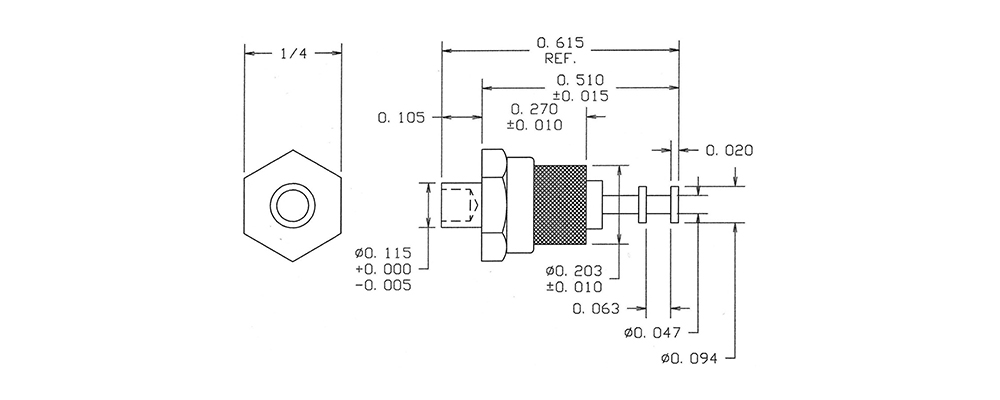

1125-28-04418
1125-28-04418
1125-28-04418
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Gray NO
09-2128-1-08814
09-2128-1-08814
09-2128-1-08814
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

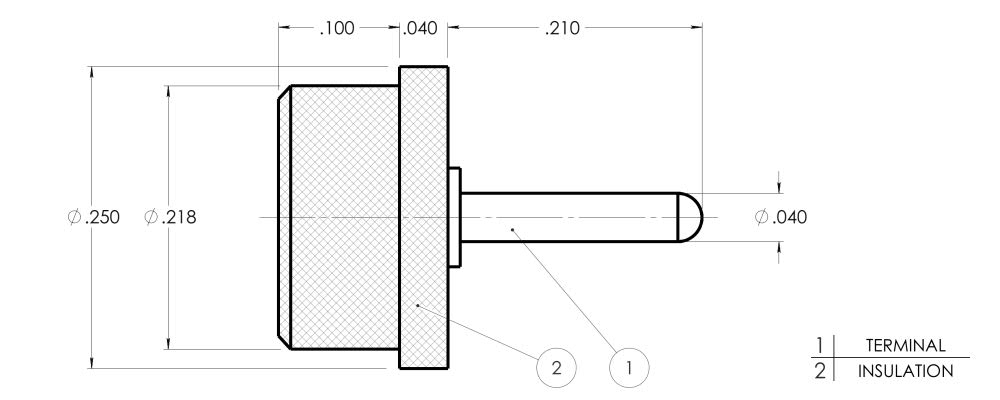

1100-49-0310
1100-49-0310
1100-49-0310
0.350" 0.040 - Press Fit 1/16 0.205 Brass Gold - - PTFE Black YES

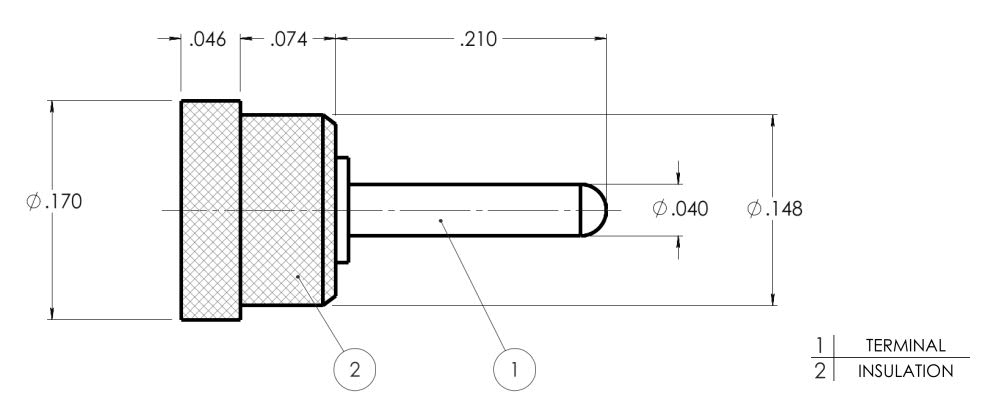

1100R-23A-0416
1100R-23A-0416
1100R-23A-0416
0.330" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Blue YES
1100R-36-0512
1100R-36-0512
1100R-36-0512
0.390" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Red NO
1100R-53-08818
1100R-53-08818
1100R-53-08818
0.756" 0.040 - Press Fit 15/32 0.172 Brass Bright Tin-Lead - - PTFE Gray NO
1101R-01-0314
1101R-01-0314
1101R-01-0314
0.328" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Yellow NO
09-2010-1-04415
09-2010-1-04415
09-2010-1-04415
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Green YES
