Commercial
Insulated
Pin Terminals

Filter

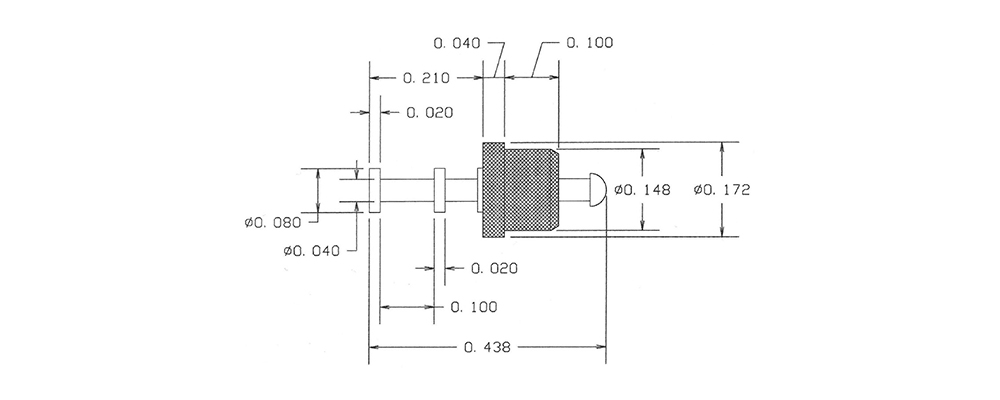

1111-07-0111
1111-07-0111
1111-07-0111
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO

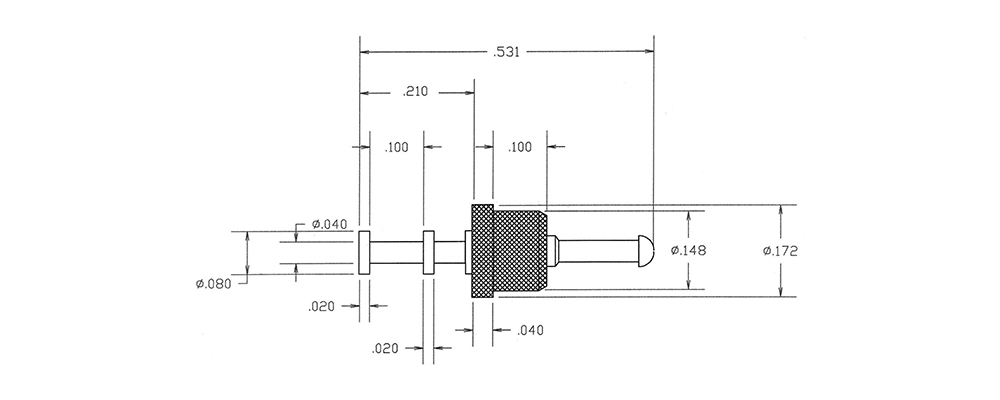

1111-11-0317
1111-11-0317
1111-11-0317
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1111-15-04413
1111-15-04413
1111-15-04413
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO
1111-20-0519
1111-20-0519
1111-20-0519
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE White NO
1111-26-0115
1111-26-0115
1111-26-0115
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Green YES
1111-34-0411
1111-34-0411
1111-34-0411
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Electro-Tin - - PTFE Brown NO
1111-38-04417
1111-38-04417
1111-38-04417
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1111-44-08813
1111-44-08813
1111-44-08813
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Bright Tin-Lead - - PTFE Orange NO

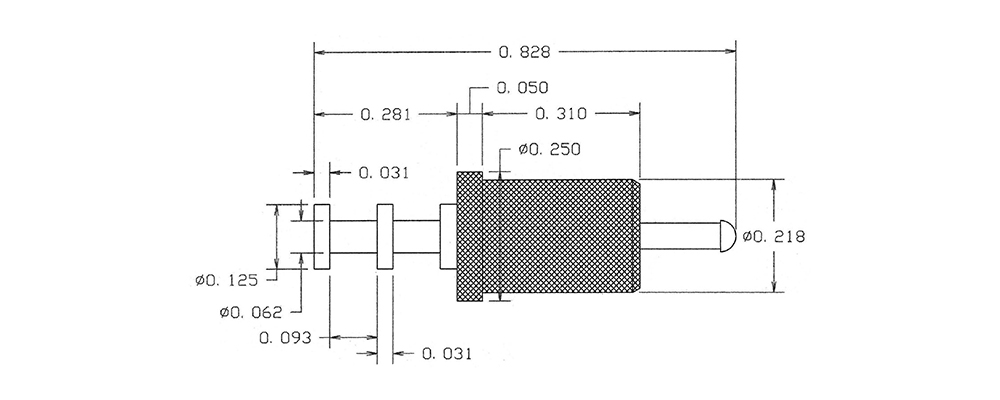

1111-51-0119
1111-51-0119
1111-51-0119
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 1/4 0.205 Brass Silver - - PTFE White YES
1111-59-0415
1111-59-0415
1111-59-0415
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Electro-Tin - - PTFE Green YES
1111R-09-0511
1111R-09-0511
1111R-09-0511
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1111R-14-08817
1111R-14-08817
1111R-14-08817
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

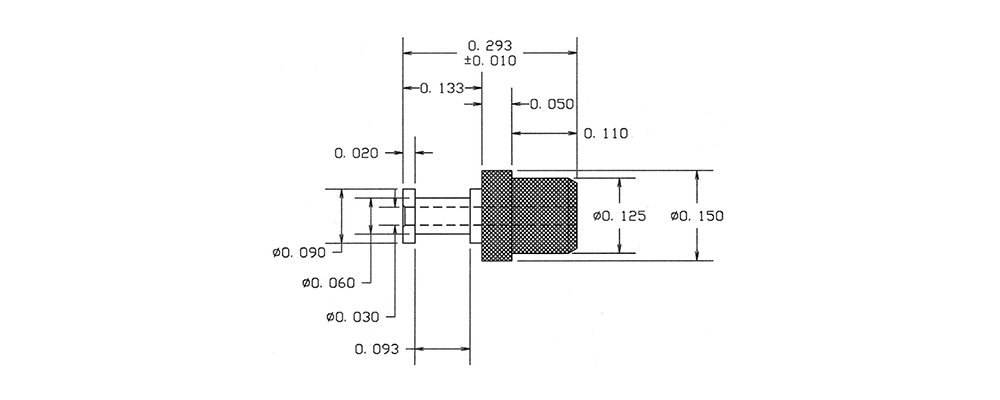

1112-09-0313
1112-09-0313
1112-09-0313
0.293" - - Press Fit 1/64 0.113 Brass Gold - - PTFE Orange NO
1112-14-0419
1112-14-0419
1112-14-0419
0.293" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1112-65-0515
1112-65-0515
1112-65-0515
0.155" - - Press Fit 1/32 0.058 Brass Electro Solder - - PTFE Green NO
1112R-15-0111
1112R-15-0111
1112R-15-0111
0.351" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO
1112R-62-0317
1112R-62-0317
1112R-62-0317
0.260" - - Press Fit 3/32 0.086 Brass Gold - - PTFE Violet YES
1113-03-04413
1113-03-04413
1113-03-04413
0.333" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1113-57-0519
1113-57-0519
1113-57-0519
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Electro Solder - - PTFE White NO
1114-04-0115
1114-04-0115
1114-04-0115
0.225" 0.040 - Press Fit 1/32 0.086 Brass Silver - - PTFE Green YES
