Commercial
Insulated
Pin Terminals

Filter
1107-08-0511
1107-08-0511
1107-08-0511
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO
1108-01-08817
1108-01-08817
1108-01-08817
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Bright Tin-Lead - - PTFE Violet NO
1108-06-0313
1108-06-0313
1108-06-0313
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Gold - - PTFE Orange NO
1110-02-0419
1110-02-0419
1110-02-0419
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES
1110-06-0515
1110-06-0515
1110-06-0515
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO

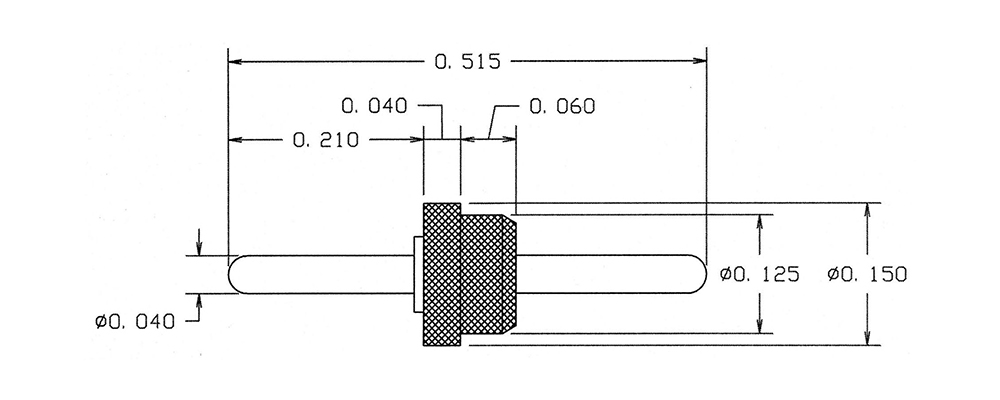

1110-11-0111
1110-11-0111
1110-11-0111
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Brown NO
1110-16-0317
1110-16-0317
1110-16-0317
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1110-20-04413
1110-20-04413
1110-20-04413
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1110-24-0519
1110-24-0519
1110-24-0519
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO

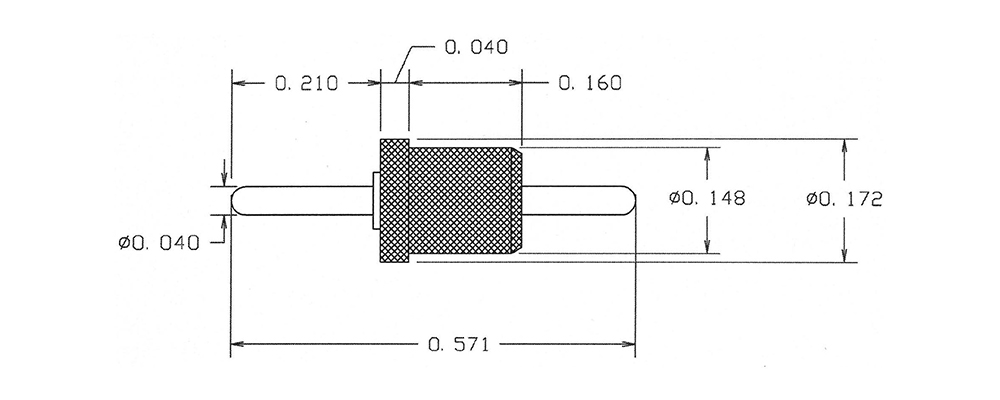

1110-29-0115
1110-29-0115
1110-29-0115
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Green YES
1110-33-0411
1110-33-0411
1110-33-0411
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1110-40-04417
1110-40-04417
1110-40-04417
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Violet YES
1110-44-08813
1110-44-08813
1110-44-08813
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin-Lead - - PTFE Orange NO

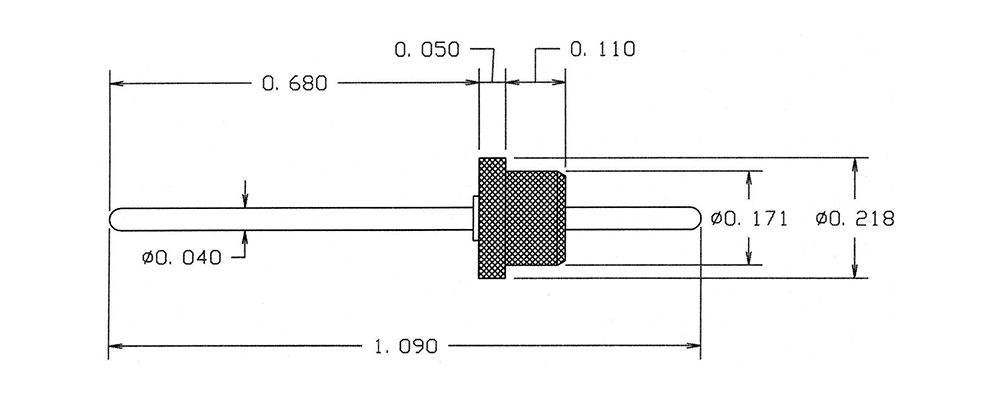

1110-49-0119
1110-49-0119
1110-49-0119
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Silver - - PTFE White YES
1110-55-0415
1110-55-0415
1110-55-0415
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Electro-Tin - - PTFE Green YES
1110-61-0511
1110-61-0511
1110-61-0511
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO
1110-66-08817
1110-66-08817
1110-66-08817
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1110-71-0313
1110-71-0313
1110-71-0313
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Gold - - PTFE Orange NO
1110-76-0419
1110-76-0419
1110-76-0419
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Electro-Tin - - PTFE White YES
1110-93-0515
1110-93-0515
1110-93-0515
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO
