Commercial
Insulated
Pin Terminals

Filter
1125-11-0418
1125-11-0418
1125-11-0418
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-15-0514
1125-15-0514
1125-15-0514
0.578" - - 4-40 Nut 7/64 0.120 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO

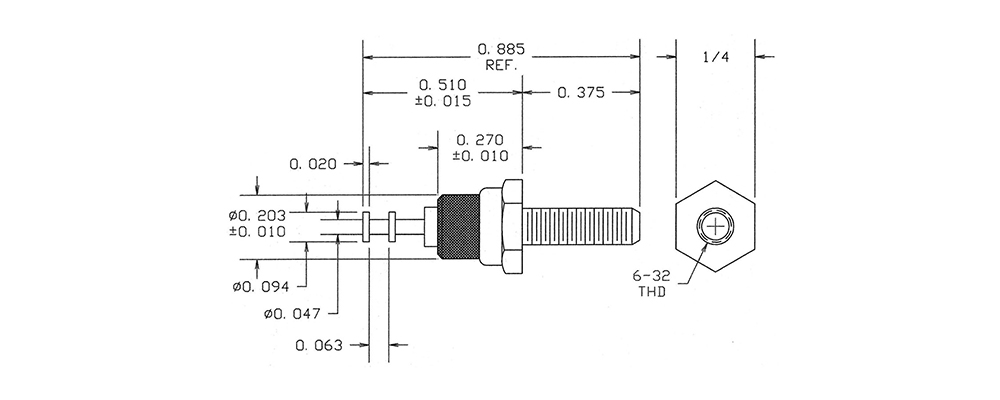

1125-20-0110
1125-20-0110
1125-20-0110
0.885" - - 6-32 Nut 7/32 0.144 Brass Silver Electro-Tin Brass PTFE Black YES
1125-24-0316
1125-24-0316
1125-24-0316
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Blue YES
1125-28-04412
1125-28-04412
1125-28-04412
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Red NO
09-2128-1-0518
09-2128-1-0518
09-2128-1-0518
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO

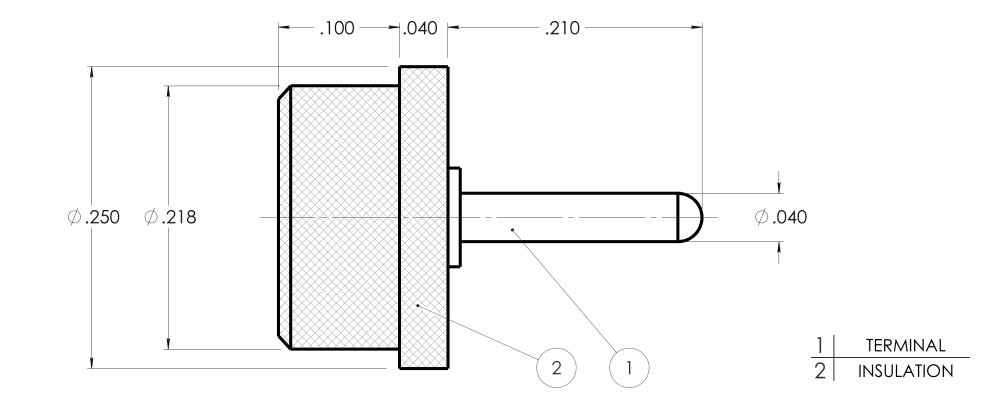

1100-49-0114
1100-49-0114
1100-49-0114
0.350" 0.040 - Press Fit 1/16 0.205 Brass Silver - - PTFE Yellow NO
1100R-23A-0410
1100R-23A-0410
1100R-23A-0410
0.330" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Black YES
1100R-36-04416
1100R-36-04416
1100R-36-04416
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Blue YES

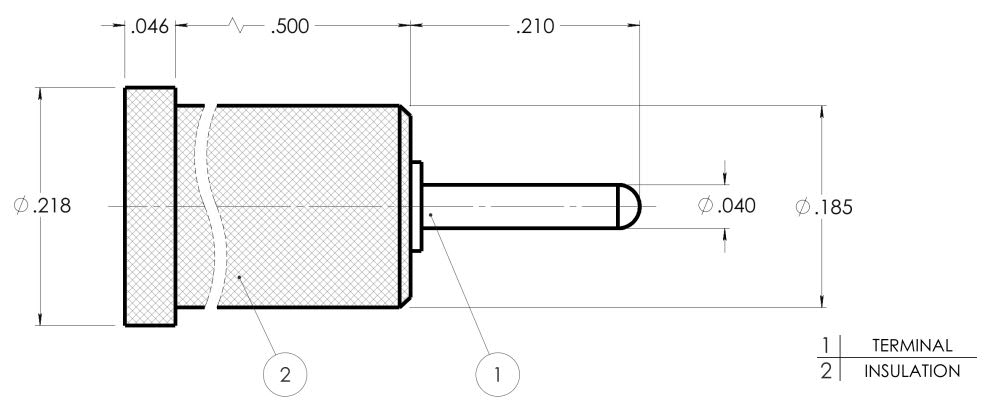

1100R-53-08812
1100R-53-08812
1100R-53-08812
0.756" 0.040 - Press Fit 15/32 0.172 Brass Bright Tin-Lead - - PTFE Red NO

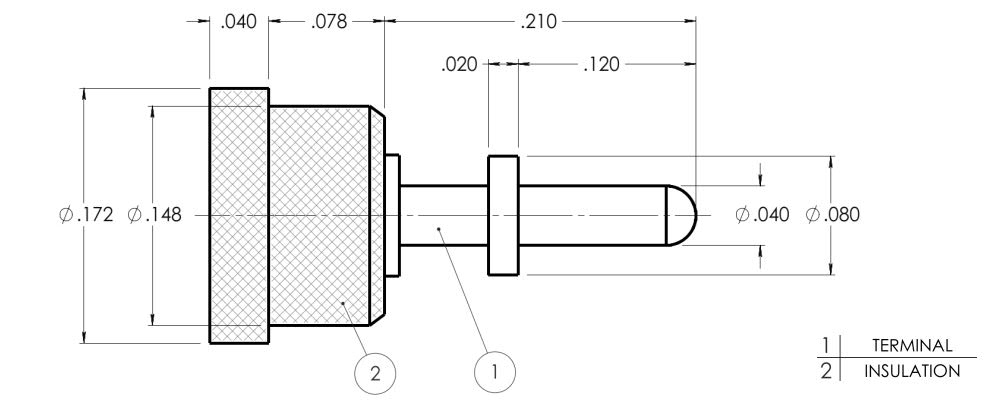

1101R-01-0118
1101R-01-0118
1101R-01-0118
0.328" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Gray NO
09-2010-1-0419
09-2010-1-0419
09-2010-1-0419
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES

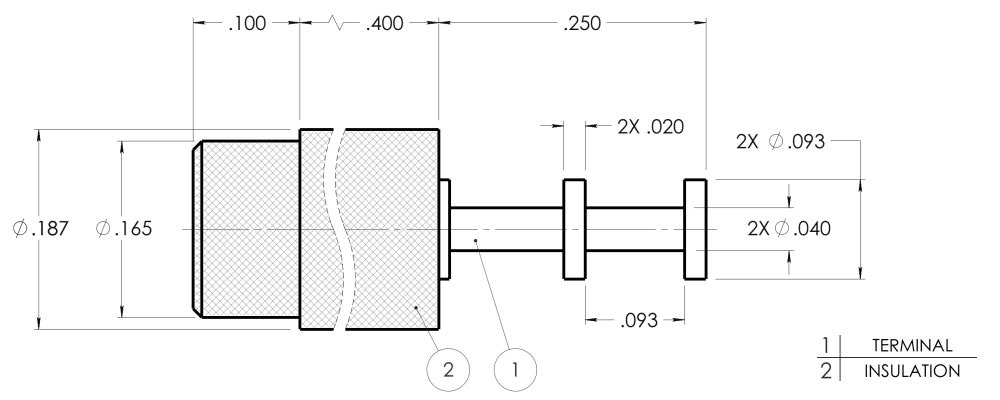

1102-44-0415
1102-44-0415
1102-44-0415
0.750" - - Press Fit 1/16 0.152 Brass Electro-Tin - - PTFE Green YES
09-2078-1-0515
09-2078-1-0515
09-2078-1-0515
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Electro Solder - - PTFE Green NO

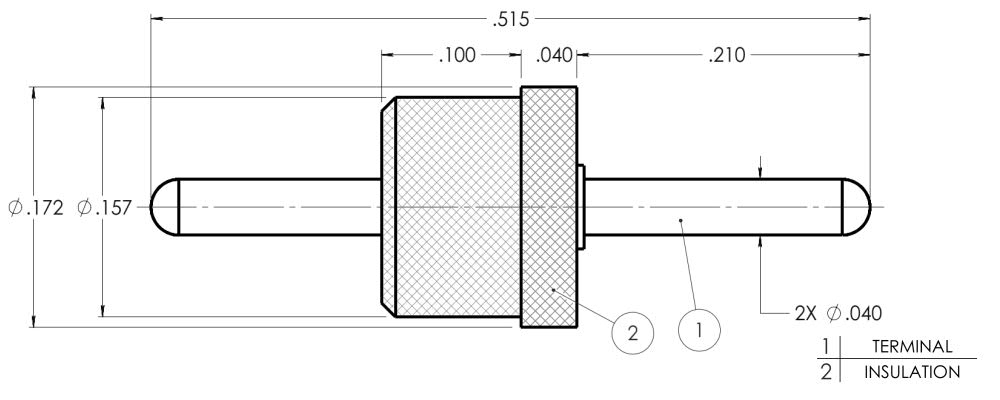

1110-39-0511
1110-39-0511
1110-39-0511
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Electro Solder - - PTFE Brown NO
09-2095-1-0111
09-2095-1-0111
09-2095-1-0111
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Silver - - PTFE Brown NO

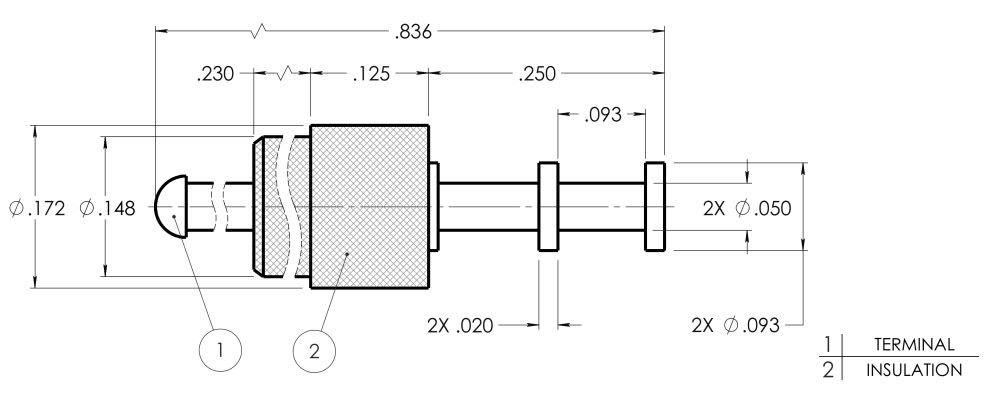

1111-19-08817
1111-19-08817
1111-19-08817
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

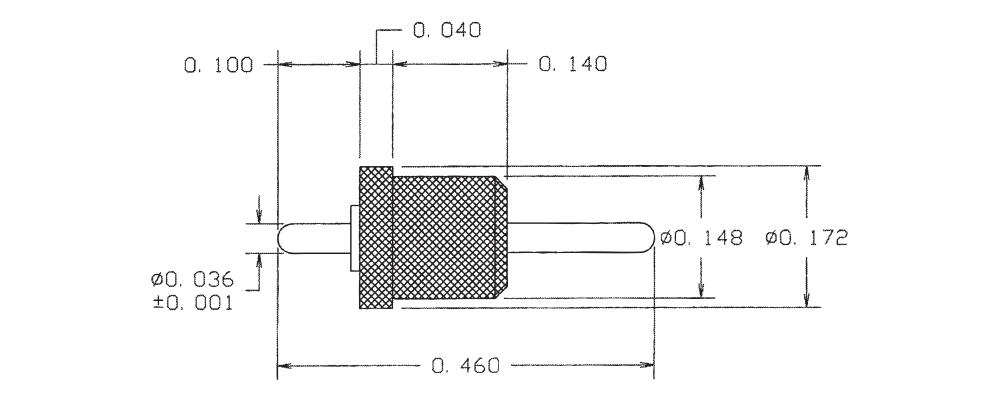

09-2104-1-0317
09-2104-1-0317
09-2104-1-0317
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES
1112-07-0313
1112-07-0313
1112-07-0313
0.273" - - Press Fit 1/16 0.113 Brass Gold - - PTFE Orange NO

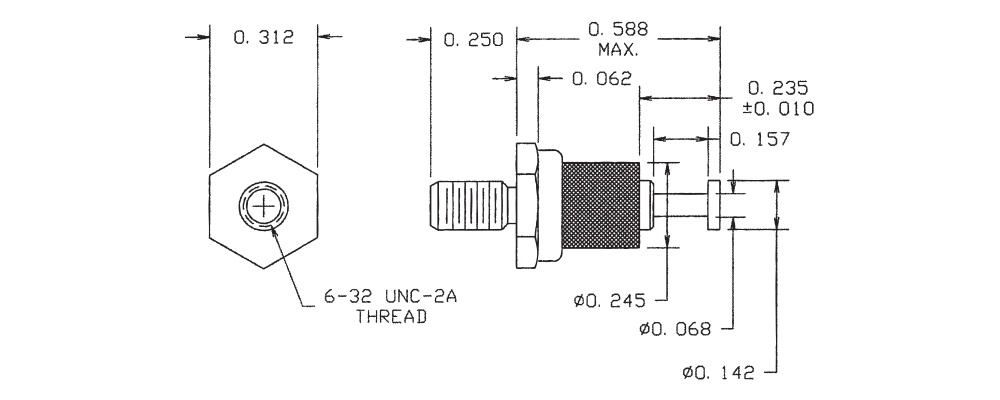

09-2112-1-04413
09-2112-1-04413
09-2112-1-04413
0.838" - - 6-32 Nut 1/8 0.144 Brass Bright Tin Nickel Brass PTFE Orange NO
