Commercial
Insulated
Pin Terminals

Filter
1113-54-0419
1113-54-0419
1113-54-0419
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE White YES
09-2121-1-0519
09-2121-1-0519
09-2121-1-0519
0.275" - - Press Fit 5/64 0.136 Brass Electro Solder - - PTFE White NO
1114-18-0515
1114-18-0515
1114-18-0515
0.250" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Green NO

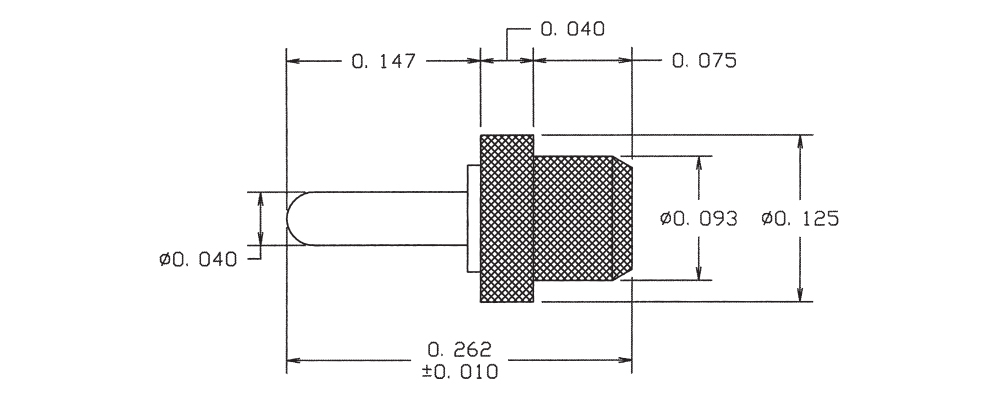

1100-05-0115
1100-05-0115
1100-05-0115
0.262" 0.040 - Press Fit 3/64 0.086 Brass Silver - - PTFE Green YES
1114-25-0111
1114-25-0111
1114-25-0111
0.413" 0.085 - Press Fit 1/8 0.136 Brass Silver - - PTFE Brown NO
1100-09-0411
1100-09-0411
1100-09-0411
0.350" 0.040 - Press Fit 3/32 0.098 Brass Electro-Tin - - PTFE Brown NO
1114R-16-0317
1114R-16-0317
1114R-16-0317
0.296" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1100-14-04417
1100-14-04417
1100-14-04417
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1123R-75-04413
1123R-75-04413
1123R-75-04413
0.426" - - Press Fit 1/8 0.172 Brass Bright Tin - - PTFE Orange NO
1100-18-08813
1100-18-08813
1100-18-08813
0.247" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1124-10-0519
1124-10-0519
1124-10-0519
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO

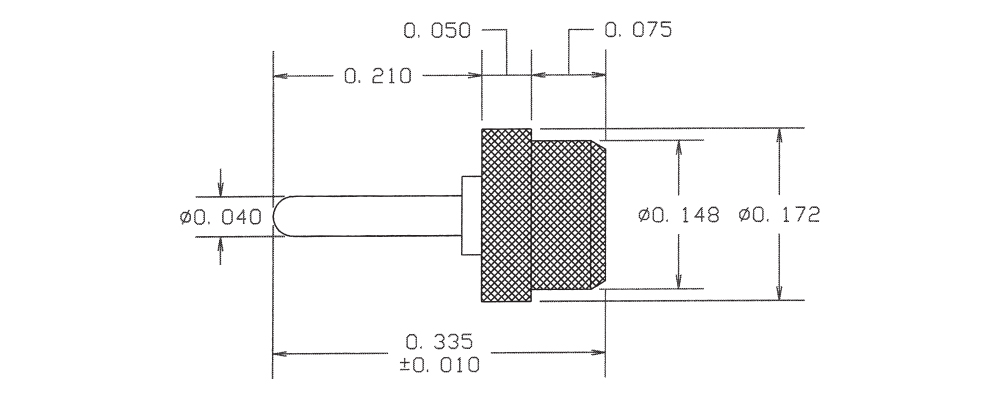

1100-24-0119
1100-24-0119
1100-24-0119
0.335" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE White YES
1153-12-0115
1153-12-0115
1153-12-0115
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1100-34-0415
1100-34-0415
1100-34-0415
0.410" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
1110-95-0411
1110-95-0411
1110-95-0411
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1100-43-0511
1100-43-0511
1100-43-0511
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Brown NO
1100-48-08817
1100-48-08817
1100-48-08817
0.600" 0.062 - Press Fit 1/8 0.167 Brass Bright Tin-Lead - - PTFE Violet NO
1100-93-0313
1100-93-0313
1100-93-0313
0.315" 0.030 - Press Fit 1/16 0.086 Brass Gold - - PTFE Orange NO
1100R-08A-0419
1100R-08A-0419
1100R-08A-0419
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE White YES
1100R-17-0515
1100R-17-0515
1100R-17-0515
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
