Commercial
Insulated
Pin Terminals

Filter

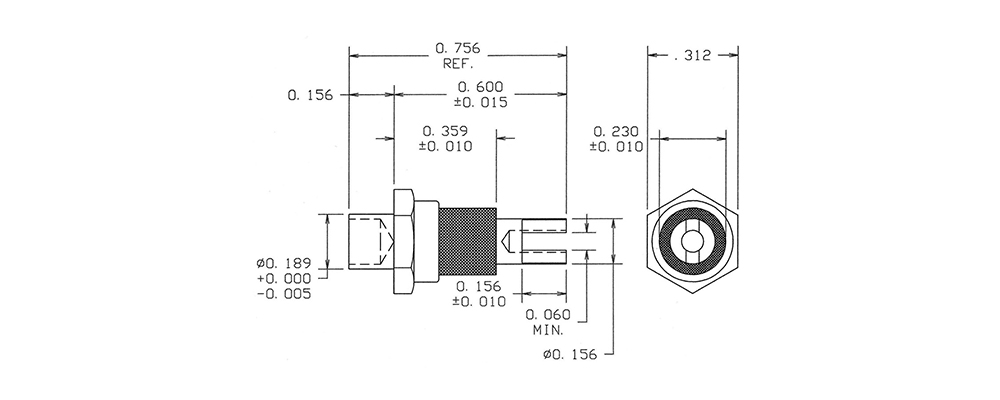

1125-84-0111
1125-84-0111
1125-84-0111
0.756" - - Swage Mount 1/8 0.191 Brass Silver Electro-Tin Brass PTFE Brown NO
1125-89-0317
1125-89-0317
1125-89-0317
0.698" - - 4-40 Nut 1/16 0.120 Brass Gold Electro-Tin Brass PTFE Violet YES
1125-93-04413
1125-93-04413
1125-93-04413
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Orange NO
1125-97-0519
1125-97-0519
1125-97-0519
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE White NO
1126-30-0115
1126-30-0115
1126-30-0115
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Green YES
1126-34-0411
1126-34-0411
1126-34-0411
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Brown NO
1126-38-04417
1126-38-04417
1126-38-04417
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass PTFE Violet YES
1126-42-08813
1126-42-08813
1126-42-08813
0.766" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Orange NO

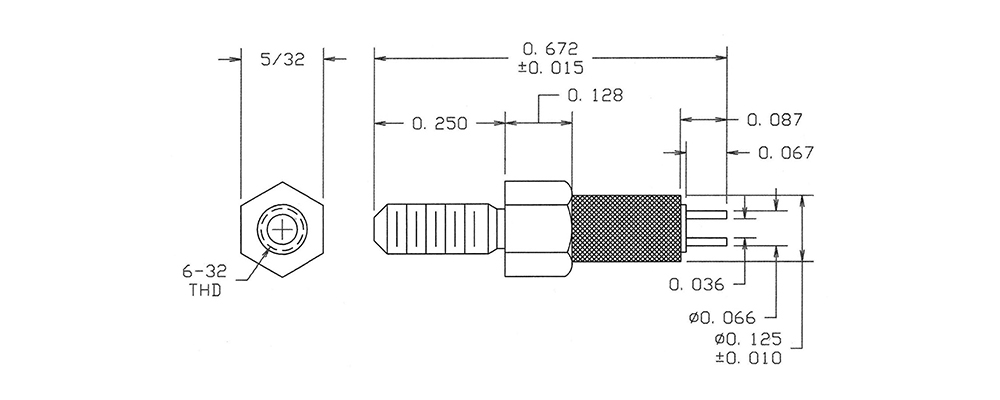

1126-47-0119
1126-47-0119
1126-47-0119
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE White YES
1127-04-0415
1127-04-0415
1127-04-0415
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Green YES
1127-08-0511
1127-08-0511
1127-08-0511
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1127-12-08817
1127-12-08817
1127-12-08817
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-17-0313
1127-17-0313
1127-17-0313
0.813" - - 6-32 Nut 3/32 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-21-0419
1127-21-0419
1127-21-0419
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-25-0515
1127-25-0515
1127-25-0515
0.938" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO
1127-31-0111
1127-31-0111
1127-31-0111
0.813" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES

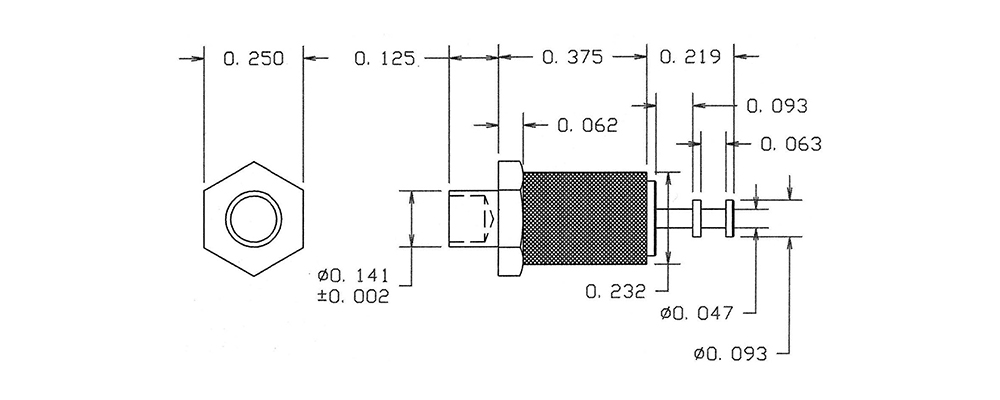

1127-35-0317
1127-35-0317
1127-35-0317
0.719" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-39-04413
1127-39-04413
1127-39-04413
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-43-0519
1127-43-0519
1127-43-0519
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO
1127-48-0115
1127-48-0115
1127-48-0115
0.875" - - Swage Mount 1/8 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
