Commercial
Insulated
Pin Terminals

Filter

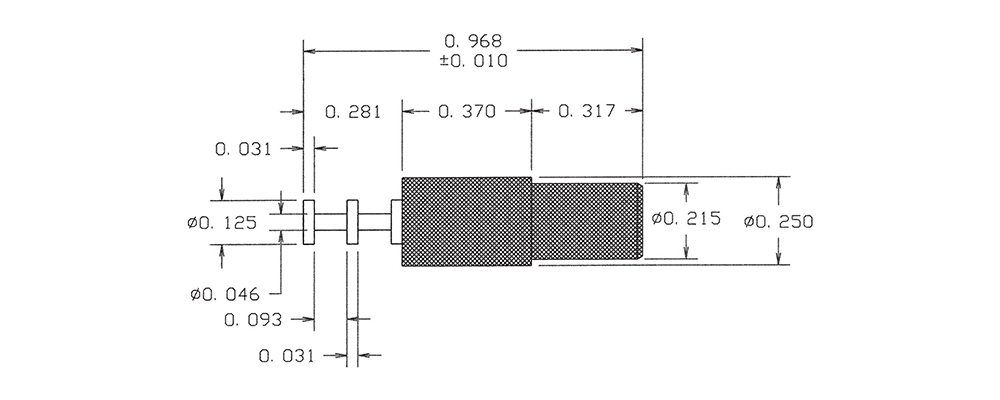

1102-85-0411
1102-85-0411
1102-85-0411
0.968" - - Press Fit Up to 1/4 0.203 Brass Electro-Tin - - PTFE Brown NO
1102-94-04417
1102-94-04417
1102-94-04417
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin - - PTFE Violet YES
1102R-01-08813
1102R-01-08813
1102R-01-08813
0.310" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1102R-21-0119
1102R-21-0119
1102R-21-0119
0.455" - - Press Fit 1/8 0.136 Brass Silver - - PTFE White YES

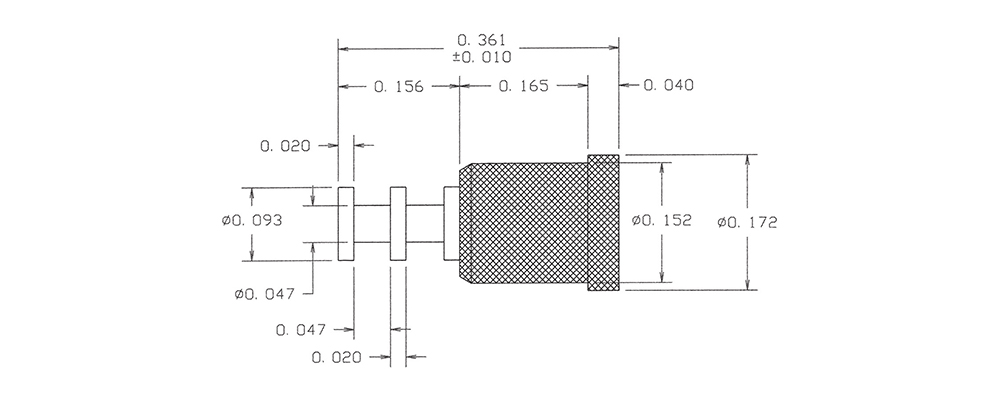

1102R-28-0415
1102R-28-0415
1102R-28-0415
0.361" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Green YES
1102R-74-0511
1102R-74-0511
1102R-74-0511
0.375" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Brown NO

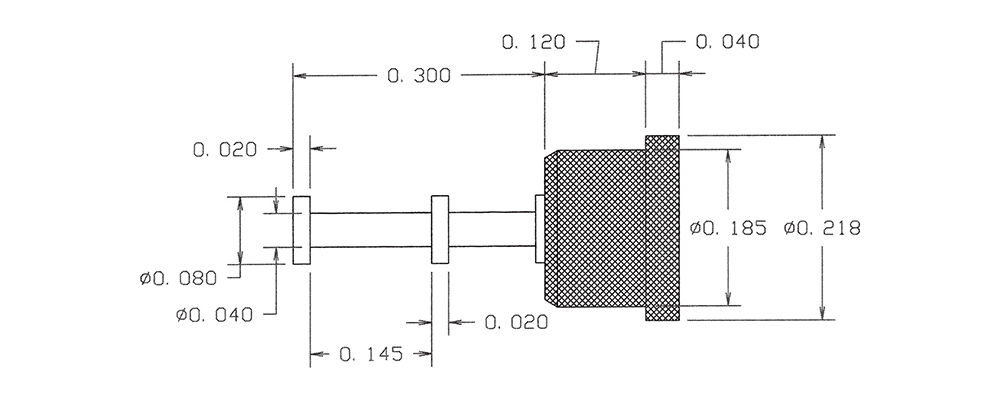

1102R-92-08817
1102R-92-08817
1102R-92-08817
0.460" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Violet NO

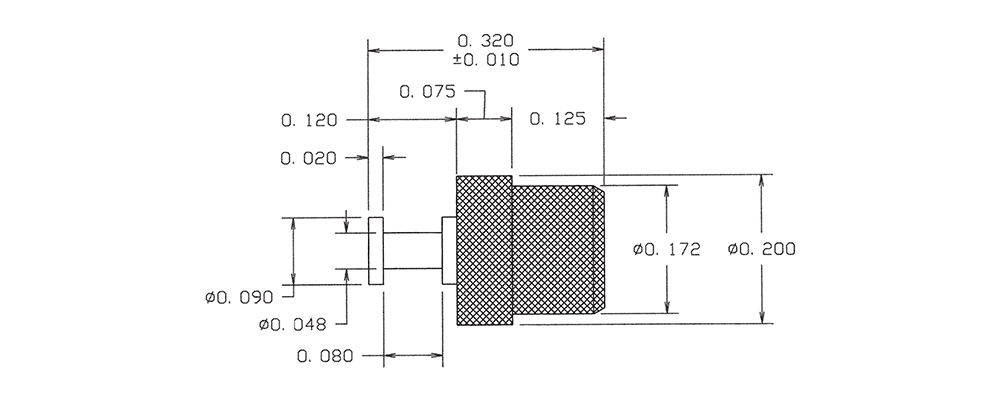

1103-08-0313
1103-08-0313
1103-08-0313
0.320" - - Press Fit 3/32 0.152 Brass Gold - - PTFE Orange NO
1103R-08-0419
1103R-08-0419
1103R-08-0419
0.320" - - Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE White YES

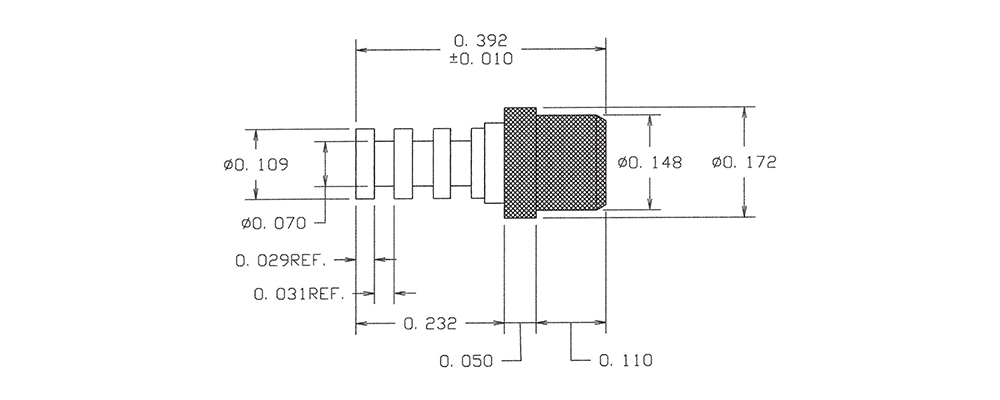

1104-04-0515
1104-04-0515
1104-04-0515
0.392" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1105-02-0111
1105-02-0111
1105-02-0111
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Silver - - PTFE Brown NO

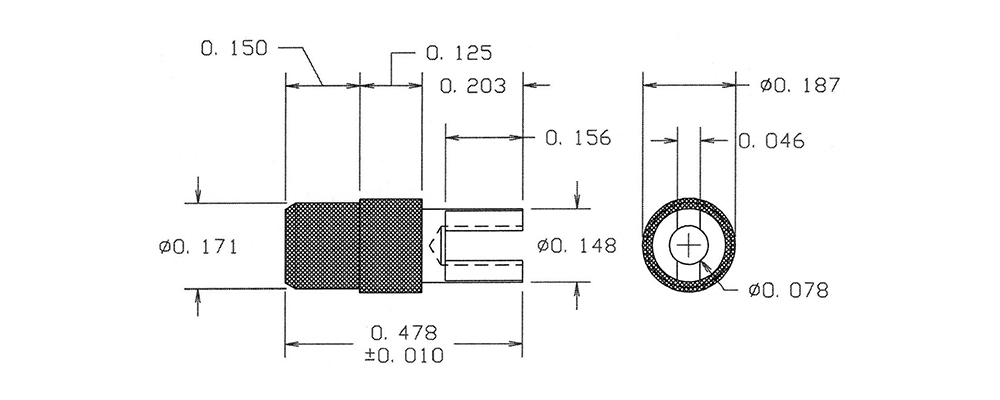

1106-03-0317
1106-03-0317
1106-03-0317
0.478" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Violet YES

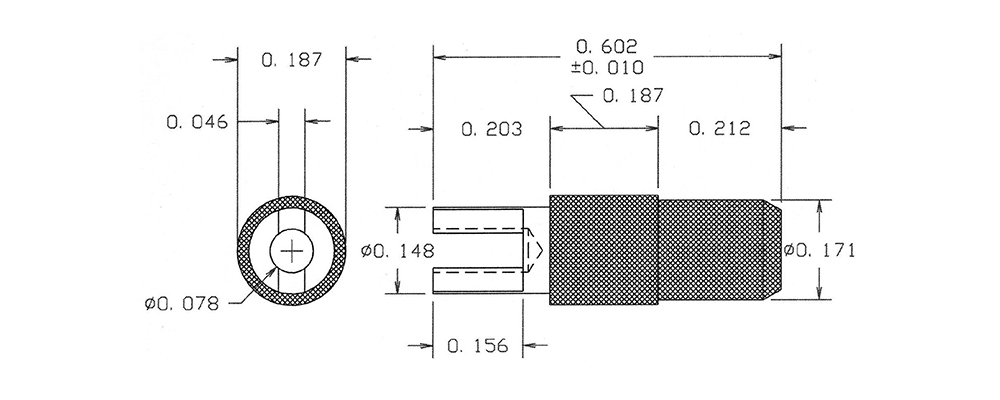

1106-07-04413
1106-07-04413
1106-07-04413
0.602" - - Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Orange NO
1106-11-0519
1106-11-0519
1106-11-0519
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO

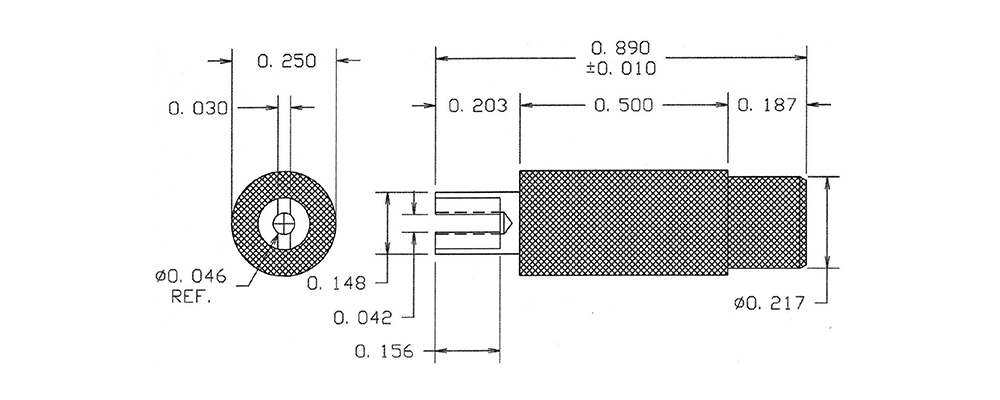

1106-16-0115
1106-16-0115
1106-16-0115
0.890" - - Press Fit 5/32 0.205 Brass Silver - - PTFE Green YES
1106-22-0411
1106-22-0411
1106-22-0411
0.375" - - Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Brown NO

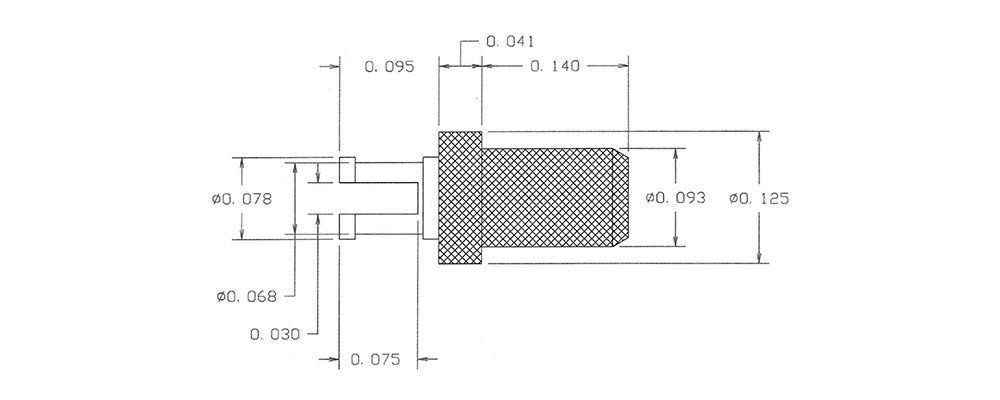

1106-52-04417
1106-52-04417
1106-52-04417
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Violet YES

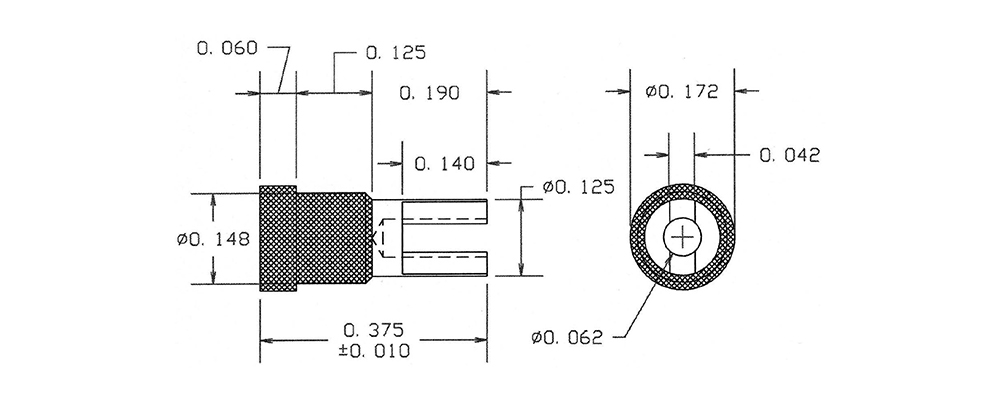

1106R-23-08813
1106R-23-08813
1106R-23-08813
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1106R-51-0119
1106R-51-0119
1106R-51-0119
0.150" - - Press Fit 1/32 0.113 Brass Silver - - PTFE White YES

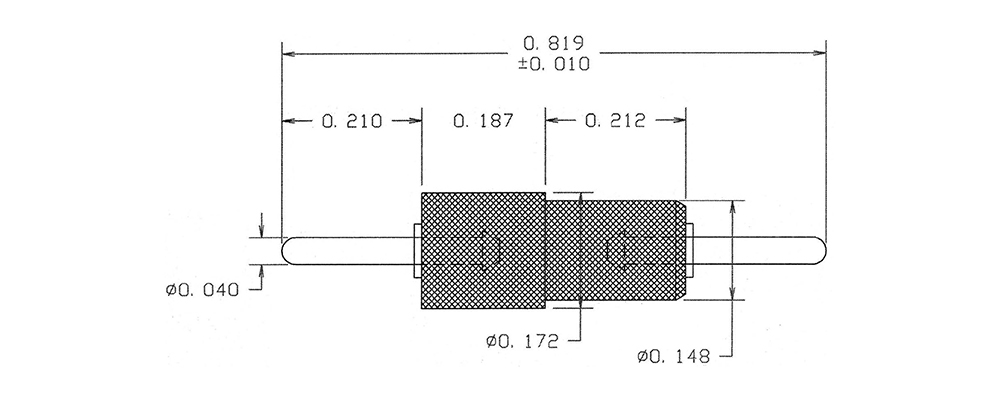

1107-03-0415
1107-03-0415
1107-03-0415
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Green YES
