Commercial
Insulated
Pin Terminals

Filter

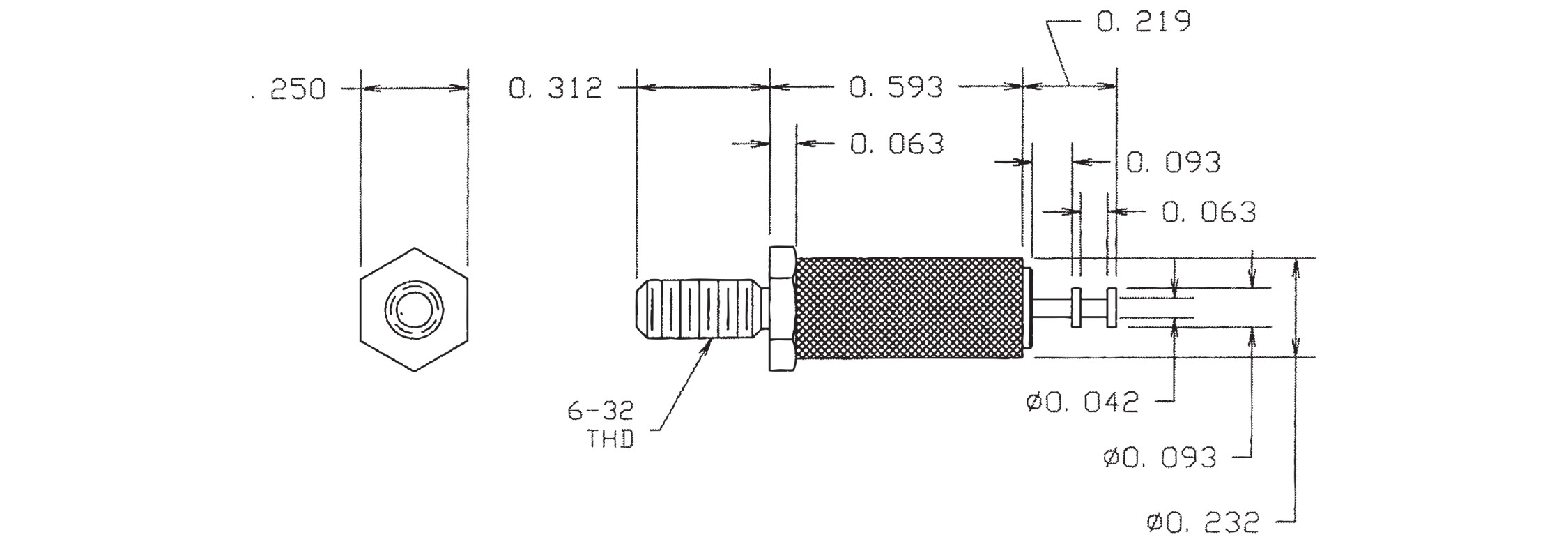

1167-75-0118
1167-75-0118
1167-75-0118
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1169-30-0414
1169-30-0414
1169-30-0414
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1169-37-0510
1169-37-0510
1169-37-0510
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Black NO

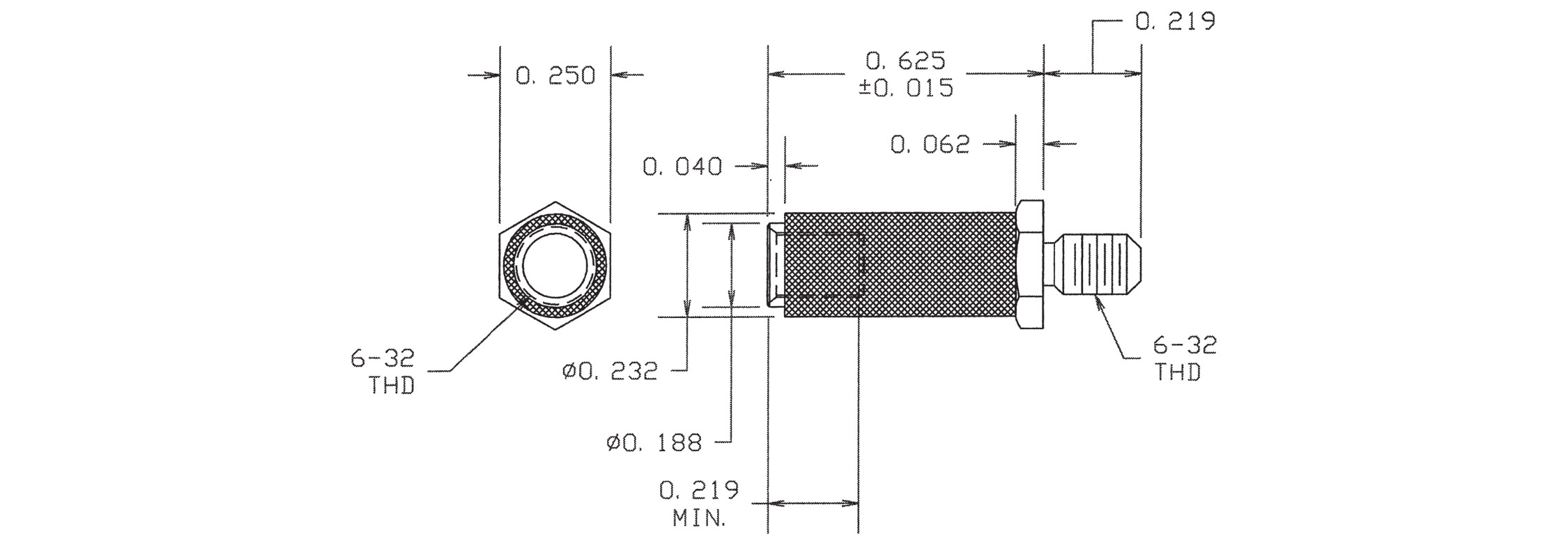

1170-06-07516
1170-06-07516
1170-06-07516
0.844" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Blue YES
1170-22-08812
1170-22-08812
1170-22-08812
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1175-013-0118
1175-013-0118
1175-013-0118
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-301-0414
1175-301-0414
1175-301-0414
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-351-0510
1175-351-0510
1175-351-0510
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-372-08816
1175-372-08816
1175-372-08816
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO
1175-404-0312
1175-404-0312
1175-404-0312
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-414-0418
1175-414-0418
1175-414-0418
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
1175-424-0514
1175-424-0514
1175-424-0514
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO

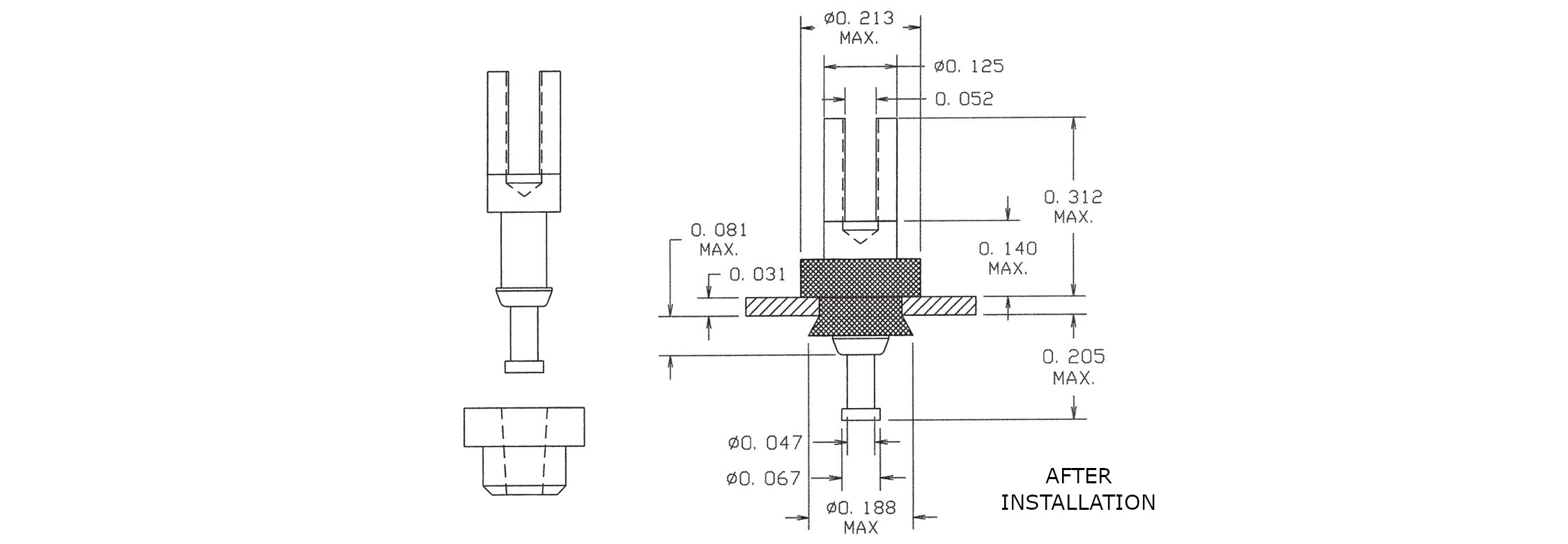

1175-441-0110
1175-441-0110
1175-441-0110
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Black YES

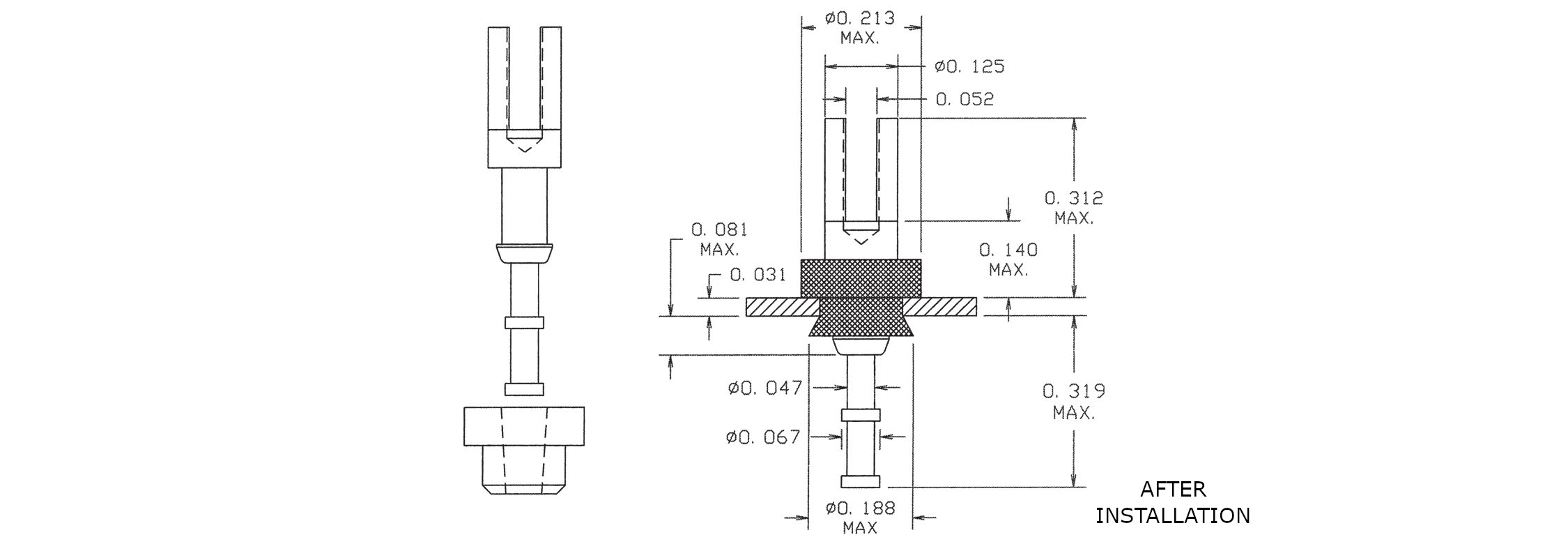

1175-451-0316
1175-451-0316
1175-451-0316
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
1175-462-04412
1175-462-04412
1175-462-04412
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO
1175-473-0518
1175-473-0518
1175-473-0518
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO

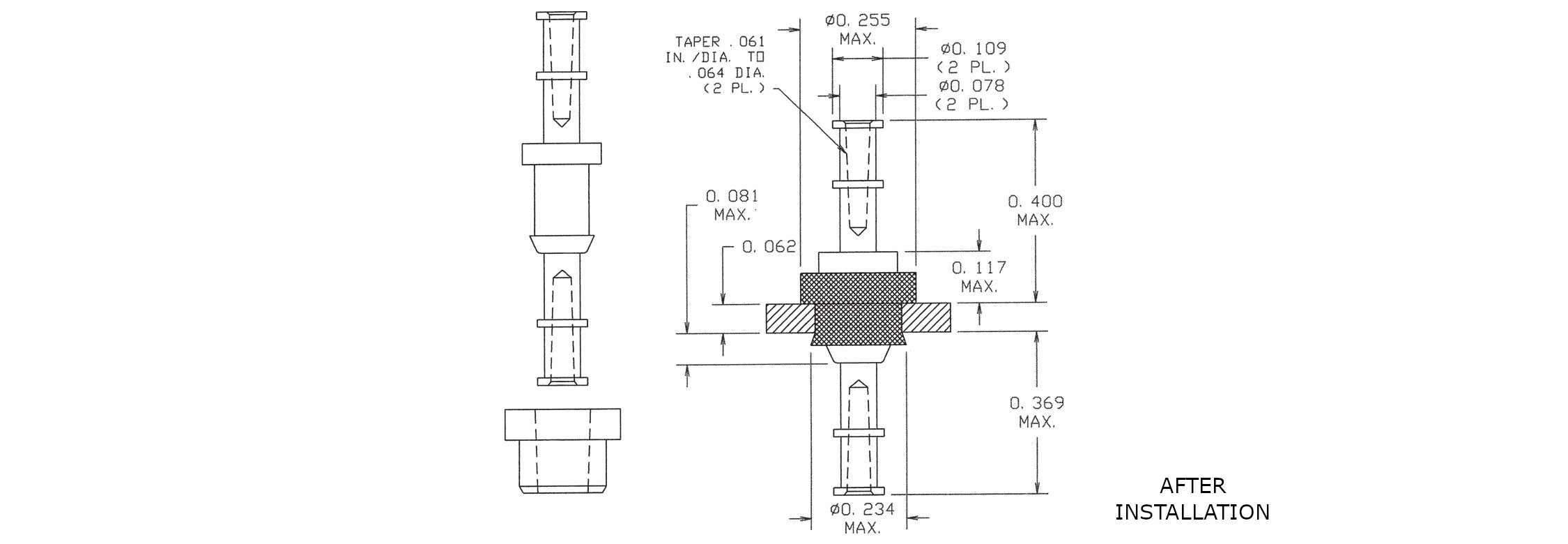

1175-492-0114
1175-492-0114
1175-492-0114
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO
1175-601-0410
1175-601-0410
1175-601-0410
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES
1175-702-04416
1175-702-04416
1175-702-04416
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES
1175-712-08812
1175-712-08812
1175-712-08812
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
