Commercial
Insulated
Pin Terminals

Filter

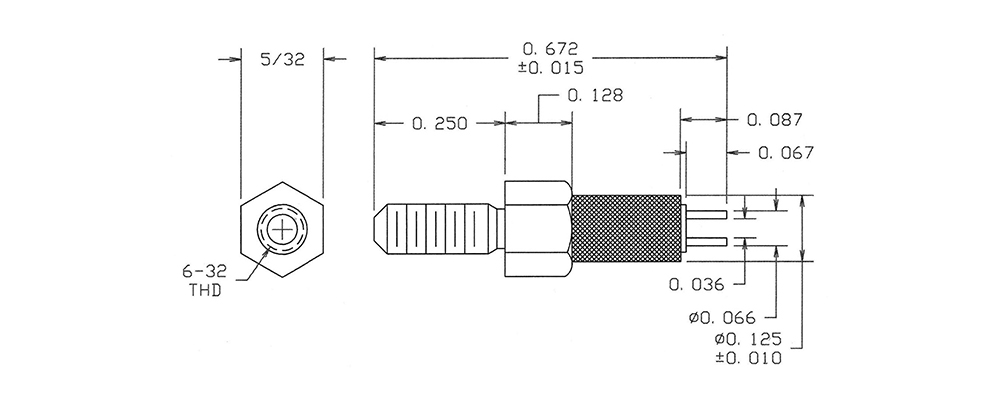

1126-47-0118
1126-47-0118
1126-47-0118
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Gray NO
1127-04-0414
1127-04-0414
1127-04-0414
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Yellow YES
1127-08-0510
1127-08-0510
1127-08-0510
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-12-08816
1127-12-08816
1127-12-08816
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO
1127-17-0312
1127-17-0312
1127-17-0312
0.813" - - 6-32 Nut 3/32 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1127-21-0418
1127-21-0418
1127-21-0418
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-25-0514
1127-25-0514
1127-25-0514
0.938" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO

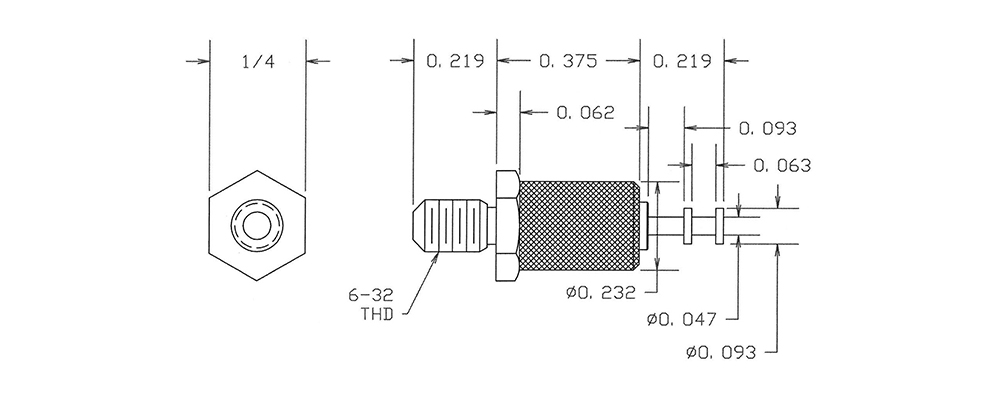

1127-31-0110
1127-31-0110
1127-31-0110
0.813" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES

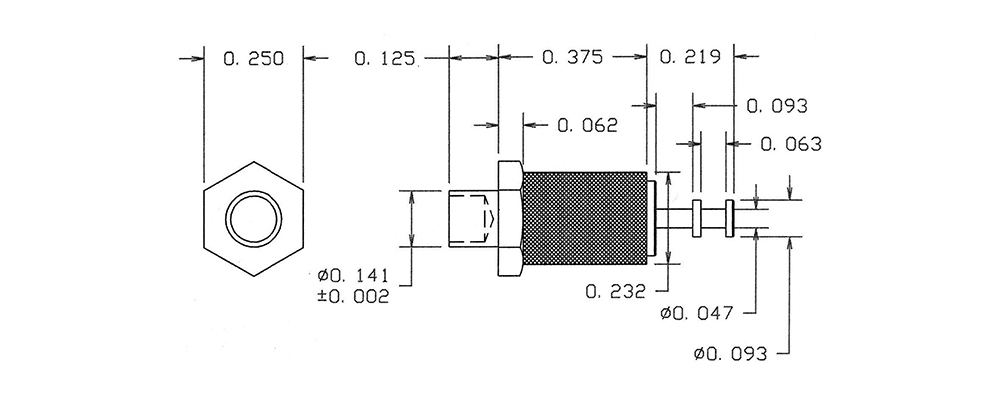

1127-35-0316
1127-35-0316
1127-35-0316
0.719" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES
1127-39-04412
1127-39-04412
1127-39-04412
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-43-0518
1127-43-0518
1127-43-0518
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Gray NO
1127-48-0114
1127-48-0114
1127-48-0114
0.875" - - Swage Mount 1/8 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-52-0410
1127-52-0410
1127-52-0410
0.875" - - Swage Mount 1/8 0.147 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES

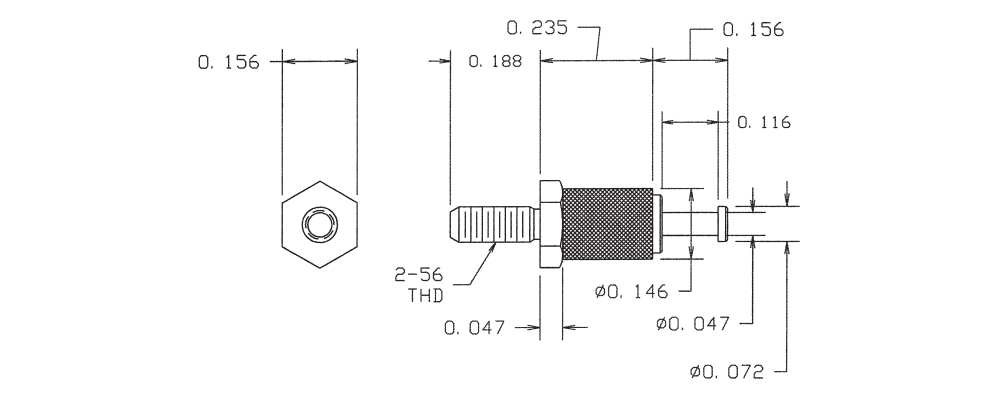

1127-57-04416
1127-57-04416
1127-57-04416
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-61-08812
1127-61-08812
1127-61-08812
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1127-66-0118
1127-66-0118
1127-66-0118
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES

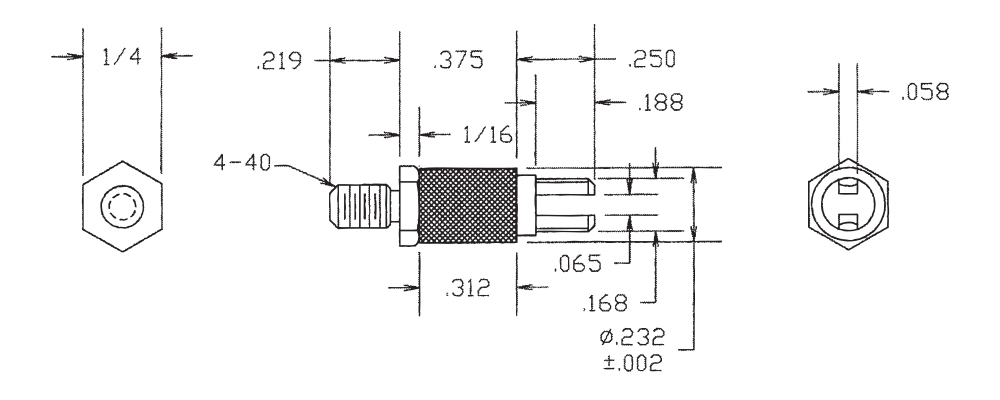

1127-70-0414
1127-70-0414
1127-70-0414
0.844" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES

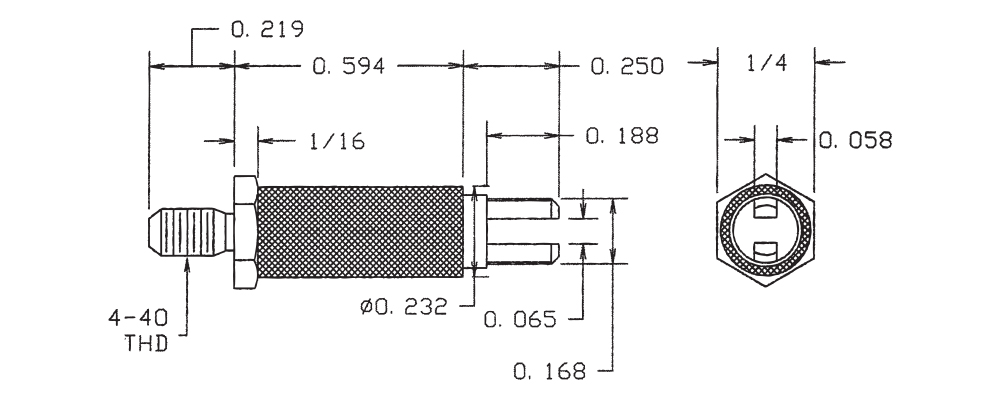

1127-74-0510
1127-74-0510
1127-74-0510
1.000" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-78-08816
1127-78-08816
1127-78-08816
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO

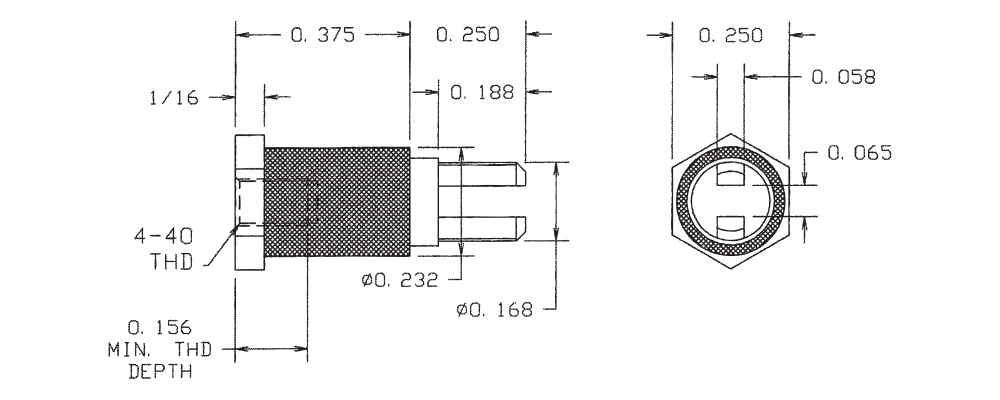

1127-83-0312
1127-83-0312
1127-83-0312
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
