Commercial
Insulated
Pin Terminals

Filter
1175-434-04411
1175-434-04411
1175-434-04411
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO

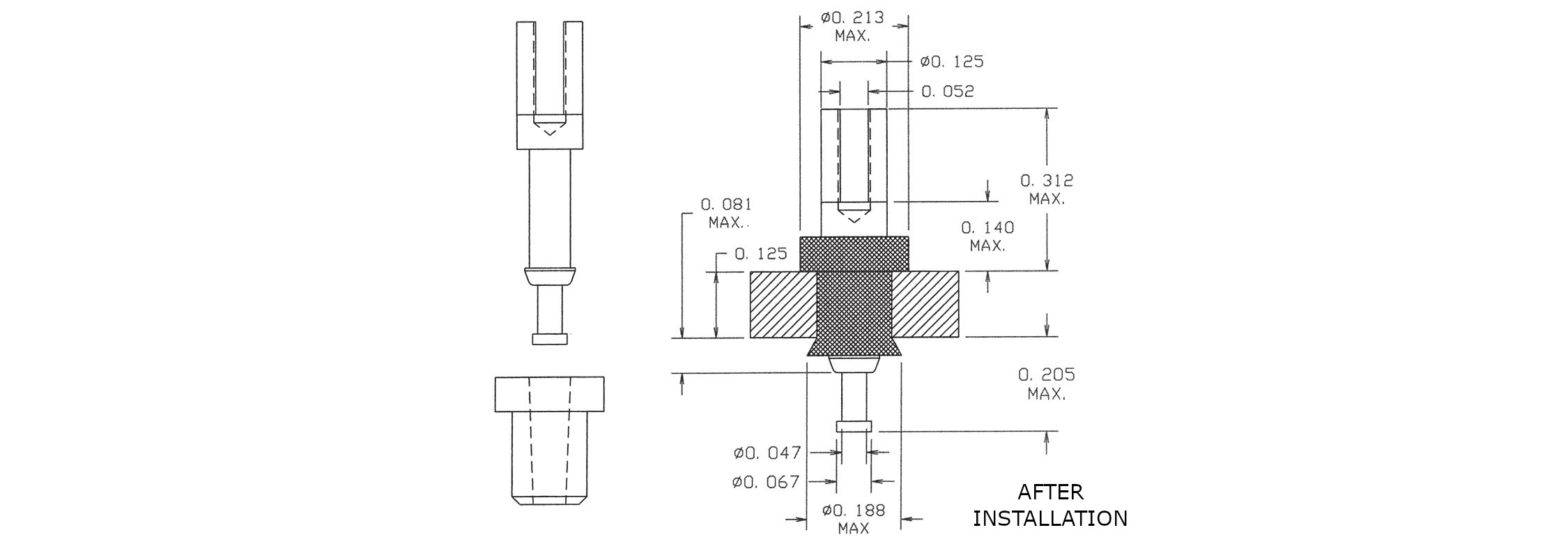

1175-444-0517
1175-444-0517
1175-444-0517
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO

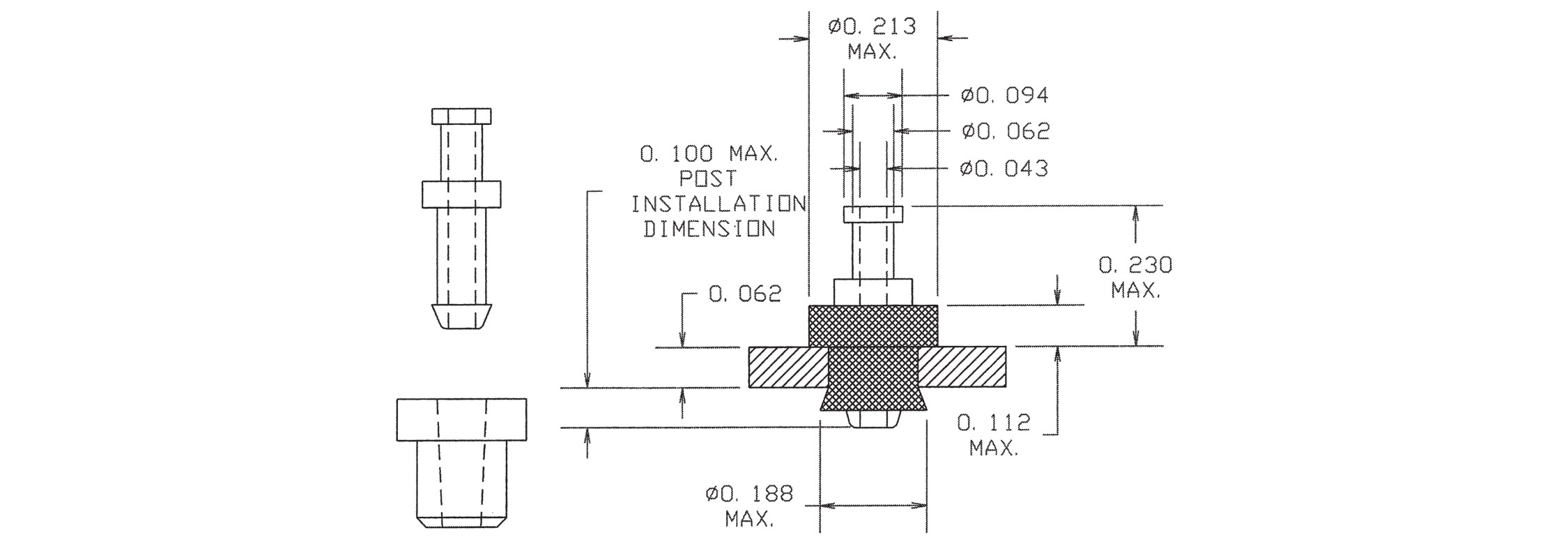

1175-462-0113
1175-462-0113
1175-462-0113
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Orange NO
1175-473-0319
1175-473-0319
1175-473-0319
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-491-04415
1175-491-04415
1175-491-04415
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES

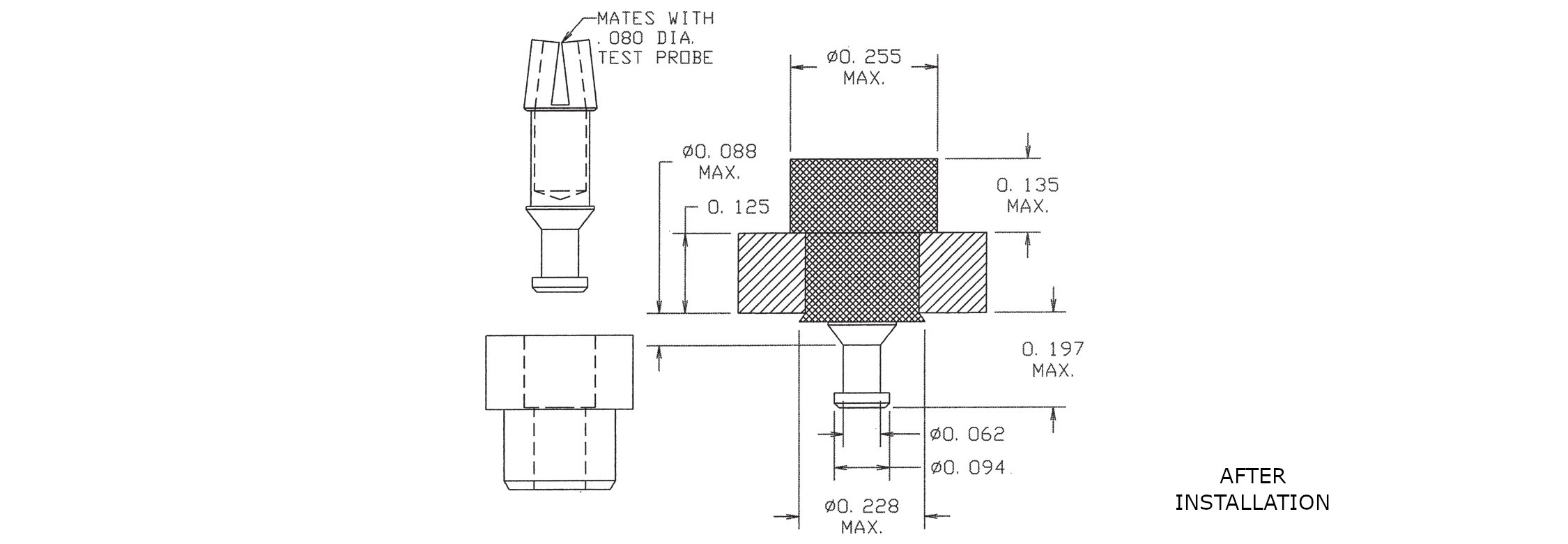

1175-514-08811
1175-514-08811
1175-514-08811
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO
1175-702-0117
1175-702-0117
1175-702-0117
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE Violet YES
1175-712-0413
1175-712-0413
1175-712-0413
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO
1175-722-04419
1175-722-04419
1175-722-04419
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES

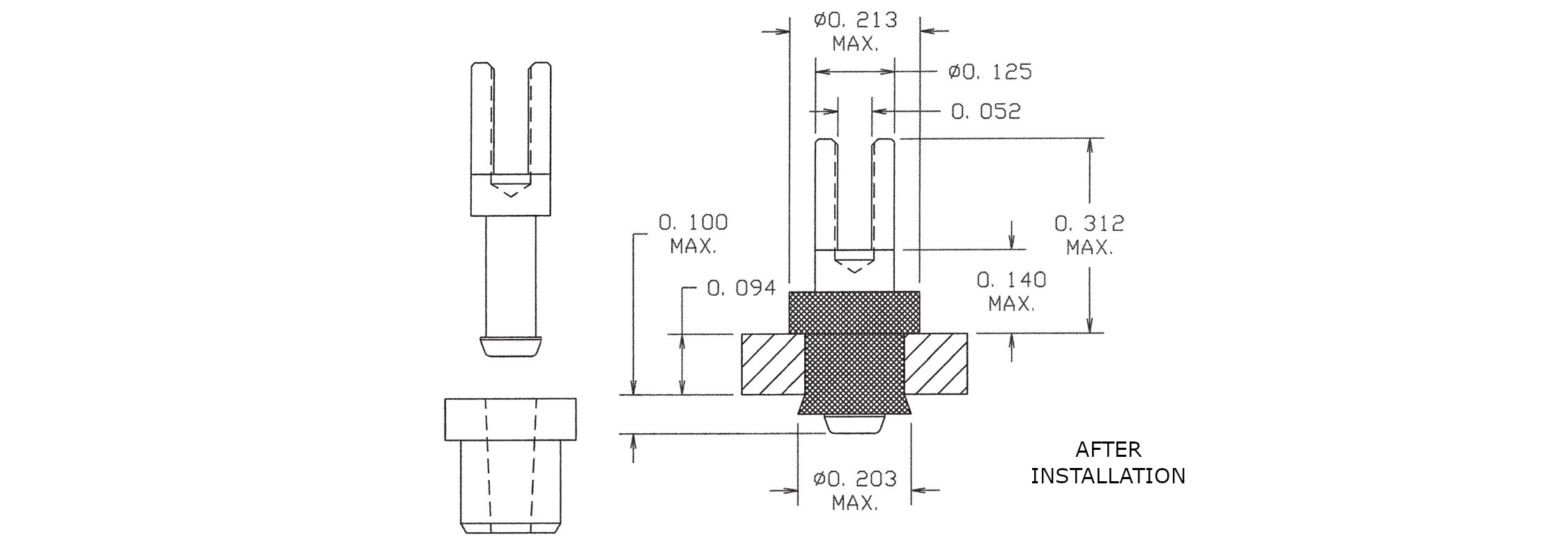

1175-733-08815
1175-733-08815
1175-733-08815
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO
1175-751-0311
1175-751-0311
1175-751-0311
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Brown NO
1175-762-0417
1175-762-0417
1175-762-0417
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES
1175-821-0513
1175-821-0513
1175-821-0513
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO

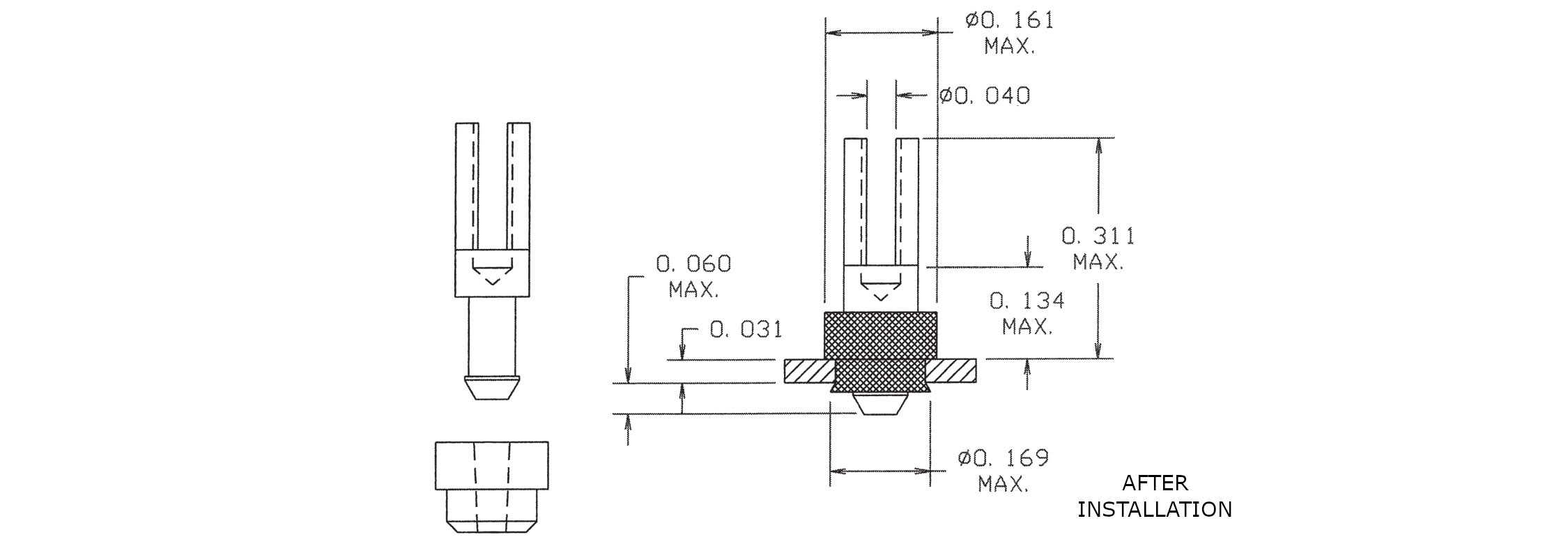

1175-841-08819
1175-841-08819
1175-841-08819
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1175-872-0315
1175-872-0315
1175-872-0315
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1177-02-04411
1177-02-04411
1177-02-04411
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin - - PTFE Brown NO

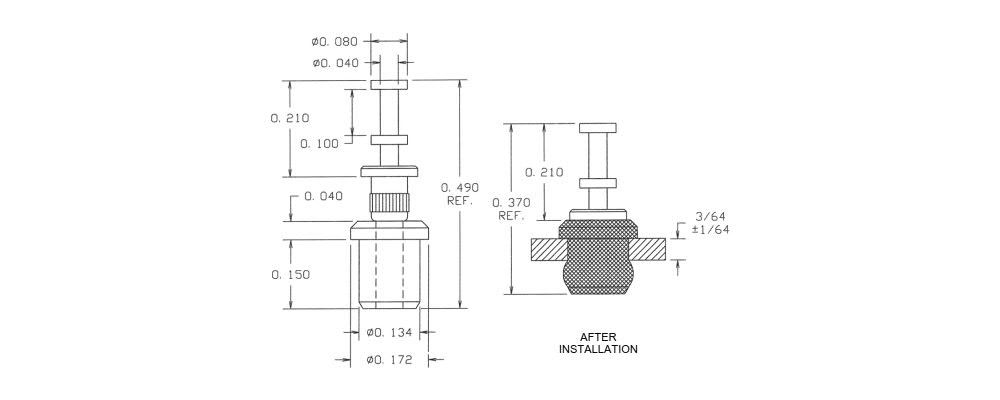

1177-11-0517
1177-11-0517
1177-11-0517
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Violet NO

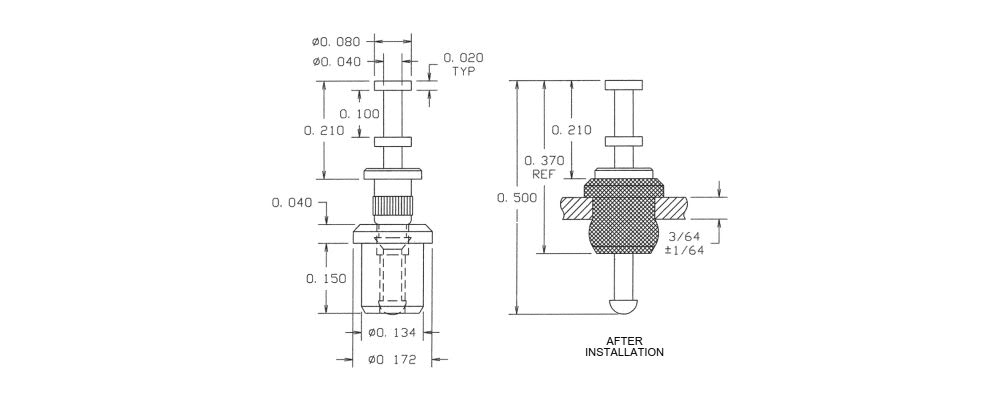

1177-32-0113
1177-32-0113
1177-32-0113
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Orange NO
1177-41-0319
1177-41-0319
1177-41-0319
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE White YES
1177-52-04415
1177-52-04415
1177-52-04415
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Green YES
