Commercial
Insulated
Pin Terminals

Filter
1127-51-08811
1127-51-08811
1127-51-08811
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Brown NO

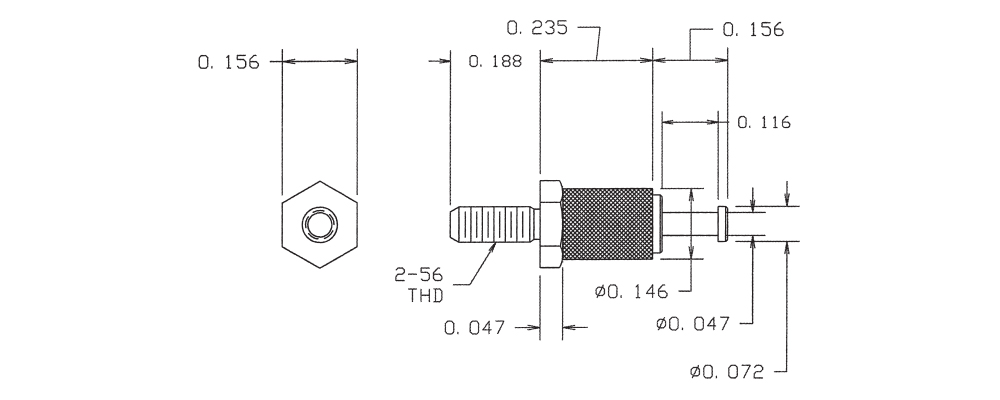

1127-57-0117
1127-57-0117
1127-57-0117
0.579" - - 2-56 Nut 1/16 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES

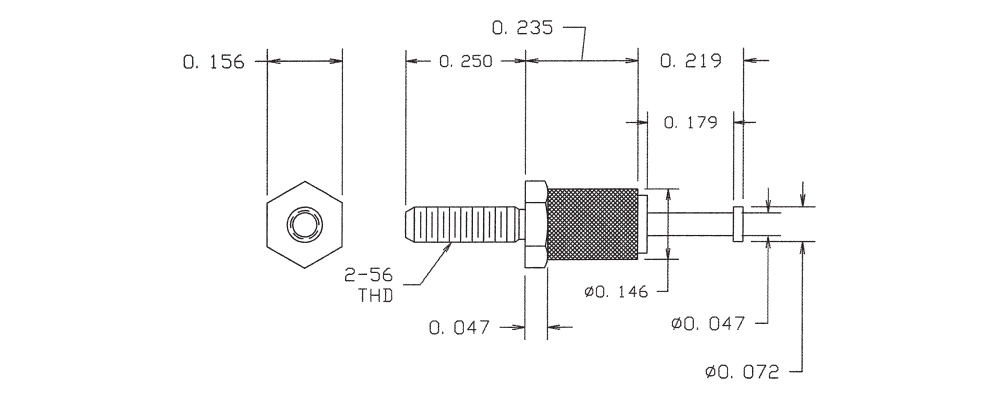

1127-61-0413
1127-61-0413
1127-61-0413
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES

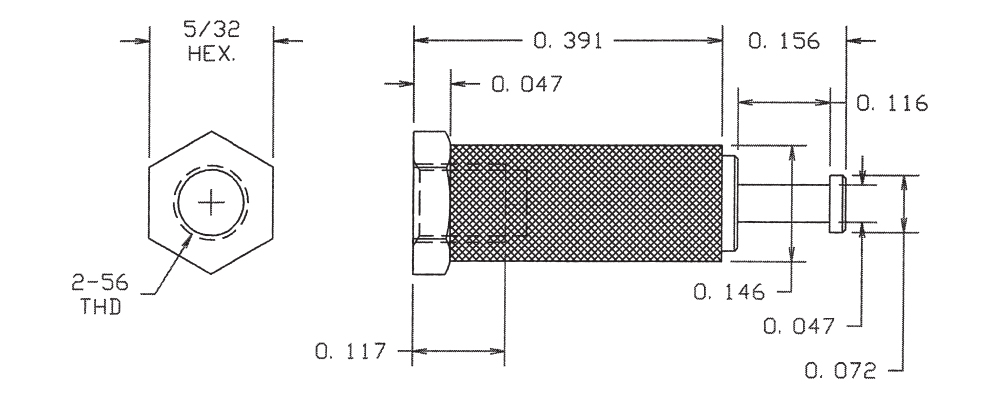

1127-65-04419
1127-65-04419
1127-65-04419
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES

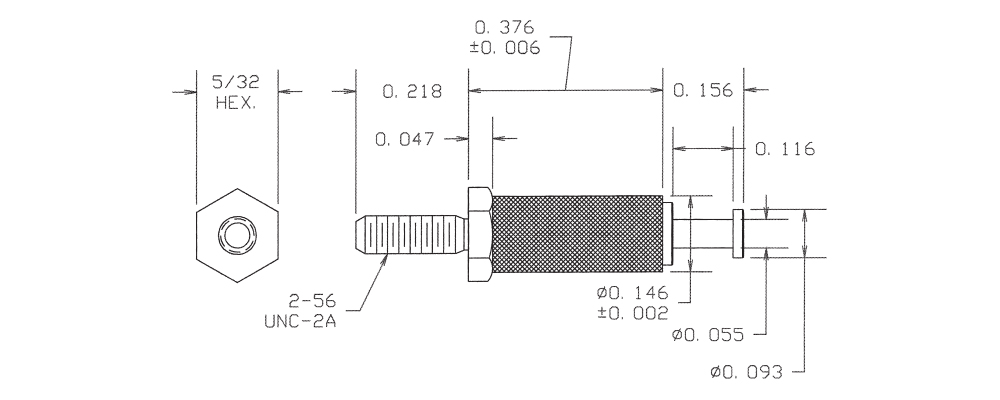

1127-69-08815
1127-69-08815
1127-69-08815
0.750" - - 2-56 Nut 3/32 0.094 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Green NO
1127-74-0311
1127-74-0311
1127-74-0311
1.000" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES

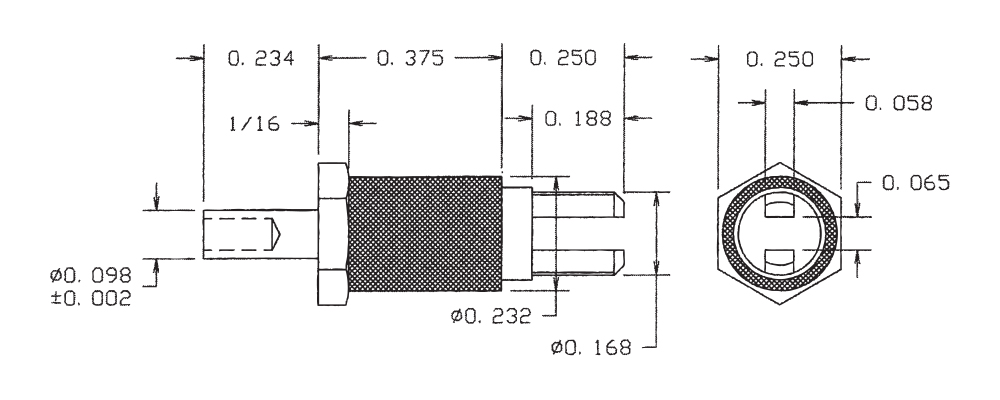

1127-78-0417
1127-78-0417
1127-78-0417
0.859" - - Swage Mount 3/16 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES

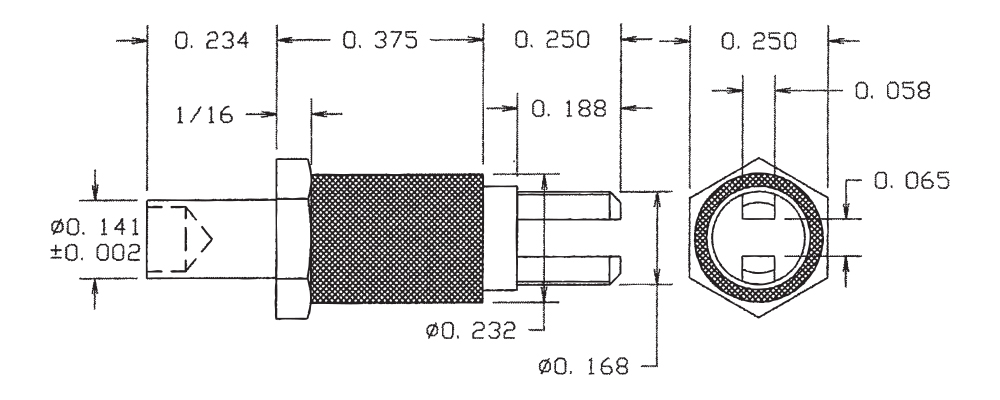

1127-82-0513
1127-82-0513
1127-82-0513
0.859" - - Swage Mount 3/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO

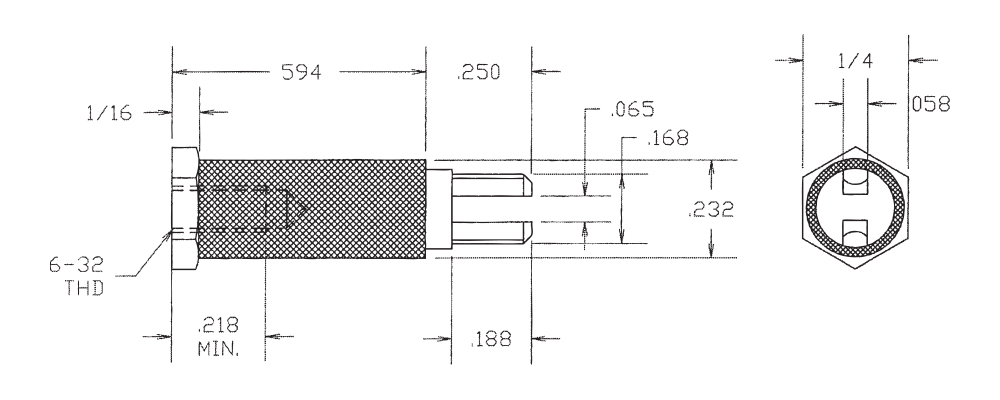

1127-86-08819
1127-86-08819
1127-86-08819
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO
1127-91-0315
1127-91-0315
1127-91-0315
0.674" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES
1127-95-04411
1127-95-04411
1127-95-04411
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1130-01-0517
1130-01-0517
1130-01-0517
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Violet NO
1130-07-0113
1130-07-0113
1130-07-0113
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Orange NO
1130R-05-0319
1130R-05-0319
1130R-05-0319
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE White YES
1131-02-04415
1131-02-04415
1131-02-04415
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Green YES
1131-06-08811
1131-06-08811
1131-06-08811
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Brown NO
1132-01-0117
1132-01-0117
1132-01-0117
0.645" 0.090 - Solder 7/32 0.0935 Brass Silver - - PTFE Violet YES
1133-02-0413
1133-02-0413
1133-02-0413
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1133R-05-04419
1133R-05-04419
1133R-05-04419
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE White YES
1135-04-08815
1135-04-08815
1135-04-08815
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin-Lead - - PTFE Green NO
